spark plugs Acura MDX HYBRID 2018 Owner's Manual

567
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder MessageSystem Message
Indicator
Sub Items
Main
Item
*1: If the message
Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair Kit
bottle*
●Inspect tie rod ends, steering gearbox, boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 30,000 miles (48,000 km), then every 25,000 miles (40,000 km).
*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles/100,000 km.
*6: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear)
stress to fluid. This requires twin motor unit fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the twin motor
unit fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Replace timing belt and inspect water pump*5
●Inspect valve clearance
5
●Replace engine coolant
6●Replace twin motor unit fluid*6
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 567 ページ ２０１８年３月２７日　火曜日　午後８時６分

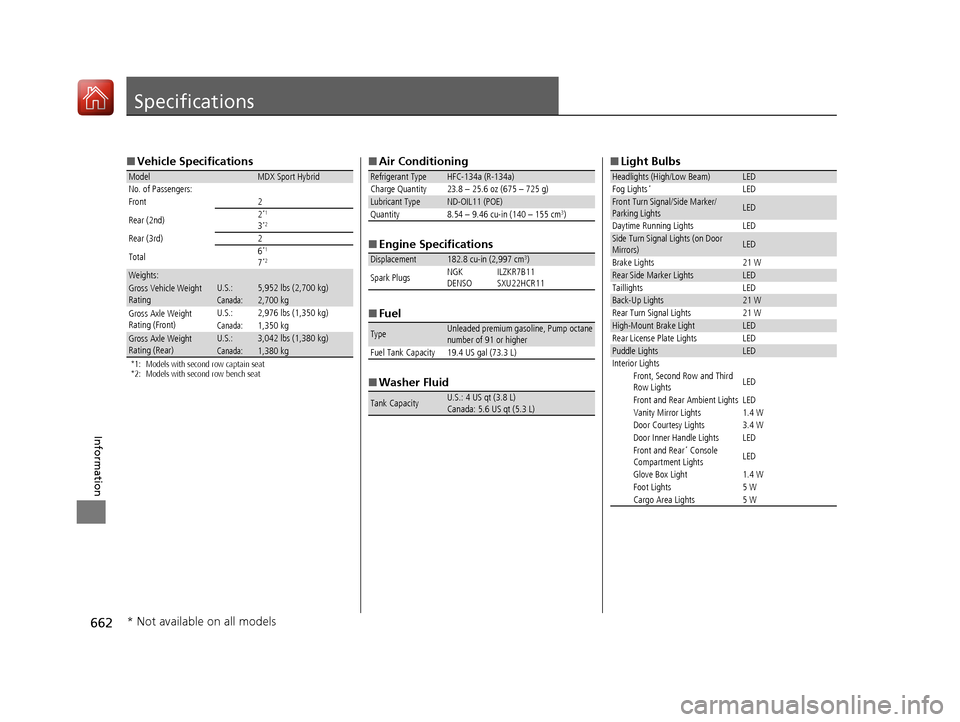

662
Information
Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
ModelMDX Sport Hybrid
No. of Passengers:
Front 2
Rear (2nd) 2
*1
3*2
Rear (3rd)
2
Total 6*1
7*2
Weights:Gross Vehicle Weight
RatingU.S.:5,952 lbs (2,700 kg)Canada:2,700 kgGross Axle Weight
Rating (Front)U.S.:2,976 lbs (1,350 kg)Canada:1,350 kgGross Axle Weight
Rating (Rear)U.S.:3,042 lbs (1,380 kg)Canada:1,380 kg
■
Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 23.8 – 25.6 oz (675 – 725 g)
Lubricant TypeND-OIL11 (POE)
Quantity 8.54 – 9.46 cu-in (140 – 155 cm3)
Displacement182.8 cu-in (2,997 cm3)
Spark Plugs NGK
DENSOILZKR7B11
SXU22HCR11
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 19.4 US gal (73.3 L)
Tank CapacityU.S.: 4 US qt (3.8 L)
Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal/Side Marker/
Parking LightsLED
Daytime Running Lights LED
Side Turn Signal Lights (on Door
Mirrors)LED
Brake Lights 21 W
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights21 W
Rear Turn Signal Lights 21 W
High-Mount Brake LightLED
Rear License Plate Lights LED
Puddle LightsLED
Interior Lights Front, Second Row and Third
Row Lights LED
Front and Rear Ambient Lights LED
Vanity Mirror Lights 1.4 W
Door Courtesy Lights 3.4 W
Door Inner Handle Lights LED
Front and Rear
* Console
Compartment Lights LED
Glove Box Light 1.4 W
Foot Lights 5 W
Cargo Area Lights 5 W
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 662 ページ ２０１８年３月２７日　火曜日　午後８時６分

682
Index
S
Safe Driving................................................. 33
Safety Checklist ........................................... 38
Safety Labels ............................................... 81
Safety Message ............................................. 1
Seat Belts ..................................................... 39
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 46
Detachable Anchor .................................... 44
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 72
Pregnant Women ...................................... 45
Reminder ................................................... 41
Warning Indicator ................................ 41, 91
Seat Heaters ...................................... 220, 221
Seat Ventilation ........................................ 220
Seats .......................................................... 195
Adjusting ................................................. 195
Driver’s Seat Lumbar Support................... 195
Front Seats .............................................. 195
Rear Seats................................................ 206
Seat Heaters .................................... 220, 221
Seat Ventilation ....................................... 220
Second Row Seat ............................. 199, 200
Third Row Seat ........................................ 206
Second Row Outer Seats Heaters ............ 221
Second Row Seat (Folding Down) ........... 200
Security System ......................................... 166
Immobilizer System Indicator ..................... 96 Security System Alarm Indicator................. 97
Selecting a Child Seat ................................. 66
Sequential Mode ...................................... 471
Sequential Mode Operation .................... 472
Setting the Clock ...................................... 142
SH-AWD ® Torque Distribution Monitor .. 129
Shift Button ........................................ 23, 465
Operation................................................ 467
Shifting (Transmission) ....................... 23, 465
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
SiriusXM ® Radio ........................................ 264
Snow Tires ................................................. 599
Sounds Unique to the SPORT HYBRID SH-AWD® System...................................... 13
Spare Tire .......................................... 615, 663
Spark Plugs ............................................... 662
Specifications ............................................ 662
Specified Fuel ................................... 556, 662
Speedometer ............................................ 123
Speed-sensitive Electric Power Steering (EPS)
SystemIndicator............................................ 95, 643
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) ....... 508
SRS Airbags (Airbags) ................................. 50
Steering Wheel ......................................... 191
Adjusting ................................................ 191
Heater ..................................................... 219
Stopping ................................................... 534 Summer Tires
............................................ 599
Sunglasses Holder .................................... 219
Supplemental Restraint System (SRS) ....... 50
Surround View Camera System ............... 546
Switches (Around the Steering
Wheel) ............................................ 4, 5, 172
Synchronized Mode ................................. 226
System Message Indicator ......................... 97
T
Tachometer.............................................. 123
Tailgate ..................................................... 158
Unable to Open ...................................... 658
Temperature Outside Temperature Display .................. 127
Temperature Sensor ........................ 127, 233
Temporary Tire Repair Kit ....................... 623
Text Message .................................... 431, 433
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access ............................. 199
Tie-down Anchors .................................... 218
Time (Setting) ........................................... 142
Tire Fill Assist .................................... 512, 645
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist ................................. 512
Indicator ........................................... 95, 645
Tire Repair Kit .......................................... 622
18 ACURA MDX E-AWD-31TRX6100.book 682 ページ ２０１８年３月２７日　火曜日　午後８時６分
