Page 3 of 685
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 39 Airbags P. 47
2Instrument Panel P. 83
Indicators P. 84 Gauges and Multi-Information Display (MID) P. 123
2Controls P. 141
Clock P. 142 Locking and Unlocking the Doors P. 143
Moonroof P. 171
Adjusting the Seats P. 195
2 Features P. 235
Audio System P. 236 Audio System Basic Operation P. 243
Rear Entertainment System (RES)* P. 342 Customized Features P. 362
2 Driving P. 447
Before Driving P. 448 Towing a Trailer P. 454Parking Your Vehicle P. 534Multi-View Rear Camera* P. 544
Fuel Economy and CO
2 Emissions P. 559
2 Maintenance P. 561
Before Performing Maintenance P. 562 Maintenance MinderTM P. 565
Checking and Maintaining Wiper Blades P. 587
Remote Control and Wireless Headphone Care
* P. 602
2 Handling the Unexpected P. 613
Tools P. 614 If a Tire Goes Flat P. 615
Indicator, Coming On/Blinking P. 641 Fuses P. 647
When You Cannot Open the Tailgate P. 658
2 Information P. 661
Specifications P. 662 Identification Numbers P. 664
Emissions Testing P. 667 Warranty Coverages P. 668
18 ACURA MDX E-AWD-31TRX6100.book 2 ページ 2018年3月27日 火曜日 午後8時6分
Page 4 of 685
Contents
Child Safety P. 62Exhaust Gas Hazard P. 80Safety Labels P. 81
Opening and Closing the Tailgate P. 158 Security System P. 166 Opening and Closing the Windows P. 169
Operating the Switches Around the Steering Wheel P. 172 Adjusting the Mirrors P. 192
Interior Lights/Interior Convenience Items P. 209 Climate Control System P. 222
Audio Error Messages P. 315General Information on the Audio System P. 323
HomeLink ® Universal Transceiver P. 394 Bluetooth® HandsFreeLink ® P. 397 AcuraLink ® P. 438
Off-Highway Driving Guidelines P. 455 When Driving P. 457 Braking P. 517
Surround View Camera System* P. 546 Refueling P. 556
Maintenance Under the Hood P. 569 Replacing Light Bulbs P. 582
Checking and Maintaining Tires P. 591 12-Volt Battery P. 600 Remote Transmitter Care P. 601
Climate Control System Maintenance P. 604 Clea ning P. 605 Accessories and Modifications P. 611
Power System Won’t Start P. 634 Jump Starting P. 637 Overheating P. 639
Emergency Towing P. 656 When You Cannot Unlock the Fuel Fill Door P. 657
Refueling P. 659
Devices that Emit Radio Waves P. 665 Reporting Safety Defects P. 666
Authorized Manuals P. 670 Client Service Information P. 671
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 83
ControlsP. 141
FeaturesP. 235
DrivingP. 447
MaintenanceP. 561
Handling the UnexpectedP. 613
InformationP. 661
IndexP. 675
18 ACURA MDX E-AWD-31TRX6100.book 3 ページ 2018年3月27日 火曜日 午後8時6分
Page 29 of 685
28
Quick Reference Guide
Handling the Unexpected (P613)
Flat Tire (P615)
● Park in a safe location and repair the flat
tire using the tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P641)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with compact spare tire
Power System Won’t
Start
(P634)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P647)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P639)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P656)
● Call a professional towing service if you
need to tow your vehicle.
18 ACURA MDX E-AWD-31TRX6100.book 28 ページ 2018年3月27日 火曜日 午後8時6分
Page 91 of 685

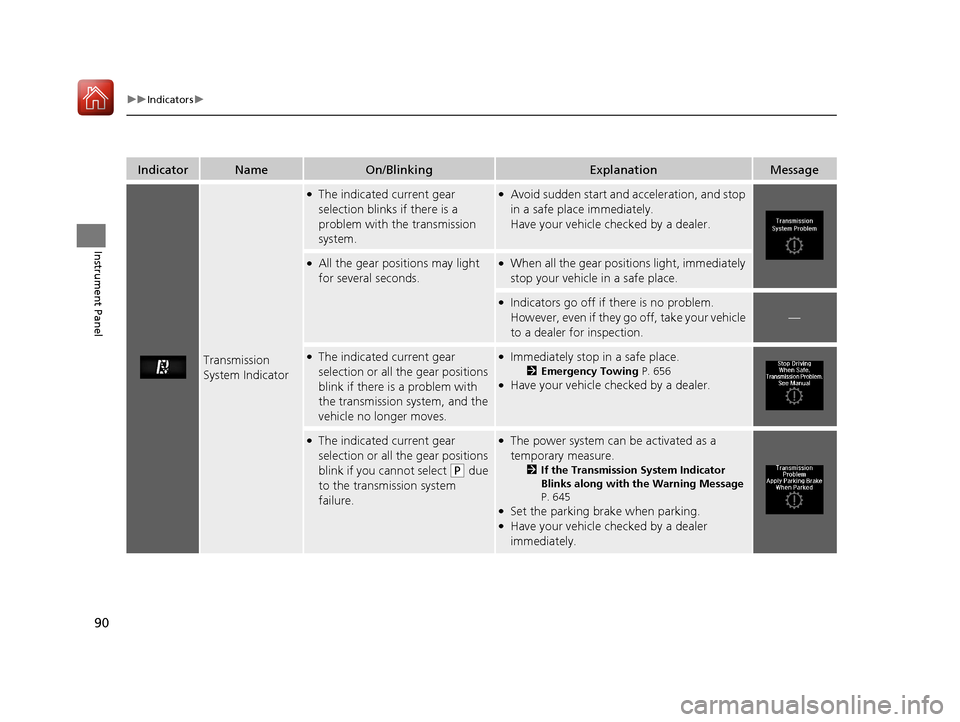

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System Indicator
●The indicated current gear
selection blinks if there is a
problem with the transmission
system.●Avoid sudden start and acceleration, and stop
in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may light
for several seconds.●When all the gear positions light, immediately
stop your vehicle in a safe place.
●Indicators go off if there is no problem.
However, even if they go off, take your vehicle
to a dealer for inspection.
—
●The indicated current gear
selection or all the gear positions
blink if there is a problem with
the transmission system, and the
vehicle no longer moves.●Immediately stop in a safe place.
2Emergency Towing P. 656●Have your vehicle checked by a dealer.
●The indicated current gear
selection or all the gear positions
blink if you cannot select
(P due
to the transmission system
failure.
●The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator
Blinks along with the Warning Message
P. 645
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
18 ACURA MDX E-AWD-31TRX6100.book 90 ページ 2018年3月27日 火曜日 午後8時6分
Page 448 of 685
447
Driving
This chapter discusses driving and refueling.
Before Driving................................... 448
Towing a Trailer ................................ 454
Off-Highway Driving Guidelines ..... 455
When Driving Turning on the Power ...................... 457
Dual Clutch Transmission ................. 464
Shifting ............................................ 465
Acoustic Vehicle Al erting System ...... 473
Integrated Dynamics System............. 474
Front Sensor Camera ....................... 475
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ............................. 477
Road Departure Mitigation (RDM) System ... 492Lane Keeping Assist System (LKAS)... 497
Vehicle Stability Assist ® (VSA ®), aka
Electronic Stability Control (ESC),
System ....................................... 505
Agile Handling Assist ....................... 507
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) .. 508
Blind spot information (BSI) System .. 509
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .......................... 512
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ........... 514
High Voltage Battery ........................ 516
Braking Brake System ................................... 517 Anti-lock Brake System (ABS) ........... 523
Brake Assist System ......................... 524
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 525
Parking Your Vehicle
When Stopped ................................ 534
Parking Sensor System
*................... 536
Cross Traffic Monitor ....................... 540
Multi-View Rear Camera
*................ 544
Surround View Camera System*..... 546
Refueling
Fuel Information .............................. 556
How to Refuel ................................. 557
Fuel Economy and CO
2 Emissions .... 559
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 447 ページ 2018年3月27日 火曜日 午後8時6分
Page 452 of 685

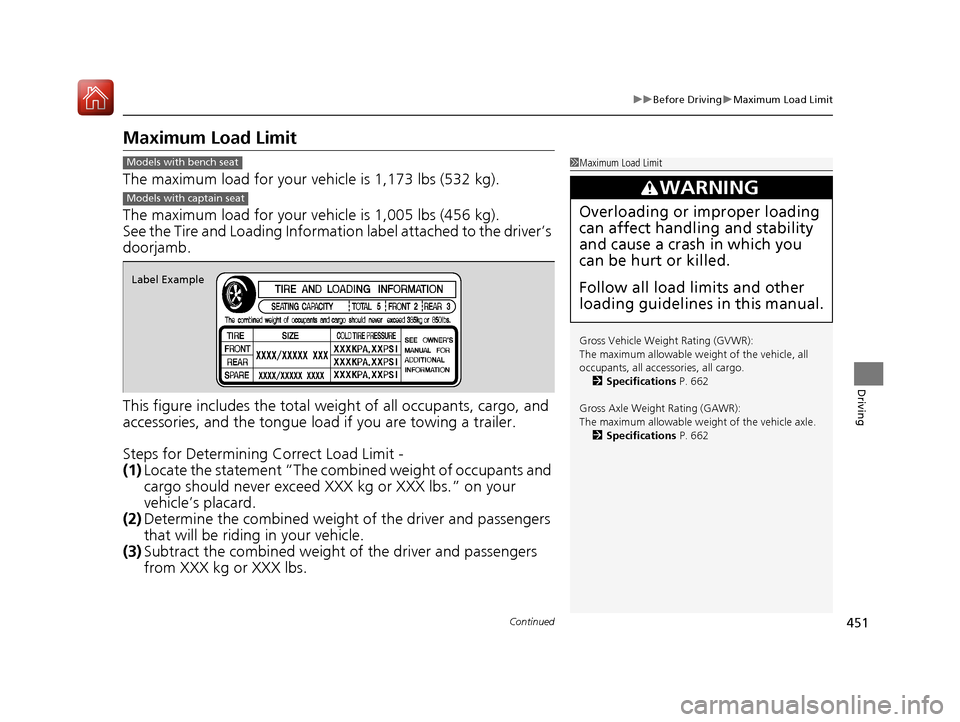

451
uuBefore Driving uMaximum Load Limit
Continued
Driving
Maximum Load Limit
The maximum load for your ve hicle is 1,173 lbs (532 kg).
The maximum load for your ve hicle is 1,005 lbs (456 kg).
See the Tire and Loading Informatio n label attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
1Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all acce ssories, all cargo.
2 Specifications P. 662
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 662
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Models with bench seat
Models with captain seat
Label Example
18 ACURA MDX E-AWD-31TRX6100.book 451 ページ 2018年3月27日 火曜日 午後8時6分
Page 453 of 685
452
uuBefore Driving uMaximum Load Limit
Driving

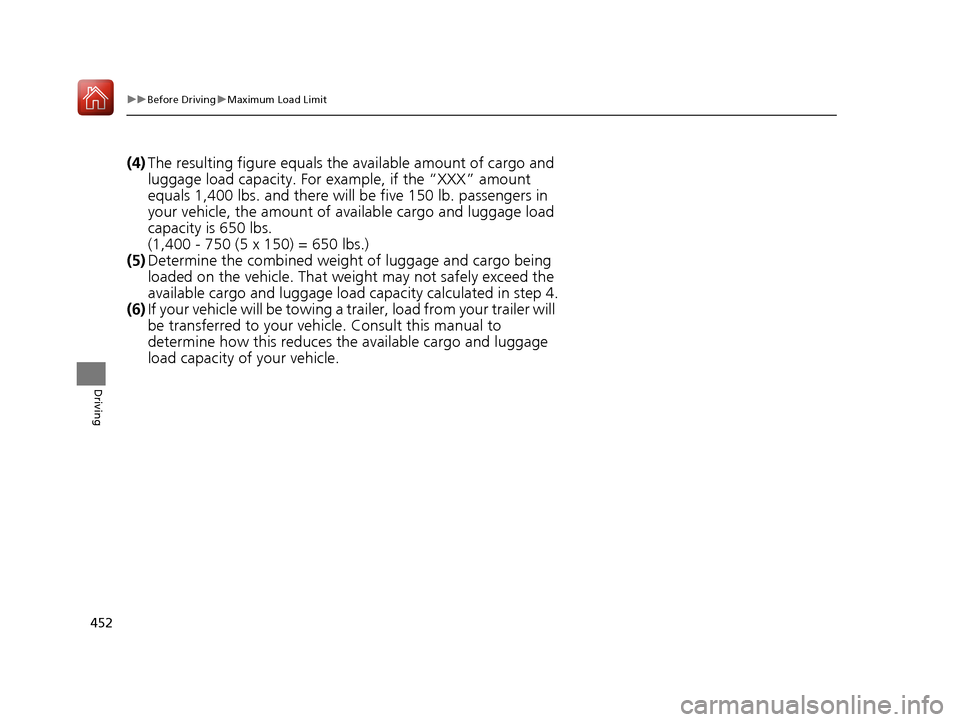

(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the amount of av ailable cargo and luggage load
capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a tra iler, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
18 ACURA MDX E-AWD-31TRX6100.book 452 ページ 2018年3月27日 火曜日 午後8時6分
Page 455 of 685
454
Driving
Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your
warranties.
Towing Your Vehicle
Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refer to the emergency towing information.
2Emergency Towing P. 656
18 ACURA MDX E-AWD-31TRX6100.book 454 ページ 2018年3月27日 火曜日 午後8時6分
Page 614 of 685

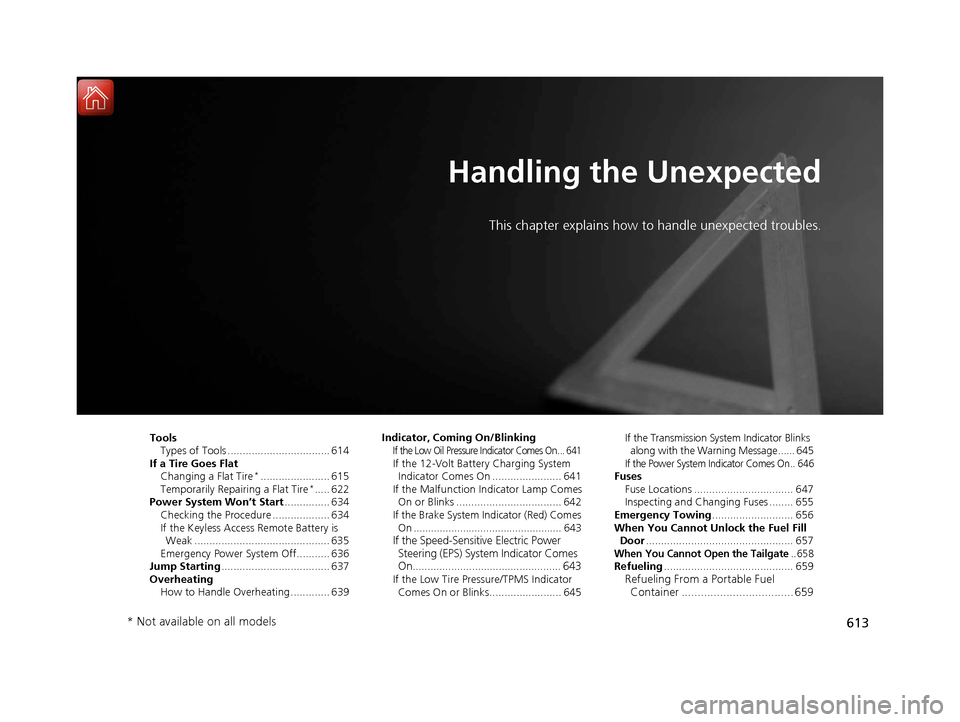

613
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 614
If a Tire Goes Flat
Changing a Flat Tire
*....................... 615
Temporarily Repair ing a Flat Tire*..... 622
Power System Won’t Start ............... 634
Checking the Procedure ................... 634
If the Keyless Access Remote Battery is Weak ............................................. 635
Emergency Power System Off........... 636
Jump Starting .................................... 637
Overheating
How to Handle Overheating ............. 639 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ... 641If the 12-Volt Battery Charging System
Indicator Comes On ....................... 641
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 642
If the Brake System Indicator (Red) Comes On ................................................... 643
If the Speed-Sensitive Electric Power Steering (EPS) System Indicator Comes
On.................................................. 643
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks........................ 645 If the Transmission System Indicator Blinks
along with the Warning Message ...... 645
If the Power System Indicator Comes On .. 646Fuses Fuse Locations ................................. 647
Inspecting and Changing Fuses ........ 655
Emergency Towing ........................... 656
When You Cannot Unlock the Fuel Fill Door ................................................. 657
When You Cannot Open the Tailgate.. 658Refueling ........................................... 659Refueling From a Portable Fuel
Container ................................... 659
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 613 ページ 2018年3月27日 火曜日 午後8時6分
Page 615 of 685
614
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/Jack Handle
Jack
Jack Handle Bar
Models with a compact spare tire
Towing Hook Funnel
Funnel
Tool Case
18 ACURA MDX E-AWD-31TRX6100.book 614 ページ 2018年3月27日 火曜日 午後8時6分
