Acura MDX HYBRID 2019 User Guide

10
Quick Reference Guide
*: When Integrated Dynamics System is in SPORT+ mode, EV Launch and EV Cruising cannot be operated.
*: Operating paddle shifters when the gear position is in ( D or (S cancels EV Launch and EV Cruising.
Operating
modeEV Launch*Engine DriveEV Cruising*Power Acceleration
Driving
SpeedLaunch Acceleration:●Rear Motor DriveGentle Acceleration:●Engine DriveLow Speed Cruise:●Rear Motor DriveAggressive Acceleration:●Engine Drive●Motor Assist
Power Flow Monitor
Electric motorsDrive- / DriveDriveDrive
Generators-Generate / ---
EngineStoppedRunningStoppedRunning
High Voltage batteryDischargesCharges/DischargesDischargesDischarges
19 ACURA MDX E-AWD-31TRX6200.book 10 ページ ２０１８年６月２２日　金曜日　午後７時４２分

11
Quick Reference Guide
Operating modeEngine CruisingRegenerationAWD Mode
Driving
SpeedHigh Speed Cruise:●Engine DriveDeceleration:●Front & Rear RegenerationSlippery Condition:●Engine Drive●Front Generation●Rear Motor Drive
Power Flow Monitor
Electric motorsDriveRegenerateDrive
GeneratorsGenerateRegenerateGenerate
EngineRunningStoppedRunning
High Voltage batteryCharges/DischargesChargesCharges/Discharges
* Not available on all models
19 ACURA MDX E-AWD-31TRX6200.book 11 ページ ２０１８年６月２２日　金曜日　午後７時４２分

12
Quick Reference Guide
Energy Efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system us e negatively affects vehicle range and efficiency. Either of these use patterns wil l more quickly
reduce the High Voltage battery's state of charge.
Battery Types
There are two types of batteries used in this vehicle: a standard 12-volt battery that powers th e airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motors and recharge the 12-volt battery.
Regenerative Energy and Regenerative Braking
When decelerating without the accelerator being depressed or the brake pedal being applied, or while driving downhill, the elec tric motors
act as generators that recover a portion of the electrical energy that was used to accelerate the vehicle. This regenerative br aking slows the
vehicle in a manner similar to engine braking in a gasoline-powered vehicle.
When the high voltage battery is fully charged or its condition is affected by extreme temperatures or other factors, regenerative braking
may not work.
19 ACURA MDX E-AWD-31TRX6200.book 12 ページ ２０１８年６月２２日　金曜日　午後７時４２分

13
Quick Reference Guide
Auto Engine Stop/Start
Your vehicle’s gasoline engine will automatically stop and start during vehicle operation as needed to meet driving and battery conditions.
These are some examples that could cause the gasoline engine to automatically start.
In the following cases, however, Auto Engine Stop may not activate.
●When the Integrated Dynamics System is in SPORT+ mode.
● The vehicle momentarily needs additional power for aggressive acceleration, driving uphill, or driving at high speeds.
● The climate control system is in heavy use.
● The High Voltage battery temperature is high or low.
● The High Voltage battery state of charge is low.
● When the gear position is in
(S or ( R.
Sounds Unique to th e SPORT HYBRID SH-AWD ® System
When you first start driving this vehicle, you will likely hear so me unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of thes e sounds are unique to this vehicle‘s powertrain, fuel, and climate control
systems; others are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent f rom a
vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.
19 ACURA MDX E-AWD-31TRX6200.book 13 ページ ２０１８年６月２２日　金曜日　午後７時４２分

14
Quick Reference Guide
Safety Precautions
Do not touch the High Voltage systemAttempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. Make sure that any maintenance or repairs to the High
Voltage system is performed by an Acura dealer.
If a crash occurs●Be careful of electric shock hazard.
uIf a severe crash damages your vehi cle’s High Voltage system, there is a possibility of electrical shock
due to exposed High Voltage components or wires. If this happens, do not touch any of the High
Voltage system components or any of its orange wires.
● Avoid contact with High Voltage battery fluid.
uThe High Voltage battery contains a flammable electrolyte that could leak as a result of a severe
crash. Avoid skin or eye c ontact with the electrolyte as it is corrosive. If you accidentally come into
contact with the electrolyte, rinse the exposed skin or flush your eyes with copious amounts of water
for at least five minutes, and seek medical attention immediately.
● Use a fire extinguisher for an electrical fire.
uAttempting to extinguish an electrical fire with a small quantity of water, from a garden hose for
instance, can be dangerous.
● Anytime the vehicle is damaged in a crash, have it repaired by an Acura dealer.
Emergency Shutdown System for the High Voltage SystemIf the vehicle is involved in a crash, the emergency shutdown system will activate depending
on the severity of the impact. When the system activates, the High Voltage system
automatically shuts down, and the vehicle can no longer move under its own power. To
return the High Voltage system back to normal operation, consult an Acura dealer.
Acura collects and recycles High Voltage batteries used in its vehicles – consult an Acura
dealer for more information.
19 ACURA MDX E-AWD-31TRX6200.book 14 ページ ２０１８年６月２２日　金曜日　午後７時４２分

15
Quick Reference Guide
Safe Driving (P33)
Airbags (P47)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P62)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P80)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P38)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P39)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
19 ACURA MDX E-AWD-31TRX6200.book 15 ページ ２０１８年６月２２日　金曜日　午後７時４２分

16
Quick Reference Guide
Instrument Panel (P83)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery
Charging System
IndicatorAnti-lock Brake System
(
ABS ) Indicator
Vehicle Stability
Assist® (VSA®) System
Indicator
Vehicle Stability Assist ®
(VSA ®) OFF Indicator
Speed-sensitive Electric
Power Steering (EPS)
System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red) Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P123)/Multi-Information Display (MID) (P125)/System Indicators (P84)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage Battery
Charge Level Gauge Security System Alarm Indicator Fuel
Gauge
Tachometer
MID
Speedometer
Gear Position Indicator
M (sequential mode) Indicator/
Sequential Mode Gear Selection
Indicator
Brake System
Indicator (Amber)
Blind spot information
System Indicator
System Indicators
Collision Mitigation
Braking SystemTM
(CMBSTM) IndicatorRoad Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist System
( LKAS ) Indicator
Adaptive Cruise Control (
ACC)
with Low Speed Follow (LSF)
Indicator
U.S.
Canada U.S.
Canada
Fog Light Indicator*
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
U.S.
Canada
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator
U.S.
Canada
Auto High-Beam
Indicator POWER SYSTEM

Indicator
High Temperature Indicator
Low Temperature Indicator
SPORT+
Mode
Indicator
READY Indicator
19 ACURA MDX E-AWD-31TRX6200.book 16 ページ ２０１８年６月２２日　金曜日　午後７時４２分

17
Quick Reference Guide
Controls (P141)
Clock (P142)
aEnter the Clock Adjustment screen.
2 Adjusting the Clock (P142)
bRotate to change hour, then move
.
cRotate to change minute, then
press .
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
POWER Button (P172)
Press the button to ch ange the vehicle’s
power mode.Turn Signals (P175)
Lights (P176)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
19 ACURA MDX E-AWD-31TRX6200.book 17 ページ ２０１８年６月２２日　金曜日　午後７時４２分

18
Quick Reference Guide
Wipers and Washers
(P183)
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Wiper/Washer Control Lever
MIST
OFF
AUTO: Wiper speed varies
automatically
LO: Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
(-: Low Sensitivity(+: High Sensitivity
Steering Wheel (P191)
● To adjust, push and hold the adjustment
switch to move the steering wheel to the
desired position.
Unlocking the Front
Doors from the Inside
(P155)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P165, 160)
● Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless access remote.
● Press the power tailgate button on the
driver’s door or the remote transmitter to
open and close the power tailgate.
Tailgate Outer Handle
19 ACURA MDX E-AWD-31TRX6200.book 18 ページ ２０１８年６月２２日　金曜日　午後７時４２分

19
Quick Reference Guide

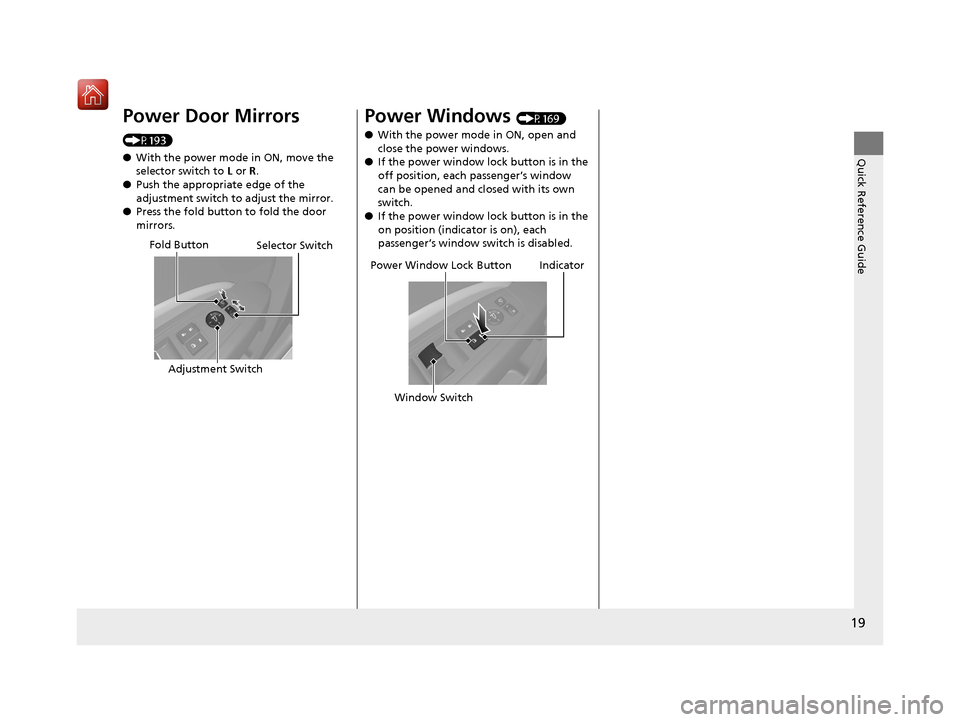

Power Door Mirrors
(P193)
●With the power mode in ON, move the
selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
● Press the fold button to fold the door
mirrors.
Selector Switch
Adjustment Switch
Fold Button
Power Windows (P169)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
