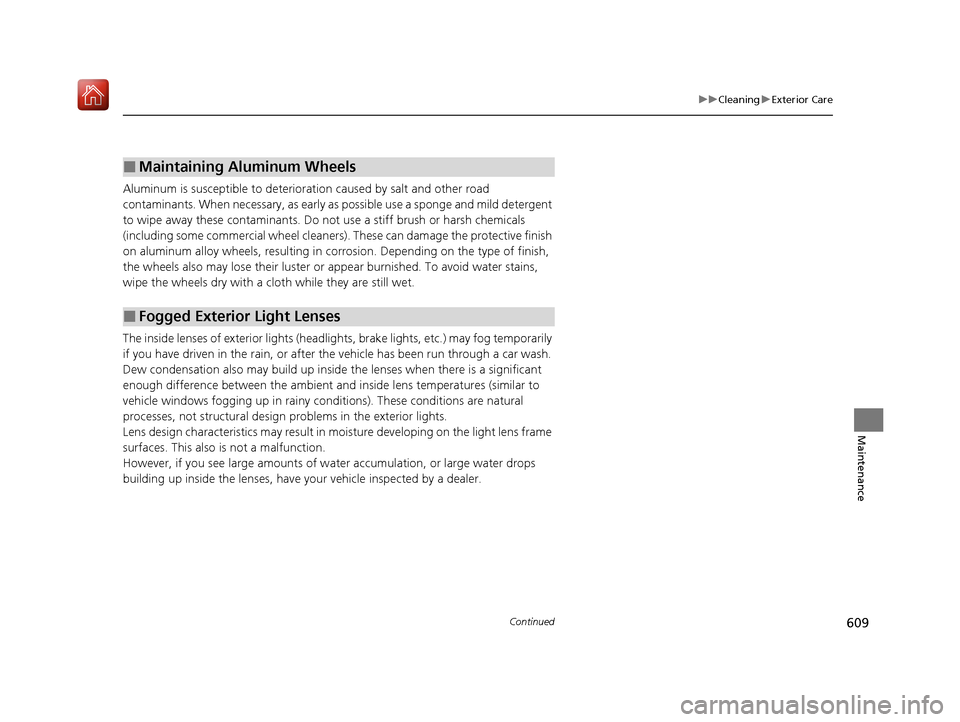

609
uuCleaning uExterior Care
Continued
Maintenance
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Maintaining Aluminum Wheels
■Fogged Exterior Light Lenses
20 ACURA MDX E-AWD-31TRX6302.book 609 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

642
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let it sit for approximately three
minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 573
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Immediately turn
the power system off and contact a dealer for repairs.
If the 12-Volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-Volt battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediatelyM
1If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.
20 ACURA MDX E-AWD-31TRX6302.book 642 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

662
Information
Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
ModelMDX
No. of Passengers:
Front 2
Rear (2nd) 2
*1
3*2
Rear (3rd)
2
Total 6*1
7*2
Weights:Gross Vehicle Weight RatingSee the certification label on the
driver’s doorjamb
Gross Axle Weight Rating
(Front)See the certification label on the
driver’s doorjamb
Gross Axle Weight Rating
(Rear)See the certification label on the
driver’s doorjamb
■
Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 23.8 – 25.6 oz (675 – 725 g)
Lubricant TypeND-OIL11 (POE)
Quantity 8.54 – 9.46 cu-in (140 – 155 cm3)
Displacement182.8 cu-in (2,997 cm3)
Spark Plugs NGK
DENSOILZKR7B11
SXU22HCR11
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 19.4 US gal (73.3 L)
Tank CapacityU.S.: 4 US qt (3.8 L)
Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal/Side Marker/
Parking LightsLED
Daytime Running Lights LED
Side Turn Signal Lights (on Door
Mirrors)LED
Brake Lights 21 W
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights21 W
Rear Turn Signal Lights 21 W
High-Mount Brake LightLED
Rear License Plate Lights LED
Puddle LightsLED
Interior Lights Front, Second Row and Third
Row Lights LED
Front and Rear Ambient Lights LED
Vanity Mirror Lights 1.4 W
Door Courtesy Lights 3.4 W
Door Inner Handle Lights LED
Front and Rear
* Console
Compartment Lights LED
Glove Box Light 1.4 W
Foot Lights 5 W
Cargo Area Lights 5 W
* Not available on all models
20 ACURA MDX E-AWD-31TRX6302.book 662 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

676
Index
B
Back-Up Light............................................ 585
Battery ....................................................... 600
12-Volt .................................................... 600
12-Volt Battery Charging System
Indicator .......................................... 88, 642
High Voltage ........................................... 517
Jump Starting .......................................... 638
Maintenance (Checking the 12-Volt Battery) ..................................... 600
Maintenance (Replacing).......................... 601
Battery Types .............................................. 12
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 214
Blind spot information System ................ 510
Indicator .................................................. 104
Bluetooth ® Audio ..................................... 303
Bluetooth ® HandsFreeLink ®................... 397
Booster Seats (For Children) ....................... 79
Brake System ............................................. 518
Anti-lock Brake System (ABS) ................... 524
Automatic Brake Hold.............................. 522
Brake Assist System ................................. 525
Fluid ........................................................ 581
Foot Brake ............................................... 521
Indicator ...................................... 84, 85, 644
Parking Brake .......................................... 518
Brake System (Amber)
Indicator .................................................... 85
Brake System (Red) Indicator ............................................ 84, 644 Brightness Control
(Instrument Panel).... 186
Bulb Replacement .................................... 582
Back-Up Light.......................................... 585
Brake Light and Rear Turn Signal Light .... 583
Fog Lights ............................................... 582
Front Turn Signal/Parking, Daytime Running and Front Side Marker Lights ... 582
Headlights ............................................... 582
High-Mount Brake Light .......................... 586
Puddle Lights........................................... 586
Rear License Plate Lights .......................... 586
Side Turn Signal/Emergency Indicator Lights .................................................... 582
Taillights.................................................. 585
Taillights/Rear Side Maker Lights.............. 584
Bulb Specifications ................................... 662
C
CAMERA Button....................................... 548
Car Wash Mode ........................................ 469
Carbon Monoxide Gas ............................... 80
Carrying Cargo ................................. 449, 451
CD Player ................................................... 275
Center Pocket ........................................... 213
Certification Label .................................... 664
Changing Bulbs ........................................ 582
Charging System Indicator ................. 88, 642
Child Safety ................................................. 62
Childproof Door Locks............................. 156 Child Seat
................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 156
Cleaning the Exterior ............................... 607
Cleaning the Interior ............................... 605
Client Service Information ....................... 671
Climate Control System ........................... 222
Changing the Mode................................ 225
Defrosting the Windshield and Windows .............................................. 228
Dust and Pollen Filter .............................. 604
Rear Climate Control System................... 229
Sensors ................................................... 233
Synchronized Mode ................................ 226
Using Automatic Climate Control............ 222
Clock ......................................................... 142
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 526
Coat Hook ................................................ 218
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 526
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 212
Controls .................................................... 141
20 ACURA MDX E-AWD-31TRX6302.book 676 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

678
Index
FiltersDust and Pollen ....................................... 604
Oil ........................................................... 575
Flat Tire ............................................. 615, 623
Floor Mats ................................................. 606
Fluids Brake ....................................................... 581
Dual Clutch Transmission ......................... 580
Engine Coolant ........................................ 577
Windshield Washer .................................. 581
Fog Lights .................................................. 178
Folding Down the Second Row Seat ....... 200
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................. 521
Front Airbags (SRS) ..................................... 50
Front Seats ................................................ 194
Adjusting ................................................. 194
Front Sensor Camera ................................ 475
Fuel ...................................................... 25, 557
Fuel Economy and CO
2 Emissions............. 560
Gauge ..................................................... 123
Instant Fuel Economy ............................... 128
Low Fuel Indicator ..................................... 91
Range ...................................................... 128
Recommendation .................................... 557
Refueling ................................................. 557
Fuel Economy and CO
2 Emissions ............ 560
Fuel Fill Door ....................................... 25, 558
Unable to Unlock ..................................... 658
Fuses .......................................................... 648
Inspecting and Changing ......................... 656 Locations......................... 648, 651, 654, 655
G
Gasoline (Fuel)
Economy ................................................. 560
Gauge ..................................................... 123
Information ............................................. 557
Low Fuel Indicator ..................................... 91
Refueling................................................. 557
Gauges ...................................................... 123
Gear Position Indicator ...................... 89, 467
Gear Shift Positions
Dual Clutch Transmission ........................ 465
Glass (care) ................................................ 608
Glove Box .................................................. 211
H
Handling the Unexpected ........................ 613
HandsFreeLink ® (HFL) ............................... 397
Auto Answer ........................................... 413
Automatic Import of Cellular Phonebook
and Call History ..................................... 415
Automatic Transferring............................ 413
Displaying Messages................................ 433
HFL Buttons............................................. 397
HFL Menus .............................................. 400
HFL Status Display ................................... 398
Limitations for Manual Operation ............ 399
Making a Call .......................................... 424 Options During a Call.............................. 430
Phone Setup ........................................... 405
Phonebook Phonetic M
odification........... 419
Receiving a Call....................................... 429
Receiving a Text/E-mail Message ............. 431
Ring Tone ............................................... 414
Roadside Assistance ................................ 437
Selecting a Mail Account......................... 432
Selecting a Text/E-mail Message Account ................................................ 432
Speed Dial .............................................. 416
To Create a Security PIN .......................... 411
To Set Up a Text/E-mail Message Option .................................................. 410
Use Contact Photo .................................. 414
Hard Disk Drive (HDD) Audio .................. 278
Hazard Warning Button .............................. 4
HDMI
TM Port ............................................. 344
Head Restraints ........................ 201, 203, 204
Headlight Washers ................................... 185
Headlights ................................................ 175
Aiming.................................................... 582
Auto High-Beam System ......................... 179
Automatic Operation .............................. 176
Dimming......................................... 175, 178
Operating ............................................... 175
Heated Door Mirrors ............................... 187
Heated Steering Wheel ........................... 219
Heated Windshield .................................. 187
Heater (Steering Wheel) .......................... 219
Heaters (Seat) ................................... 220, 221
20 ACURA MDX E-AWD-31TRX6302.book 678 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

679
Index
HFL (HandsFreeLink®) .............................. 397
High Beam Indicator .................................. 95
High Voltage Battery ............................... 517
Hill Start Assist System ............................. 462
HomeLink ® Universal Transceiver ........... 394
Honda App License Agreement .............. 326
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®)............ 9
I
Identification Numbers ............................ 664
Engine, Motor, and Transmission ............ 664
Vehicle Identification............................... 664
Illumination Control ................................ 186
Button .................................................... 186
Immobilizer System .................................. 165
Indicator ................................................... 96
Indicators .................................................... 84
12-Volt Battery Charging System ...... 88, 642
Adaptive Cruise Control (ACC) with Low Speed Follow ......................... 100, 478
Anti-lock Brake System (ABS) .................... 93
Auto High-Beam ....................................... 93
Automatic Brake Hold ....................... 87, 522
Automatic Brake Hold System ........... 87, 522
Blind spot information System................. 104
Brake System (Amber) ............................... 85
Brake System (Red) ........................... 84, 644 Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 102, 103
Electric Parking Brake ................................ 86
Electric Parking Brake System ............. 86, 645
Fog Lights .................................................. 96
Gear Position ............................................. 89
High Beam ................................................ 95
High Temperature ..................................... 92
Immobilizer System .................................... 96
Keyless Access System ............................... 97
Lane Keeping Assist System (LKAS) .... 98, 500
Lights On ................................................... 96
Low Fuel .................................................... 91
Low Oil Pressure ................................ 88, 642
Low Temperature ...................................... 92
Low Tire Pressure/TPMS ..................... 95, 646
M (sequential mode) Indicator/Sequential Mode Gear Selection ............................... 89
Malfunction Indicator Lamp ............... 88, 643
POWER SYSTEM Indicator .................. 91, 647
READY ...................................................... 92
Road Departure Mitigation (RDM) .............. 99
Seat Belt Reminder .............................. 40, 91
Security System Alarm ............................... 97
Speed-sensitive Electric Power Steering
(EPS) System .................................... 95, 644
SPORT+ mode ........................................... 92
Supplemental Restraint System ............ 59, 93
System Message ........................................ 97
Transmission System .......................... 90, 646
Turn Signal ................................................ 95 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 94, 506
VSA ® OFF .......................................... 94, 507
Information .............................................. 661
Information Screen .................................. 248
Instrument Panel ........................................ 83
Brightness Control................................... 186
Integrated Dynamics System ................... 474
Dynamic Mode button ............................ 474
Interface Dial ............................................ 243
Interior Lights ........................................... 209
Interior Rearview Mirror .......................... 191
iPhone ............................................... 298, 325
iPod ................................................... 291, 325
J
Jack (Wheel Nut Wrench) ........................ 619
Jump Starting ........................................... 638
K
Key Number Tag ....................................... 144
Keyless Access System .............................. 145
Keyless Lockout Prevention ..................... 152
Keys ........................................................... 143
Lockout Prevention.................................. 152
Number Tag ............................................ 144
Rear Door Won’t Open............................ 156
Remote Transmitter ................................. 150
Types and Functions ................................ 143
20 ACURA MDX E-AWD-31TRX6302.book 679 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分
