reset Acura MDX HYBRID 2020 Owner's Guide

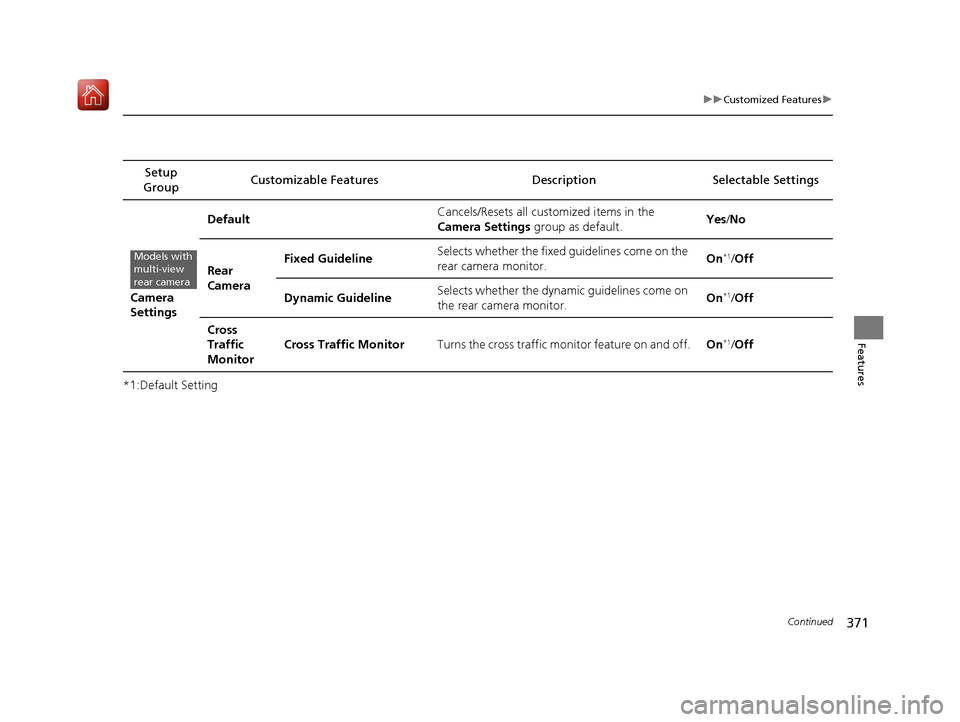

371
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Settings Default
Cancels/Resets all customized items in the
Camera Settings
group as default. Yes
/No
Rear
Camera Fixed Guideline
Selects whether the fixed
guidelines come on the
rear camera monitor. On
*1/
Off
Dynamic Guideline Selects whether the dynamic guidelines come on
the rear camera monitor. On
*1/
Off
Cross
Traffic
Monitor Cross Traffic Monitor
Turns the cross traffic monitor feature on and off. On
*1/Off
Models with
multi-view
rear camera
20 ACURA MDX E-AWD-31TRX6302.book 371 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

372
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Settings
DefaultCancels/Resets all customized items in the
Camera Settings group as default.Yes/No
Surround
View
Camera
Fixed GuidelineSets whether to turn on the reference line
display.On*1/Off
Dynamic GuidelineSets whether to turn on the projection line
display.On*1/Off
Auto Show Camera
after ReverseSets the rear view to be automatically switched to
the front view when the transmission is out of
(R.
On /Off*1
Default Camera Mode in
ForwardSets which screen to display when the surround
view camera system is turned on while the
vehicle is moving forward. (Front Ground
View)*1/ Last Used /
(Front Wide View)/
(Side View)
Default Camera Mode in
ReverseSets which screen to display when the surround
view camera system is turned on while the
vehicle is reversing. (Rear Ground
View)*1/ Last Used /
(Rear Normal View)/ (Rear Wide View)
Show Camera When
DeceleratingSets the screen to automa tically return to the
camera view at vehicle speeds of 7 mph (12
km/h) or lower.
On /Off*1
Models with
surround
view camera
system
20 ACURA MDX E-AWD-31TRX6302.book 372 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

374
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings Default
Cancels/Resets all customized items in the
Vehicle Settings
group as default. Yes
/No
Driver
Assist Forward Collision
Warning Distance
Changes at which distance CMBS
TM alerts.
Long/Normal*1/Short
ACC Forward Vehicle
Detect Beep Causes the system to
beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC with Low Speed Follow range. On
/Off
*1
ACC Display Speed Unit Changes the speed unit for ACC with Low Speed
Follow on the MID. mph*1/
km/h (U.S.)
mph /km/h*1 (Canada)
Road Departure
Mitigation Setting Changes the setting for the road departure
mitigation system. Normal
*1/
Wide /
Warning Only
Lane Keeping Assist
Suspend Beep Causes the system to beep when the LKAS is
suspended.
On
/Off
*1
Blind Spot Info Changes the setting for the blind spot
information. Audible And Visual
Alert*1/
Visual Alert /
Off
20 ACURA MDX E-AWD-31TRX6302.book 374 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

375
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings MeterLanguage Selection
Changes the displayed language on the MID. English
*1/
Français /
Español
Adjust Outside Temp.
Display Adjusts the temperature reading by a few
degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A,
average speed A, and
elapsed time A. When Refueled
/IGN
Off /Manually Reset
*1
“Trip B” Reset Timing Changes the setting of how
to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B. When Refueled
/IGN
Off /Manually Reset*1
Reverse Alert Tone Causes the beeper to
sound once when the
transmission is put into (R. On*1/
Off
Turn by Turn Display Selects whether the turn-by-turn display comes
on during the route guidance. On
*1/
Off
20 ACURA MDX E-AWD-31TRX6302.book 375 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

379
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings Power
Tailgate
Keyless Open Mode
Changes the keyless setting for when the power
tailgate opens. Anytime
*1/
When
Unlocked
Power Open By Outer
Handle Selects whether to enable the power tailgate
open operation using the tailgate outer handle. Off (Manual only)
/
On (Power/
Manual)
*1
Dynamic
Mode Preferred Dynamic
Mode Changes the dynamic mode setting for when you
set the power mode to ON. Last Used*1/
Comfort/
Normal /Sport
Maintenance
Info.Maintenance Reset Resets the engine oil life display when you have
performed the maintenance service.
—
20 ACURA MDX E-AWD-31TRX6302.book 379 ページ ２０２０年２月１１日　火曜日　午後１時
４５分

380
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Clock
Settings
DefaultCancels/Resets all customized items in the Clock
Settings group as default.Yes/No
Clock/
Wallpaper
Type
ClockChanges the clock display type.Analog /Digital*1/
Small Digital /Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper.
2 Wallpaper Setup P. 254
Blank/Galaxy*1/
Metallic /Options...
Clock AdjustmentAdjusts Clock.
2 Wallpaper Setup P. 254—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1/24H
Auto Time ZoneSets the audio system to automatically adjust the
clock when driving through different time zones.On*1/Off
Auto Daylight
Sets the audio system to automatically adjust the
clock (“spring ahead” or “fall back” by one hour)
when a daylight saving time change occurs.
On*1/Off
Clock ResetResets the clock settings to the factory default.Yes /No
20 ACURA MDX E-AWD-31TRX6302.book 380 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

381
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
Description Selectable Settings
AcuraLink
Settings Default
Cancels/Resets all customized items in the
AcuraLink Settings
group as default. Yes
/No
AcuraLink Msg Notice Selects whether newly received AcuraLink
messages are to be displayed.
On
*1/
Off
Delete AcuraLink Message Deletes AcuraLink messages. —
AcuraLink Subscription Status Displays your current
AcuraLink subscription
status. —
20 ACURA MDX E-AWD-31TRX6302.book 381 ページ ２０２０年２月１１日　火曜日　午後１時
４５分

382
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
System
Settings
DefaultCancels/Resets all customized items in the
System Settings group as default.Yes/No
Display
Sync Display Brightness
Selects whether the display brightness
synchronizes with the instrument panel
brightness.
On*1/Off
BrightnessChanges the brightness of the information
screen.—
ContrastChanges the contrast of the information screen.—
Black LevelChanges the black leve l of the information
screen.—
FeedbackGuidance VolumeChanges the volume of the audio speakers.0 ~8*1~11
Verbal ReminderTurns the verbal reminders on and off.On*1/Off
20 ACURA MDX E-AWD-31TRX6302.book 382 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

384
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
System
SettingsOthers
UnitsChanges the distance unit on the navigation map
screen.mile*1/km (U.S.)
mile /km*1 (Canada)
LanguageChanges the display language.English*1/Français /
Español
Operation Restriction
Tips*
Alerts you when manual control of the system is
disabled to prevent distraction while driving. Only
voice commands are available.
On*1/ Off
Header Clock DisplaySelects whether the clock display comes on.On*1/Off
System Device
InformationDisplays the system/device information.—
Factory Data ResetResets all the settings to their factory default.
2 Defaulting All the Settings P. 393—
Smartphone
Settings
Default Cancels/Resets all customized items in the
Smartphone Settings
group as default. Yes
/No
Apple CarPlay Device List Sets up the Apple CarPlay connection. —
Android Auto Device List Sets up the Android Auto connection. —
Smartphone Volume Adjusts the volume of the smartphone function. 1~8
*1~11
Version Shows software version of Apple CarPlay and
Android Auto unit. —
* Not available on all models
20 ACURA MDX E-AWD-31TRX6302.book 384 ページ ２０２０年２月１１日　火曜日　午後１時
４５分

389
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
Audio
Settings
SiriusXM
SportsFlash
NotificationTurns on and off the sports alert function.Disable/Enable once /
Enable*1
BeepCauses the system to beep when the sports alert
is notified.On*1/ Off
Favorite
TeamsSelects your favorite sport teams.—
Traffic & Weather Now
SetupSelects a city for using the SiriusXM ® traffic and
weather information.—
Channel ArtTurns on and off the channel art display.On*1/ Off
TuneMixTurns multiple channel mix preset on and off.On /Off*1
CD/
HDD
Recording
Options
Recording
from CDSelects whether the songs on music CDs are
automatically recorded to the HDD.Auto*1/Manual
Recording
QualitySelects the quality of the music files recorded to
the HDD.Standard*1/High
HDD InformationDisplays the HDD capacity.—
Update Gracenote Album
InformationUpdates the Gracenote ® Album Info (Gracenote®
Media Database) from CD or USB.Update by CD /
Update by USB
Delete All HDD Data2 Deleting all HDD Data P. 290—
20 ACURA MDX E-AWD-31TRX6302.book 389 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分
