maintenance Acura MDX HYBRID 2020 Manual PDF

uuCleaning uExterior Care
608
Maintenance
• Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
■Using High Pressure Cleaners
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
20 ACURA MDX E-AWD-31TRX6302.book 608 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

609
uuCleaning uExterior Care
Continued
Maintenance
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Maintaining Aluminum Wheels
■Fogged Exterior Light Lenses
20 ACURA MDX E-AWD-31TRX6302.book 609 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

uuCleaning uExterior Care
610
Maintenance

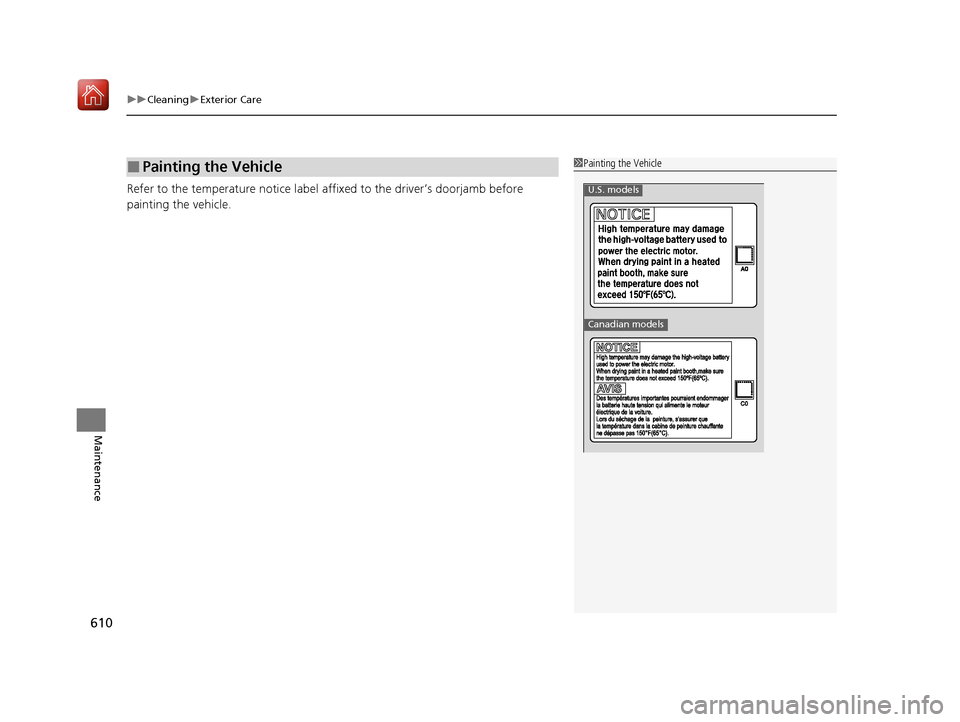

Refer to the temperature notice label a ffixed to the driver’s doorjamb before
painting the vehicle.
■Painting the Vehicle1 Painting the Vehicle
U.S. models
Canadian models
20 ACURA MDX E-AWD-31TRX6302.book 610 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

611
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 648
•Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
1Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Acura high-voltage
battery assembly, or it s equivalent, in your
vehicle.
20 ACURA MDX E-AWD-31TRX6302.book 611 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

612
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Acura parts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is prop erly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, prov ince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Acura has appr oved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical systems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle’s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Acura high-
voltage battery assembly. Genuine Acur a high-voltage battery assemblies are
designed to work with your vehicle's hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have be en similarly designed, engineered and
manufactured, and installation of such assemblies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.
20 ACURA MDX E-AWD-31TRX6302.book 612 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

676
Index
B
Back-Up Light............................................ 585
Battery ....................................................... 600
12-Volt .................................................... 600
12-Volt Battery Charging System
Indicator .......................................... 88, 642
High Voltage ........................................... 517
Jump Starting .......................................... 638
Maintenance (Checking the 12-Volt Battery) ..................................... 600
Maintenance (Replacing).......................... 601
Battery Types .............................................. 12
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 214
Blind spot information System ................ 510
Indicator .................................................. 104
Bluetooth ® Audio ..................................... 303
Bluetooth ® HandsFreeLink ®................... 397
Booster Seats (For Children) ....................... 79
Brake System ............................................. 518
Anti-lock Brake System (ABS) ................... 524
Automatic Brake Hold.............................. 522
Brake Assist System ................................. 525
Fluid ........................................................ 581
Foot Brake ............................................... 521
Indicator ...................................... 84, 85, 644
Parking Brake .......................................... 518
Brake System (Amber)
Indicator .................................................... 85
Brake System (Red) Indicator ............................................ 84, 644 Brightness Control
(Instrument Panel).... 186
Bulb Replacement .................................... 582
Back-Up Light.......................................... 585
Brake Light and Rear Turn Signal Light .... 583
Fog Lights ............................................... 582
Front Turn Signal/Parking, Daytime Running and Front Side Marker Lights ... 582
Headlights ............................................... 582
High-Mount Brake Light .......................... 586
Puddle Lights........................................... 586
Rear License Plate Lights .......................... 586
Side Turn Signal/Emergency Indicator Lights .................................................... 582
Taillights.................................................. 585
Taillights/Rear Side Maker Lights.............. 584
Bulb Specifications ................................... 662
C
CAMERA Button....................................... 548
Car Wash Mode ........................................ 469
Carbon Monoxide Gas ............................... 80
Carrying Cargo ................................. 449, 451
CD Player ................................................... 275
Center Pocket ........................................... 213
Certification Label .................................... 664
Changing Bulbs ........................................ 582
Charging System Indicator ................. 88, 642
Child Safety ................................................. 62
Childproof Door Locks............................. 156 Child Seat
................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 156
Cleaning the Exterior ............................... 607
Cleaning the Interior ............................... 605
Client Service Information ....................... 671
Climate Control System ........................... 222
Changing the Mode................................ 225
Defrosting the Windshield and Windows .............................................. 228
Dust and Pollen Filter .............................. 604
Rear Climate Control System................... 229
Sensors ................................................... 233
Synchronized Mode ................................ 226
Using Automatic Climate Control............ 222
Clock ......................................................... 142
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 526
Coat Hook ................................................ 218
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 526
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 212
Controls .................................................... 141
20 ACURA MDX E-AWD-31TRX6302.book 676 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

680
Index
Kickdown (Dual Clutch Transmission)..... 464
L
Lane Keeping Assist System (LKAS)......... 498
Indicator .................................................... 98
LATCH (Child Seats) .............................. 67, 74
LED Puddle Light ...................................... 147
Legal Information on Apple CarPlay/ Android Auto .......................................... 338
License information .................................. 341
Lights ................................................. 175, 582
Automatic ............................................... 176
Bulb Replacement .................................... 582
Daytime Running Lights ........................... 178
High Beam Indicator .................................. 95
Interior .................................................... 209
Light Switches ......................................... 175
Lights On Indicator .................................... 96
Turn Signals ............................................. 174
Load Limits ................................................ 451
Locking/Unlocking .................................... 143
Auto Door Locking/Unlocking .................. 157
Childproof Door Locks ............................. 156
From Inside .............................................. 154
From Outside ........................................... 145
Keys ........................................................ 143
Using a Key ............................................. 151
Lockout Prevention System ...................... 152
Low Battery Charge .................................. 642
Low Fuel Indicator ...................................... 91 Low Oil Pressure Indicator
................. 88, 642
Lower Anchors ...................................... 67, 74
Lubricant Specifications Chart ................. 663
Luggage (Maximum Load Limit) ............. 451
Lumbar Support ....................................... 195
M
Maintenance............................................. 561
12-Volt Battery ........................................ 600
Brake Fluid .............................................. 581
Cleaning ................................................. 605
Climate Control System ........................... 604
Coolant ........................................... 577, 579
Maintenance Minder
TM............................ 565
Oil ........................................................... 573
Precautions ............................................. 562
Radiator .................................................. 578
Remote Control....................................... 602
Remote Transmitter ................................. 601
Replacing Light Bulbs .............................. 582
Safety...................................................... 563
Service Items ........................................... 567
Tires ........................................................ 591
Transmission Fluid ................................... 580
Under the Hood ...................................... 569
Wireless Headphone................................ 603
Malfunction Indicator Lamp .............. 88, 643
Map Lights ................................................ 210
Maximum Load Limit ............................... 451
Meters, Gauges ......................................... 123 MID (Multi-information Display)
............ 125
Mirrors ...................................................... 191
Adjusting ................................................ 191
Door ....................................................... 192
Exterior ................................................... 192
Interior Rearview ..................................... 191
Modifications (and Accessories) .............. 611
Moonroof ................................................. 170
MP3 ................................................... 275, 300
Multi-function Steering-wheel Controls .................................................. 125
Multi-Information Display (MID) ............ 125
Multi-View Rear Camera ......................... 545N
Numbers (Identification)......................... 664
O
Odometer................................................. 126
Off-Highway Driving Guidelines ............. 455
Oil (Engine) .............................................. 572
Adding ................................................... 574
Checking ................................................ 573
Displaying Oil Life ................................... 565
Low Oil Pressure Indicator ................. 88, 642
Recommended Engine Oil ....................... 572
Viscosity.................................................. 572
On Demand Multi-Use Display
TM............. 244
Open Source Licenses .............................. 340
20 ACURA MDX E-AWD-31TRX6302.book 680 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分
