313
uuWhen Driving uDual Clutch Transmission
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
If any of these components are damaged or loose, the stability, handling, and
powertrain cooling performance of the vehicle may be adversely affected.
Dual Clutch Transmission
As with a conventional gasoline-powered ve hicle with an automatic transmission,
this vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
The accelerator pedal features a kick down switch. Quickly depressing the
accelerator pedal while driving may cause the transmission to drop to a lower gear,
subsequently increasing vehicle speed. De press the accelerator pedal carefully,
especially when driving uphill, on slippery roads, and curves.
■Other Precautions
■Creeping
■Kickdown
1 Precautions While Driving
Do not press the
(N button, as you will lose
regenerative braking (and ac celeration) performance.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this recommendation when
the brake pads are replaced.
Models with iron brake discs
1 Dual Clutch Transmission
The DCT will not operate when it is extremely cold. If
the vehicle has been parked in extremely cold
conditions, after you start th e engine, wait until it
gets warm. Keep your ve hicle parked until the
READY indicator comes on.
17 NSX-31T6N6000.book 313 ページ ２０１６年４月２２日　金曜日　午後３時４４分

385
uuMaintenance Under the Hood and Hatch uTransmission Fluids
Maintenance
Transmission Fluids
Have an authorized Acura NSX dealer chec k the fluid level and replace if necessary.
Do not attempt to check or change the dual clutch transmission fluids yourself.
Have an authorized Acura NSX dealer chec k the fluid level and replace if necessary.
Do not attempt to check or change the twin motor unit fluid yourself.
■Dual Clutch Transmission Fluids
Specified fluids:
Acura Automatic Transm ission Fluid ATF DW-1
Acura Gear Oil GO-Type 2.0
■Twin Motor Unit Fluid
Specified fluid:
Acura Automatic Transm ission Fluid ATF DW-1
1Dual Clutch Transmission Fluids
NOTICE
Do not mix Acura ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Acura ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Acur a ATF DW-1 is not covered
by Acura’s new vehicle warranty.Clutch
Transmission
1 Twin Motor Unit Fluid
NOTICE
Do not mix Acura ATF Type DW-1 with other
transmission fluids.
Using a transmission flui d other than Acura ATF
DW-1 may adversely af fect the operation and
durability of your vehicl e’s twin motor unit, and
damage the twin motor unit.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Acur a ATF DW-1 is not covered
by Acura’s new vehicle warranty.
17 NSX-31T6N6000.book 385 ページ ２０１６年４月２２日　金曜日　午後３時４４分

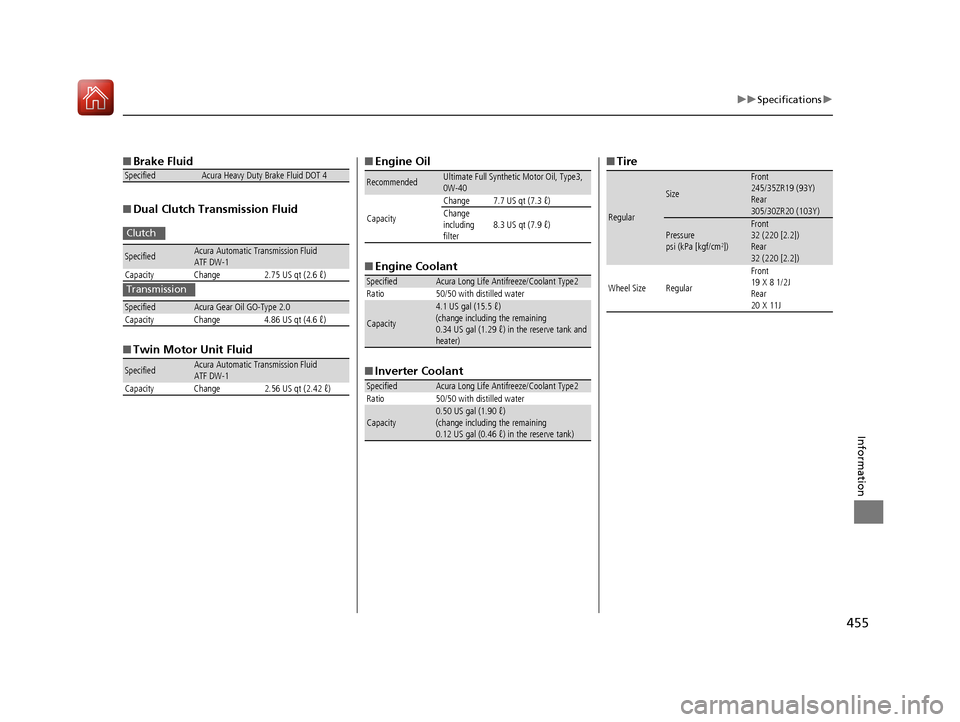

455
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
■ Twin Motor Unit FluidSpecifiedAcura Heavy Duty Brake Fluid DOT 4
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.75 US qt (2.6 ℓ)
SpecifiedAcura Gear Oil GO-Type 2.0
Capacity Change 4.86 US qt (4.6 ℓ)
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.56 US qt (2.42 ℓ)
Clutch
Transmission
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
RecommendedUltimate Full Synthetic Motor Oil, Type3,
0W-40
Capacity Change 7.7 US qt (7.3 ℓ)
Change
including
filter
8.3 US qt (7.9 ℓ)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
4.1 US gal (15.5 ℓ)
(change including the remaining
0.34 US gal (1.29 ℓ) in the reserve tank and
heater)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.50 US gal (1.90 ℓ)
(change including the remaining
0.12 US gal (0.46 ℓ) in the reserve tank)
■ Tire
Regular
Size
Front
245/35ZR19 (93Y)
Rear
305/30ZR20 (103Y)
Pressure
psi (kPa [kgf/cm2])
Front
32 (220 [2.2])
Rear
32 (220 [2.2])
Wheel Size Regular Front
19 X 8 1/2J
Rear
20 X 11J
17 NSX-31T6N6000.book 455 ページ ２０１６年４月２２日　金曜日　午後３時４４分

466
Index
Jump Starting .......................................... 434
Maintenance (Checking the 12-Volt Battery) .................................................. 403
Maintenance (Replacing).......................... 404
Battery Types .............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ...................................... 153
Bluetooth ® Audio ..................................... 211
Bluetooth ® HandsFreeLink ®..................... 258
Booster Seats (For Children) ....................... 66
Brake System ............................................. 344
Anti-lock Brake System (ABS) ................... 349
Automatic Brake Hold.............................. 347
Brake Assist System ................................. 350
Fluid ........................................................ 386
Foot Brake ............................................... 346
Parking Brake .......................................... 344
Brake System (Amber) Indicator .................................................... 73
Brake System (Red) Indicator ............................................ 70, 439
Brake Wear
Indicator .................................................... 74
Bulb Replacement ..................................... 387
Back-Up Lights......................................... 388
Daytime Running Lights ........................... 387
Front Side Marker Lights .......................... 387
Front Turn Signal/Parking Lights ............... 387
Headlights ............................................... 387
High-Mount Brake Light .......................... 389
Rear License Plate Lights .......................... 389 Rear Side Marker Lights ........................... 388
Rear Turn Signal Lights ............................ 388
Side Turn Signal/Emergency Indicator
Lights .................................................... 387
Taillights.................................................. 388
Bulb Specifications ................................... 454
C
Carbon Monoxide Gas ............................... 67
Carrying Cargo ................................. 299, 301
Certification Label .................................... 456
Changing Bulbs ........................................ 387
Charging System Indicator ................. 75, 438
Child Safety ................................................. 58
Emergency Hatch Opener ........................ 121
Child Seat .................................................... 58
Booster Seats ............................................ 66
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat ................................ 63
Larger Children ......................................... 65
Selecting a Forward-facing Child Seat........ 62
Using a Tether ........................................... 64
Cleaning the Exterior ............................... 408
Cleaning the Interior ................................ 406
Client Service Information ....................... 464
Climate Control System ............................ 156
Defrosting the Windshield and Windows ............................................... 158
Dust and Pollen Filters ............................. 405 Recirculation/Fresh Air Mode................... 157
Sensors ................................................... 160
Synchronized Mode ................................ 159
Using Automatic Climate Control............ 156
Clock ......................................................... 104
Cold Weather ........................................... 402
Console Compartment ............................. 152
Controls .................................................... 103
Coolant (Engine) ...................................... 382
Adding the Coolant ................................ 383
Checking the Coolant ............................. 382
Overheating ............................................ 436
Coolant (Inverter) .................................... 384
Creeping (Dual Clutch Transmission) ...... 313
Cruise Control .......................................... 330
CRUISE CONTROL Indicator ....................... 82
CRUISE MAIN Indicator .............................. 82
Cup Holders .............................................. 153
Customized Features ............................... 232
D
Daytime Running Lights .......................... 134
Dead Battery (12-Volt) ............................. 434
Defrosting the Windshield and Windows ................................................. 158
Devices that Emit Radio Waves ............... 457
Dimming Headlights .............................................. 131
Rearview Mirror ...................................... 141
Dipstick (Engine Oil) ........................ 372, 379
17 NSX-31T6N6000.book 466 ページ ２０１６年４月２２日　金曜日　午後３時４４分

469
Index
Lights On .................................................. 81
Low Fuel ................................................... 77
Low Oil Pressure ....................................... 70
Low Tire Pressure/TPMS ............ 80, 339, 341
Malfunction Indicator Lamp .............. 75, 438
POWER SYSTEM ....................................... 74
READY ...................................................... 74
Seat Belt Reminder.............................. 37, 77
Security System Alarm............................... 82
Supplemental Restraint System ........... 55, 78
System Message ....................................... 80
Transmission System ................................. 76
Turn Signal ............................................... 81
Vehicle Stability Assist (VSA®)
System ............................................ 79, 333
VSA ® OFF.......................................... 79, 334
Information .............................................. 453
Instant Fuel Economy .............................. 101
Instrument Panel ........................................ 69
Integrated Dynamics System (IDS) .......... 323
QUIET Mode ........................................... 326
SPORT Mode........................................... 326
SPORT+ Mode ........................................ 327
TRACK Mode .......................................... 327
Interior Lights ........................................... 149
Interior Rearview Mirror ......................... 141
Inverter Coolant ............................... 384, 455
J
Jump Starting........................................... 434
K
Key Number Tag ....................................... 106
Keyless Access System ............................... 107
Keyless Lockout Prevention ..................... 114
Keys ........................................................... 105
Lockout Prevention .................................. 114
Number Tag ............................................ 106
Remote Transmitter ................................. 112
Types and Functions ................................ 105
Kickdown (Dual Clutch Transmission) ..... 313
L
Language (HFL)......................................... 260
Launch Control ......................................... 328
Lights ................................................. 131, 387
Automatic Operation (automatic lighting control).................................................. 132
Bulb Replacement .................................... 387
Daytime Running Lights ........................... 134
High Beam Indicator .................................. 81
Interior .................................................... 149
Light Switches ......................................... 131
Lights On Indicator .................................... 81
Turn Signals ............................................. 130
Load Limits ................................................ 301
Locking/Unlocking .................................... 105
Auto Door Locking/Unlocking .................. 118
From Inside .............................................. 115
From Outside ........................................... 107
Keys ........................................................ 105 Using a Key ............................................. 114
Lockout Prevention System ..................... 114
Low Battery Charge (12-Volt) .................. 438
Low Fuel Indicator ...................................... 77
Low Keyless Access Remote Signal
Strength .................................................. 106
Low Oil Level ............................................ 442
Low Oil Pressure Indicator ......................... 70
Luggage (Maximum Load Limit) ............. 301
Lumbar Support ....................................... 145
M
Maintenance............................................. 361
12-Volt Battery ........................................ 403
Brake Fluid .............................................. 386
Cleaning ................................................. 406
Climate Control System ........................... 405
Coolant ........................................... 382, 384
Cooling System ....................................... 382
Inverter Coolant ...................................... 384
Maintenance Minder
TM............................ 365
Oil ........................................................... 377
Precautions ............................................. 362
Remote Transmitter ................................. 404
Replacing Light Bulbs .............................. 387
Safety...................................................... 363
Service Items ........................................... 368
Tires ........................................................ 393
Transmission Fluids .................................. 385
Under the Hood and Hatch ..................... 371
17 NSX-31T6N6000.book 469 ページ ２０１６年４月２２日　金曜日　午後３時４４分

471
Index
S
Safe Driving................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 68
Safety Message ............................................ 1
Seat Belts .................................................... 36
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
Fastening .................................................. 39
Installing a Child Seat................................ 63
Pregnant Women...................................... 41
Reminder ............................................ 37, 77
Warning Indicator ............................... 37, 77
Seat Heaters ............................................. 155
Seats .......................................................... 144
Adjusting ................................................ 144
Seat Heaters ........................................... 155
Security System ........................................ 122
Immobilizer System Indicator..................... 81
Security System Alarm Indicator ................ 82
Selecting a Forward-facing Child Seat ...... 62
Sequential Mode ...................................... 319
Sequential Mode Operation ................... 322
Setting the Clock ...................................... 104
Shift Button ........................................ 23, 314
Operation ............................................... 316
Shifting (Transmission) ...................... 23, 314
Side Airbags ............................................... 52
Side Curtain Airbags .................................. 54
Siri Eyes Free ............................................. 215
SiriusXM ® Radio ....................................... 192 Snow Tires
................................................. 401
Sounds Unique to the SPORT HYBRID SH-
AWD® System ............................................ 13
Spark Plugs ................................................ 454
Specifications ............................................ 454
Specified Fuel .................................... 357, 454
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD ®)........ 338
SRS Airbags (Airbags) ................................. 46
Steering Wheel Adjusting ................................................. 140
Stopping .................................................... 351
Storage ...................................................... 414
Summer Tires ............................................ 401
Supplemental Restraint System (SRS) ........ 46
Switches (Around the Steering Wheel) ............................................. 4, 5, 127
System Message Indicator .......................... 80
T
Temperature
Gauge ....................................................... 96
Temperature Sensor ................................. 160
Temporary Tire Repair Kit ........................ 419
Time (Setting) ........................................... 104
Tire Pressure Monitoring System
(TPMS) ..................................................... 339
Indicator ............................................ 80, 441
Tires ........................................................... 393
Air Pressure ..................................... 394, 455 Chains..................................................... 401
Checking and Maintaining ...................... 393
Flat Tire (Puncture) .................................. 419
Inspection ............................................... 393
Labeling .................................................. 394
Regulations ............................................. 396
Rotation .................................................. 400
Summer .................................................. 401
Temporary Tire Repair Kit ........................ 419
Wear Indicators ....................................... 398
Winter..................................................... 401
Tools .......................................................... 418
Towing a Trailer ....................................... 308
Towing Your Vehicle ................................ 308
Emergency .............................................. 448
TPMS (Tire Pressure Monitoring System) .................................................... 339
Transmission ....................................... 23, 314
Dual Clutch ............................... 23, 313, 314
Fluids .............................................. 385, 455
Gear Position Indicator ...................... 76, 316
Number................................................... 456
Sequential Mode ..................................... 319
TRIP Button ................................................. 99
Trip Meter ................................................. 100
Troubleshooting ....................................... 417
Blown Fuse.............................. 443, 445, 446
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 448
Flat Tire/Puncture .................................... 419
Noise When Braking .................................. 29
17 NSX-31T6N6000.book 471 ページ ２０１６年４月２２日　金曜日　午後３時４４分
