Page 6 of 473
5
Quick Reference Guide
❙Wipers/Washers (P 135)
❙Headlights/Turn Signals (P 130, 131)
❙Paddle Shifter (Shift down) (P 322)
❙Paddle Shifter (Shift up) (P 322)
❙Horn (Press an area around .)
❙Voice Control Buttons (P 184)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 258)
❙TRIP Button (P 99, 100)
❙Right Selector Wheel (P 98)
❙Audio Remote Controls (P 165)
❙Brightness Control (P 136)
❙Mph/Km/h Change Button (P 95)
❙Cruise Control Buttons (P 330)
* Not available on all models
17 NSX-31T6N6000.book 5 ページ 2016年4月22日 金曜日 午後3時44分
Page 17 of 473
16
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA® ) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red) Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P 95)/Driver Information Interface (P 98)/System Indicators (P 70)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage Battery
Charge Level Gauge
Security System
Alarm Indicator
Fuel Gauge
Tachometer
Driver Information Interface Speedometer
Gear Position Indicator Gear Selection Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
READY Indicator
POWER SYSTEM
Indicator
Temperature Gauge ASSIST
/CHARGE Gauge
U.S.
Canada Active Damper System
Indicator
Brake Wear Indicator
CRUISE MAIN
Indicator
CRUISE CONTROL
Indicator
Engine Oil Temperature
Gauge
IDS Mode
SH-AWD ® Temperature Gauge
17 NSX-31T6N6000.book 16 ページ 2016年4月22日 金曜日 午後3時44分
Page 83 of 473
82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2 Security System Alarm P. 122—
Keyless Access
System Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on as soon as a problem is
detected in the keyless access
system or keyless starting system.
●Have your vehicle checked by an
authorized Acura NSX dealer.
CRUISE MAIN
Indicator●Comes on when you press the
CRUISE button.2Cruise Control P. 330—
CRUISE
CONTROL
Indicator●Comes on if you have set a speed
for cruise control.
2 Cruise Control P. 330—
Indicator
17 NSX-31T6N6000.book 82 ページ 2016年4月22日 金曜日 午後3時44分
Page 298 of 473
297
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 298
Maximum Load Limit........................ 301
High-Performance Driving ................ 303
Towing a Trailer Towing Your Vehicle ........................ 308
When Driving Turning on the Power ...................... 309
Precautions While Driving................. 312
Dual Clutch Transmission ................. 313
Shifting ............................................ 314
Integrated Dynamics System (IDS)..... 323
Launch Control ................................ 328 Cruise Control ................................. 330
Vehicle Stabilit
y Assist (VSA®), aka Electronic
Stability Control (ESC), System........... 333
Agile Handling Assist System............ 337
SPORT HYBRID Super Handling-All Wheel DriveTM (SPORT HYBRID SH-AWD®) .... 338
Tire Pressure Monitoring System (TPMS) ...... 339
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 341
High Voltage Battery ........................ 343
Braking Brake System ................................... 344 Anti-lock Brake System (ABS) ........... 349
Brake Assist System ......................... 350
Parking Your Vehicle When Stopped ................................ 351
Parking Sensor System
*................... 352
Multi-View Rear Camera .................. 356
Refueling Fuel Information .............................. 357
How to Refuel ................................. 358
Fuel Economy and CO
2 Emissions .... 359
Turbo Engine Vehicle ....................... 360
* Not available on all models
17 NSX-31T6N6000.book 297 ページ 2016年4月22日 金曜日 午後3時44分
Page 331 of 473
330
uuWhen Driving uCruise Control
Driving
Cruise Control
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open roads where you can travel at a
constant speed with little acceleration or deceleration.1Cruise Control
It may not be possible to maintain a constant speed
when driving uphill or downhill.
When not using cruise control:
Turn off cruise control by pressing the CRUISE
button.
3WARNING
Improper use of cruise control can lead to a
crash.
Use cruise control only when traveling on
open highways in good weather.When to use
■Gear positions for cruise control:
In D (Drive) or M (Manual)Always keep sufficient distance
between you and the vehicle in
front of you.
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
■IDS modes for cruise control:
QUIET , SPORT , SPORT+ mode
How to useCRUISE MAIN is on in
the instrument panel.
Cruise control is ready to
use.
■Press the CRUISE button on
the steering wheel.
17 NSX-31T6N6000.book 330 ページ 2016年4月22日 金曜日 午後3時44分
Page 332 of 473
331
uuWhen Driving uCruise Control
Continued
Driving
Take your foot off the pedal and press the RES/+/SET/– switch down when you
reach the desired speed.
The moment you release the RES/+/SET/– switch, the set speed is fixed, and cruise
control begins. The CRUISE CONTROL indicator comes on.
■To Set the Vehicle Speed
On when cruise control
begins
RES/+ /SET/− Switch
Press down and release
17 NSX-31T6N6000.book 331 ページ 2016年4月22日 金曜日 午後3時44分
Page 333 of 473
uuWhen Driving uCruise Control
332
Driving
Increase or decrease the vehicle speed using the RES/+/SET/– switch on the steering
wheel.
• Each time you press the switch up or do wn, the vehicle speed is increased or
decreased by about 1 mph (1.6 km/h).
• If you keep the switch pressed up or down, the vehicle speed increases or
decreases until you release it . This speed is then set.
To cancel cruise control, do any of the
following:
•Press the CANCEL button.
• Press the CRUISE button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.
■To Adjust the Vehicle Speed1To Adjust the Vehicle Speed
You can set the vehicle speed pressing the RES/+/
SET/– switch down on the steering wheel when
adjusting the speed with the accelerator and brake
pedals.
■To Cancel
To decrease speed
To increase speed
1 To Cancel
Resuming the prior set speed:
After cruise control has be en canceled, you can still
resume the prior set speed by pressing the RES/+/
SET/– switch up while driving at a speed of at least
25 mph (40 km/h) or more.
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h)•When the CRUISE button is turned off
At vehicle speeds of 22 m ph (35 km/h) or less, cruise
control is canceled automatically.
CANCEL
Button
CRUISE
Button
17 NSX-31T6N6000.book 332 ページ 2016年4月22日 金曜日 午後3時44分

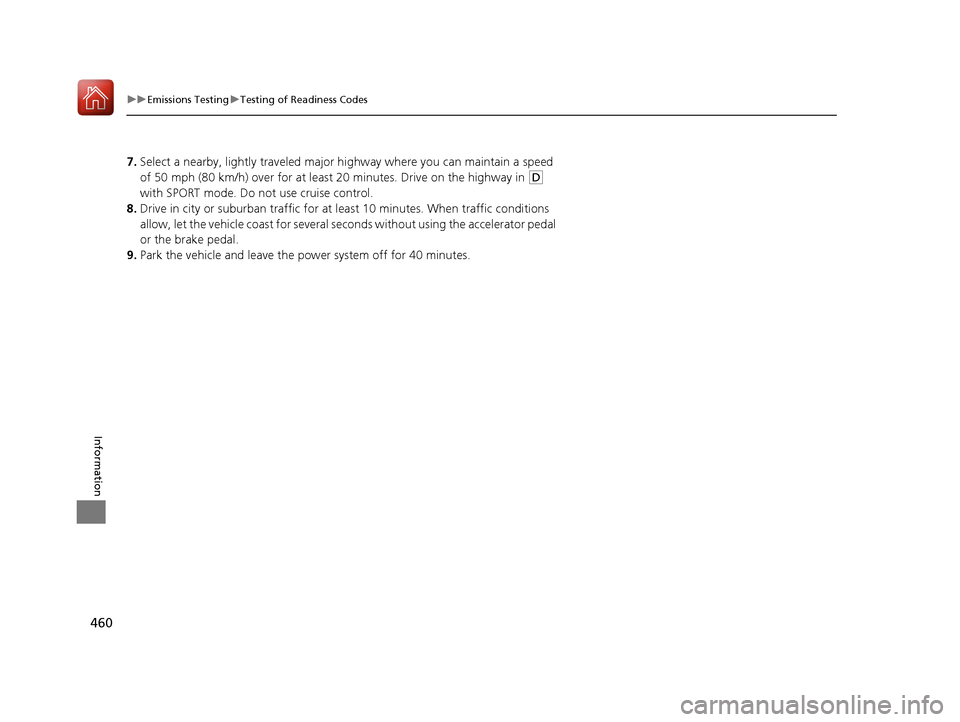

Page 461 of 473
460
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 mph (80 km/h) over for at leas t 20 minutes. Drive on the highway in
(D
with SPORT mode. Do not use cruise control.
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the power system off for 40 minutes.
17 NSX-31T6N6000.book 460 ページ 2016年4月22日 金曜日 午後3時44分
Page 467 of 473
466
Index
Jump Starting .......................................... 434
Maintenance (Checking the 12-Volt Battery) .................................................. 403
Maintenance (Replacing).......................... 404
Battery Types .............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ...................................... 153
Bluetooth ® Audio ..................................... 211
Bluetooth ® HandsFreeLink ®..................... 258
Booster Seats (For Children) ....................... 66
Brake System ............................................. 344
Anti-lock Brake System (ABS) ................... 349
Automatic Brake Hold.............................. 347
Brake Assist System ................................. 350
Fluid ........................................................ 386
Foot Brake ............................................... 346
Parking Brake .......................................... 344
Brake System (Amber) Indicator .................................................... 73
Brake System (Red) Indicator ............................................ 70, 439
Brake Wear
Indicator .................................................... 74
Bulb Replacement ..................................... 387
Back-Up Lights......................................... 388
Daytime Running Lights ........................... 387
Front Side Marker Lights .......................... 387
Front Turn Signal/Parking Lights ............... 387
Headlights ............................................... 387
High-Mount Brake Light .......................... 389
Rear License Plate Lights .......................... 389 Rear Side Marker Lights ........................... 388
Rear Turn Signal Lights ............................ 388
Side Turn Signal/Emergency Indicator
Lights .................................................... 387
Taillights.................................................. 388
Bulb Specifications ................................... 454
C
Carbon Monoxide Gas ............................... 67
Carrying Cargo ................................. 299, 301
Certification Label .................................... 456
Changing Bulbs ........................................ 387
Charging System Indicator ................. 75, 438
Child Safety ................................................. 58
Emergency Hatch Opener ........................ 121
Child Seat .................................................... 58
Booster Seats ............................................ 66
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat ................................ 63
Larger Children ......................................... 65
Selecting a Forward-facing Child Seat........ 62
Using a Tether ........................................... 64
Cleaning the Exterior ............................... 408
Cleaning the Interior ................................ 406
Client Service Information ....................... 464
Climate Control System ............................ 156
Defrosting the Windshield and Windows ............................................... 158
Dust and Pollen Filters ............................. 405 Recirculation/Fresh Air Mode................... 157
Sensors ................................................... 160
Synchronized Mode ................................ 159
Using Automatic Climate Control............ 156
Clock ......................................................... 104
Cold Weather ........................................... 402
Console Compartment ............................. 152
Controls .................................................... 103
Coolant (Engine) ...................................... 382
Adding the Coolant ................................ 383
Checking the Coolant ............................. 382
Overheating ............................................ 436
Coolant (Inverter) .................................... 384
Creeping (Dual Clutch Transmission) ...... 313
Cruise Control .......................................... 330
CRUISE CONTROL Indicator ....................... 82
CRUISE MAIN Indicator .............................. 82
Cup Holders .............................................. 153
Customized Features ............................... 232
D
Daytime Running Lights .......................... 134
Dead Battery (12-Volt) ............................. 434
Defrosting the Windshield and Windows ................................................. 158
Devices that Emit Radio Waves ............... 457
Dimming Headlights .............................................. 131
Rearview Mirror ...................................... 141
Dipstick (Engine Oil) ........................ 372, 379
17 NSX-31T6N6000.book 466 ページ 2016年4月22日 金曜日 午後3時44分
Page 468 of 473
467
Index
Directional Signals (Turn Signal)............. 130
Door Mirrors ............................................. 142
Doors ........................................................ 105
Auto Door Locking.................................. 118
Auto Door Unlocking .............................. 118
Door Open Message ................................. 35
Keys........................................................ 105
Locking/Unlocking the Doors from
the Inside ........................................ 18, 115
Locking/Unlocking the Doors from the Outside ........................................... 107
Lockout Prevention System ..................... 114
DOT Tire Quality Grading ........................ 396
Driver Information Interface ..................... 98
Driver’s Knee Airbag .................................. 50
Driving ...................................................... 297
Braking ................................................... 344
Cold Weather ......................................... 402
Cruise Control ........................................ 330
Dual Clutch Transmission ........................ 313
Shifting Gear .......................................... 314
Turning on the Power ............................. 309
Driving Position Memory System ............ 138
Dual Clutch Transmission ........................ 313
Creeping................................................. 313
Fluids .............................................. 385, 455
Kickdown ............................................... 313
Operating the Shift Button ................ 23, 316
Shifting ................................................... 314
Dust and Pollen Filters ............................. 405E
Elapsed Time............................................. 101
Electric Parking Brake .............................. 344
Indicator .................................................... 71
Electric Parking Brake System
Indicator ............................................ 71, 440
Electric Power Steering (EPS) System Indicator ............................................ 78, 439
Electronic Stability Control (ESC) ............. 333
Emergency ................................................ 448
Emergency Hatch Opener ........................ 121
Emissions Testing (Readiness Codes) ....... 459
Energy Efficiency ........................................ 12
Engine ....................................................... 456
Coolant ........................................... 382, 455
Jump Starting .......................................... 434
Oil ................................................... 376, 455
Engine Compartment Cover .................... 375
Engine Coolant ......................................... 382
Adding the Coolant ................................. 383
Checking the Coolant .............................. 382
Overheating ............................................ 436
Engine Oil Adding .................................................... 380
Changing ................................................ 381
Checking ................................................. 377
Displaying Oil Life .................................... 366
Low Oil Level Symbol ............................... 442
Low Oil Pressure Indicator .......................... 70
Recommended Engine Oil ........................ 376 Temperature Gauge .................................. 97
EPS (Electric Power Steering) System ........ 78
Exhaust Gas Hazard (Carbon Monoxide) ................................................. 67
Exterior Care (Cleaning) ........................... 408
Exterior Mirrors ........................................ 142
F
Features.................................................... 161
Filters Dust and Pollen ....................................... 405
Oil ........................................................... 381
Flat Tire ..................................................... 419
Floor Mats ................................................. 407
Fluids
Brake .............................................. 386, 455
Dual Clutch Transmission ................ 385, 455
Engine Coolant ............................... 382, 455
Inverter Coolant .............................. 384, 455
Twin Motor Unit.............................. 385, 455
Windshield Washer ......................... 386, 454
FM Radio ................................................... 188
Foot Brake ................................................ 346
Front Airbags (SRS) ..................................... 46
Fuel ...................................................... 25, 357
Economy ................................................. 359
Gauge ....................................................... 95
Instant Fuel Economy .............................. 101
Low Fuel Indicator ..................................... 77
Range ..................................................... 101
17 NSX-31T6N6000.book 467 ページ 2016年4月22日 金曜日 午後3時44分
