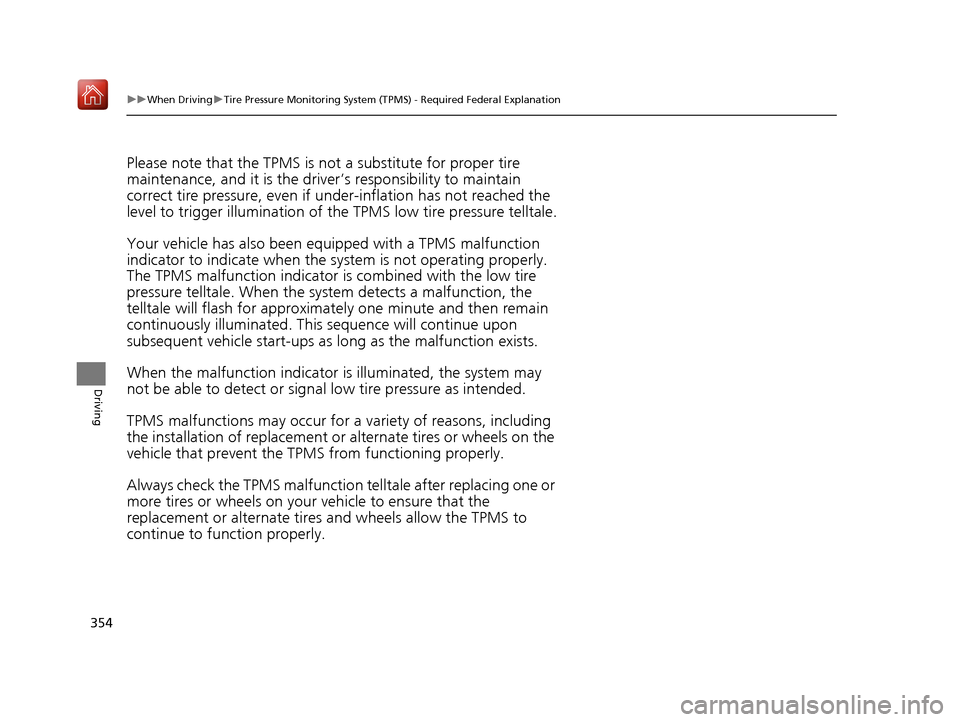

Page 355 of 489
354
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumina tion of the TPMS low ti re pressure telltale.
Your vehicle has also been eq uipped with a TPMS malfunction
indicator to indicate when the sy stem is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
18 NSX-31T6N6100.book 354 ページ 2017年10月27日 金曜日 午後1時39分
Page 414 of 489
413
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist ® (VSA ®) system to work incorrectly.
It is best to replace all four tires at the same time.
If you replace a wheel, only use TPMS spec ified wheels approved for your vehicle.
Make sure that the wheel’s specificati ons match those of the original wheels.1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
18 NSX-31T6N6100.book 413 ページ 2017年10月27日 金曜日 午後1時39分
Page 432 of 489
431
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 432
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 433
Handling of the Jack ........................ 444
Power System Won’t Start Checking the Procedure ................... 445
If the Keyless Access Remote Battery is Weak ............................................. 446
Emergency Power System Off........... 447
Jump Starting .................................... 448
Overheating How to Handle Overheating ............. 450 Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 452
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 452
If the Brake System Indicator (Red) Comes On ................................................. 453
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 453
If the Electric Parking Brake System Indicator Comes On ....................... 454 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 455
If the Transmission System Indicator Blinks along with the Warning Message... 456
If the Low Oil Level Symbol Appears.....456Fuses Fuse Locations ................................. 457
Inspecting and Changing Fuses ........ 461
Emergency Towing ........................... 462
When You Cannot Unlock the Fuel Fill Door ................................................. 463
When You Cannot Open the Hatch.....464RefuelingRefueling from a Portable Fuel Container .... 465
18 NSX-31T6N6100.book 431 ページ 2017年10月27日 金曜日 午後1時39分

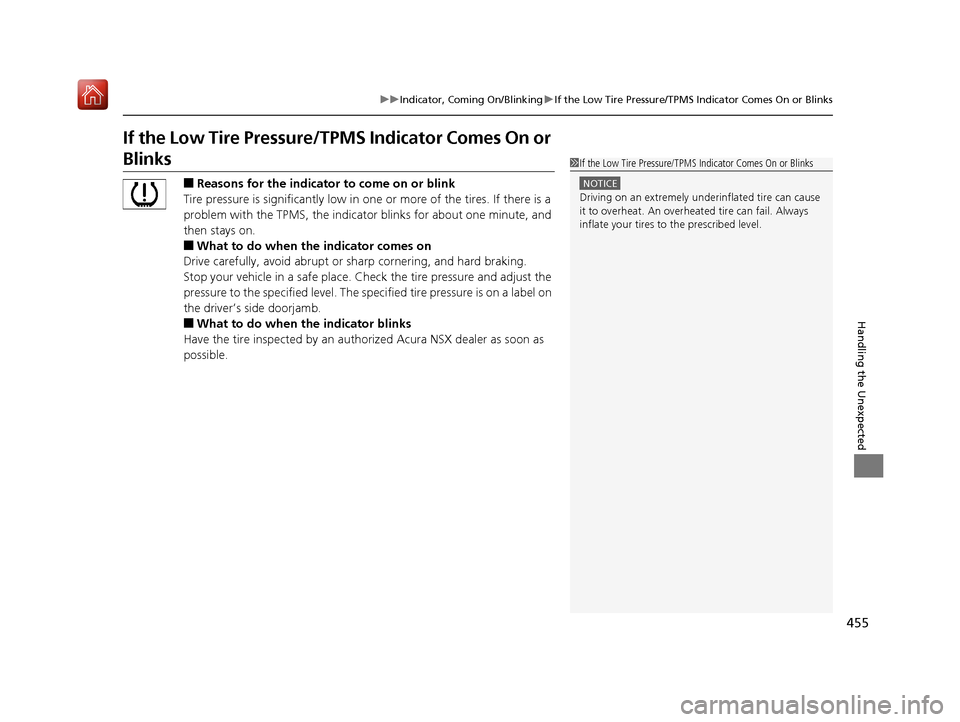

Page 456 of 489
455
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
Tire pressure is significantly low in on e or more of the tires. If there is a
problem with the TPMS, the indicato r blinks for about one minute, and
then stays on.
■What to do when th e indicator comes on
Drive carefully, avoid abrupt or sharp cornering, and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by an author ized Acura NSX dealer as soon as
possible.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
18 NSX-31T6N6100.book 455 ページ 2017年10月27日 金曜日 午後1時39分

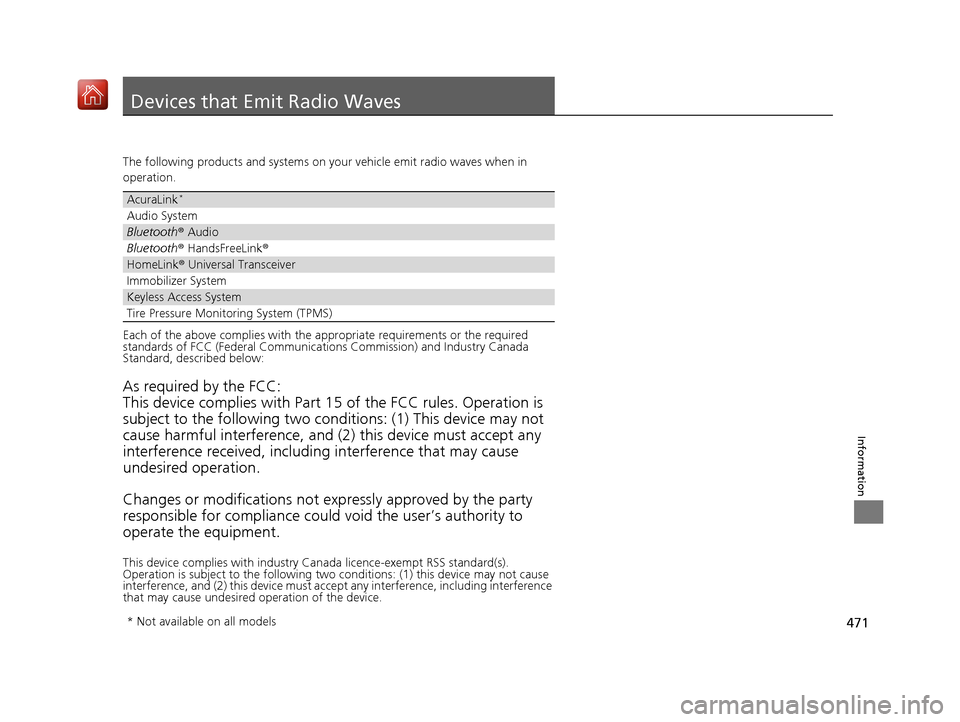

Page 472 of 489
471
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
AcuraLink*
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
* Not available on all models
18 NSX-31T6N6100.book 471 ページ 2017年10月27日 金曜日 午後1時39分

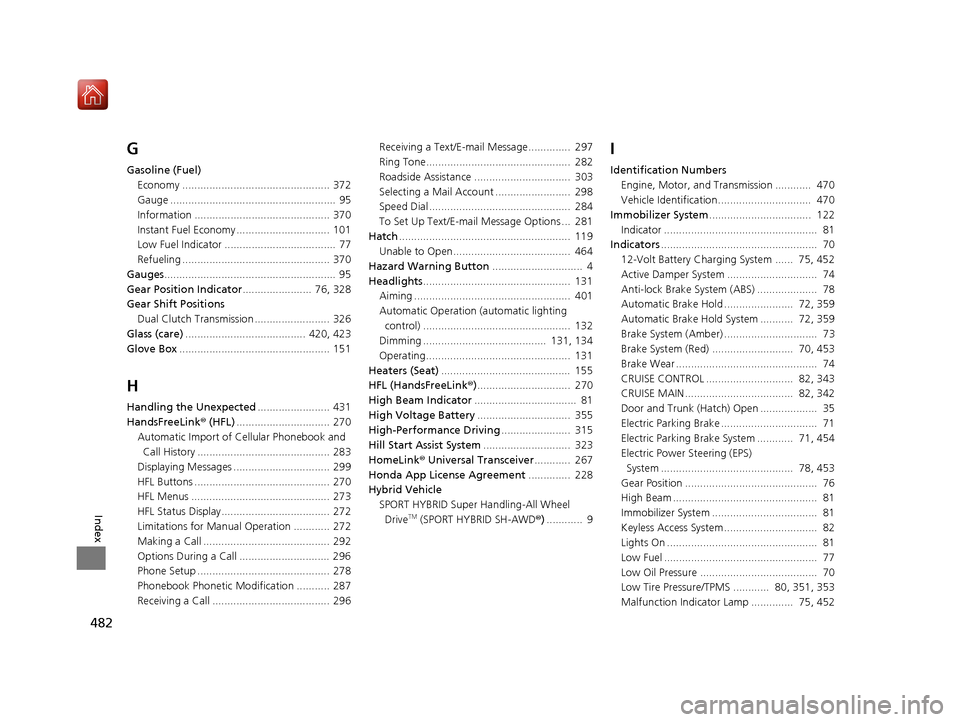

Page 483 of 489
482
Index
G
Gasoline (Fuel)Economy ................................................. 372
Gauge ....................................................... 95
Information ............................................. 370
Instant Fuel Economy ............................... 101
Low Fuel Indicator ..................................... 77
Refueling ................................................. 370
Gauges ......................................................... 95
Gear Position Indicator ....................... 76, 328
Gear Shift Positions
Dual Clutch Transmission ......................... 326
Glass (care) ........................................ 420, 423
Glove Box .................................................. 151
H
Handling the Unexpected ........................ 431
HandsFreeLink® (HFL)............................... 270
Automatic Import of Ce llular Phonebook and
Call History ............................................ 283
Displaying Messages ................................ 299
HFL Buttons ............................................. 270
HFL Menus .............................................. 273
HFL Status Display.................................... 272
Limitations for Manua l Operation ............ 272
Making a Call .......................................... 292
Options During a Call .............................. 296
Phone Setup ............................................ 278
Phonebook Phonetic M odification ........... 287
Receiving a Call ....................................... 296 Receiving a Text/E-mail Message.............. 297
Ring Tone................................................ 282
Roadside Assistance ................................ 303
Selecting a Mail Account ......................... 298
Speed Dial ............................................... 284
To Set Up Text/E-mail Message Options ... 281
Hatch ......................................................... 119
Unable to Open....................................... 464
Hazard Warning Button .............................. 4
Headlights ................................................. 131
Aiming .................................................... 401
Automatic Operation (automatic lighting control) ................................................. 132
Dimming ......................................... 131, 134
Operating................................................ 131
Heaters (Seat) ........................................... 155
HFL (HandsFreeLink® )............................... 270
High Beam Indicator .................................. 81
High Voltage Battery ............................... 355
High-Performance Driving ....................... 315
Hill Start Assist System ............................. 323
HomeLink ® Universal Transceiver ............ 267
Honda App License Agreement .............. 228
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD® )............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............ 470
Vehicle Identification............................... 470
Immobilizer System .................................. 122
Indicator ................................................... 81
Indicators .................................................... 70
12-Volt Battery Charging System ...... 75, 452
Active Damper System .............................. 74
Anti-lock Brake System (ABS) .................... 78
Automatic Brake Hold ....................... 72, 359
Automatic Brake Hold System ........... 72, 359
Brake System (Amber) ............................... 73
Brake System (Red) ........................... 70, 453
Brake Wear ............................................... 74
CRUISE CONTROL ............................. 82, 343
CRUISE MAIN.................................... 82, 342
Door and Trunk (Hatch) Open ................... 35
Electric Parking Brake ................................ 71
Electric Parking Brake System ............ 71, 454
Electric Power Steering (EPS) System ............................................ 78, 453
Gear Position ............................................ 76
High Beam ................................................ 81
Immobilizer System ................................... 81
Keyless Access System............................... 82
Lights On .................................................. 81
Low Fuel ................................................... 77
Low Oil Pressure ....................................... 70
Low Tire Pressure/TPMS ............ 80, 351, 353
Malfunction Indicator Lamp .............. 75, 452
18 NSX-31T6N6100.book 482 ページ 2017年10月27日 金曜日 午後1時39分
Page 486 of 489
485
Index
S
Safe Driving................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 68
Safety Message ............................................ 1
Seat Belts .................................................... 36
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
Fastening .................................................. 39
Installing a Child Seat................................ 63
Pregnant Women...................................... 41
Reminder ............................................ 37, 77
Warning Indicator ............................... 37, 77
Seat Heaters ............................................. 155
Seats .......................................................... 144
Adjusting ................................................ 144
Seat Heaters ........................................... 155
Security System ........................................ 122
Immobilizer System Indicator..................... 81
Security System Alarm Indicator ................ 82
Selecting a Forward-facing Child Seat ...... 62
Sequential Mode ...................................... 331
Sequential Mode Operation ................... 334
Setting the Clock ...................................... 104
Shift Button ........................................ 23, 326
Operation ............................................... 328
Shifting (Transmission) ...................... 23, 326
Side Airbags ............................................... 52
Side Curtain Airbags .................................. 54
Siri Eyes Free ............................................. 215
SiriusXM ® Radio ....................................... 192 Snow Tires
................................................. 415
Sounds Unique to the SPORT HYBRID
SH-AWD ® System ...................................... 13
Spark Plugs ................................................ 468
Specifications ............................................ 468
Specified Fuel .................................... 370, 468
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD ®)........ 350
SRS Airbags (Airbags) ................................. 46
Steering Wheel Adjusting ................................................. 140
Stopping .................................................... 363
Storage ...................................................... 428
Summer Tires ............................................ 415
Supplemental Restraint System (SRS) ........ 46
Switches (Around the Steering Wheel) ............................................. 4, 5, 127
System Message Indicator .......................... 80
T
Temperature
Gauge ....................................................... 96
Temperature Sensor ................................. 160
Temporary Tire Repair Kit ........................ 433
Time (Setting) ........................................... 104
Tire Pressure Monitoring System
(TPMS) ..................................................... 351
Indicator ............................................ 80, 455
Tires ........................................................... 407
Air Pressure ..................................... 408, 469 Chains..................................................... 415
Checking and Maintaining ...................... 407
Flat Tire (Puncture) .................................. 433
Inspection ............................................... 407
Labeling .................................................. 408
Regulations ............................................. 410
Rotation .................................................. 414
Summer .................................................. 415
Temporary Tire Repair Kit ........................ 433
Wear Indicators ....................................... 412
Winter..................................................... 415
Tools .......................................................... 432
Towing a Trailer ....................................... 320
Towing Your Vehicle ................................ 320
Emergency .............................................. 462
TPMS (Tire Pressure Monitoring System) .................................................... 351
Transmission ....................................... 23, 326
Dual Clutch ............................... 23, 325, 326
Fluids .............................................. 399, 469
Gear Position Indicator ...................... 76, 328
Number................................................... 470
Sequential Mode ..................................... 331
TRIP Button ................................................. 99
Trip Meter ................................................. 100
Troubleshooting ....................................... 431
Blown Fuse.............................. 457, 459, 460
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 462
Flat Tire/Puncture .................................... 433
Noise When Braking .................................. 29
18 NSX-31T6N6100.book 485 ページ 2017年10月27日 金曜日 午後1時39分
