Quick Reference Guide
Paddle Shifters (P334)
Paddle shifters allow you to shif t gears much like a manual transmission (1st throu gh 9th). This is useful for regenerative braking.
You cannot shift up or down while in EV mode.
When the transmission is in (D (D-paddle shift mode)The vehicle will go into the sequential mode momentarily, and the gear selection
indicator becomes more prominent.
The sequential mode is automatically canceled and the gear selection indicator
returns to ordinary display un der the following conditions.
•Hold the (+ paddle shifter for a few seconds.
•Once you start traveling at a constant speed.•The vehicle comes to a complete stop.
•When you change to another Integrated Dynamics System mode.
The sequential mode automatically shifts under following condition
•Accelerator pedal depressed beyond the click.•Engine speed reaches near the tachometer’s red zone.
•Engine speed reaches idle speed while deceleration.
When the transmission is in M (Manual) modeThe vehicle will go into the sequential mode, and the gear position indicator goes
off and only the gear selection indicator is displayed.
You can cancel this mode by pressing the button, pulling the
(+ paddle
shifter for a few seconds or changing Integrated Dynamics System mode to
QUIET . When the sequential mode is canceled, the display is changed from only
the gear selection indicator to both of the gear position indicator and the gear
selection indicator.
The transmission automatically shifts up from 1st to 2nd and does not
automatically shift up between 2nd and 9th gear.D/M
Gear Position Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
Gear Selection Indicator
Gear Selection Indicator
Gear Selection Indicator Gear Position IndicatorD (Drive)
D-Paddle
M (Manual)
18 NSX-31T6N6100.book 24 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

69
Instrument Panel

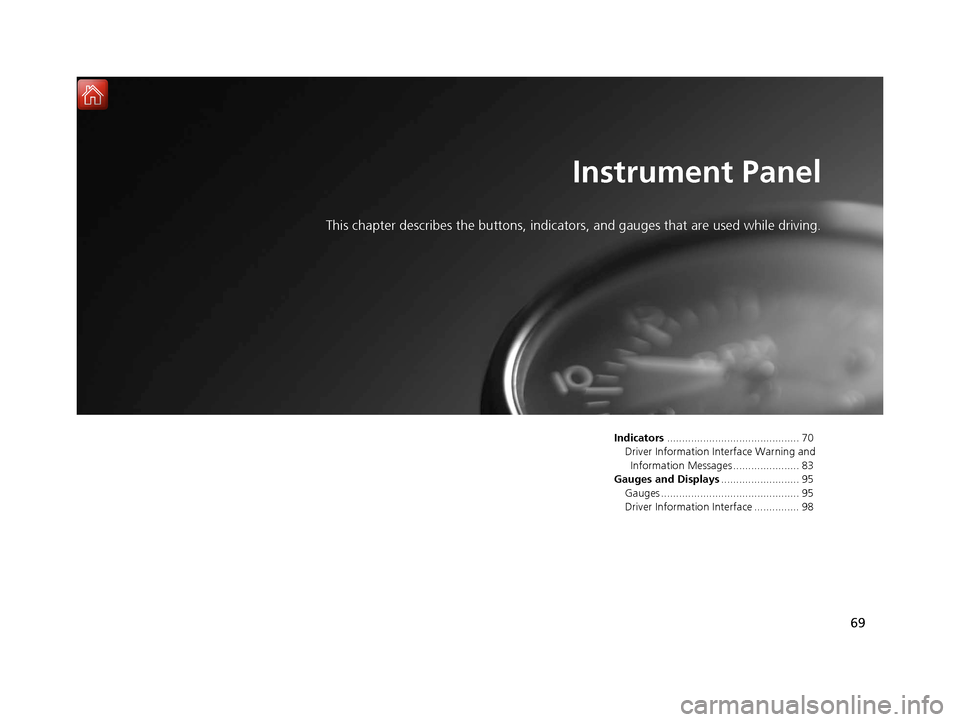

This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 70
Driver Information Interface Warning and Information Messages ...................... 83
Gauges and Displays .......................... 95
Gauges .............................................. 95
Driver Information Interface ............... 98
18 NSX-31T6N6100.book 69 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

95Continued
Instrument Panel

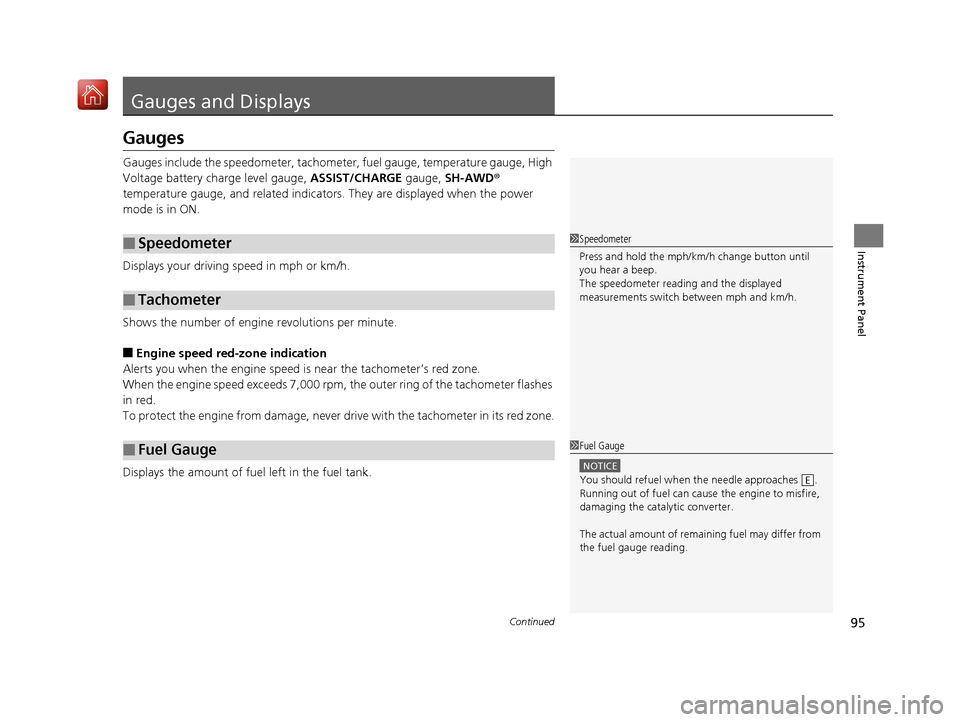

Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, temperature gauge, High
Voltage battery charge level gauge, ASSIST/CHARGE gauge, SH-AWD®
temperature gauge, and related indicators. They are displayed when the power
mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
■Engine speed red-zone indication
Alerts you when the engi ne speed is near the tachometer’s red zone.
When the engine speed exceed s 7,000 rpm, the outer ring of the tachometer flashes
in red.
To protect the engine from damage, never drive with the tachometer in its red zone.
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Tachometer
■Fuel Gauge
1 Speedometer
Press and hold the mph/km /h change button until
you hear a beep.
The speedometer reading and the displayed
measurements switch between mph and km/h.
1Fuel Gauge
NOTICE
You should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
18 NSX-31T6N6100.book 95 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

uuGauges and Displays uGauges
96
Instrument Panel

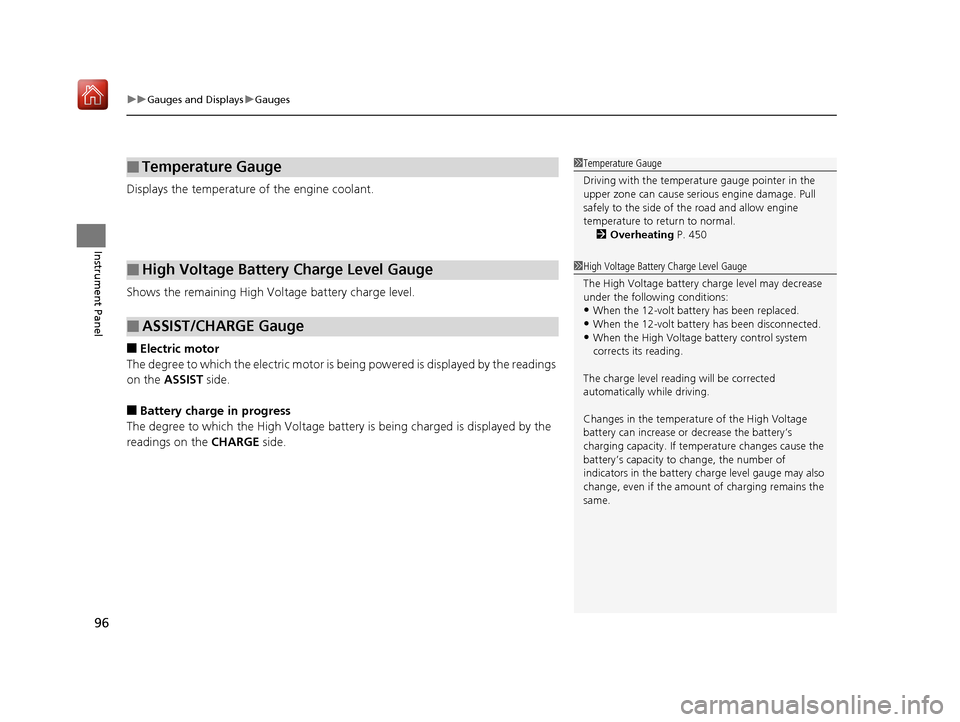

Displays the temperature of the engine coolant.
Shows the remaining High Voltage battery charge level.
■Electric motor
The degree to which the electric motor is be ing powered is displayed by the readings
on the ASSIST side.
■Battery charge in progress
The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side.
■Temperature Gauge
■High Voltage Battery Charge Level Gauge
■ASSIST/CHARGE Gauge
1Temperature Gauge
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 450
1High Voltage Battery Charge Level Gauge
The High Voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.
•When the High Voltage battery control system
corrects its reading.
The charge level reading will be corrected
automatically while driving.
Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charging remains the
same.
18 NSX-31T6N6100.book 96 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

97
uuGauges and Displays uGauges
Instrument Panel

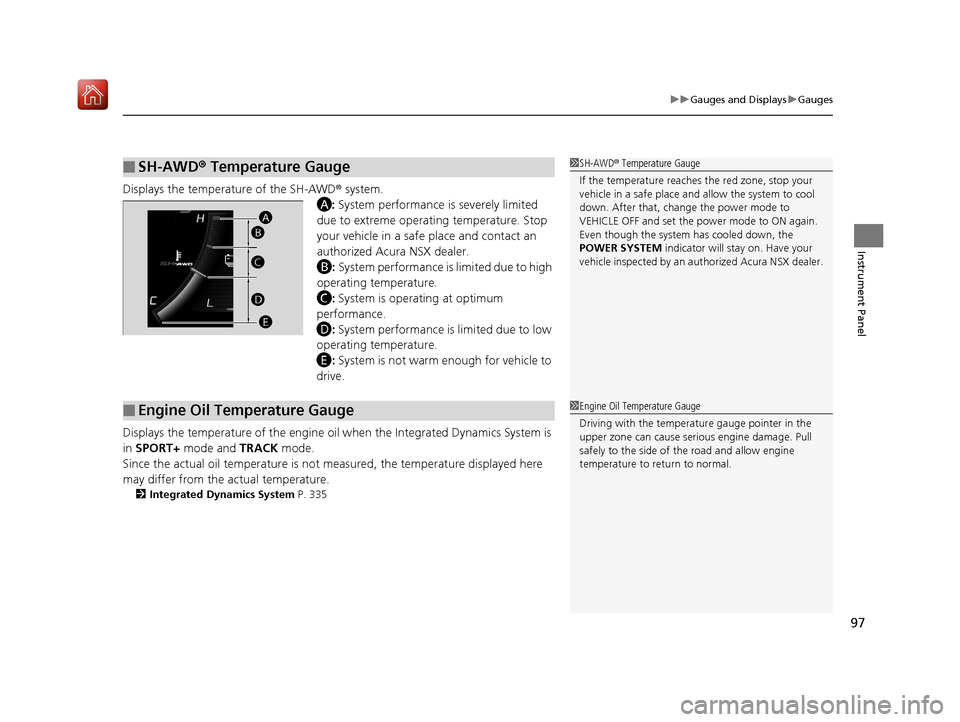

Displays the temperature of the SH-AWD ® system.
A : System performance is severely limited
due to extreme operating temperature. Stop
your vehicle in a safe place and contact an
authorized Acura NSX dealer.
B : System performance is limited due to high
operating temperature.
C : System is operating at optimum
performance.
D : System performance is limited due to low
operating temperature.
E : System is not warm enough for vehicle to
drive.
Displays the temperature of the engine oil when the Integrated Dynamics System is
in SPORT+ mode and TRACK mode.
Since the actual oil temper ature is not measured, the temperature displayed here
may differ from the actual temperature.
2 Integrated Dynamics System P. 335
■SH-AWD® Temperature Gauge1 SH-AWD ® Temperature Gauge
If the temperature reaches the red zone, stop your
vehicle in a safe place and allow the system to cool
down. After that, change the power mode to
VEHICLE OFF and set the power mode to ON again.
Even though the system has cooled down, the
POWER SYSTEM indicator will stay on. Have your
vehicle inspected by an authorized Acura NSX dealer.
A
B
C
D
E
■Engine Oil Temperature Gauge1 Engine Oil Temperature Gauge
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
18 NSX-31T6N6100.book 97 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

98
uuGauges and Displays uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges. It also displays important messages such
as warnings and other helpful information.

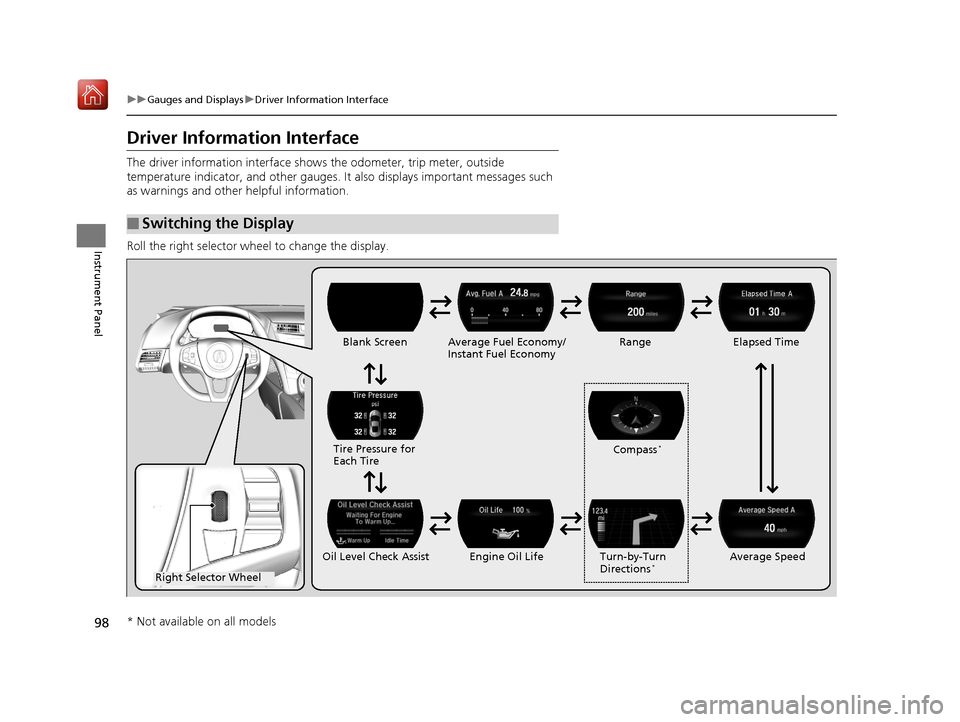

Roll the right selector wheel to change the display.
■Switching the Display
Right Selector Wheel Engine Oil LifeElapsed Time
Blank Screen
Average Speed
Range
Average Fuel Economy/
Instant Fuel Economy
Tire Pressure for
Each Tire
Turn-by-Turn
Directions
*Oil Level Check Assist Compass
*
* Not available on all models
18 NSX-31T6N6100.book 98 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

99
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

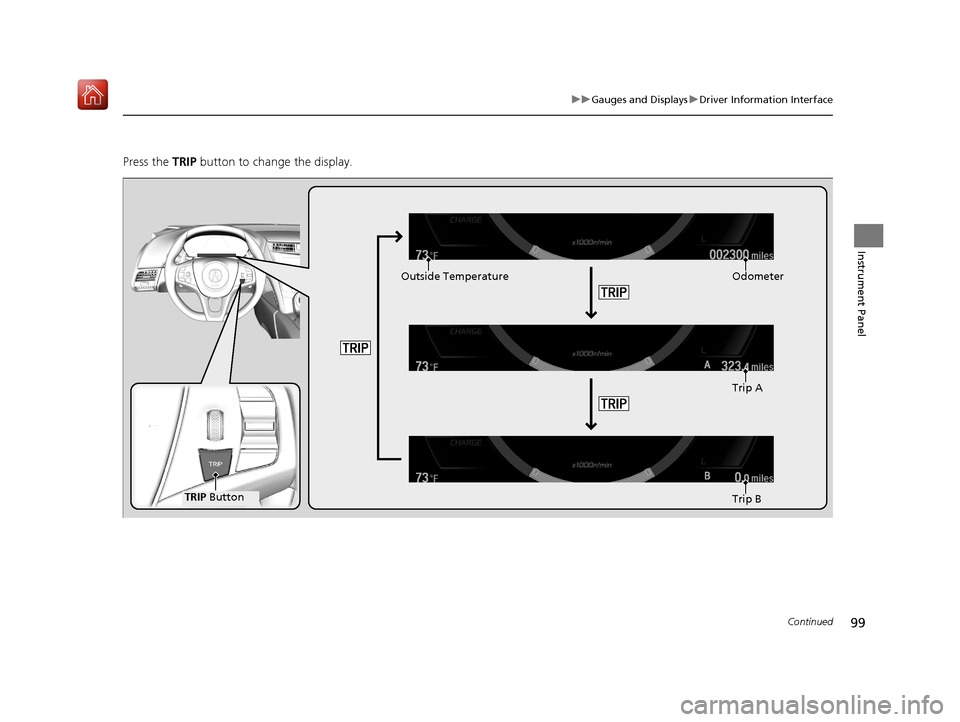

Press the TRIP button to change the display.
Odometer
Trip A
Trip B
TRIP Button
Outside Temperature
18 NSX-31T6N6100.book 99 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

uuGauges and Displays uDriver Information Interface
100
Instrument Panel
Shows the total number of miles (U.S.) or ki lometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.
When a trip meter is reset, the average fuel economy, the elapsed time, and the
average speed are also reset.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5° F or ± 3°C if the temperature reading
seems incorrect.
■Odometer
■Trip Meter
■Outside Temperature
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio system’s customized features to
correct the temperature.
2 Customized Features P. 244
18 NSX-31T6N6100.book 100 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

Continued101
uuGauges and Displays uDriver Information Interface
Instrument Panel

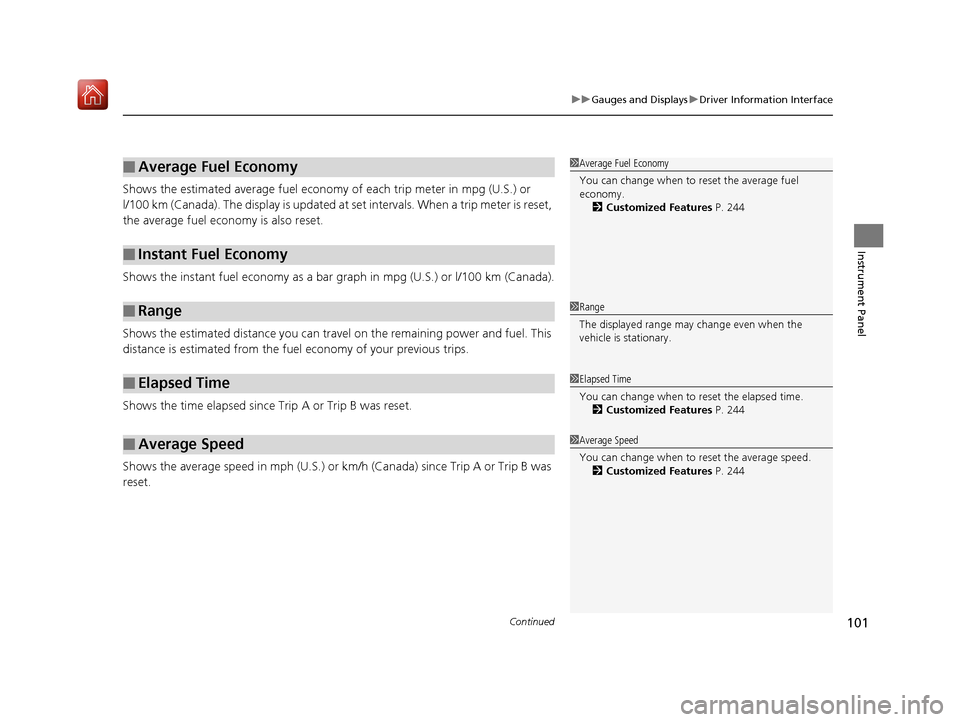

Shows the estimated average fuel econom y of each trip meter in mpg (U.S.) or
l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset,
the average fuel economy is also reset.
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated distance you can travel on the remaining power and fuel. This
distance is estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.
■Average Fuel Economy
■Instant Fuel Economy
■Range
■Elapsed Time
■Average Speed
1 Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 244
1Range
The displayed ra nge may change even when the
vehicle is stationary.
1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 244
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 244
18 NSX-31T6N6100.book 101 ページ ２０１７年１０月２７日　金曜日　午後１時３９分
