keyless Acura NSX 2018 Owner's Manual

16
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist®
(VSA® ) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red) Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P 95)/Driver Information Interface (P 98)/System Indicators (P 70)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage Battery
Charge Level Gauge
Security System
Alarm Indicator
Fuel Gauge
Tachometer
Driver Information Interface Speedometer
Gear Position Indicator Gear Selection Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
READY Indicator
POWER SYSTEM
Indicator
Temperature Gauge ASSIST/CHARGE
Gauge
U.S.
Canada Active Damper System
Indicator
Brake Wear Indicator
*
CRUISE MAIN

Indicator
CRUISE CONTROL
Indicator
Engine Oil Temperature
Gauge
Integrated Dynamics System
Mode
SH-AWD ® Temperature
Gauge
18 NSX-31T6N6100.book 16 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

18
Quick Reference Guide
Wipers and Washers
(P 135)
Wiper/Washer Control LeverAdjustment Ring : Lower speed, fewer sweeps: Higher speed, more sweeps
MIST
OFF
INT: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull
toward
you to
spray
washer
fluid.
Steering Wheel (P 140)
● To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Doors
from the Inside
(P 115)
● Pull either inner door handle to unlock
and open it in one motion.
● Unlocking and opening the driver’s door
from the inner handle unlocks the
passenger’s door.
To adjustTo lock
Hatch (P 119)
● To unlock and open the hatch:
•Press the hatch release button on the
driver’s door.
• Press the hatch release button on the
keyless access remote.
• Press the hatch release button on the
hatch.
Hatch Release Button
18 NSX-31T6N6100.book 18 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm P. 122—
Keyless Access
System Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on as soon as a problem is
detected in the keyless access
system or keyless starting system.
●Have your vehicle checked by an
authorized Acura NSX dealer.
CRUISE MAIN
Indicator●Comes on when you press the
CRUISE button.2 Cruise Control P. 342—
CRUISE
CONTROL
Indicator●Comes on if you have set a speed
for cruise control.
2 Cruise Control P. 342—
Indicator
18 NSX-31T6N6100.book 82 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

85
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.●Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2 Keyless Access Remote Reminder P. 129
●Appears when the keyless access remote battery
becomes weak.●Replace the battery as soon as possible.
2 Replacing the Button Battery P. 418
●Appears if the keyless access remote battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.●Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Keyless Access Remote Battery is Weak P. 446
●Appears three seconds after you bring the keyless
access remote in front of the ENGINE START/STOP
button when To Start, Hold Remote Near Start
Button appears. To Start Engine: Brake + Push
appears sequentially.●Unless you bring the keyless access remote in front of
the ENGINE START/STOP button, this message does
not appear.
2 If the Keyless Access Remote Battery is Weak P. 446
●Appears when you set the power mode to ACCESSORY
or ON.
2Turning on the Power P. 321
●Appears if you press the ENGINE START/STOP button
while the vehicle is moving.●The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
18 NSX-31T6N6100.book 85 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

103
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 104
Locking and Unlocking the Doors Key Type and Functions ................... 105
Low Keyless Access Remote Signal Strength ......................................... 106
Locking/Unlocking the Doors from the
Outside .......................................... 107
Locking/Unlocking the Doors from the Inside ............................................. 115
Auto Door Locking/Unlocking .......... 118
Opening and Closing the Hatch....... 119
Security System ................................ 122
Immobilizer System .......................... 122 Security System Alarm...................... 122Opening and Closing the Windows.... 125Operating the Switches Around the
Steering Wheel ENGINE START/STOP Button............. 127
Turn Signals ..................................... 130
Light Switches.................................. 131
Daytime Running Lights ................... 134
Wipers and Washers ........................ 135
Brightness Control ........................... 136
Rear Defogger/Heated Door Mirror Button.....137Driving Position Memory System*.... 138
Adjusting the Steering Wheel........... 140 Adjusting the Mirrors
....................... 141
Interior Rearview Mirror ................... 141
Power Door Mirrors ......................... 142
Adjusting the Seats .......................... 144
Interior Lights/Interior Convenience Items ................................................ 149
Interior Lights .................................. 149
Interior Convenience Items .............. 151
Climate Control System ................... 156
Using Automatic Climate Control .... 156Automatic Climate Control Sensors......160
* Not available on all models
18 NSX-31T6N6100.book 103 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

105Continued
Controls
Locking and Unlocking the Doors
Key Type and Functions
This vehicle comes with the following key:Use the keyless access remote to turn on and
off the power system, to lock and unlock the
doors and to open the hatch. You can also use
the keyless access system to lock and unlock
the doors and hatch.
The built-in key can be used to lock or unlock
the doors when the keyless access remote
battery becomes weak and the power door
lock/unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
keyless access remote until it clicks.1 Key Type and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 122
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the keyless access
system may not work.
If the keys do not work properly, have them
inspected by an authorized Acura NSX dealer.■Built-in Key
Built-in Key Release Knob
18 NSX-31T6N6100.book 105 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

uuLocking and Unlocking the Doors uLow Keyless Access Remote Signal Strength
106
Controls
Contains a number that you will need if you
purchase a replacement key.
Low Keyless Access Remo te Signal Strength
The vehicle transmits radio waves to loca te the keyless access remote when locking/
unlocking the doors, opening the hatch, or to activate the power system.
In the following cases, locking/unlocking the doors, opening the hatch, or activating
the power system may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the keyless access remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or co vering the keyless access remote.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact an
authorized Acura NSX dealer.
If you lose your key an d you cannot activate the
power system, contact an authorized Acura NSX
dealer.
1 Low Keyless Access Remote Signal Strength
Communication between the keyless access remote
and the vehicle consumes the keyless access remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless access
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
18 NSX-31T6N6100.book 106 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

107
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the keyless access remote, the
outer door handles automatically pop in/out
and you can lock/unlock the doors and open
the hatch.
Outer door handles automatically pop in/out
within about 6 feet (2 m) radius of the outside
door handle.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the hatch within about
32 inches (80 cm) radius from the hatch
release button.
■Locking the vehicle
Press the door lock button on either door.u Some exterior lights flash; the beeper
sounds; both doors lock; both outer door
handles pop in if they are popped out;
and the security system sets.

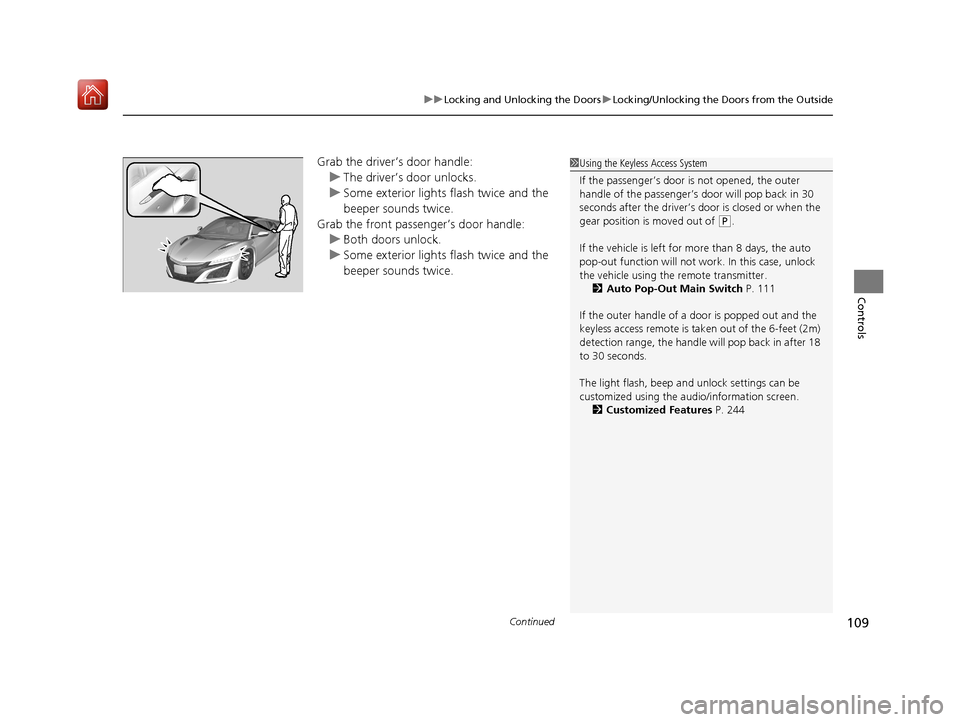

■Using the Keyless Access System1Using the Keyless Access System
If you do not open a door within 30 seconds of
unlocking the vehicle, th e doors will automatically
relock and the outer ha ndles of the doors will
automatically pop back in.
You can lock or unlock doors using the remote
transmitter or keyless access system only when the
power mode is in VEHICLE OFF.
•Do not leave the keyless access remote in the
vehicle when you get out . Carry it with you.
•Even if you are not carrying the keyless access
remote, you can lock/unlock the doors while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless access remote is within range.
•If you grip either door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•The door may not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
keyless access remote if it is above or below the
outside handle.
•The keyless access remote may not operate if it is
too close to the door and door glass.
18 NSX-31T6N6100.book 107 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
108
Controls
■Unlocking the vehicle
When you walk to the vehicle while carrying
the keyless access remote, the outer door
handles will automatically pop out.
The auto pop-out function activates when
both doors are closed, and the keyless access
remote is within a 6-foot (2 m) radius of the
outside door handle.
Pushing out the door handle
To push out the outer door handle manually,
push the front side inwards.1 Using the Keyless Access System
If you lock the doors and then keep the keyless
remote within the detection range for more than 2
minutes, the auto pop-out function will be disabled.
If the function is disa bled, pop out the handle
manually or use the unlock button on the keyless
access remote.
If you walk away from the vehicle when the power
system is on, the auto pop-out function will not
work.
If you close the doors and take the keyless access
remote out of th e 6-foot (2m) detection range and
then bring it back into the range within 10 seconds,
the pop-out function will not work. In this case, pop
out the door handle manuall y or use the remote
transmitter.
If, however, you bring the remote back into range
after 10 seconds, the handl es will automatically pop
out.
18 NSX-31T6N6100.book 108 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

Continued109
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Grab the driver’s door handle:
u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle: u Both doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.1Using the Keyless Access System
If the passenger’s door is not opened, the outer
handle of the passenger’s door will pop back in 30
seconds after the dr iver’s door is closed or when the
gear position is moved out of
( P.
If the vehicle is left for more than 8 days, the auto
pop-out function will not work. In this case, unlock
the vehicle using the remote transmitter. 2 Auto Pop-Out Main Switch P. 111
If the outer handle of a door is popped out and the
keyless access remote is t aken out of the 6-feet (2m)
detection range, the handle will pop back in after 18
to 30 seconds.
The light flash, beep a nd unlock settings can be
customized using the audio/information screen. 2 Customized Features P. 244
18 NSX-31T6N6100.book 109 ページ ２０１７年１０月２７日　金曜日　午後１時３９分
