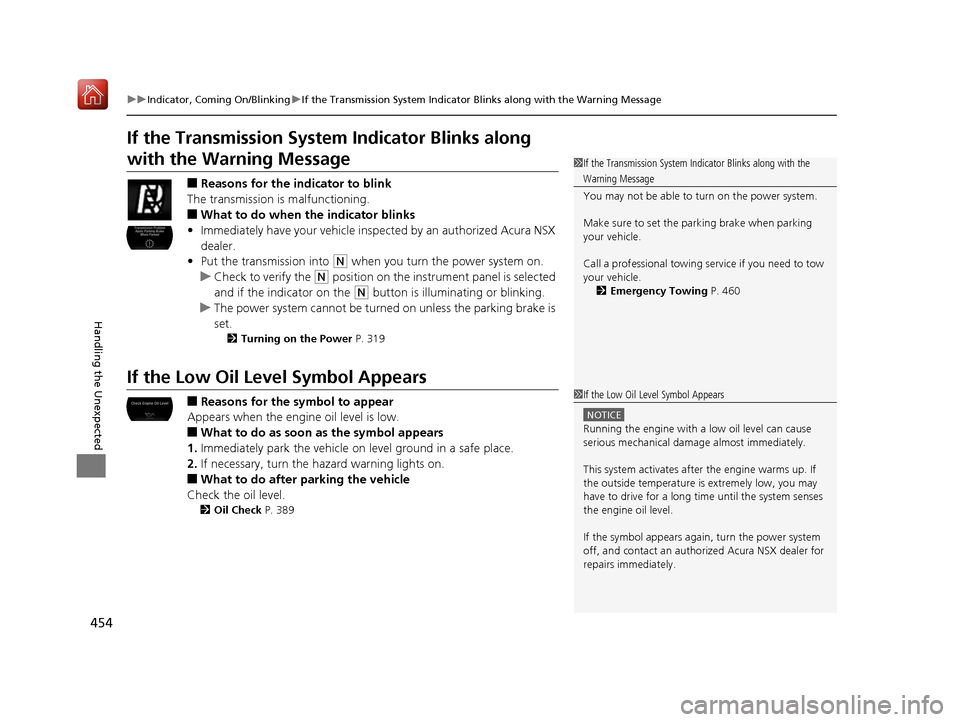

454
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle insp ected by an authorized Acura NSX
dealer.
• Put the transmission into
(N when you turn the power system on.
u Check to verify the
(N position on the instrument panel is selected
and if the indicator on the
(N button is illuminating or blinking.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 319
If the Low Oil Level Symbol Appears
■Reasons for the symbol to appear
Appears when the engine oil level is low.
■What to do as soon as the symbol appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
Check the oil level.
2 Oil Check P. 389
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 460
1If the Low Oil Level Symbol Appears
NOTICE
Running the engine with a low oil level can cause
serious mechanical damage almost immediately.
This system activates after the engine warms up. If
the outside temperature is extremely low, you may
have to drive for a long time until the system senses
the engine oil level.
If the symbol appears agai n, turn the power system
off, and contact an authorized Acura NSX dealer for
repairs immediately.
19 NSX-31T6N6200.book 454 ページ ２０１８年８月９日　木曜日　午前１１時１２分

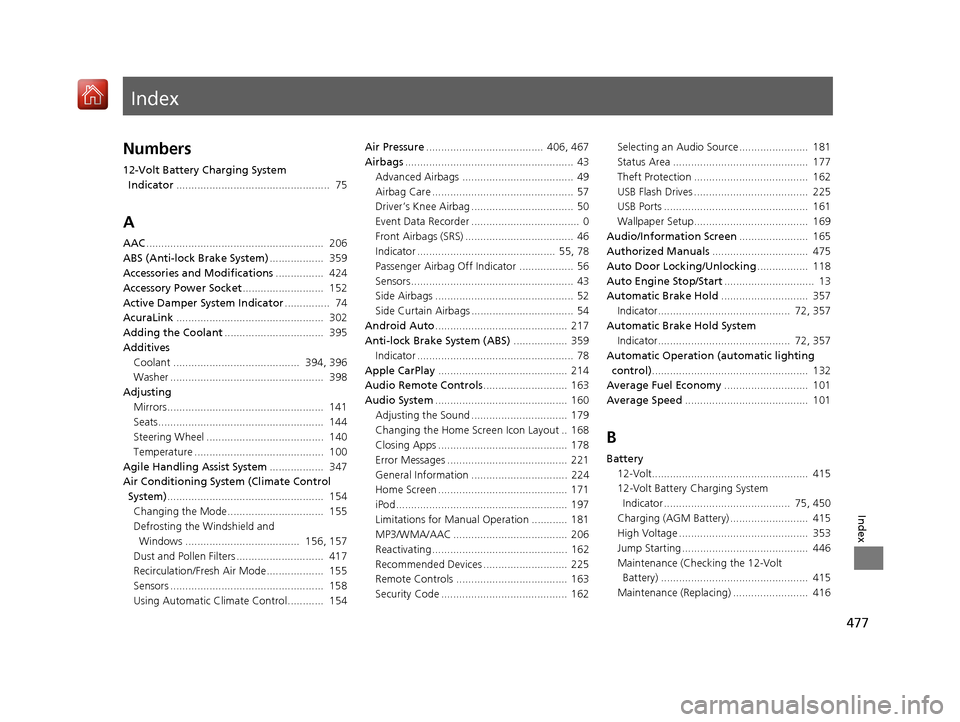

Index
477
Index
Index
Numbers
12-Volt Battery Charging System Indicator ................................................... 75
A
AAC........................................................... 206
ABS (Anti-lock Brake System) .................. 359
Accessories and Modifications ................ 424
Accessory Power Socket ........................... 152
Active Damper System Indicator ............... 74
AcuraLink ................................................. 302
Adding the Coolant ................................. 395
Additives Coolant .......................................... 394, 396
Washer ................................................... 398
Adjusting Mirrors.................................................... 141
Seats....................................................... 144
Steering Wheel ....................................... 140
Temperature ........................................... 100
Agile Handling Assist System .................. 347
Air Conditioning System (Climate Control System) .................................................... 154
Changing the Mode................................ 155
Defrosting the Windshield and Windows ...................................... 156, 157
Dust and Pollen Filters ............................. 417
Recirculation/Fresh Air Mode................... 155
Sensors ................................................... 158
Using Automatic Climate Control............ 154 Air Pressure
....................................... 406, 467
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
Airbag Care ............................................... 57
Driver’s Knee Airbag .................................. 50
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 46
Indicator .............................................. 55, 78
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 43
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
Android Auto ............................................ 217
Anti-lock Brake System (ABS) .................. 359
Indicator .................................................... 78
Apple CarPlay ........................................... 214
Audio Remote Controls ............................ 163
Audio System ............................................ 160
Adjusting the Sound ................................ 179
Changing the Home Screen Icon Layout .. 168
Closing Apps ........................................... 178
Error Messages ........................................ 221
General Information ................................ 224
Home Screen ........................................... 171
iPod ......................................................... 197
Limitations for Manua l Operation ............ 181
MP3/WMA/AAC ...................................... 206
Reactivating ............................................. 162
Recommended Devices ............................ 225
Remote Controls ..................................... 163
Security Code .......................................... 162 Selecting an Audio Source ....................... 181
Status Area ............................................. 177
Theft Protection ...................................... 162
USB Flash Drives ...................................... 225
USB Ports ................................................ 161
Wallpaper Setup...................................... 169
Audio/Information Screen ....................... 165
Authorized Manuals ................................ 475
Auto Door Locking/Unlocking ................. 118
Auto Engine Stop/Start .............................. 13
Automatic Brake Hold ............................. 357
Indicator............................................ 72, 357
Automatic Brake Hold System Indicator............................................ 72, 357
Automatic Operation (automatic lighting control) .................................................... 132
Average Fuel Economy ............................ 101
Average Speed ......................................... 101
B
Battery
12-Volt.................................................... 415
12-Volt Battery Charging System
Indicator .......................................... 75, 450
Charging (AGM Battery) .......................... 415
High Voltage ........................................... 353
Jump Starting .......................................... 446
Maintenance (Checking the 12-Volt Battery) ................................................. 415
Maintenance (Replacing) ......................... 416
19 NSX-31T6N6200.book 477 ページ ２０１８年８月９日　木曜日　午前１１時１２分

478
Index
Battery Types.............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ...................................... 152
Bluetooth ® Audio ..................................... 209
Bluetooth ® HandsFreeLink ®..................... 268
Booster Seats (For Children) ....................... 66
Brake System ............................................. 354
Anti-lock Brake System (ABS) ................... 359
Automatic Brake Hold.............................. 357
Brake Assist System ................................. 360
Fluid ........................................................ 398
Foot Brake ............................................... 356
Parking Brake .......................................... 354
Brake System (Amber)
Indicator .................................................... 73
Brake System (Red) Indicator ............................................ 70, 451
Brake Wear Indicator .................................................... 74
Bulb Replacement ..................................... 399
Back-Up Lights......................................... 400
Daytime Running Lights ........................... 399
Front Side Marker Lights .......................... 399
Front Turn Signal/Parking Lights ............... 399
Headlights ............................................... 399
High-Mount Brake Light .......................... 401
Rear License Plate Lights .......................... 401
Rear Side Marker Lights ........................... 400
Rear Turn Signal Lights ............................ 400
Side Turn Signal/Emergency Indicator Lights..................................................... 399 Taillights.................................................. 400
Bulb Specifications ................................... 466
C
Carbon Monoxide Gas ............................... 67
Carrying Cargo ................................. 309, 311
Certification Label .................................... 468
Changing Bulbs ........................................ 399
Charging System Indicator ................. 75, 450
Child Safety ................................................. 58
Emergency Hatch Opener ........................ 121
Child Seat .................................................... 58
Booster Seats ............................................ 66
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat ................................ 63
Larger Children ......................................... 65
Selecting a Forward-facing Child Seat........ 62
Using a Tether ........................................... 64
Cleaning the Exterior ............................... 420
Cleaning the Interior ................................ 418
Client Service Information ....................... 476
Climate Control System ............................ 154
Defrosting the Windshield and Windows ....................................... 156, 157
Dust and Pollen Filters ............................. 417
Recirculation/Fresh Air Mode ................... 155
Sensors ................................................... 158
Using Automatic Climate Control ............ 154
Clock .......................................................... 104 Cold Weather
........................................... 414
Console Compartment ............................. 151
Controls .................................................... 103
Coolant (Engine) ...................................... 394
Adding the Coolant ................................ 395
Checking the Coolant ............................. 394
Overheating ............................................ 448
Coolant (Inverter) .................................... 396
Creeping (Dual Clutch Transmission) ...... 323
Cruise Control .......................................... 340
CRUISE CONTROL Indicator ....................... 82
CRUISE MAIN Indicator .............................. 82
Cup Holders .............................................. 152
Customized Features ............................... 242
D
Daytime Running Lights .......................... 134
Dead Battery (12-Volt) ............................. 446
Defrosting the Windshield and Windows ......................................... 156, 157
Devices that Emit Radio Waves ............... 469
Dimming Headlights .............................................. 131
Rearview Mirror ...................................... 141
Dipstick (Engine Oil) ........................ 384, 391
Directional Signals (Turn Signal) ............. 130
Door Mirrors ............................................. 142
Doors ........................................................ 105
Auto Door Locking.................................. 118
Auto Door Unlocking .............................. 118
19 NSX-31T6N6200.book 478 ページ ２０１８年８月９日　木曜日　午前１１時１２分

482
Index
Malfunction Indicator Lamp.............. 75, 450
Map Lights ................................................ 150
Maximum Load Limit ................................ 311
Meters, Gauges ........................................... 95
Mirrors ....................................................... 141
Adjusting ................................................. 141
Door ........................................................ 142
Exterior .................................................... 142
Interior Rearview...................................... 141
Modifications (and Accessories) ............... 424
MP3 ............................................................ 206
Multi-View Rear Camera .......................... 366
N
Numbers (Identification).......................... 468
O
Odometer.................................................. 100
Oil (Engine) ....................................... 388, 467
Adding .................................................... 392
Checking ................................................. 389
Displaying Oil Life .................................... 378
Low Oil Level Symbol ............................... 454
Low Oil Pressure Indicator .......................... 70
Recommended Engine Oil ................ 388, 467
Viscosity .......................................... 388, 467
Open Source Licenses ............................... 240
Opening Hatch ...................................... 119, 385, 462 Opening/Closing
Hatch .............................................. 119, 385
Hood....................................................... 386
Power Windows ...................................... 125
Operating the Switches Around the
Steering Wheel ....................................... 127
Outside Temperature Display .................. 100
Overheating .............................................. 448
P
Paddle Shifters (Sequential Mode) .......... 332
Pandora® ................................................... 204
Panic Mode ............................................... 124
Parking ...................................................... 361
Parking Brake ........................................... 354
Parking Sensor System ............................. 362
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 131
POWER Button ......................................... 127
Power System
Turning on .............................................. 319
POWER SYSTEM Indicator .......................... 74
Power Windows ....................................... 125
Precautions While Driving In Snow and Ice....................................... 322
Rain ........................................................ 322
Pregnant Women ....................................... 41
Puncture (Tire) .......................................... 431
R
Radio (FM)................................................ 186
Radio (SiriusXM ®)..................................... 190
Radio Data System (RDS) ......................... 189
Range ........................................................ 101
RDS (Radio Data System) ......................... 189
Readiness Codes (Emissions Testing) ...... 471
READY Indicator ........................................ 74
Rear Defogger/Heated Door Mirror Button ..................................................... 137
Rearview Mirror ....................................... 141
Refueling .................................................. 368
Fuel Gauge ............................................... 95
Gasoline ......................................... 368, 466
Low Fuel Indicator ..................................... 77
Regenerative Energy and Regenerative Braking ..................................................... 12
Regulations .............................. 351, 408, 469
Remote Transmitter ................................. 112
Replacement Battery .................................................... 416
Bulbs ...................................................... 399
Fuses ...................................... 455, 457, 458
Tires........................................................ 411
Wiper Blade Rubber ................................ 402
Reporting Safety Defects ......................... 470
Resetting a Trip Meter ............................. 100
Reverse Tilt Door Mirror .......................... 143
Right Selector Wheel ................................. 98
19 NSX-31T6N6200.book 482 ページ ２０１８年８月９日　木曜日　午前１１時１２分
