engine coolant Acura NSX 2019 User Guide

395
uuMaintenance Under the Hood and Hatch uCooling System
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the reserve tank cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.
3. Push down and turn the reserve tank cap
counter-clockwise to remove it.
4. Pour coolant into the reserve tank until it
reaches the MAX mark.
5. Put the reserve tank cap back on, and
tighten it fully.

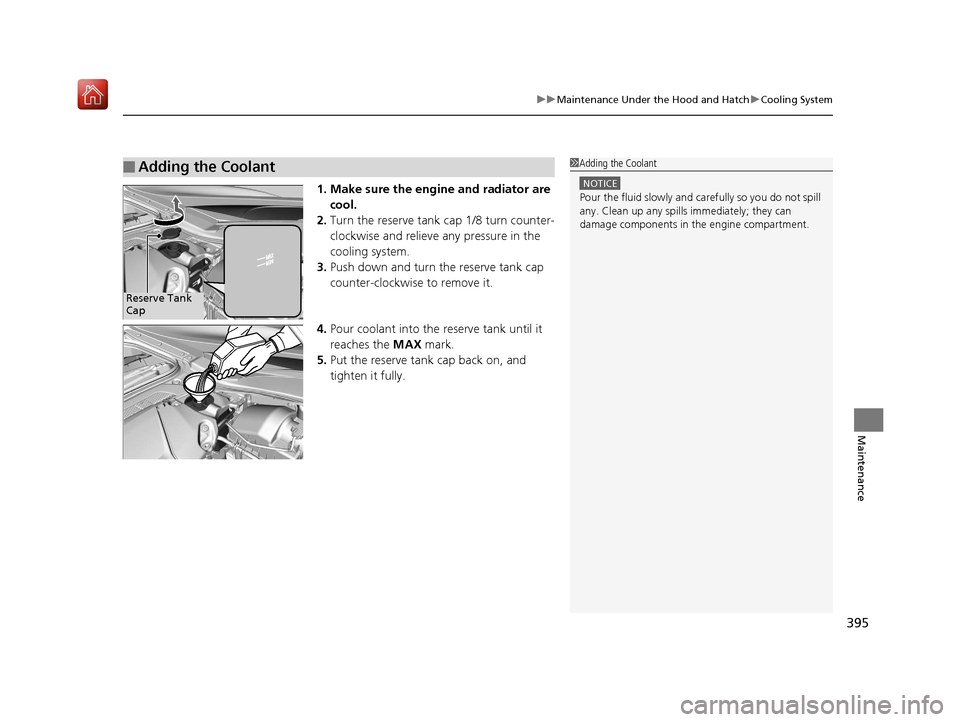

■Adding the Coolant1Adding the Coolant
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
Reserve Tank
Cap
19 NSX-31T6N6200.book 395 ページ ２０１８年８月９日　木曜日　午前１１時１２分

396
uuMaintenance Under the Hood and Hatch uInverter Coolant
Maintenance

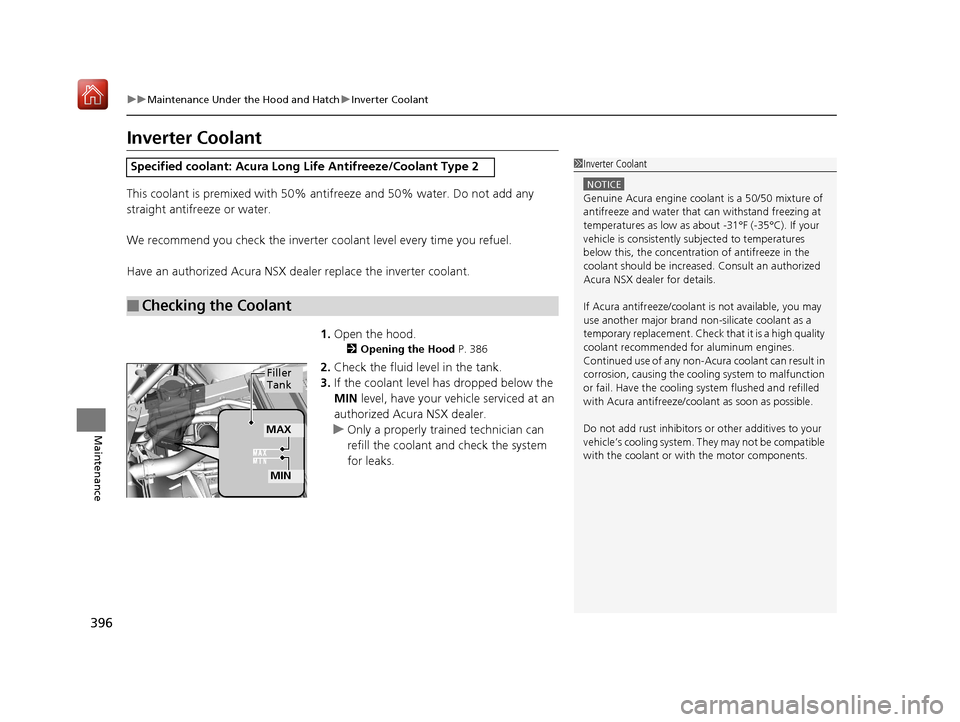

Inverter Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the inverter co olant level every time you refuel.
Have an authorized Acura NSX deal er replace the inverter coolant.
1. Open the hood.
2 Opening the Hood P. 386
2.Check the fluid level in the tank.
3. If the coolant level has dropped below the
MIN level, have your vehicle serviced at an
authorized Acura NSX dealer.
u Only a properly trained technician can
refill the coolant an d check the system
for leaks.
Specified coolan t: Acura Long Life Antifreeze/Coolant Type 2
■Checking the Coolant
1Inverter Coolant
NOTICE
Genuine Acura engine cool ant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult an authorized
Acura NSX dealer for details.
If Acura antifreeze/coolant is not available, you may
use another major brand non- silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended fo r aluminum engines.
Continued use of any non-Acur a coolant can result in
corrosion, causing the cooling system to malfunction
or fail. Have the cooling system flushed and refilled
with Acura antifreeze/cool ant as soon as possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the motor components.
MAX
MIN
Filler
Tank
19 NSX-31T6N6200.book 396 ページ ２０１８年８月９日　木曜日　午前１１時１２分

Continued421
uuCleaning uExterior Care
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resi n coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.

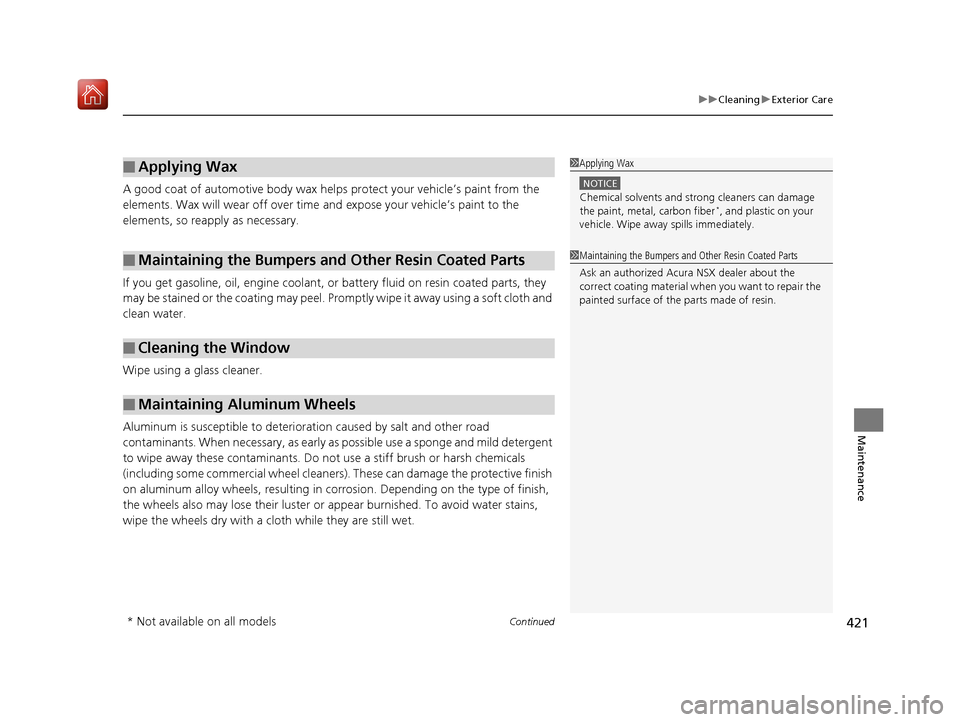

■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, carbon fiber*, and plastic on your
vehicle. Wipe away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask an authorized Acur a NSX dealer about the
correct coating material when you want to repair the
painted surface of the parts made of resin.
* Not available on all models
19 NSX-31T6N6200.book 421 ページ ２０１８年８月９日　木曜日　午前１１時１２分

449
uuOverheating uHow to Handle Overheating
Handling the Unexpected

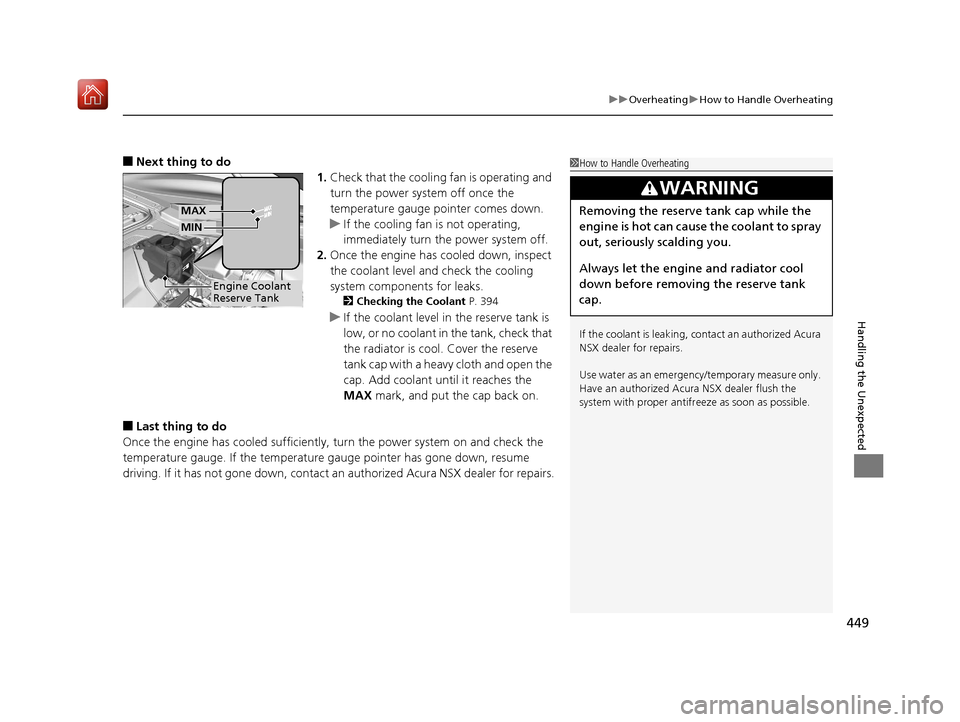

■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the
temperature gauge pointer comes down.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
2 Checking the Coolant P. 394
uIf the coolant level in the reserve tank is
low, or no coolant in the tank, check that
the radiator is cool. Cover the reserve
tank cap with a heavy cloth and open the
cap. Add coolant until it reaches the
MAX mark, and put the cap back on.
■Last thing to do
Once the engine has cooled sufficiently, turn the power system on and check the
temperature gauge. If the temperature gauge pointer has gone down, resume
driving. If it has not gone down, contact an authorized Acura NSX dealer for repairs.
1How to Handle Overheating
If the coolant is leaking, contact an authorized Acura
NSX dealer for repairs.
Use water as an emergency/temporary measure only.
Have an authorized Acura NSX dealer flush the
system with proper antifree ze as soon as possible.
3WARNING
Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the reserve tank
cap.
Engine Coolant
Reserve Tank
MAX
MIN
19 NSX-31T6N6200.book 449 ページ ２０１８年８月９日　木曜日　午前１１時１２分

467
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
■ Twin Motor Unit FluidSpecifiedAcura Heavy Duty Brake Fluid DOT 4
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.75 US qt (2.6 L)
SpecifiedAcura Gear Oil GO-Type 2.0
Capacity Change 4.86 US qt (4.6 L)
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.56 US qt (2.42 L)
Clutch
Transmission
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
RecommendedUltimate Full Synthetic Motor Oil, Type3,
0W-40
Capacity Change 7.7 US qt (7.3 L)
Change
including
filter
8.3 US qt (7.9 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
4.1 US gal (15.5 L)
(change including the remaining
0.34 US gal (1.29 L) in the reserve tank and
heater)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.50 US gal (1.90 L)
(change including the remaining
0.12 US gal (0.46 L) in the reserve tank)
■ Tire
Regular
Size
Front
245/35ZR19 (93Y)
Rear
305/30ZR20 (103Y)
Pressure
psi (kPa [kgf/cm2])
Front
32 (220 [2.2])
Rear
32 (220 [2.2])
Wheel Size Regular Front
19 X 8 1/2J
Rear
20 X 11J
19 NSX-31T6N6200.book 467 ページ ２０１８年８月９日　木曜日　午前１１時１２分

Index
477
Index
Index
Numbers
12-Volt Battery Charging System Indicator ................................................... 75
A
AAC........................................................... 206
ABS (Anti-lock Brake System) .................. 359
Accessories and Modifications ................ 424
Accessory Power Socket ........................... 152
Active Damper System Indicator ............... 74
AcuraLink ................................................. 302
Adding the Coolant ................................. 395
Additives Coolant .......................................... 394, 396
Washer ................................................... 398
Adjusting Mirrors.................................................... 141
Seats....................................................... 144
Steering Wheel ....................................... 140
Temperature ........................................... 100
Agile Handling Assist System .................. 347
Air Conditioning System (Climate Control System) .................................................... 154
Changing the Mode................................ 155
Defrosting the Windshield and Windows ...................................... 156, 157
Dust and Pollen Filters ............................. 417
Recirculation/Fresh Air Mode................... 155
Sensors ................................................... 158
Using Automatic Climate Control............ 154 Air Pressure
....................................... 406, 467
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
Airbag Care ............................................... 57
Driver’s Knee Airbag .................................. 50
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 46
Indicator .............................................. 55, 78
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 43
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
Android Auto ............................................ 217
Anti-lock Brake System (ABS) .................. 359
Indicator .................................................... 78
Apple CarPlay ........................................... 214
Audio Remote Controls ............................ 163
Audio System ............................................ 160
Adjusting the Sound ................................ 179
Changing the Home Screen Icon Layout .. 168
Closing Apps ........................................... 178
Error Messages ........................................ 221
General Information ................................ 224
Home Screen ........................................... 171
iPod ......................................................... 197
Limitations for Manua l Operation ............ 181
MP3/WMA/AAC ...................................... 206
Reactivating ............................................. 162
Recommended Devices ............................ 225
Remote Controls ..................................... 163
Security Code .......................................... 162 Selecting an Audio Source ....................... 181
Status Area ............................................. 177
Theft Protection ...................................... 162
USB Flash Drives ...................................... 225
USB Ports ................................................ 161
Wallpaper Setup...................................... 169
Audio/Information Screen ....................... 165
Authorized Manuals ................................ 475
Auto Door Locking/Unlocking ................. 118
Auto Engine Stop/Start .............................. 13
Automatic Brake Hold ............................. 357
Indicator............................................ 72, 357
Automatic Brake Hold System Indicator............................................ 72, 357
Automatic Operation (automatic lighting control) .................................................... 132
Average Fuel Economy ............................ 101
Average Speed ......................................... 101
B
Battery
12-Volt.................................................... 415
12-Volt Battery Charging System
Indicator .......................................... 75, 450
Charging (AGM Battery) .......................... 415
High Voltage ........................................... 353
Jump Starting .......................................... 446
Maintenance (Checking the 12-Volt Battery) ................................................. 415
Maintenance (Replacing) ......................... 416
19 NSX-31T6N6200.book 477 ページ ２０１８年８月９日　木曜日　午前１１時１２分

478
Index
Battery Types.............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ...................................... 152
Bluetooth ® Audio ..................................... 209
Bluetooth ® HandsFreeLink ®..................... 268
Booster Seats (For Children) ....................... 66
Brake System ............................................. 354
Anti-lock Brake System (ABS) ................... 359
Automatic Brake Hold.............................. 357
Brake Assist System ................................. 360
Fluid ........................................................ 398
Foot Brake ............................................... 356
Parking Brake .......................................... 354
Brake System (Amber)
Indicator .................................................... 73
Brake System (Red) Indicator ............................................ 70, 451
Brake Wear Indicator .................................................... 74
Bulb Replacement ..................................... 399
Back-Up Lights......................................... 400
Daytime Running Lights ........................... 399
Front Side Marker Lights .......................... 399
Front Turn Signal/Parking Lights ............... 399
Headlights ............................................... 399
High-Mount Brake Light .......................... 401
Rear License Plate Lights .......................... 401
Rear Side Marker Lights ........................... 400
Rear Turn Signal Lights ............................ 400
Side Turn Signal/Emergency Indicator Lights..................................................... 399 Taillights.................................................. 400
Bulb Specifications ................................... 466
C
Carbon Monoxide Gas ............................... 67
Carrying Cargo ................................. 309, 311
Certification Label .................................... 468
Changing Bulbs ........................................ 399
Charging System Indicator ................. 75, 450
Child Safety ................................................. 58
Emergency Hatch Opener ........................ 121
Child Seat .................................................... 58
Booster Seats ............................................ 66
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat ................................ 63
Larger Children ......................................... 65
Selecting a Forward-facing Child Seat........ 62
Using a Tether ........................................... 64
Cleaning the Exterior ............................... 420
Cleaning the Interior ................................ 418
Client Service Information ....................... 476
Climate Control System ............................ 154
Defrosting the Windshield and Windows ....................................... 156, 157
Dust and Pollen Filters ............................. 417
Recirculation/Fresh Air Mode ................... 155
Sensors ................................................... 158
Using Automatic Climate Control ............ 154
Clock .......................................................... 104 Cold Weather
........................................... 414
Console Compartment ............................. 151
Controls .................................................... 103
Coolant (Engine) ...................................... 394
Adding the Coolant ................................ 395
Checking the Coolant ............................. 394
Overheating ............................................ 448
Coolant (Inverter) .................................... 396
Creeping (Dual Clutch Transmission) ...... 323
Cruise Control .......................................... 340
CRUISE CONTROL Indicator ....................... 82
CRUISE MAIN Indicator .............................. 82
Cup Holders .............................................. 152
Customized Features ............................... 242
D
Daytime Running Lights .......................... 134
Dead Battery (12-Volt) ............................. 446
Defrosting the Windshield and Windows ......................................... 156, 157
Devices that Emit Radio Waves ............... 469
Dimming Headlights .............................................. 131
Rearview Mirror ...................................... 141
Dipstick (Engine Oil) ........................ 384, 391
Directional Signals (Turn Signal) ............. 130
Door Mirrors ............................................. 142
Doors ........................................................ 105
Auto Door Locking.................................. 118
Auto Door Unlocking .............................. 118
19 NSX-31T6N6200.book 478 ページ ２０１８年８月９日　木曜日　午前１１時１２分

479
Index
Door Open Message ................................. 35
Keys........................................................ 105
Locking/Unlocking the Doors from the Inside .............................................. 18, 115
Locking/Unlocking the Doors from the
Outside ................................................. 107
Lockout Prevention System ..................... 114
DOT Tire Quality Grading ........................ 408
Driver Information Interface ..................... 98
Driver’s Knee Airbag .................................. 50
Driving ...................................................... 307
Braking ................................................... 354
Cold Weather ......................................... 414
Cruise Control ........................................ 340
Dual Clutch Transmission ........................ 323
Shifting Gear .......................................... 324
Turning on the Power ............................. 319
Driving Position Memory System ............ 138
Dual Clutch Transmission ........................ 323
Creeping................................................. 323
Fluids .............................................. 397, 467
Kickdown ............................................... 323
Operating the Shift Button ................ 23, 326
Shifting ................................................... 324
Dust and Pollen Filters ............................. 417
E
Elapsed Time............................................ 101
Electric Parking Brake .............................. 354
Indicator ................................................... 71 Electric Parking Brake System
Indicator ............................................ 71, 452
Electric Power Steering (EPS) System Indicator ............................................ 78, 451
Electronic Stability Control (ESC) ............. 343
Emergency ................................................ 460
Emergency Hatch Opener ........................ 121
Emissions Testing (Readiness Codes) ....... 471
Energy Efficiency ........................................ 12
Engine ....................................................... 468
Coolant ........................................... 394, 467
Jump Starting .......................................... 446
Oil ................................................... 388, 467
Engine Compartment Cover .................... 387
Engine Coolant ......................................... 394
Adding the Coolant ................................. 395
Checking the Coolant .............................. 394
Overheating ............................................ 448
Engine Oil
Adding .................................................... 392
Changing ................................................ 393
Checking ................................................. 389
Displaying Oil Life .................................... 378
Low Oil Level Symbol ............................... 454
Low Oil Pressure Indicator .......................... 70
Recommended Engine Oil ........................ 388
Temperature Gauge .................................. 97
EPS (Electric Power Steering) System ........ 78
Exhaust Gas Hazard (Carbon Monoxide) .. 67
Exterior Care (Cleaning) ........................... 420
Exterior Mirrors ........................................ 142
F
Features.................................................... 159
Filters Dust and Pollen ....................................... 417
Oil ........................................................... 393
Flat Tire ..................................................... 431
Floor Mats ................................................. 419
Fluids
Brake .............................................. 398, 467
Dual Clutch Transmission ................ 397, 467
Engine Coolant ............................... 394, 467
Inverter Coolant .............................. 396, 467
Twin Motor Unit.............................. 397, 467
Windshield Washer ......................... 398, 466
FM Radio ................................................... 186
Foot Brake ................................................ 356
Front Airbags (SRS) ..................................... 46
Fuel ...................................................... 25, 368
Economy ................................................. 370
Gauge ....................................................... 95
Instant Fuel Economy .............................. 101
Low Fuel Indicator ..................................... 77
Range ..................................................... 101
Refueling................................................. 368
Requirement ................................... 368, 466
Fuel Economy ........................................... 370
Fuel Fill Door ...................................... 25, 369
Fuses .......................................................... 455
Inspecting and Changing......................... 459
Locations................................. 455, 457, 458
19 NSX-31T6N6200.book 479 ページ ２０１８年８月９日　木曜日　午前１１時１２分
