Acura NSX 2019 Owner's Manual

380
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
•Inspect direct injection + port injection fuel system
every 3 years or service item B is indicated.
•Inspect tire condition ev ery 3,100 miles (5,000 km).
Maintenance Minder Message System Message
Indicator
Main Item Sub Items
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for temporary tire repair kit
bottle
●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
●Inspect direct injection + port injection fuel system*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filters every 15,000 miles (24,000 km) or
every year.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid and clutch fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under this condition, have the transmission
fluid and clutch fluid changed every 20,000 miles (32,000 km).
*5: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear) stress to fluid. This requires Twin Motor Unit fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the Twin Motor
Unit fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Inspect tire condition
2●Replace air cleaner element*2
●Replace dust and pollen filters*3
3●Replace transmission fluid*4
●Replace clutch fluid*4
4●Replace spark plugs●Inspect valve clearance●Inspect Active Exhaust Valve function●Replace Intake Sound Control
5
●Replace engine coolant
6●Replace Twin Motor Unit fluid*5
19 NSX-31T6N6200.book 380 ページ ２０１８年８月９日　木曜日　午前１１時１２分

Continued381
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance

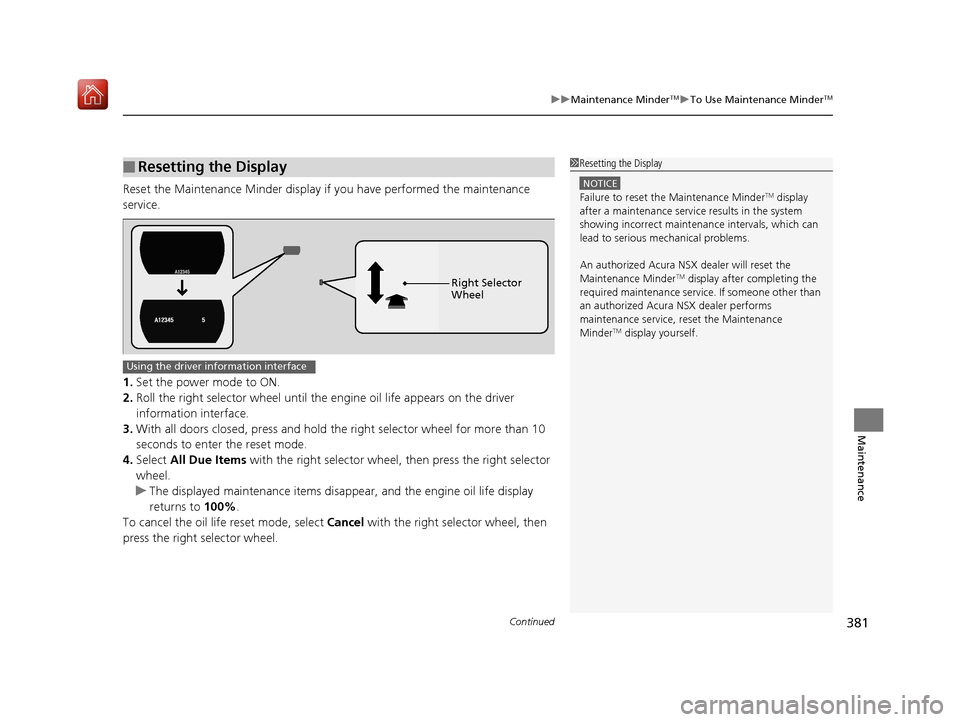

Reset the Maintenance Minder display if you have performed the maintenance
service.
1. Set the power mode to ON.
2. Roll the right selector wheel until the en gine oil life appears on the driver
information interface.
3. With all doors closed, press and hold the right selector wheel for more than 10
seconds to enter the reset mode.
4. Select All Due Items with the right selector wheel, then press the right selector
wheel.
u The displayed maintenance items disappear, and the engine oil life display
returns to 100%.
To cancel the oil life reset mode, select Cancel with the right selector wheel, then
press the right selector wheel.
■Resetting the Display1 Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.
An authorized Acura NSX dealer will reset the
Maintenance Minder
TM display after completing the
required maintenance service. If someone other than
an authorized Acura NSX dealer performs
maintenance service, reset the Maintenance
Minder
TM display yourself.
Right Selector
Wheel
Using the driver information interface
19 NSX-31T6N6200.book 381 ページ ２０１８年８月９日　木曜日　午前１１時１２分

382
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance

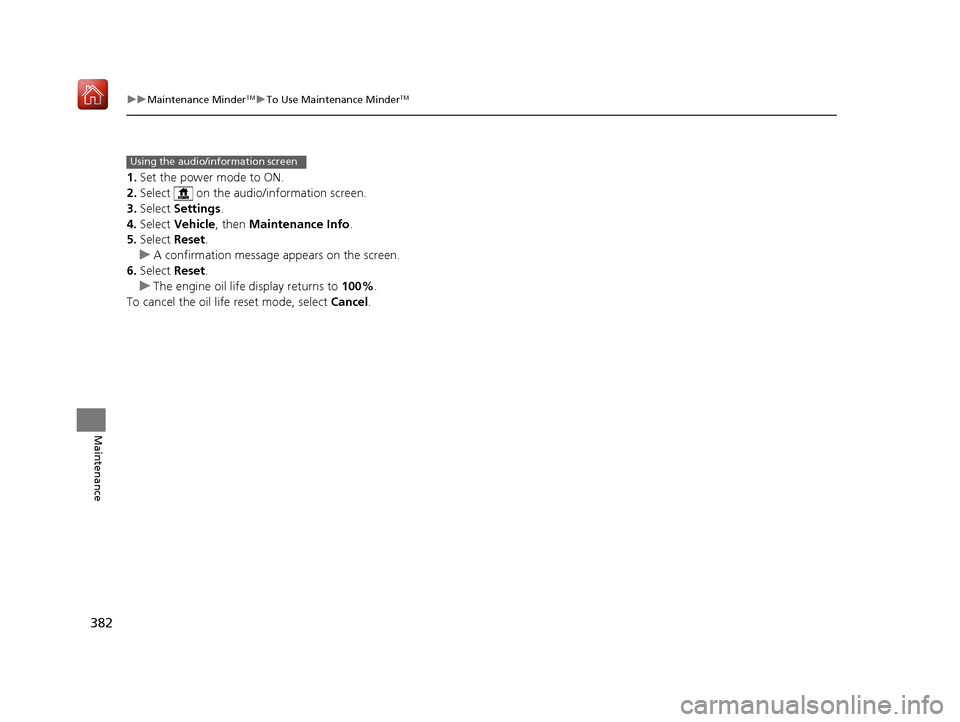

1. Set the power mode to ON.
2. Select on the audio/ information screen.
3. Select Settings .
4. Select Vehicle , then Maintenance Info .
5. Select Reset.
u A confirmation message appears on the screen.
6. Select Reset.
u The engine oil life display returns to 100%.
To cancel the oil life reset mode, select Cancel.
Using the audio/information screen
19 NSX-31T6N6200.book 382 ページ ２０１８年８月９日　木曜日　午前１１時１２分

383Continued
Maintenance
Maintenance Under the Hood and Hatch
Maintenance Items Under the Hood and Hatch
Hood
Brake Fluid
(Black Cap)
Washer Fluid
(Black Cap)
12-Volt Battery
Inverter Coolant
Filler Tank
19 NSX-31T6N6200.book 383 ページ ２０１８年８月９日　木曜日　午前１１時１２分

384
uuMaintenance Under the Hood and Hatch uMaintenance Items Under the Hood and Hatch
Maintenance
Hatch
Engine Oil Fill Cap
Engine Coolant
Reserve Tank Cap Engine Oil Dipstick
(Orange)
Engine Coolant
Reserve Tank
19 NSX-31T6N6200.book 384 ページ ２０１８年８月９日　木曜日　午前１１時１２分

385
uuMaintenance Under the Hood and Hatch uOpening the Hatch
Maintenance

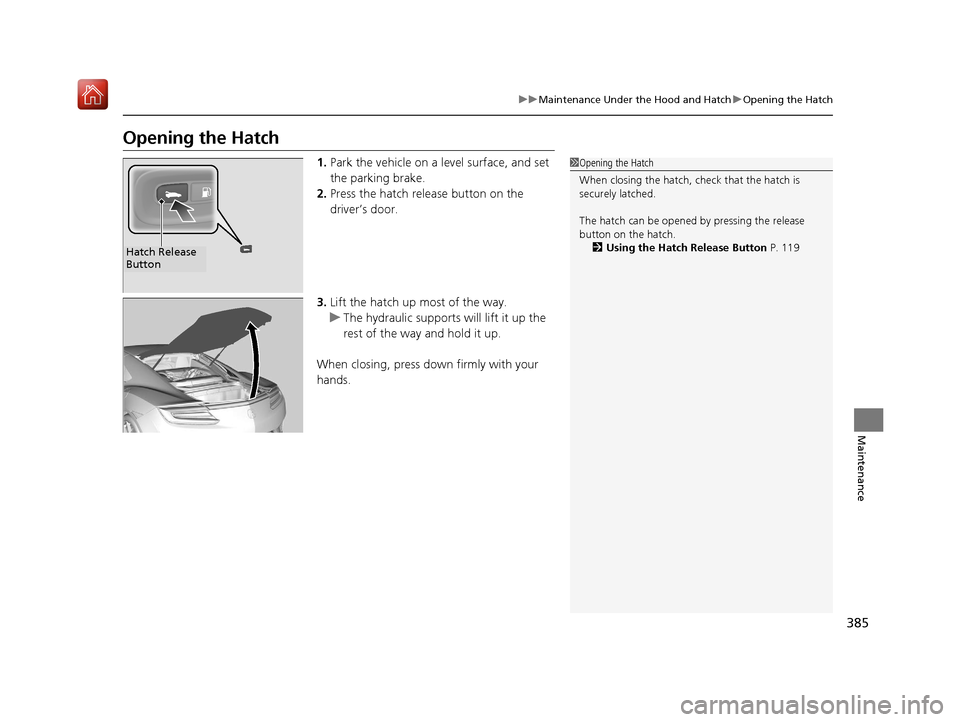

Opening the Hatch
1. Park the vehicle on a level surface, and set
the parking brake.
2. Press the hatch release button on the
driver’s door.
3. Lift the hatch up most of the way.
u The hydraulic supports will lift it up the
rest of the way and hold it up.
When closing, press down firmly with your
hands.1 Opening the Hatch
When closing the hatch, check that the hatch is
securely latched.
The hatch can be opened by pressing the release
button on the hatch.
2 Using the Hatch Release Button P. 119
Hatch Release
Button
19 NSX-31T6N6200.book 385 ページ ２０１８年８月９日　木曜日　午前１１時１２分

386
uuMaintenance Under the Hood and Hatch uOpening the Hood
Maintenance
Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
driver’s side lower corner of the dashboard.
u The hood will pop up slightly.
3. Pull up the hood latch lever (located under
the front edge of the hood to the center)
and raise the hood. Once you have raised
the hood slightly, you can release the lever.
4. Lift the hood up most of the way.
u The hydraulic support will lift it up the
rest of the way and hold it up.
When closing, lower it to approximately 12
inches (30 cm), then pr ess down firmly with
your hands, and make su re both right and left
latches are firmly locked in place.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised. The hood will strike the wipers, resulting in
damage to the hood and/or the wipers.
When closing the hood, check that both right and
left latches are securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.
Pull
Hood Release Handle
Lever
19 NSX-31T6N6200.book 386 ページ ２０１８年８月９日　木曜日　午前１１時１２分

387
uuMaintenance Under the Hood and Hatch uEngine Compartment Cover
Maintenance

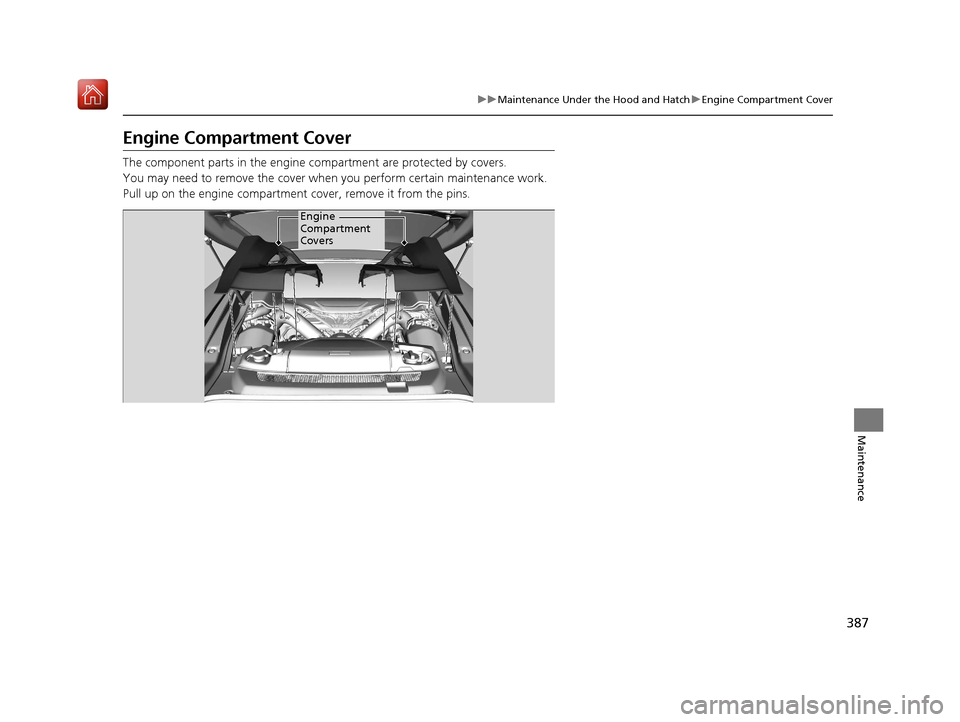

Engine Compartment Cover
The component parts in the engine co mpartment are protected by covers.
You may need to remove the cover when you perform certain maintenance work.
Pull up on the engine compartment cover, remove it from the pins.
Engine
Compartment
Covers
19 NSX-31T6N6200.book 387 ページ ２０１８年８月９日　木曜日　午前１１時１２分

388
uuMaintenance Under the Hood and Hatch uRecommended Engine Oil
Maintenance

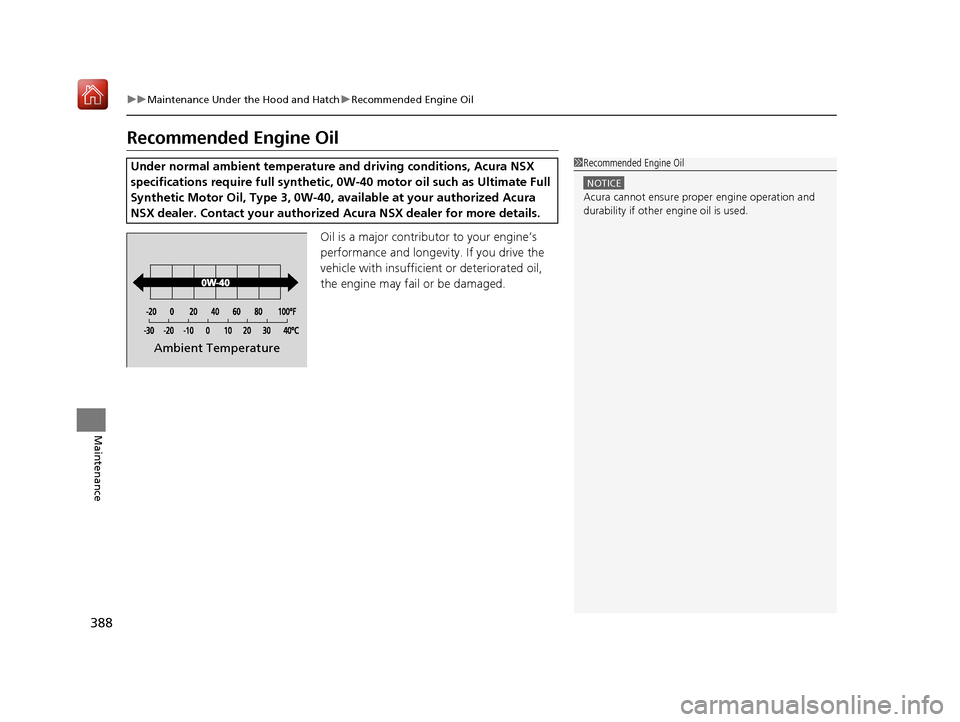

Recommended Engine Oil
Oil is a major contributor to your engine’s
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
Under normal ambient temperature an d driving conditions, Acura NSX
specifications require full synthetic, 0W-40 motor oil such as Ultimate Full
Synthetic Motor Oil, Type 3, 0W-40, available at your authorized Acura
NSX dealer. Contact your authorized Acura NSX dealer for more details.1Recommended Engine Oil
NOTICE
Acura cannot ensure prope r engine operation and
durability if other engine oil is used.
Ambient Temperature
19 NSX-31T6N6200.book 388 ページ ２０１８年８月９日　木曜日　午前１１時１２分

389
uuMaintenance Under the Hood and Hatch uOil Check
Continued
Maintenance
Oil Check
We recommend that you check the engine oil level every time you refuel.
1. Bring up the Oil Level Check Assist
display on the driver information interface.
2 Driver Information Interface P. 98
2.Warm up the engine until all the bars in
the Warm Up gauge light up.
3. When the bars turn green, park the
vehicle on level ground and select
(P.
4. Allow the engine to continue idling until
all the bars in the Idle Time gauge in the
engine Oil Level Check Assist display
light up.
u Do not depress the accelerator pedal
while the engine is idling, as this will
reset the Idle Time .
1Oil Check
NOTICE
Do not open a door or the hatch before the Ready
To Check Oil Level message appears.
If a door or the hatch is open, the corresponding
warning message will be given priority, and the Oil
Level Check Assist will not be displayed.
19 NSX-31T6N6200.book 389 ページ ２０１８年８月９日　木曜日　午前１１時１２分
