uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

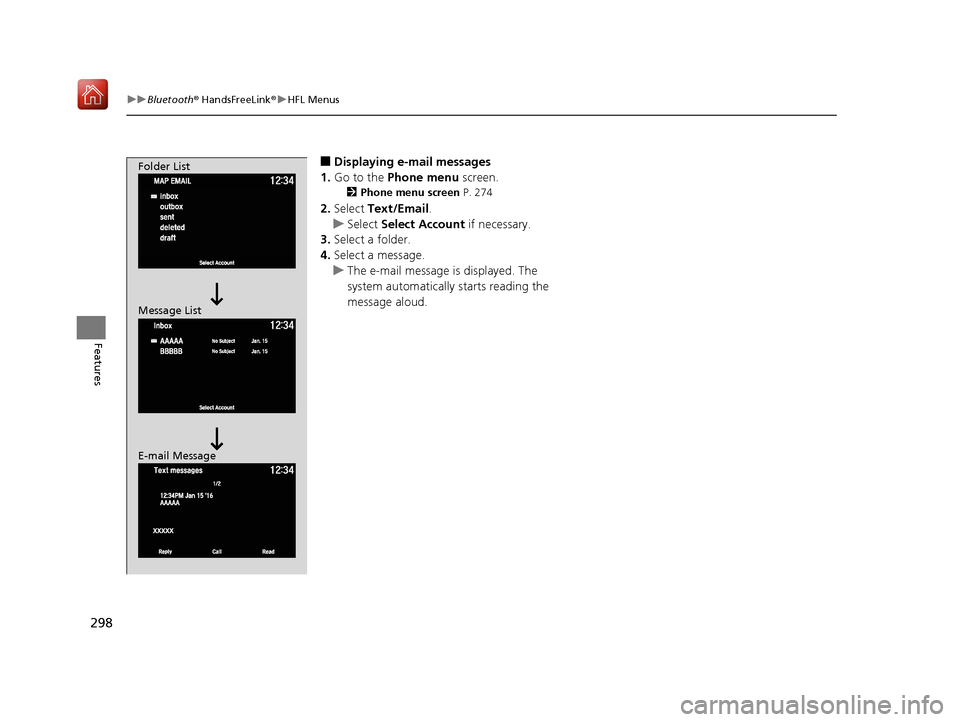

■Displaying e-mail messages
1. Go to the Phone menu screen.
2Phone menu screen P. 274
2.Select Text/Email .
u Select Select Account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail message is displayed. The
system automatically starts reading the
message aloud.
Folder List
Message List
E-mail Message
19 NSX-31T6N6200.book 298 ページ ２０１８年８月９日　木曜日　午前１１時１２分

Continued299
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

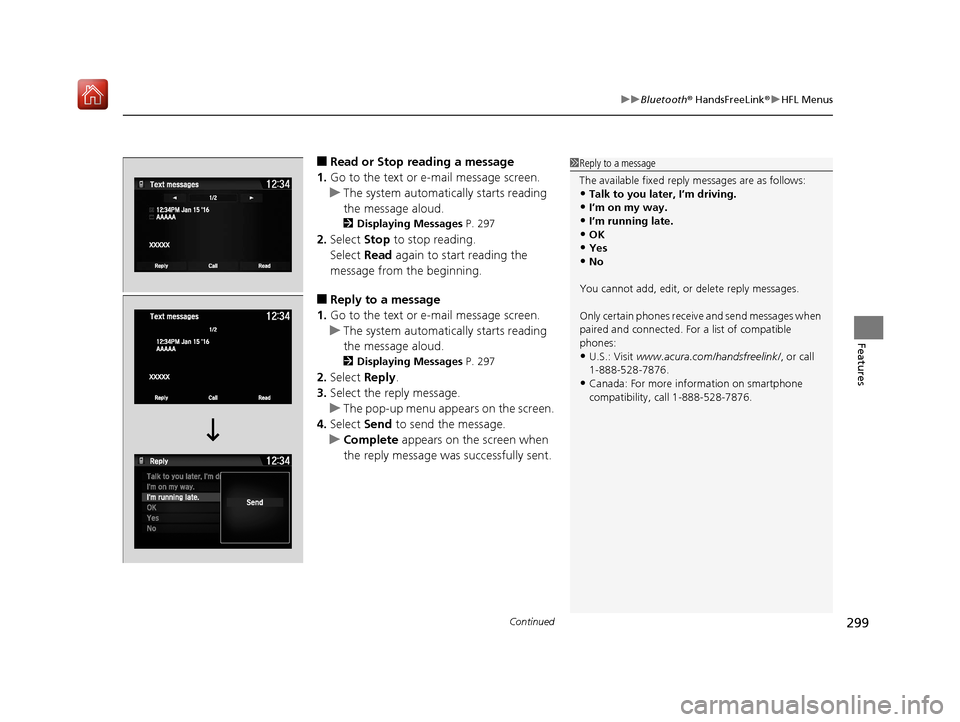

■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 297
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 297
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.
•I’m on my way.
•I’m running late.•OK
•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receiv e and send messages when
paired and connected. For a list of compatible
phones:
•U.S.: Visit www.acura.com/handsfreelink/ , or call
1-888-528-7876.
•Canada: For more info rmation on smartphone
compatibility, call 1-888-528-7876.
19 NSX-31T6N6200.book 299 ページ ２０１８年８月９日　木曜日　午前１１時１２分

Continued329
uuWhen Driving uShifting
Driving
Use the paddle shifters to change between 1st and 9th gears without removing your
hands from the steering wheel. The transmission will switch to the sequential mode.
■When the transmission is in (D (D-paddle shift mode):
The vehicle will go into the sequential m ode momentarily, and the gear selection
indicator becomes more prominent.
The sequential mode is automatically canc eled and the gear selection indicator
returns to ordinary display under the following conditions.
• Hold the
(+ paddle shifter for a few seconds.
• Once you start traveling at a constant speed.
• The vehicle comes to a complete stop.
• When you change to another Integrated Dynamics System mode.
The sequential mode automatically shifts under following condition
• Accelerator pedal depressed beyond the click.
• Engine speed reaches near the tachometer’s red zone.
• Engine speed reaches idle speed while deceleration.
■Sequential Mode1Sequential Mode
When sequential mode is selected, the gasoline
engine powers the vehicle.
19 NSX-31T6N6200.book 329 ページ ２０１８年８月９日　木曜日　午前１１時１２分

330
uuWhen Driving uShifting
Driving

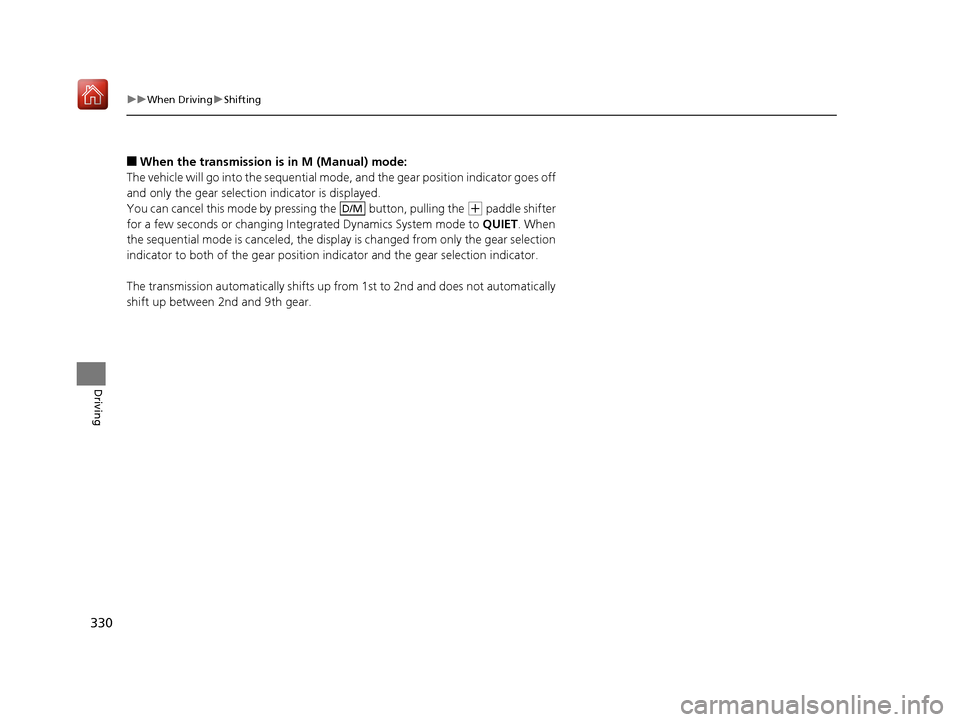

■When the transmission is in M (Manual) mode:
The vehicle will go into the sequential mode, and the gear position indicator goes off
and only the gear selection indicator is displayed.
You can cancel this mode by pressing the button, pulling the
(+ paddle shifter
for a few seconds or changing Inte grated Dynamics System mode to QUIET. When
the sequential mode is canceled, the display is changed from only the gear selection
indicator to both of the gear position in dicator and the gear selection indicator.
The transmission automatically shifts up fr om 1st to 2nd and does not automatically
shift up between 2nd and 9th gear.D/M
19 NSX-31T6N6200.book 330 ページ ２０１８年８月９日　木曜日　午前１１時１２分

331
uuWhen Driving uShifting
Continued
Driving
Transmission Control Mode
[Displayed on Instrument Panel] (Y = Yes/N= No)Auto ModeD-Paddle ModeManual Mode
Activation Method Initial Startup Use Shift Paddle While in EV
or Auto Mode Press Button
Automatically Upshift Y
NN
Automatically Downshift Y
NN
Kickdown Shift beyond click Y Y
N
Deceleration Downshift Y Y Y
Automatic Upshift at Redline Y Y
N
Transmission Control Mode
[Displayed on Instrument Panel] (Y = Yes/N= No)D-Paddle ModeManual Mode
Activation Method Use Shift Paddle While in EV
or Auto Mode Press Button
To return to Auto Mode Automatically after
cruising Y
N
Pull & hold
(+ Shift
paddle for a few seconds YY
Vehicle come to complete stop Y
N
Integrated Dynamics
System mode change to other mode YReturn to Auto mode only
when QUIET mode is
selected.
D/M
D/M
19 NSX-31T6N6200.book 331 ページ ２０１８年８月９日　木曜日　午前１１時１２分

333
uuWhen Driving uIntegrated Dynamics System
Continued
Driving

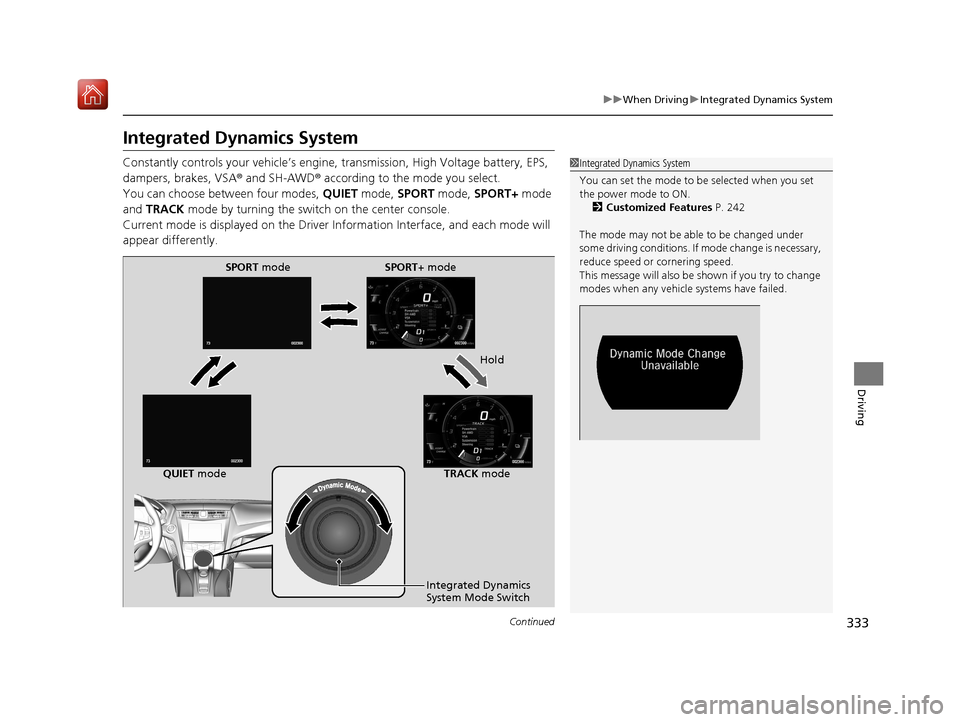

Integrated Dynamics System
Constantly controls your vehicle’s engine , transmission, High Voltage battery, EPS,
dampers, brakes, VSA ® and SH-AWD® according to the mode you select.
You can choose between four modes, QUIET mode, SPORT mode, SPORT+ mode
and TRACK mode by turning the switch on the center console.
Current mode is displayed on the Driver Information Interface, and each mode will
appear differently.1 Integrated Dynamics System
You can set the mode to be selected when you set
the power mode to ON.
2 Customized Features P. 242
The mode may not be able to be changed under
some driving conditions. If mode change is necessary,
reduce speed or cornering speed.
This message will also be shown if you try to change
modes when any vehicl e systems have failed.
SPORT mode SPORT+ mode
Hold
QUIET mode TRACK mode
Integrated Dynamics
System Mode Switch
19 NSX-31T6N6200.book 333 ページ ２０１８年８月９日　木曜日　午前１１時１２分

334
uuWhen Driving uIntegrated Dynamics System
Driving

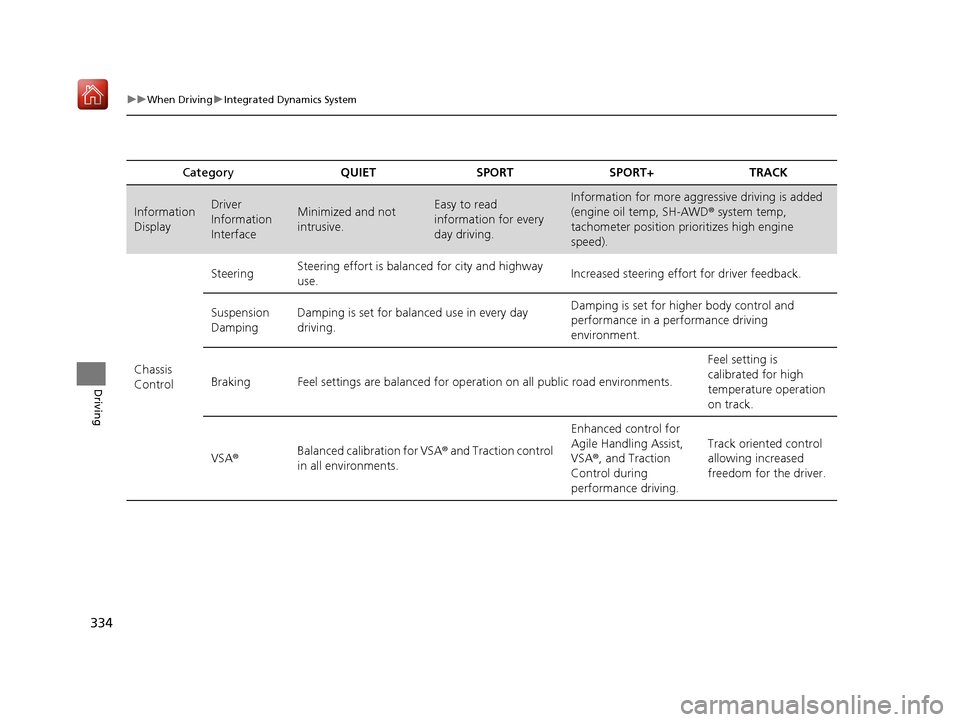

Category QUIET SPORT SPORT+ TRACK
Information
DisplayDriver
Information
InterfaceMinimized and not
intrusive.Easy to read
information for every
day driving.Information for more aggressive driving is added
(engine oil temp, SH-AWD® system temp,
tachometer position prioritizes high engine
speed).
Chassis
Control Steering
Steering effort is balanced for city and highway
use. Increased steering effort for driver feedback.
Suspension
Damping Damping is set for balanced use in every day
driving. Damping is set for higher body control and
performance in a performance driving
environment.
Braking Feel settings are balanced for op eration on all public road environments.Feel setting is
calibrated for high
temperature operation
on track.
VSA ® Balanced calibration for VSA
® and Traction control
in all environments. Enhanced control for
Agile Handling Assist,
VSA
®, and Traction
Control during
performance driving. Track oriented control
allowing increased
freedom for the driver.
19 NSX-31T6N6200.book 334 ページ ２０１８年８月９日　木曜日　午前１１時１２分

339
uuWhen Driving uLaunch Control
Driving

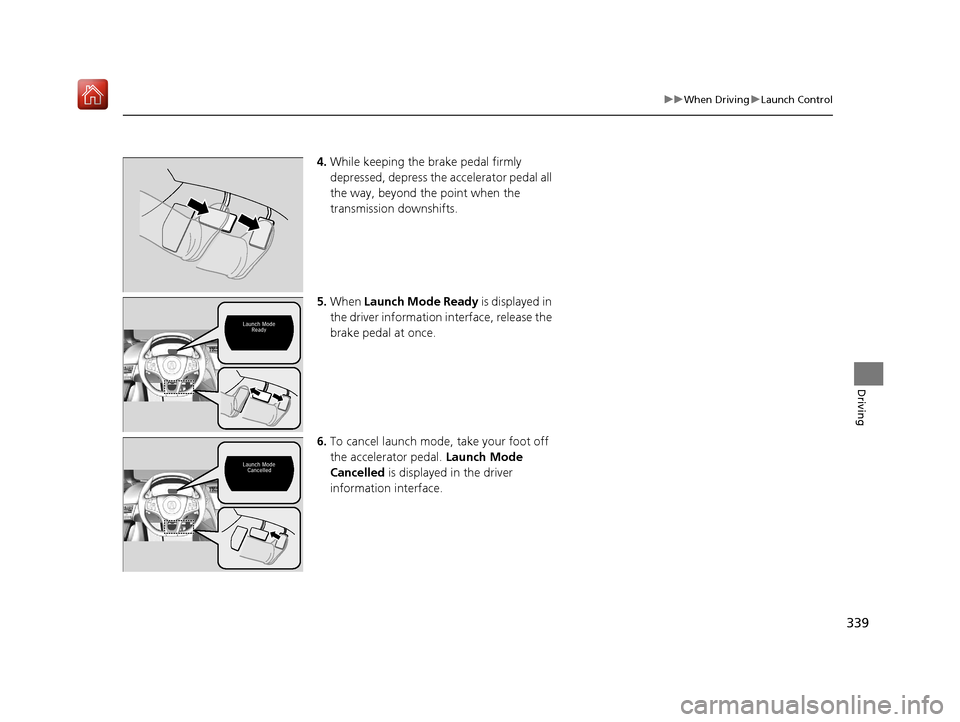

4. While keeping the brake pedal firmly
depressed, depress the accelerator pedal all
the way, beyond the point when the
transmission downshifts.
5. When Launch Mode Ready is displayed in
the driver information interface, release the
brake pedal at once.
6. To cancel launch mode, take your foot off
the accelerator pedal. Launch Mode
Cancelled is displayed in the driver
information interface.
19 NSX-31T6N6200.book 339 ページ ２０１８年８月９日　木曜日　午前１１時１２分

uuWhen Driving uTire Pressure Monitoring System (TPMS)
350
Driving

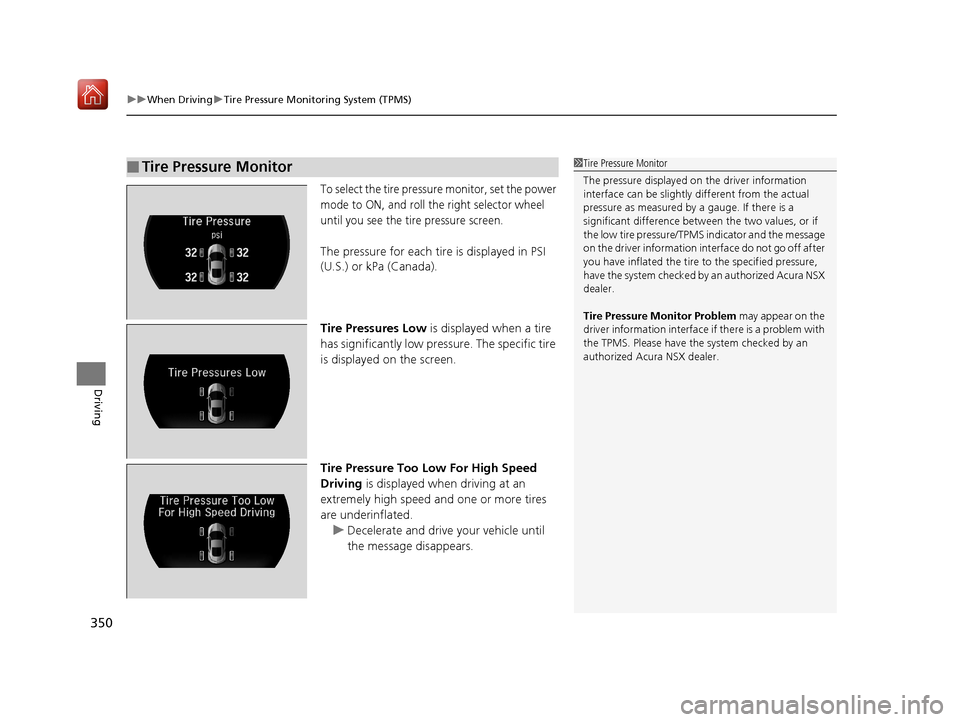

To select the tire pressure monitor, set the power
mode to ON, and roll the right selector wheel
until you see the tire pressure screen.
The pressure for each tire is displayed in PSI
(U.S.) or kPa (Canada).
Tire Pressures Low is displayed when a tire
has significantly low pressure. The specific tire
is displayed on the screen.
Tire Pressure Too Low For High Speed
Driving is displayed when driving at an
extremely high speed and one or more tires
are underinflated.
u Decelerate and drive your vehicle until
the message disappears.
■Tire Pressure Monitor1Tire Pressure Monitor
The pressure displayed on the driver information
interface can be slightly different from the actual
pressure as measured by a gauge. If there is a
significant di fference between the two values, or if
the low tire pressure/TPMS indicator and the message
on the driver information in terface do not go off after
you have inflated the tire to the specified pressure,
have the system checked by an authorized Acura NSX
dealer.
Tire Pressure Monitor Problem may appear on the
driver information interface if there is a problem with
the TPMS. Please have the system checked by an
authorized Acura NSX dealer.
19 NSX-31T6N6200.book 350 ページ ２０１８年８月９日　木曜日　午前１１時１２分

366
Driving

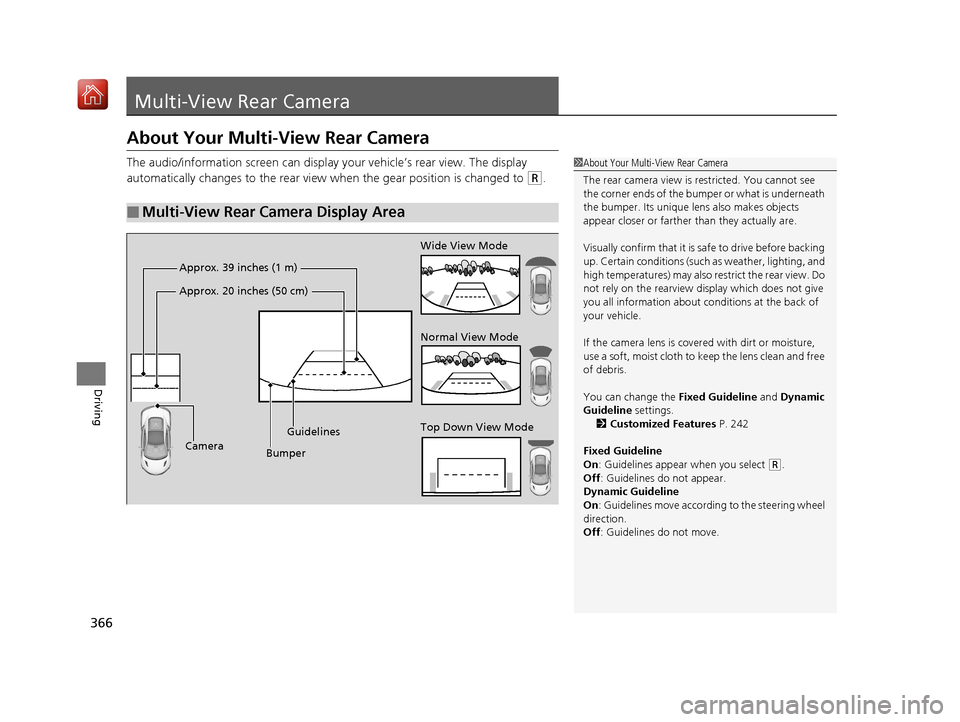

Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the gear position is changed to
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings. 2 Customized Features P. 242
Fixed Guideline
On : Guidelines appear when you select
(R.
Off : Guidelines do not appear.
Dynamic Guideline
On : Guidelines move according to the steering wheel
direction.
Off : Guidelines do not move.
Top Down View Mode Normal View Mode Wide View Mode
Guidelines
Bumper
Camera
Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)
