Page 81 of 485
80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if the tire pressure of any
of the tires becomes significantly
low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your
vehicle checked by an authorized Acura
NSX dealer.
System Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on along with a beep when
a problem is detected. A system
message on the driver information
interface appears at the same time.
●While the indicator is on, roll the right
selector wheel to see the message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the right selector
wheel is rolled.
—
19 NSX-31T6N6200.book 80 ページ 2018年8月9日 木曜日 午前11時12分

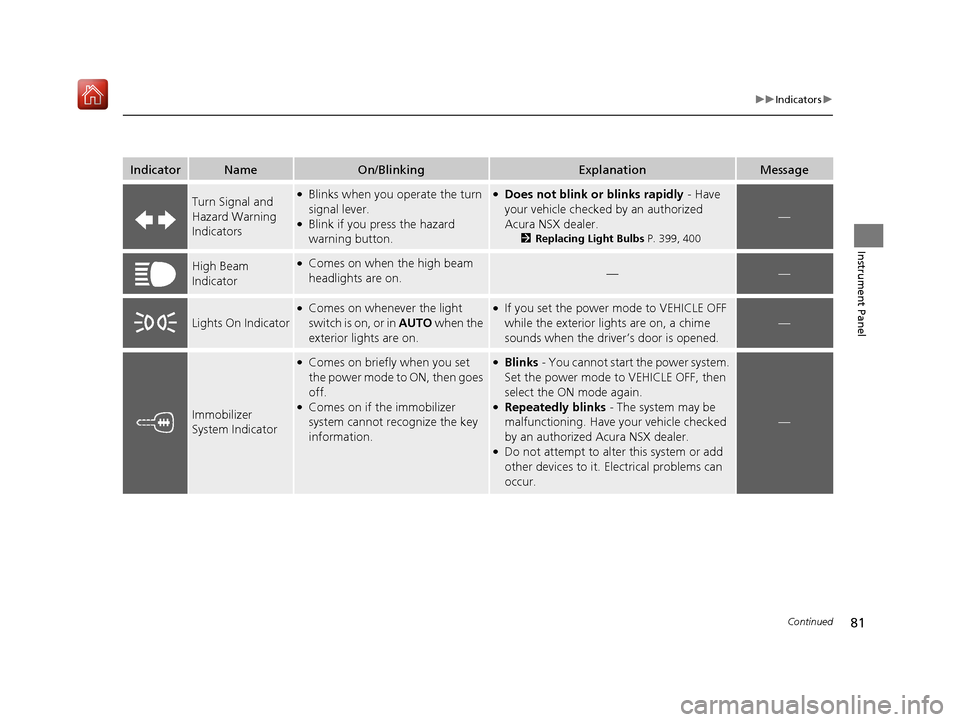

Page 82 of 485
81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators●Blinks when you operate the turn
signal lever.
●Blink if you press the hazard
warning button.
●Does not blink or blinks rapidly - Have
your vehicle checked by an authorized
Acura NSX dealer.
2 Replacing Light Bulbs P. 399, 400
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On Indicator
●Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on.●If you set the power mode to VEHICLE OFF
while the exterior lights are on, a chime
sounds when the driver’s door is opened.
—
Immobilizer
System Indicator
●Comes on briefly when you set
the power mode to ON, then goes
off.
●Comes on if the immobilizer
system cannot recognize the key
information.
●Blinks - You cannot start the power system.
Set the power mode to VEHICLE OFF, then
select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by an authorized Acura NSX dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
19 NSX-31T6N6200.book 81 ページ 2018年8月9日 木曜日 午前11時12分
Page 83 of 485
82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm P. 122—
Keyless Access
System Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on as soon as a problem is
detected in the keyless access
system or keyless starting system.
●Have your vehicle checked by an
authorized Acura NSX dealer.
CRUISE MAIN
Indicator●Comes on when you press the
CRUISE button.2 Cruise Control P. 340—
CRUISE
CONTROL
Indicator●Comes on if you have set a speed
for cruise control.
2 Cruise Control P. 340—
Indicator
19 NSX-31T6N6200.book 82 ページ 2018年8月9日 木曜日 午前11時12分
Page 84 of 485
83
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Roll the right selector wheel to see the message again with the
system message indicator on.
MessageConditionExplanation
●Appears when the wa sher fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 398
●Appears when the scheduled maintenance is due soon.●Consequently, Service Due Now and Service Past
Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 379
●Appears when the temperatur e of the transmission is
starting to get too hot.
●The performance of the vehicle may be reduced.
●It may not be possible to use the paddle shifters.●Until the message disappears, reduce your speed and
allow the system to cool down.
●Appears when the transmission system temperature is
too high. The vehicle does not operate properly.●You may find it difficult to accelerate, or to start the
vehicle on uphill.
●Immediately stop in a safe place in (P.●Let the engine idle until the message disappears.
19 NSX-31T6N6200.book 83 ページ 2018年8月9日 木曜日 午前11時12分
Page 85 of 485
84
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the sensor on the
12-volt battery.●Have your vehicle checked by an authorized Acura NSX
dealer.
2 Checking the 12-Volt Battery P. 415
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF.
●Appears when the power mode is in ACCESSORY.
—
19 NSX-31T6N6200.book 84 ページ 2018年8月9日 木曜日 午前11時12分
Page 86 of 485
85
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.●Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2 Keyless Access Remote Reminder P. 129
●Appears when the keyless access remote battery
becomes weak.●Replace the battery as soon as possible.
2 Replacing the Button Battery P. 416
●Appears if the keyless access remote battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.●Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Keyless Access Remote Battery is Weak P. 444
●Appears three seconds after you bring the keyless
access remote in front of the ENGINE START/STOP
button when To Start, Hold Remote Near Start
Button appears. To Start Engine: Brake + Push
appears sequentially.●Unless you bring the keyless access remote in front of
the ENGINE START/STOP button, this message does
not appear.
2 If the Keyless Access Remote Battery is Weak P. 444
●Appears when you set the power mode to ACCESSORY
or ON.
2Turning on the Power P. 319
●Appears if you press the ENGINE START/STOP button
while the vehicle is moving.●The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
19 NSX-31T6N6200.book 85 ページ 2018年8月9日 木曜日 午前11時12分
Page 87 of 485
86
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you turn the power system on with the
transmission not in
(P.
●Press the (P button.
●Appears when you try to change the gear position after
the position has automatically been changed to
(P with
the driver’s door open and the driver’s seat belt
unfastened.
●Press the (P button if you leave the vehicle.
●Appears when you set the power mode to ON without
fastening the driver’s seat belt.
●Appears when you change the gear position after (P
has been automatically select ed with the driver’s door
open, the driver’s seat belt unfastened, then the brake
pedal is released.
●Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 326
●Appears when you try to ch ange the gear position
without depressing the brake pedal.●Depress the brake pedal, then select a shift button.
●Appears when you try to ch ange the gear position
without releasing your foot off the accelerator pedal.●Release your foot from the accelerator pedal, depress
the brake pedal, then select a gear.
19 NSX-31T6N6200.book 86 ページ 2018年8月9日 木曜日 午前11時12分
Page 88 of 485
87
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the park button is pressed while the
vehicle is moving.
●Appears if you change the gear position to (R while the
vehicle is moving forward, or to D or M while the vehicle
is reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
●Appears if you depress the accelerator pedal when the
transmission is in
(N.
●Release the accelerator pedal. After that, depress the
brake pedal and change th e transmission position.
●Appears when the shift is repeatedly changed between
(P and any other position.
●Wait for a while then change the shift position.
●Appears if there is a problem with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake.
●Continue driving if the message goes off soon after.●If there is a problem with the transmission system, the
transmission system indicator comes on.
2Transmission System Indicator P. 76
●Appears when you change to (N, and press the
ENGINE START/STOP button within five seconds.●The gear position remains in (N for 15 minutes, then
automatically switches to
(P.
2 If you want to keep the transmission in (N
position (car wash mode) P. 327
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 326
19 NSX-31T6N6200.book 87 ページ 2018年8月9日 木曜日 午前11時12分
Page 89 of 485
88
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if any door or the trunk (hatch) is not
completely closed.
●Appears if any door or the trunk (hatch) is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk (hatch) are
closed.
●Appears if there is a problem with the radiator system.●Drive slowly to prevent overheating and have your
vehicle checked by an author ized Acura NSX dealer as
soon as possible.
●Appears when there is a pr oblem with the headlights.●Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by an authorized
Acura NSX dealer as soon as possible.
●Appears if there is a problem with the parking sensor
system.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by an
authorized Acur a NSX dealer.Models with
parking sensor
system
19 NSX-31T6N6200.book 88 ページ 2018年8月9日 木曜日 午前11時12分
Page 90 of 485
89
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the automatic brake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automa tic brake hold system is
turned off.
2 Automatic Brake Hold P. 357
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 357
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while the
automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 357
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 357
2 Parking Brake P. 354
19 NSX-31T6N6200.book 89 ページ 2018年8月9日 木曜日 午前11時12分
