4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Steering Wheel Adjustments (P 140)
❙ENGINE START/STOP Button (P 127)
❙ (Vehicle Stability Assist® (VSA ®)
System OFF) Button
(P 344)
❙System Indicators (P 70)
❙Gauges (P 95)
❙Driver Information Interface (P 98)
❙Rear Defogger/Heated Mirror Button
(P 137)
❙Parking Sensor System Button*
(P 363)
❙Hazard Warning Button
❙Seat Heater Buttons* (P 153)
❙Audio System (P 160)
❙Climate Control System (P 154)
❙MID Vents (P 20, 154)
❙Navigation System*
() See the Navigation System Manual
❙Integrated Dynamics System Mode
Switch
(P 333)
19 NSX-31T6N6200.book 4 ページ ２０１８年８月９日　木曜日　午前１１時１２分

17
Quick Reference Guide
Controls (P 103)
Clock (P 104)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
You can also adjust the time manually.
aSelect the (HOME) icon, then select
Settings.
bSelect Clock/Info , then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
Models with navigation system
34
ENGINE START/STOP
Button
(P 127)
Press the button to ch anges the vehicle’s
power mode.
Turn Signals (P 130)
Lights (P 131)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
19 NSX-31T6N6200.book 17 ページ ２０１８年８月９日　木曜日　午前１１時１２分

24
Quick Reference Guide
Paddle Shifters (P332)
Paddle shifters allow you to shif t gears much like a manual transmission (1st throu gh 9th). This is useful for regenerative braking.
You cannot shift up or down while in EV mode.
When the transmission is in (D (D-paddle shift mode)The vehicle will go into the sequential mode momentarily, and the gear selection
indicator becomes more prominent.
The sequential mode is automatically canceled and the gear selection indicator
returns to ordinary display un der the following conditions.
•Hold the (+ paddle shifter for a few seconds.
•Once you start traveling at a constant speed.•The vehicle comes to a complete stop.
•When you change to another Integrated Dynamics System mode.
The sequential mode automatically shifts under following condition
•Accelerator pedal depressed beyond the click.•Engine speed reaches near the tachometer’s red zone.
•Engine speed reaches idle speed while deceleration.
When the transmission is in M (Manual) modeThe vehicle will go into the sequential mode, and the gear position indicator goes
off and only the gear selection indicator is displayed.
You can cancel this mode by pressing the button, pulling the
(+ paddle
shifter for a few seconds or changing Integrated Dynamics System mode to
QUIET . When the sequential mode is canceled, the display is changed from only
the gear selection indicator to both of the gear position indicator and the gear
selection indicator.
The transmission automatically shifts up from 1st to 2nd and does not
automatically shift up between 2nd and 9th gear.D/M
Gear Position Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
Gear Selection Indicator
Gear Selection Indicator
Gear Selection Indicator Gear Position IndicatorD (Drive)
D-Paddle
M (Manual)
19 NSX-31T6N6200.book 24 ページ ２０１８年８月９日　木曜日　午前１１時１２分

84
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the sensor on the
12-volt battery.●Have your vehicle checked by an authorized Acura NSX
dealer.
2 Checking the 12-Volt Battery P. 415
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF.
●Appears when the power mode is in ACCESSORY.
—
19 NSX-31T6N6200.book 84 ページ ２０１８年８月９日　木曜日　午前１１時１２分

85
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.●Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2 Keyless Access Remote Reminder P. 129
●Appears when the keyless access remote battery
becomes weak.●Replace the battery as soon as possible.
2 Replacing the Button Battery P. 416
●Appears if the keyless access remote battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.●Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Keyless Access Remote Battery is Weak P. 444
●Appears three seconds after you bring the keyless
access remote in front of the ENGINE START/STOP
button when To Start, Hold Remote Near Start
Button appears. To Start Engine: Brake + Push
appears sequentially.●Unless you bring the keyless access remote in front of
the ENGINE START/STOP button, this message does
not appear.
2 If the Keyless Access Remote Battery is Weak P. 444
●Appears when you set the power mode to ACCESSORY
or ON.
2Turning on the Power P. 319
●Appears if you press the ENGINE START/STOP button
while the vehicle is moving.●The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
19 NSX-31T6N6200.book 85 ページ ２０１８年８月９日　木曜日　午前１１時１２分

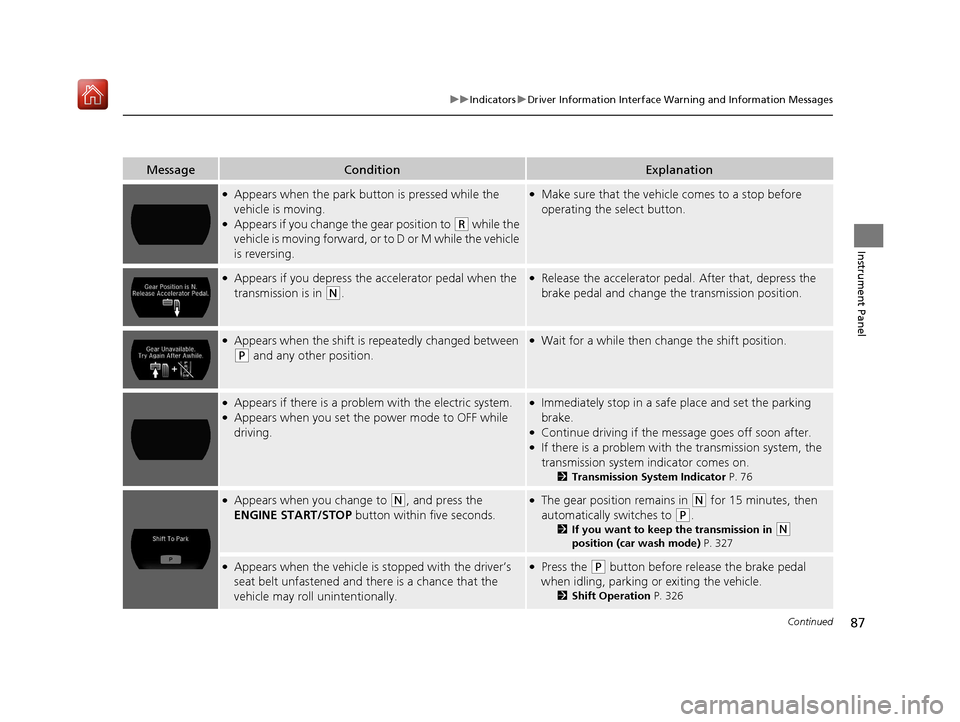

87
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the park button is pressed while the
vehicle is moving.
●Appears if you change the gear position to (R while the
vehicle is moving forward, or to D or M while the vehicle
is reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
●Appears if you depress the accelerator pedal when the
transmission is in
(N.
●Release the accelerator pedal. After that, depress the
brake pedal and change th e transmission position.
●Appears when the shift is repeatedly changed between
(P and any other position.
●Wait for a while then change the shift position.
●Appears if there is a problem with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake.
●Continue driving if the message goes off soon after.●If there is a problem with the transmission system, the
transmission system indicator comes on.
2Transmission System Indicator P. 76
●Appears when you change to (N, and press the
ENGINE START/STOP button within five seconds.●The gear position remains in (N for 15 minutes, then
automatically switches to
(P.
2 If you want to keep the transmission in (N
position (car wash mode) P. 327
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 326
19 NSX-31T6N6200.book 87 ページ ２０１８年８月９日　木曜日　午前１１時１２分

103
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 104
Locking and Unlocking the Doors Key Type and Functions ................... 105
Low Keyless Access Remote Signal Strength ......................................... 106
Locking/Unlocking the Doors from the
Outside .......................................... 107
Locking/Unlocking the Doors from the Inside ............................................. 115
Auto Door Locking/Unlocking .......... 118
Opening and Closing the Hatch....... 119
Security System ................................ 122
Immobilizer System .......................... 122 Security System Alarm...................... 122Opening and Closing the Windows.... 125Operating the Switches Around the
Steering Wheel ENGINE START/STOP Button............. 127
Turn Signals ..................................... 130
Light Switches.................................. 131
Daytime Running Lights ................... 134
Wipers and Washers ........................ 135
Brightness Control ........................... 136
Rear Defogger/Heated Door Mirror Button.....137Driving Position Memory System*.... 138
Adjusting the Steering Wheel........... 140 Adjusting the Mirrors
....................... 141
Interior Rearview Mirror ................... 141
Power Door Mirrors ......................... 142
Adjusting the Seats .......................... 144
Interior Lights/Interior Convenience Items ................................................ 149
Interior Lights .................................. 149
Interior Convenience Items .............. 151
Climate Control System ................... 154
Using Automatic Climate Control .... 154Automatic Climate Control Sensors......158
* Not available on all models
19 NSX-31T6N6200.book 103 ページ ２０１８年８月９日　木曜日　午前１１時１２分

122
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehi cle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as a televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the hood, hatch or doors are forcibly
opened. The alarm does not go off if the hatch or doors are opened with the key,
remote transmitter or keyless access system.
However, the alarm goes off when a door is opened with the key, then select other
than
(P or the hood is opened before the power mode is set to ON.
■When the security sy stem alarm activates
The horn sounds intermittently, and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the remote transm itter or keyless access system, or the
power mode is set to ON. The system, along with the horn and flashing lights, is
deactivated.
1 Immobilizer System
NOTICE
Leaving the keyless access remote in the vehicle can
result in theft or accident al movement of the vehicle.
Always take the remote with you whenever you leave
the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
19 NSX-31T6N6200.book 122 ページ ２０１８年８月９日　木曜日　午前１１時１２分

127Continued
Controls
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button
■Changing the Power Mode1ENGINE START/STOP Button
ENGINE START/STOP Button Operating Range
You can start the power system when the keyless
access remote is inside the vehicle.
The power system may also start if the keyless access
remote is close to the door or window, even if it is
outside the vehicle.
If the battery of the keyless access remote is getting
low, the power system may not start when you press
the ENGINE START/STOP button. If the power
system does not start, refer to the following link. 2 If the Keyless Access Remote Battery is
Weak P. 444
Do not leave the power mode in ACCESSORY or ON
when you get out.
Operating RangeVEHICLE OFF (LOCK)
The button is off.
The power to all electrical components is turned off.
Press the button. Without pressing
the brake pedal ACCESSORY
The button blinks (in red).
Operate the audio system and other accessories in
this position.
ON
The button blinks (in red).
All electrical components can be used.
19 NSX-31T6N6200.book 127 ページ ２０１８年８月９日　木曜日　午前１１時１２分

128
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
If you leave the vehicle for more than 30 minutes with the transmission in (P and
the power mode in ACCESSORY, the vehicle will automatically go into VEHICLE OFF
(LOCK) mode to prevent draining the 12-volt battery.
If you open the driver’s doo r when the power mode is set to ACCESSORY, a warning
buzzer will sounds.
■Automatic Power Off
■Power Mode Reminder
19 NSX-31T6N6200.book 128 ページ ２０１８年８月９日　木曜日　午前１１時１２分
