warning light ACURA NSX 2020 User Guide

450
Handling the Unexpected

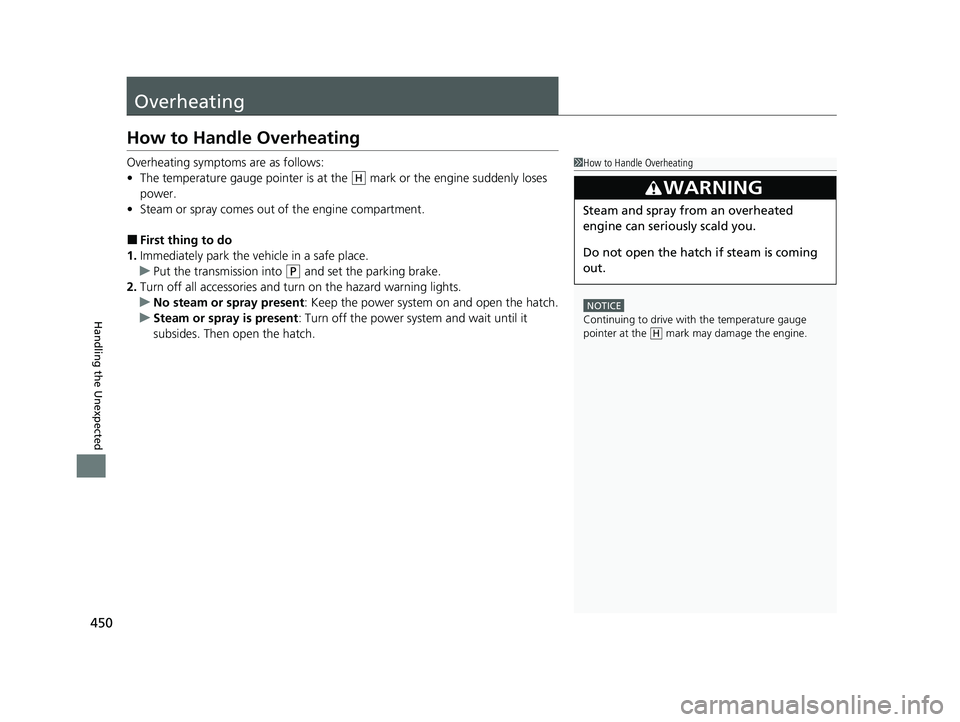

Overheating
How to Handle Overheating
Overheating symptoms are as follows: •The temperature gauge pointer is at the mark or the engine suddenly loses
power.
• Steam or spray comes out of the engine compartment.
■ First thing to do
1. Immediately park the vehicle in a safe place.
uPut the transmission into (P and set the parking brake.
2. Turn off all accessories and turn on the hazard warning lights.
uNo steam or spray present : Keep the power system on and open the hatch.
uSteam or spray is present: Turn off the power system and wait until it
subsides. Then open the hatch.
1How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
pointer at the mark may damage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hatch if steam is coming
out.
H
H
20 ACURA NSX PMC-31T6N6300.book 450 ページ ２０１９年９月１１日　水曜日　午後４時５１分

456
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message■Reasons for the in dicator to blink
The transmission is malfunctioning.
■ What to do when the indicator blinks
• Immediately have your vehicle insp ected by an authorized Acura NSX
dealer.
• Put the transmission into
(N when you turn the power system on.
uCheck to verify the (N position on the instrument panel is selected
and if the indicator on the
(N button is illuminating or blinking.
uThe power system cannot be turned on unless the parking brake is
set. 2 Turning on the Power P. 321
If the Low Oil Level Symbol Appears
■Reasons for the symbol to appear
Appears when the engine oil level is low.
■ What to do as soon as the symbol appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■ What to do after parking the vehicle
Check the oil level. 2 Oil Check P. 391
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle.
2 Emergency Towing P. 462
1If the Low Oil Level Symbol Appears
NOTICE
Running the engine with a low oil level can cause
serious mechanical damage almost immediately.
This system activates after the engine warms up. If
the outside temperature is extremely low, you may have to drive for a long time until the system senses
the engine oil level.
If the symbol appears agai n, turn the power system
off, and contact an author ized Acura NSX dealer for
repairs immediately.
20 ACURA NSX PMC-31T6N6300.book 456 ページ ２０１９年９月１１日　水曜日　午後４時５１分

482
Index
Foot Brake................................................. 359
Front Airbags (SRS) ..................................... 46
Fuel ...................................................... 25, 371
Economy ................................................. 373
Gauge ....................................................... 95
Instant Fuel Economy ............................... 101
Low Fuel Indicator ..................................... 77
Range ...................................................... 101
Refueling ................................................. 371
Requirement .................................... 371, 468
Fuel Economy ............................................ 373
Fuel Fill Door ....................................... 25, 372
Fuses .......................................................... 457
Inspecting and Changing ......................... 461
Locations ................................. 457, 459, 460
G
Gasoline (Fuel) Economy ................................................. 373
Gauge ....................................................... 95
Information ............................................. 371
Instant Fuel Economy ............................... 101
Low Fuel Indicator ..................................... 77
Refueling ................................................. 371
Gauges ......................................................... 95
Gear Position Indicator ....................... 76, 328
Gear Shift Positions Dual Clutch Transmission ......................... 326
Glass (care) ........................................ 420, 423
Glove Box .................................................. 151 H
Handling the Unexpected
........................ 431
HandsFreeLink ® (HFL) ............................... 270
Automatic Import of Ce llular Phonebook and
Call History ............................................ 283
Displaying Messages................................ 299
HFL Buttons............................................. 270
HFL Menus .............................................. 273
HFL Status Display ................................... 272
Limitations for Manual Operation ............ 272
Making a Call .......................................... 292
Options During a Call .............................. 296
Phone Setup............................................ 278
Phonebook Phonetic Modification ........... 287
Receiving a Call ....................................... 296
Receiving a Text/E-mail Message.............. 297
Ring Tone................................................ 282
Roadside Assistance ................................ 303
Selecting a Mail Account ......................... 298
Speed Dial ............................................... 284
To Set Up Text/E-mail Message Options ... 281
Hatch ......................................................... 119
Unable to Open....................................... 464
Hazard Warning Button .............................. 4
Headlights ................................................. 131
Aiming .................................................... 401
Automatic Operation (automatic lighting control) ................................................. 132
Dimming ......................................... 131, 134
Operating................................................ 131
Heaters (Seat) ........................................... 154 HFL (HandsFreeLink
®) .............................. 270
High Beam Indicator .................................. 81
High Voltage Battery ............................... 356
High-Performance Driving ...................... 315
Hill Start Assist System ............................. 323
HomeLink ® Universal Transceiver ........... 267
Honda App License Agreement .............. 228
Hybrid Vehicle
SPORT HYBRID Super Handling All-Wheel-Drive TM
(SPORT HYBRID SH-AWD ®)............ 9
I
Identification Numbers Engine, Motor, and Transmission ............ 470
Vehicle Identification............................... 470
Immobilizer System .................................. 122
Indicator ................................................... 81
Indicators .................................................... 70
12-Volt Battery Charging System ...... 75, 452
Active Damper System .............................. 74
Anti-lock Brake System (ABS) .................... 78
Automatic Brake Hold ....................... 72, 360
Automatic Brake Hold System ........... 72, 360
Brake System (Amber) ............................... 73
Brake System (Red) ........................... 70, 453
Brake Wear ............................................... 74
CRUISE CONTROL ............................. 82, 344
CRUISE MAIN.................................... 82, 343
Door and Trunk (Hatch) Open ................... 35
Electric Parking Brake ................................ 71
20 ACURA NSX PMC-31T6N6300.book 482 ページ ２０１９年９月１１日　水曜日　午後４時５１分

486
Index
TRIP Button................................................. 99
Trip Meter ................................................. 100
Troubleshooting ....................................... 431
Blown Fuse .............................. 457, 459, 460
Buzzer Sounds When Opening Door .......... 29
Emergency Towing .................................. 462
Flat Tire/Puncture ..................................... 433
Noise When Braking .................................. 29
Overheating............................................. 450
Power System Won’t Start ....................... 445
Premium Gasoline............................ 371, 468
Warning Indicators .................................... 70
Trunk Light Bulb ................................................ 468
Turn Signals ............................................... 130
Indicators (Instrum ent Panel) ...................... 81
Turn-by-Turn Directions ........................... 102
Turning on the Power .............................. 321
Does Not Activate .................................... 445
Jump Starting .......................................... 448
Twin Motor Unit Fluid ................................................ 399, 469
U
Unlocking the Doors ................................. 107
Unlocking the Door s from the Inside...... 115
USB Flash Drives ........................................ 227
USB Ports ................................................... 163
Using the Keyless Access System .............. 107VVehicle Identification Number
................ 470
Vehicle Stability Assist TM
(VSA ®) .............. 346
Off Button............................................... 347
Off Indicator...................................... 79, 347
System Indicator ................................ 79, 346
Vehicle Storage ........................................ 428
Viscosity (Oil) .................................... 390, 469
Voice Control Operation Audio Commands ................................... 186
Climate Control Commands .................... 187
General Commands ................................ 187
Music Search Commands ........................ 187
On Screen Commands............................. 187
Phone Commands ................................... 186
Useful Commands ................................... 186
Voice Portal Screen.................................. 185
Voice Recognition ................................... 184
VSA ® (Vehicle Stability Assist TM
).............. 346
W
Wallpaper ................................................. 171
Warning and Information Messages ......... 83
Warning Indicator On/Blinking ............... 452
Warning Labels ........................................... 68
Warranties (Warranty Manual provided
separately) .............................................. 475
Watts ......................................................... 468
Wear Indicators (Tire) .............................. 412
Wi-Fi Connection ...................................... 213 Window Washers
..................................... 135
Adding/Refilling Fluid .............................. 400
Switch .................................................... 135
Windows (Opening and Closing) ............ 125
Windshield
Cleaning ......................................... 420, 423
Defrosting/Defogging ..................... 136, 157
Washer Fluid ................................... 400, 468
Wiper Blades........................................... 404
Wipers and Washers ............................... 135
Winter Tires
Snow Tires .............................................. 415
Tire Chains.............................................. 415
Wipers and Washers ................................ 135
Checking and Replacing Wiper Blades..... 404
WMA ......................................................... 208
Worn Tires ................................................ 407
20 ACURA NSX PMC-31T6N6300.book 486 ページ ２０１９年９月１１日　水曜日　午後４時５１分
