USB ACURA NSX 2020 Owner's Manual

Continued217
uuAudio System Basic OperationuApple CarPlayTM
Features
■
Maps
Display Apple CarPlay map and use the navi gation function just as you would on
your iPhone.
Only one navigation system (pre-installed navigation or Apple CarPlay) can give
directions at a time. When you are using one system, directions to any prior
destination set on the other system will be canceled, and the system you are
currently using will direct you to your destination.
After you have connected your iPhone to the system via USB, use the following
procedure to set up Apple CarPlay. Us e of Apple CarPlay will result in the
transmission of certain user and vehicle information (such as vehicle location, speed,
and status) to your iPhone to enhance the Apple CarPlay experience. You will need
to consent to the sharing of this in formation on the audio/information screen.
■ Enabling Apple CarPlay
Enable once: Allows only once. (Prompt
shows again next time.)
Always enable : Allows anytime. (Prompt
does not show again.)
Cancel : Does not allow this consent.
You may change the consent settings under the Smartphone settings menu.
■Setting Up Apple CarPlay
1Apple CarPlayTM
Apple CarPlay Operating Requirements &
Limitations Apple CarPlay requi res a compatible iPhone with an
active cellular connecti on and data plan. Your
carrier’s rate plans will apply.
Changes in operating system s, hardware, software,
and other technology integral to providing Apple
CarPlay functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Apple CarPlay functionality and services.
Acura cannot and does not provide any warranty or
guarantee of future Appl e CarPlay performance or
functionality.
It is possible to use 3r d party apps if they are
compatible with Apple CarPlay. Refer to the Apple
homepage for information on compatible apps.
Models with navigation system
1Setting Up Apple CarPlay
You can also use the method below to set up Apple
CarPlay:
Select Settings Smartphone Apple CarPlay
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your iP hone by Apple CarPlay is
governed by the Apple iOS terms and conditions and
Apple’s Privacy Policy.
20 ACURA NSX PMC-31T6N6300.book 217 ページ ２０１９年９月１１日　水曜日　午後４時５１分

219
uuAudio System Basic OperationuAndroid AutoTM
Continued
Features
Android Auto TM
When you connect an Android phone to the audio system via USB, Android Auto is
automatically initiated. When connected via Android Auto, you can use the audio/
information screen to acce ss the Phone, Google Maps (Navigation), Google Play
Music, and Google Now functions. When you first use Android Auto, a tutorial will
appear on the screen.
We recommend that you complete this tuto rial while safely parked before using
Android Auto. 2 USB Ports P. 163
2 Auto Pairing Connection P. 221
1Android AutoTM
To use Android Auto, you need to download the
Android Auto app from Google Play to your smartphone.
Only Android 5.0 (Lollipop) or later versions are
compatible with Android Auto.
Bluetooth A2DP cannot be used on your phone while
connected to Android Auto.
Park in a safe place befo re connecting your Android
phone to Android Auto and when launching any
compatible apps.
To use Android Auto, connect the USB cable to the
USB port located in the console compartment. The
USB port in the glove box will not enable Android
Auto operation.
2 USB Ports P. 163
When your Android phone is connected to Android
Auto, it is not possible to use the Bluetooth® Audio.
However, other previously paired phones can stream
audio via Bluetooth ® while Android Auto is
connected. 2 Phone Setup P. 278
20 ACURA NSX PMC-31T6N6300.book 219 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued221
uuAudio System Basic OperationuAndroid AutoTM
Features
d Music and audio
Play Google Play Music an d music apps that are compatible with Android Auto.
To switch between music apps, press this icon.
e Go back to the Home Screen.
f Voice
Operate Android Auto with your voice.
When you connect an Android phone to the unit via USB, Android Auto is automatically initiated. ■ Enabling Android Auto
Enable once: Allows only once. (Prompt
shows again next time.)
Always enable : Allows anytime. (Prompt
does not show again.)
Cancel : Does not allow this consent.
You may change the consent settings under the Smartphone settings menu.
■Auto Pairing Connection
1Enabling Android Auto
Only initialize Android Auto when you are safely
parked. When Android Auto first detects your phone, you will need to set up your phone so that auto pairing is possibl e. Refer to the instruction manual
that came with your phone.
You can use the method below to change Android Auto settings after you ha ve completed the initial
setup:
Select Settings Smartphone Android Auto
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your phone by Android Auto is
governed by Google’s Privacy Policy.
20 ACURA NSX PMC-31T6N6300.book 221 ページ ２０１９年９月１１日　水曜日　午後４時５１分

223
Features

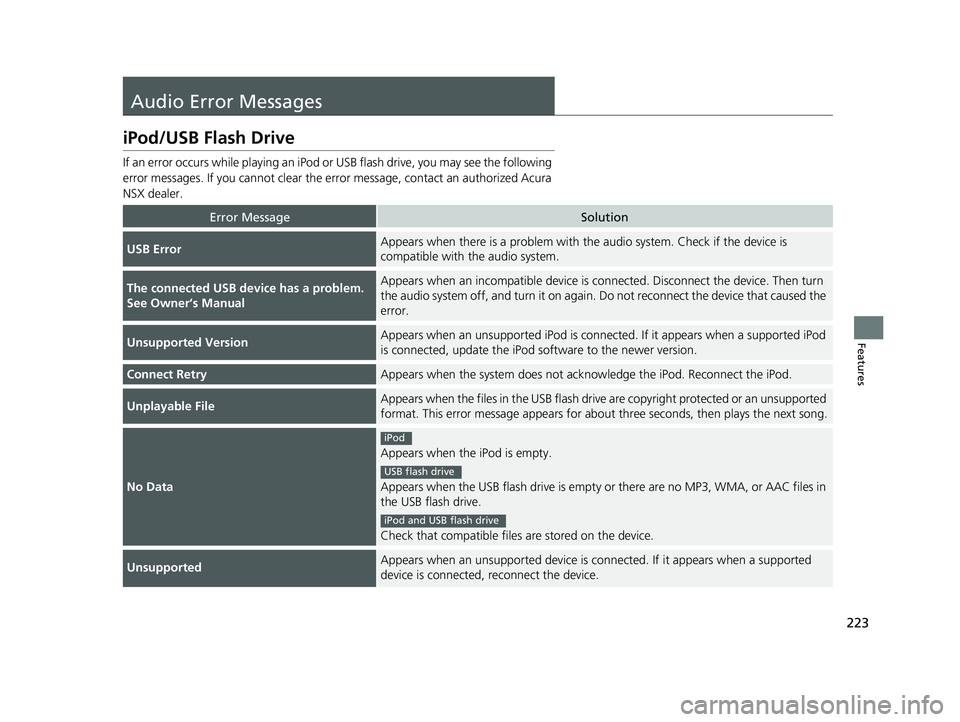

Audio Error Messages
iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the e rror message, contact an authorized Acura
NSX dealer.
Error MessageSolution
USB ErrorAppears when there is a problem with th e audio system. Check if the device is
compatible with the audio system.
The connected USB de vice has a problem.
See Owner

227
uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives
Features
Compatible iPod, iPhone, and USB Flash Drives
• A USB flash drive of 256 MB or higher is recommended.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano (1st to 7th generation) released between 2005 and 2012
iPod touch (1st to 5th generation) released between 2007 and 2012
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S/iPhone 5/iPhone 5c/iPhone 5s/iPhone
6/iPhone 6s/iPhone 6 Plus/iPhone 6s Plus
■USB Flash Drives
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
20 ACURA NSX PMC-31T6N6300.book 227 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Index
479
Index
Index
Numbers
12-Volt Battery Charging System Indicator ........................................... 75, 452
A AAC ........................................................... 208
ABS (Anti-lock Brake System) .................. 362
Accessories and Modifications ................ 426
Accessory Power Socket ........................... 153
Acoustic Vehicle Alerting System ............ 335
Active Damper System Indicator ............... 74
AcuraLink ................................................. 304
Adding the Coolant ................................. 397
Additives Coolant .......................................... 396, 398
Washer ................................................... 400
Adjusting
Mirrors.................................................... 141
Seats....................................................... 144
Steering Wheel ....................................... 140
Temperature ........................................... 100
Agile Handling Assist System .................. 350
Air Conditioning System (Climate Control
System) .................................................... 155
Changing the Mode................................ 156 Defrosting the Windshield and
Windows ...................................... 157, 158
Dust and Pollen Filters ............................. 419 Recirculation/Fresh Air Mode ................... 156
Sensors .................................................... 159
Using Automatic Climate Control ............ 155
Air Pressure ....................................... 408, 469
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
Airbag Care ............................................... 57
Driver’s Knee Airbag .................................. 50
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 46
Indicator .............................................. 55, 78
Passenger Front Airbag Off Indicator ......... 56
Sensors ...................................................... 43
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
Android Auto ............................................ 219
Anti-lock Brake System (ABS) .................. 362
Indicator .................................................... 78
Apple CarPlay ........................................... 216
Audio Remote Controls ............................ 165
Audio System ............................................ 162
Adjusting the Sound ................................ 181
Changing the Home Screen Icon Layout ................................................... 170
Closing Apps ........................................... 180
Error Messages ........................................ 223
General Information ................................ 226
Home Screen ........................................... 173
iPod ......................................................... 199 Limitations for Manual Operation ............ 183
MP3/WMA/AAC ...................................... 208
Reactivating ............................................ 164
Recommended Devices............................ 227
Remote Controls ..................................... 165
Security Code .......................................... 164
Selecting an Audio Source ....................... 183
Status Area ............................................. 179
Theft Protection ...................................... 164
USB Flash Drives ...................................... 227
USB Ports ................................................ 163
Wallpaper Setup...................................... 171
Audio/Information Screen ....................... 167
Authorized Manuals ................................ 477
Auto Door Locking/Unlocking ................. 118
Auto Engine Stop/Start .............................. 13
Automatic Brake Hold ............................. 360
Indicator............................................ 72, 360
Automatic Brake Hold System
Indicator............................................ 72, 360
Automatic Operation (automatic lighting control) .................................................... 132
Average Fuel Economy ............................ 101
Average Speed ......................................... 101
20 ACURA NSX PMC-31T6N6300.book 479 ページ ２０１９年９月１１日　水曜日　午後４時５１分

486
Index
TRIP Button................................................. 99
Trip Meter ................................................. 100
Troubleshooting ....................................... 431
Blown Fuse .............................. 457, 459, 460
Buzzer Sounds When Opening Door .......... 29
Emergency Towing .................................. 462
Flat Tire/Puncture ..................................... 433
Noise When Braking .................................. 29
Overheating............................................. 450
Power System Won’t Start ....................... 445
Premium Gasoline............................ 371, 468
Warning Indicators .................................... 70
Trunk Light Bulb ................................................ 468
Turn Signals ............................................... 130
Indicators (Instrum ent Panel) ...................... 81
Turn-by-Turn Directions ........................... 102
Turning on the Power .............................. 321
Does Not Activate .................................... 445
Jump Starting .......................................... 448
Twin Motor Unit Fluid ................................................ 399, 469
U
Unlocking the Doors ................................. 107
Unlocking the Door s from the Inside...... 115
USB Flash Drives ........................................ 227
USB Ports ................................................... 163
Using the Keyless Access System .............. 107VVehicle Identification Number
................ 470
Vehicle Stability Assist TM
(VSA ®) .............. 346
Off Button............................................... 347
Off Indicator...................................... 79, 347
System Indicator ................................ 79, 346
Vehicle Storage ........................................ 428
Viscosity (Oil) .................................... 390, 469
Voice Control Operation Audio Commands ................................... 186
Climate Control Commands .................... 187
General Commands ................................ 187
Music Search Commands ........................ 187
On Screen Commands............................. 187
Phone Commands ................................... 186
Useful Commands ................................... 186
Voice Portal Screen.................................. 185
Voice Recognition ................................... 184
VSA ® (Vehicle Stability Assist TM
).............. 346
W
Wallpaper ................................................. 171
Warning and Information Messages ......... 83
Warning Indicator On/Blinking ............... 452
Warning Labels ........................................... 68
Warranties (Warranty Manual provided
separately) .............................................. 475
Watts ......................................................... 468
Wear Indicators (Tire) .............................. 412
Wi-Fi Connection ...................................... 213 Window Washers
..................................... 135
Adding/Refilling Fluid .............................. 400
Switch .................................................... 135
Windows (Opening and Closing) ............ 125
Windshield
Cleaning ......................................... 420, 423
Defrosting/Defogging ..................... 136, 157
Washer Fluid ................................... 400, 468
Wiper Blades........................................... 404
Wipers and Washers ............................... 135
Winter Tires
Snow Tires .............................................. 415
Tire Chains.............................................. 415
Wipers and Washers ................................ 135
Checking and Replacing Wiper Blades..... 404
WMA ......................................................... 208
Worn Tires ................................................ 407
20 ACURA NSX PMC-31T6N6300.book 486 ページ ２０１９年９月１１日　水曜日　午後４時５１分
