sensor ACURA NSX 2020 Owner's Manual

312
uuBefore DrivinguDriving Preparation
Driving
•Be sure items placed on the floor behind the driver’s and passenger’s seats cannot
roll under the seats.
uThey can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2 Fastening a Seat Belt P. 39
• Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
uAlways have an authorized Acura NSX d ealer check the vehicle if a problem is
indicated. 2 Indicators P. 70
20 ACURA NSX PMC-31T6N6300.book 312 ページ ２０１９年９月１１日　水曜日　午後４時５１分

365
uuParking Your VehicleuParking Sensor System*
Continued
Driving
Parking Sensor System *
The corner and center sensors monitor obstacles around your vehicle, and the
beeper and audio/information screen le t you know the approximate distance
between your vehicle and the obstacle. ■ The sensor location and range
1Parking Sensor System *
Even when the system is on, always confirm if there is
no obstacle near your ve hicle before parking.
The system may not work properly when:
• The sensors are covered with snow, ice, mud or
dirt.
• The vehicle is on uneven su rface, such as grass,
bumps, or a hill.
• The vehicle has been out in hot or cold weather.
• The system is affected by devices that emit ultrasonic waves.
• Driving in bad weather.
The system may not sense:
• Thin or low objects.
• Sonic-absorptive materials, such as snow, cotton,
or sponge.
• Objects directly under the bumper.
Do not put any accessories on or around the sensors.
Within about 24 in (60 cm) or less
Front Corner Sensors
Rear Corner Sensors R
ear Center Sensors
Within about 43 in (110 cm) or less
Within about 39 in (100 cm) or less
Front Center Sensors
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 365 ページ ２０１９年９月１１日　水曜日　午後４時５１分

366
uuParking Your VehicleuParking Sensor System*
Driving
■
Parking sensor system on and off
With the power mode in ON, press the
parking sensor system button to turn the
system on or off. The indicator in the button
comes on when the system is on.
The rear center and corner sensors start to
detect an obstacle when the transmission is in
(R, and the vehicle speed is less than 5 mph
(8 km/h).
The front center and corner sensors start to
detect an obstacle when the transmission is not in
(P , and the vehicle speed is less than 5
mph (8 km/h).
20 ACURA NSX PMC-31T6N6300.book 366 ページ ２０１９年９月１１日　水曜日　午後４時５１分

367
uuParking Your VehicleuParking Sensor System*
Continued
Driving
■
When the distance between your vehicle and detected obstacles becomes shorter
*1: At this stage, only the center sensors detect obstacles.
Length of the
intermittent beepDistance between the Bumper and Detected
Obstacle
IndicatorAudio/information screen
Corner SensorsCenter Sensors
Moderate—
Front: About 39-24 in (100-60 cm)
Rear: About 43-24 in (110-60 cm)
Blinks in Yellow *1
ShortAbout 24-18 in
(60-45 cm) About 24-18 in (60-45 cm)
Blinks in Amber
Very shortAbout 18-14 in
(45-35 cm) About 18-14 in (45-35 cm)
ContinuousAbout 14 in
(35 cm) or lessAbout 14 in
(35 cm) or lessBlinks in Red
Indicators light where the
sensor detects an obstacle.
Indicators light where the
sensor detects an obstacle.
20 ACURA NSX PMC-31T6N6300.book 367 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuParking Your VehicleuParking Sensor System*
368
Driving
1. Make sure that the parking sensor system is not activated. Set the power mode to
VEHICLE OFF.
2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for ten seconds. Release the button when the indicator
in the button blinks.
4. Press the button again. The indi cator in the button goes off.
uThe beeper sounds twice. The re ar sensors are now turned off.
To turn the rear sensors on again, follow the above procedure. The beeper sounds
three times when the rear sensors come back on.
■Turning Off All Rear Sensors1Turning Off All Rear Sensors
When you select
(R , the indicator in the parking
sensor system button blinks as a reminder that the
rear sensors have been turned off.
20 ACURA NSX PMC-31T6N6300.book 368 ページ ２０１９年９月１１日　水曜日　午後４時５１分

417
Maintenance
12-Volt Battery
Checking the 12-Volt BatteryCheck the battery terminals for corrosion
monthly.
The battery is protected by a cover.
Remove the cover by pressing the tabs.
Slide the terminal cover on your vehicle’s 12-
volt battery positive + terminal.
The battery condition is monitored by the
sensor on the negative terminal. If there is a
problem with the sensor, the warning
message on the driver information interface
will let you know. Have your vehicle checked
by an authorized Acura NSX dealer.
If your vehicle’s battery is disconnected or goes dead:• The audio system is disabled.
2 Reactivating the audio system P. 164
• The clock resets.
2 Clock P. 104
Charging the AGM Battery
AGM labeled batteries can be damaged if improperly charged. For more information
on how to charge an AGM battery, consult an authorized Acura NSX dealer.
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult an authorized Acura NSX dealer for more
information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Tab
Cover
Terminal
Cover
20 ACURA NSX PMC-31T6N6300.book 417 ページ ２０１９年９月１１日　水曜日　午後４時５１分

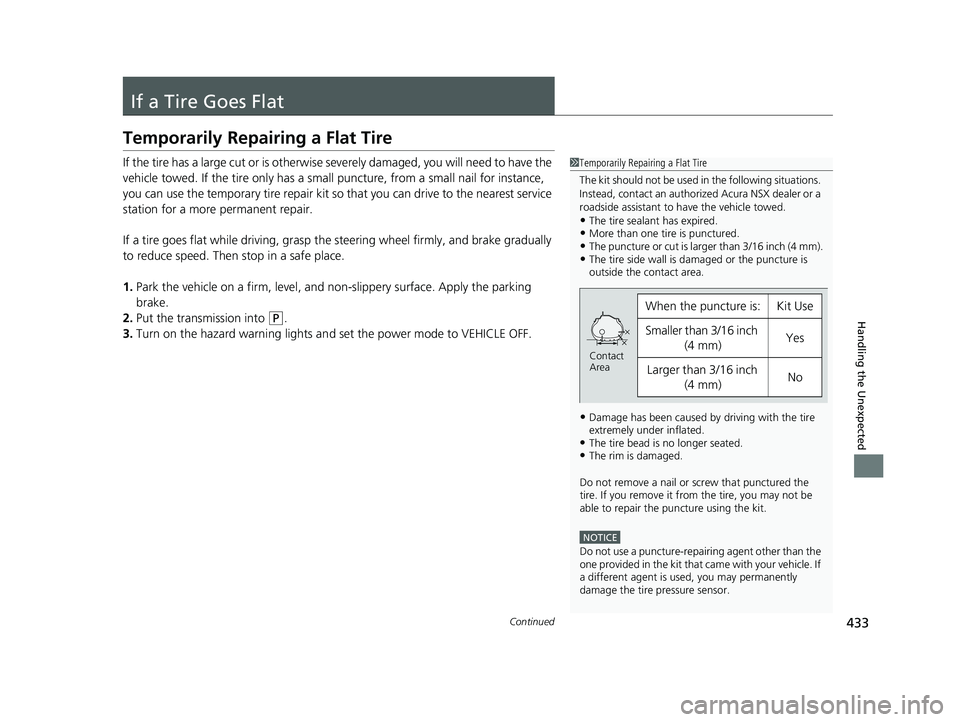

433
Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise
severely damaged, you will need to have the
vehicle towed. If the tire only has a sma ll puncture, from a small nail for instance,
you can use the temporary tire repair kit so that you can drive to the nearest service
station for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.1. Park the vehicle on a firm, level, and non-slippery surface. Apply the parking
brake.
2. Put the transmission into
(P .
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Acura NSX dealer or a
roadside assistant to have the vehicle towed.
• The tire sealant has expired.
• More than one tire is punctured.
• The puncture or cut is larger than 3/16 inch (4 mm).
• The tire side wall is da maged or the puncture is
outside the contact area.
• Damage has been caused by driving with the tire
extremely under inflated.
• The tire bead is no longer seated.
• The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
20 ACURA NSX PMC-31T6N6300.book 433 ページ ２０１９年９月１１日　水曜日　午後４時５１分

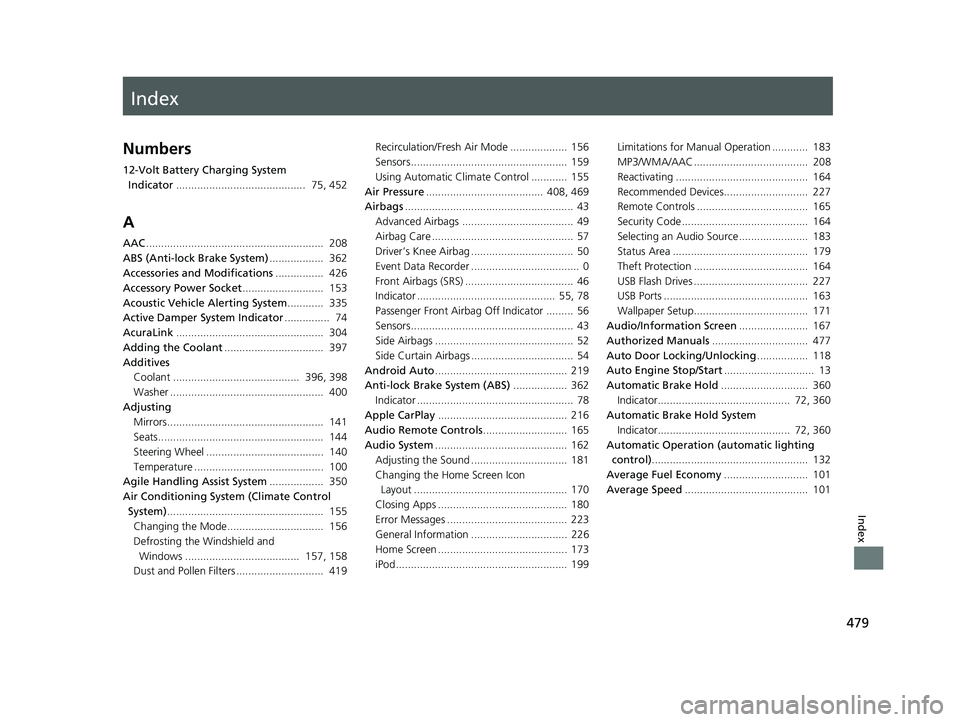

Index
479
Index
Index
Numbers
12-Volt Battery Charging System Indicator ........................................... 75, 452
A AAC ........................................................... 208
ABS (Anti-lock Brake System) .................. 362
Accessories and Modifications ................ 426
Accessory Power Socket ........................... 153
Acoustic Vehicle Alerting System ............ 335
Active Damper System Indicator ............... 74
AcuraLink ................................................. 304
Adding the Coolant ................................. 397
Additives Coolant .......................................... 396, 398
Washer ................................................... 400
Adjusting
Mirrors.................................................... 141
Seats....................................................... 144
Steering Wheel ....................................... 140
Temperature ........................................... 100
Agile Handling Assist System .................. 350
Air Conditioning System (Climate Control
System) .................................................... 155
Changing the Mode................................ 156 Defrosting the Windshield and
Windows ...................................... 157, 158
Dust and Pollen Filters ............................. 419 Recirculation/Fresh Air Mode ................... 156
Sensors .................................................... 159
Using Automatic Climate Control ............ 155
Air Pressure ....................................... 408, 469
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
Airbag Care ............................................... 57
Driver’s Knee Airbag .................................. 50
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 46
Indicator .............................................. 55, 78
Passenger Front Airbag Off Indicator ......... 56
Sensors ...................................................... 43
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
Android Auto ............................................ 219
Anti-lock Brake System (ABS) .................. 362
Indicator .................................................... 78
Apple CarPlay ........................................... 216
Audio Remote Controls ............................ 165
Audio System ............................................ 162
Adjusting the Sound ................................ 181
Changing the Home Screen Icon Layout ................................................... 170
Closing Apps ........................................... 180
Error Messages ........................................ 223
General Information ................................ 226
Home Screen ........................................... 173
iPod ......................................................... 199 Limitations for Manual Operation ............ 183
MP3/WMA/AAC ...................................... 208
Reactivating ............................................ 164
Recommended Devices............................ 227
Remote Controls ..................................... 165
Security Code .......................................... 164
Selecting an Audio Source ....................... 183
Status Area ............................................. 179
Theft Protection ...................................... 164
USB Flash Drives ...................................... 227
USB Ports ................................................ 163
Wallpaper Setup...................................... 171
Audio/Information Screen ....................... 167
Authorized Manuals ................................ 477
Auto Door Locking/Unlocking ................. 118
Auto Engine Stop/Start .............................. 13
Automatic Brake Hold ............................. 360
Indicator............................................ 72, 360
Automatic Brake Hold System
Indicator............................................ 72, 360
Automatic Operation (automatic lighting control) .................................................... 132
Average Fuel Economy ............................ 101
Average Speed ......................................... 101
20 ACURA NSX PMC-31T6N6300.book 479 ページ ２０１９年９月１１日　水曜日　午後４時５１分

480
Index
B Battery12-Volt .................................................... 417 12-Volt Battery Charging System Indicator .......................................... 75, 452
Charging (AGM Battery) .......................... 417
High Voltage ........................................... 356
Jump Starting .......................................... 448
Maintenance (Checking the 12-Volt Battery) .................................................. 417
Maintenance (Replacing).......................... 418
Battery Types .............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ...................................... 152
Bluetooth ® Audio ..................................... 211
Bluetooth ® HandsFreeLink ®................... 270
Booster Seats (For Children) ....................... 66
Brake System ............................................. 357
Anti-lock Brake System (ABS) ................... 362
Automatic Brake Hold.............................. 360
Brake Assist System ................................. 363
Fluid ........................................................ 400
Foot Brake ............................................... 359
Parking Brake .......................................... 357
Brake System (Amber)
Indicator .................................................... 73
Brake System (Red) Indicator ............................................ 70, 453
Brake Wear Indicator .................................................... 74 Bulb Replacement
.................................... 401
Back-Up Lights ........................................ 402
Daytime Running Lights........................... 401
Front Side Marker Lights.......................... 401
Front Turn Signal/Parking Lights .............. 401
Headlights ............................................... 401
High-Mount Brake Light .......................... 403
Rear License Plate Lights .......................... 403
Rear Side Marker Lights ........................... 402
Rear Turn Signal Lights ............................ 402
Side Turn Signal/Emergency Indicator
Lights .................................................... 401
Taillights.................................................. 402
Bulb Specifications ................................... 468
C
Carbon Monoxide Gas ............................... 67
Carrying Cargo ................................. 311, 313
Certification Label .................................... 470
Changing Bulbs ........................................ 401
Charging System Indicator ................. 75, 452
Child Safety ................................................. 58
Emergency Hatch Opener ........................ 121
Child Seat .................................................... 58
Booster Seats ............................................ 66
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat ................................ 63
Larger Children ......................................... 65
Selecting a Forward-facing Child Seat........ 62 Using a Tether .......................................... 64
Cleaning the Exterior ............................... 422
Cleaning the Interior ............................... 420
Client Service Information ....................... 478
Climate Control System ........................... 155
Defrosting the Windshield and Windows ...................................... 157, 158
Dust and Pollen Filters ............................. 419
Recirculation/Fresh Air Mode................... 156
Sensors ................................................... 159
Using Automatic Climate Control............ 155
Clock ......................................................... 104
Cold Weather ........................................... 416
Console Compartment ............................. 151
Controls .................................................... 103
Coolant (Engine) ...................................... 396
Adding the Coolant ................................ 397
Checking the Coolant ............................. 396
Overheating ............................................ 450
Coolant (Inverter) .................................... 398
Creeping (Dual Clutch Transmission) ...... 325
Cruise Control .......................................... 343
CRUISE CONTROL Indicator ....................... 82
CRUISE MAIN Indicator .............................. 82
Cup Holders .............................................. 152
Customized Features ............................... 244
D
Daytime Running Lights .......................... 134
Dead Battery (12-Volt) ............................. 448
20 ACURA NSX PMC-31T6N6300.book 480 ページ ２０１９年９月１１日　水曜日　午後４時５１分

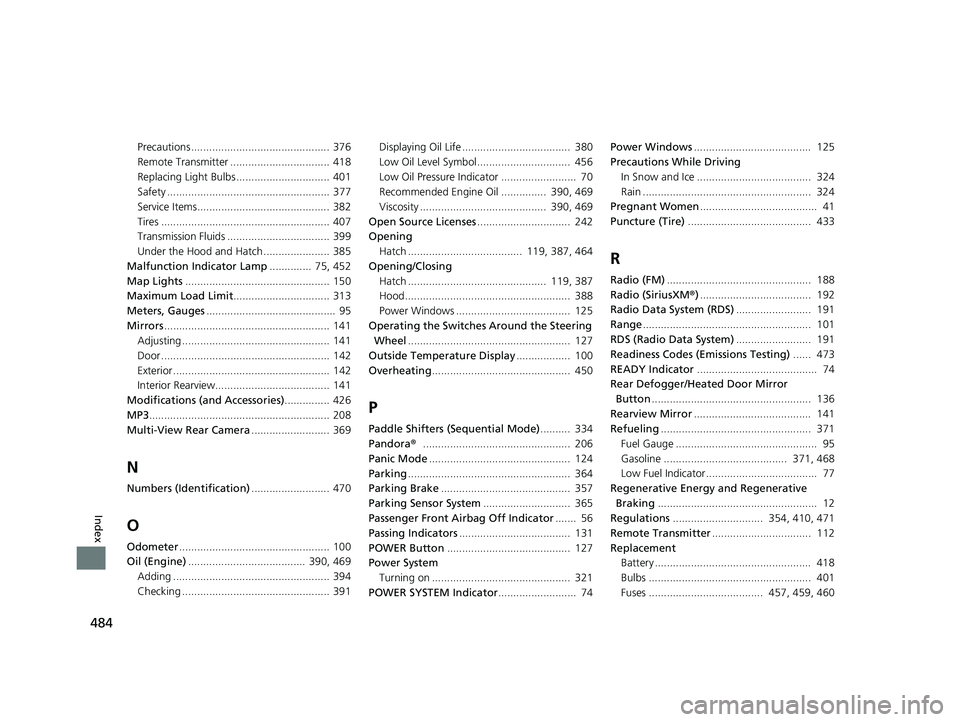

484
Index
Precautions .............................................. 376
Remote Transmitter ................................. 418
Replacing Light Bulbs ............................... 401
Safety ...................................................... 377
Service Items............................................ 382
Tires ........................................................ 407
Transmission Fluids .................................. 399
Under the Hood and Hatch ...................... 385
Malfunction Indicator Lamp .............. 75, 452
Map Lights ................................................ 150
Maximum Load Limit ................................ 313
Meters, Gauges ........................................... 95
Mirrors ....................................................... 141
Adjusting ................................................. 141
Door ........................................................ 142
Exterior .................................................... 142
Interior Rearview...................................... 141
Modifications (and Accessories) ............... 426
MP3 ............................................................ 208
Multi-View Rear Camera .......................... 369
N
Numbers (Identification) .......................... 470
O
Odometer .................................................. 100
Oil (Engine) ....................................... 390, 469
Adding .................................................... 394
Checking ................................................. 391 Displaying Oil Life .................................... 380
Low Oil Level Symbol............................... 456
Low Oil Pressure Indicator ......................... 70
Recommended Engine Oil ............... 390, 469
Viscosity .......................................... 390, 469
Open Source Licenses ............................... 242
Opening Hatch ...................................... 119, 387, 464
Opening/Closing Hatch .............................................. 119, 387
Hood....................................................... 388
Power Windows ...................................... 125
Operating the Switches Around the Steering Wheel ...................................................... 127
Outside Temperature Display .................. 100
Overheating .............................................. 450
P
Paddle Shifters (Sequential Mode) .......... 334
Pandora ®................................................. 206
Panic Mode ............................................... 124
Parking ...................................................... 364
Parking Brake ........................................... 357
Parking Sensor System ............................. 365
Passenger Front Airbag Off Indicator ....... 56
Passing Indicators ..................................... 131
POWER Button ......................................... 127
Power System Turning on .............................................. 321
POWER SYSTEM Indicator .......................... 74Power Windows
....................................... 125
Precautions While Driving
In Snow and Ice ...................................... 324
Rain ........................................................ 324
Pregnant Women ....................................... 41
Puncture (Tire) ......................................... 433
R
Radio (FM) ................................................ 188
Radio (SiriusXM ®)..................................... 192
Radio Data System (RDS) ......................... 191
Range ........................................................ 101
RDS (Radio Data System) ......................... 191
Readiness Codes (Emissions Testing) ...... 473
READY Indicator ........................................ 74
Rear Defogger/Heated Door Mirror Button ..................................................... 136
Rearview Mirror ....................................... 141
Refueling .................................................. 371
Fuel Gauge ............................................... 95
Gasoline ......................................... 371, 468
Low Fuel Indicator ..................................... 77
Regenerative Energy and Regenerative
Braking ..................................................... 12
Regulations .............................. 354, 410, 471
Remote Transmitter ................................. 112
Replacement Battery .................................................... 418
Bulbs ...................................................... 401
Fuses ...................................... 457, 459, 460
20 ACURA NSX PMC-31T6N6300.book 484 ページ ２０１９年９月１１日　水曜日　午後４時５１分
