Page 165 of 491

163
uuAudio SystemuUSB Ports
Features
USB Ports
Install the iPod USB connector or the USB flash drive to the USB port.
■ In the glove box
The USB port (1.0A) is for playing audio files
on a USB flash drive and connecting a cellular
phone and charging device. ■ In the consol e compartment
The USB port (1.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto.
uTo prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with USB 2.0 Standard.
1USB Ports
• Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may damage it.
• We recommend using an ex tension cable with the
USB port.
• Do not connect the iPod or USB flash drive using a
hub.
• Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
• We recommend k eeping your data backed up
before using the device in your vehicle.
• Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.0A/1.5A of power. It
does not output 1.0A/1.5A unless requested by the
device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Set the power mode to ACCESSORY or ON first. Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
In the glove box
In the console compartment
20 ACURA NSX PMC-31T6N6300.book 163 ページ 2019年9月11日 水曜日 午後4時51分
Page 216 of 491

uuAudio System Basic OperationuWi-Fi Connection
214
Features
Make sure your phone's Wi-Fi setting is in access point (tethering) mode.
■Wi-Fi mode (after the initial setting has been made)1Wi-Fi mode (after the initial setting has been made)
You may need to go through an initial setup for Wi- Fi connection again af ter you boot your phone.
iPhone users
20 ACURA NSX PMC-31T6N6300.book 214 ページ 2019年9月11日 水曜日 午後4時51分

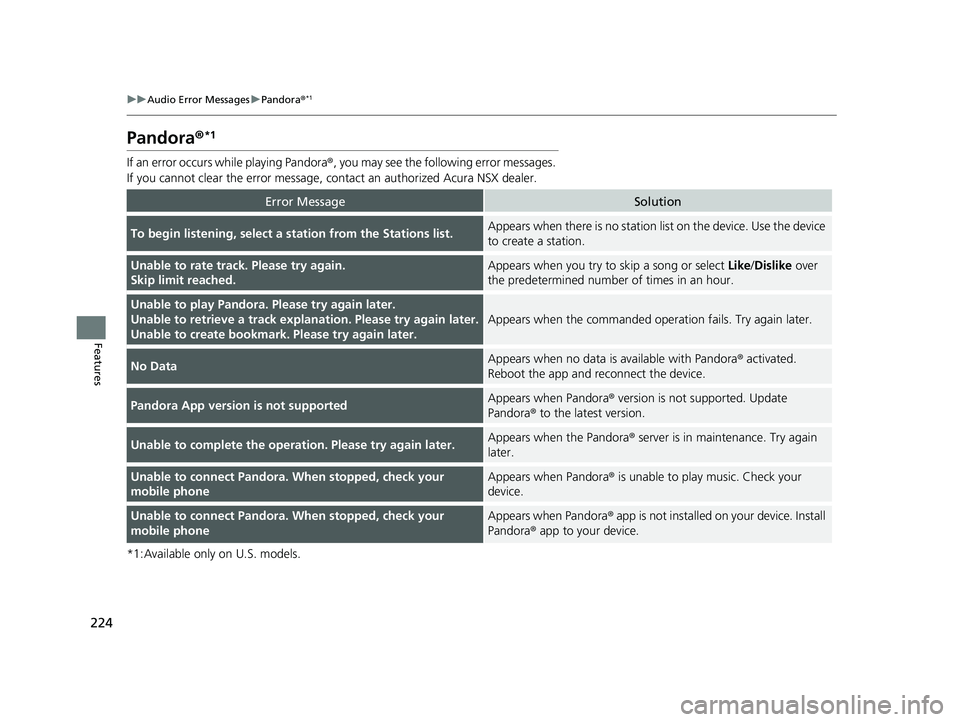

Page 226 of 491

224
uuAudio Error MessagesuPandora®*1
Features
Pandora
®*1
If an error occurs while playing Pandora ®, you may see the following error messages.
If you cannot clear the error message, c ontact an authorized Acura NSX dealer.
*1:Available only on U.S. models.
Error MessageSolution
To begin listening, select a st ation from the Stations list.Appears when there is no station lis t on the device. Use the device
to create a station.
Unable to rate trac k. Please try again.
Skip limit reached.Appears when you try to skip a song or select Like/Dislike over
the predetermined number of times in an hour.
Unable to play Pandora. Please try again later.
Unable to retrieve a track explan ation. Please try again later.
Unable to create bookmark. Please try again later.
Appears when the commanded oper ation fails. Try again later.
No DataAppears when no data is available with Pandora® activated.
Reboot the app and reconnect the device.
Pandora App version is not supportedAppears when Pandora ® version is not supported. Update
Pandora ® to the latest version.
Unable to complete the operat ion. Please try again later.Appears when the Pandora® server is in maintenance. Try again
later.
Unable to connect Pandora. When stopped, check your
mobile phoneAppears when Pandora ® is unable to play music. Check your
device.
Unable to connect Pandora. When stopped, check your
mobile phoneAppears when Pandora ® app is not installed on your device. Install
Pandora ® app to your device.
20 ACURA NSX PMC-31T6N6300.book 224 ページ 2019年9月11日 水曜日 午後4時51分
Page 268 of 491

266
uuCustomized FeaturesuDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Select .
2. Select Settings .
3. Select System .
4. Select the Others tab.
5. Select Factory Data Reset .
uA confirmation message appears on the screen.
6. Select Yes to reset the settings.
7. Select Yes again to reset the settings.
uA confirmation message appears on the
screen. Select OK.
uAfter selecting OK, the system will
reboot.
1Defaulting All the Settings
When you transfer the vehicle to a third party, reset all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
pre-installed apps to their factory default.
20 ACURA NSX PMC-31T6N6300.book 266 ページ 2019年9月11日 水曜日 午後4時51分
Page 384 of 491

382
uuMaintenance MinderTMuTo Use Maintenance Minder TM
Maintenance
■Maintenance Service Items1Maintenance Service Items
• Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
• Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
• Inspect direct injection + port injection fuel system
every 3 years or service item B is indicated.
• Inspect tire condition ev ery 3,100 miles (5,000 km).
Maintenance Minder Message System Message
Indicator
Main Item Sub Items
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil *1
B•
Replace engine oil *1
and oil filter
• Inspect front and rear brakes
• Check expiration date for temporary tire repair kit bottle
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and li nes (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system #
• Inspect fuel lines and connections #
• Inspect direct injection + port injection fuel system
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filters every 15,000 miles (24,000 km) or every year.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid and clutch fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under this condition, have the transmission
fluid and clutch fluid changed every 20,000 miles (32,000 km).
*5: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear) stress to fluid. This requires Twin Motor Unit fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the Twin Motor
Unit fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1 •Inspect tire condition
2•Replace air cleaner element *2
• Replace dust and pollen filters *3
3 •Replace transmission fluid *4
• Replace clutch fluid *4
4•
Replace spark plugs
• Inspect valve clearance
• Inspect Active Exhaust Valve function
• Replace Intake Sound Control
5 •Replace engine coolant
6• Replace Twin Motor Unit fluid *5
