tow ACURA NSX 2020 Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 36 Airbags P. 43
2Instrument Panel P. 69
Indicators P. 70 Gauges and Displays P. 95
2Controls P. 103
Clock P. 104 Locking and Unlocking the Doors P. 105
Operating the Switches Around the Steering Wheel P. 127
Climate Control System P. 155
2Features P. 161
Audio System P. 162 Audio System Basic Operation P. 166
Customized Features P. 244 HomeLink ® Universal Transceiver P. 267
2 Driving P. 309
Before Driving P. 310 Towing a Trailer P. 320
Multi-View Rear Camera P. 369
2Maintenance P. 375
Before Performing Maintenance P. 376 Maintenance MinderTM
P. 379
Checking and Maintaining Wiper Blades P. 404 Climate Control System Maintenance P. 419
2Handling the Unexpected P. 431
Tools P. 432 If a Tire Goes Flat P. 433
Overheating P. 450 Indicator, Coming On/Blinking P. 452
When You Cannot Open the Hatch P. 464
2Information P. 467
Specifications P. 468 Identi fication Numbers P. 470
Emissions Testing P. 473 Warranty Coverages P. 475
20 ACURA NSX PMC-31T6N6300.book 2 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Contents
Child Safety P. 58 Exhaust Gas Hazard P. 67 Safety Labels P. 68
Opening and Closing the Hatch P. 119 Security System P. 122 Opening and Closing the Windows P. 125
Adjusting the Mirrors P. 141 Adjusting the Seats P. 144 Interior Convenience Items P. 149
Audio Error Messages P. 223 General Information on the Audio System P. 226
Bluetooth® HandsFreeLink ® P. 270 AcuraLink ®*
P. 304
When Driving P. 321 Braking P. 357 Parking Your Vehicle P. 364
Refueling P. 371 Fuel Economy and CO 2 Emissions P. 373
Maintenance Under the H
ood and Hatch P. 385 Replacing Light Bulbs P. 401
Checking and Maintaining Tires P. 407 12-Volt Battery P. 417 Remote Transmitter Care P. 418
Cleaning P. 420 Accessories and Modifications P. 426 Storage P. 428
Power System Won’t Start P. 445 Jump Starting P. 448
Fuses P. 457 Emergency Towing P. 462 When Y ou Cannot Unlock the Fuel Fill Door P. 463
Refueling P. 465
Devices that Emit Radio Waves P. 471 Reporting Safety Defects P. 472
Authorized Manuals P. 477 Client Service Information P. 478
Quick Reference GuideP. 4
Safe DrivingP. 31
Instrument PanelP. 69
ControlsP. 103
FeaturesP. 161
DrivingP. 309
MaintenanceP. 375
Handling the UnexpectedP. 431
InformationP. 467
IndexP. 479
20 ACURA NSX PMC-31T6N6300.book 3 ページ ２０１９年９月１１日　水曜日　午後４時５１分

18
Quick Reference Guide
Wipers and Washers
(P 135)
Wiper/Washer Control Lever
Adjustment Ring: Lower speed, fewer sweeps
: Higher speed, more sweeps
MIST
OFFINT : Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull
toward
you to spray washer fluid.
Steering Wheel
(P 140)
To adjust, push the adjustment lever down,
adjust to the desired po sition, then lock the
lever back in place.
Unlocking the Doors from the Inside (P 115)
● Pull either inner door handle to unlock
and open it in one motion.
● Unlocking and opening the driver’s door
from the inner handle unlocks the
passenger’s door.
To adjustTo lock
Hatch
(P 119)
● To unlock and open the hatch:
• Press the hatch release button on the
driver’s door.
• Press the hatch release button on the keyless access remote.
• Press the hatch release button on the
hatch.
Hatch Release Button
20 ACURA NSX PMC-31T6N6300.book 18 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuSeat BeltsuFastening a Seat Belt
40
Safe Driving
3. Position the lap part of the belt as low as
possible across your hips, then pull up on
the shoulder part of the belt so the lap part fits snugly. Th is lets your strong pelvic
bones take the force of a crash and reduces the chance of internal injuries.
4. If necessary, pull up on the belt again to
remove any slack, then check that the belt
rests across the center of your chest and
over your shoulder. Th is spreads the forces
of a crash over the strongest bones in your
upper body.1Fastening a Seat Belt
To release the belt, push the red PRESS button and
then guide the belt by hand until it has retracted
completely.When exiting the vehicle, be sure the belt is properly
stowed so that it will not get caught in the closing door.
3WARNING
Improperly positioning the seat belts can
cause serious injury or death in a crash.
Make sure all seat belts are properly positioned be fore driving.Lap belt as low as
possible
20 ACURA NSX PMC-31T6N6300.book 40 ページ ２０１９年９月１１日　水曜日　午後４時５１分

48
uuAirbagsuFront Airbags (SRS)
Safe Driving
■When front airbags should not deploy
Minor frontal crashes: Front airbags were designed to supplement seat belts and
help save lives, not to prevent minor scrape s, or even broken bones that might occur
during a less than moderate-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or passenger to move towa rd the front of the vehicle. Side airbags
and side curtain airbags have been specifically designed to help reduce the severity
of injuries that can occur during a moderate-to-severe side impact which can cause
the driver or passenger to move toward the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any si gnificant protection and are not designed
to deploy in such collisions.
Rollovers: In a rollover, your best form of protection is a seat belt or, if your vehicle
is equipped with a rollover sensor, both a se at belt and a side curtain airbag. Front
airbags, however, are not designed to deploy in a rollover as they would provide
little if any protection.
■ When front airbags deploy with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might caus e one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in th e vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent. ■ When front airbags may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
20 ACURA NSX PMC-31T6N6300.book 48 ページ ２０１９年９月１１日　水曜日　午後４時５１分

53
uuAirbagsuSide Airbags
Safe Driving
■When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag. ■ When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag not to deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed
most of the crash energy. In either case , the side airbag would not have been
needed nor provided protection even if it had deployed.
20 ACURA NSX PMC-31T6N6300.book 53 ページ ２０１９年９月１１日　水曜日　午後４時５１分

76
uuIndicatorsu
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator•Indicates the current gear selection.
2 Shifting P. 326—
Transmission
System Indicator
•The indicated current gear selection
blinks if there is a problem with the
transmission system.• Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by an
authorized Acura NSX dealer.
•All the gear positions may light for
several seconds, and go off.• When all the gear positions light,
immediately stop your vehicle in a safe place.
• Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to an authorized Acura NSX dealer
for inspection.
—
•The indicated current gear selection
or all the gear positions blink if
there is a problem with the
transmission system.• Immediately stop in a safe place.
2Emergency Towing P. 462
• Have your vehicle checked by an
authorized Acura NSX dealer.
•The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
• The power system can be activated as a
temporary measure.
2If the Transmission System Indicator
Blinks along with the Warning
Message P. 456
• Set the parking brake when parking.
• Have your vehicle checked by an
authorized Acura NSX dealer immediately.
20 ACURA NSX PMC-31T6N6300.book 76 ページ ２０１９年９月１１日　水曜日　午後４時５１分

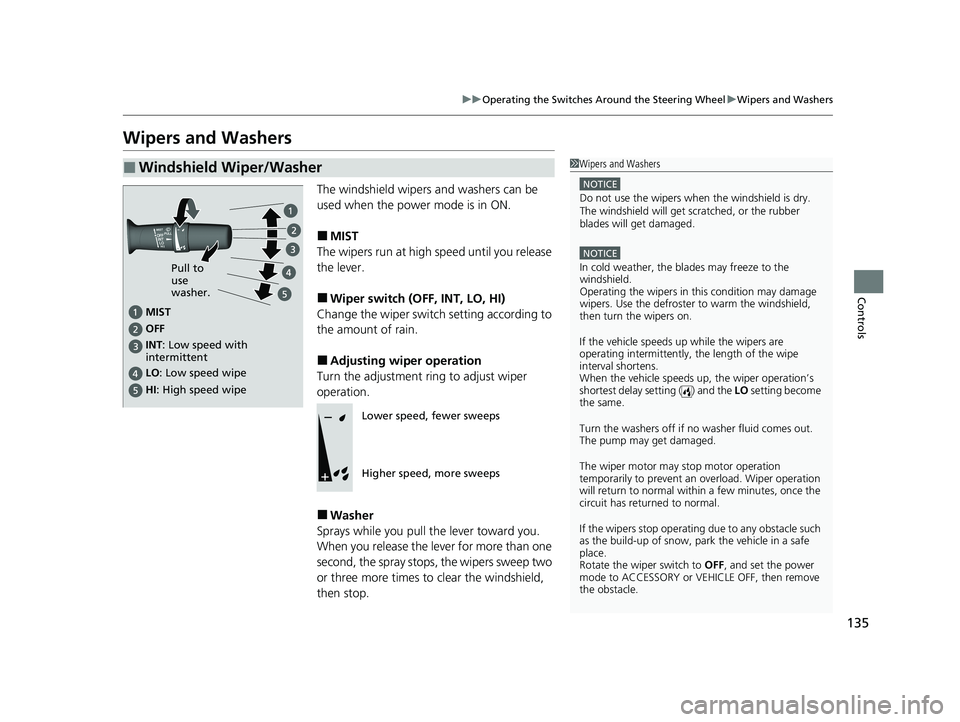

135
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
Wipers and WashersThe windshield wipers and washers can be
used when the power mode is in ON. ■MIST
The wipers run at high speed until you release
the lever. ■ Wiper switch (OFF, INT, LO, HI)
Change the wiper switch setting according to the amount of rain. ■ Adjusting wiper operation
Turn the adjustment ring to adjust wiper
operation. ■ Washer
Sprays while you pull the lever toward you. When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the windshield.
Operating the wipers in th is condition may damage
wipers. Use the de froster to warm the windshield,
then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wipers stop operating due to any obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
MIST
OFF LO : Low speed wipe
HI : High speed wipe Pull to
use
washer.
INT : Low speed with
intermittent
Lower speed, fewer sweeps
Higher speed, more sweeps
20 ACURA NSX PMC-31T6N6300.book 135 ページ ２０１９年９月１１日　水曜日　午後４時５１分

309
Driving
This chapter discusses driving and refueling.
Before Driving Driving Preparation .......................... 310
Maximum Load Limit........................ 313
High-Performance Driving ................ 315
Towing a Trailer Towing Your Vehicle ........................ 320
When Driving Turning on the Power ...................... 321
Precautions While Driving................. 324
Dual Clutch Transmission ................. 325
Shifting ............................................ 326Acoustic Vehicle Al erting System ...... 335 Integrated Dynamics System ............ 336
Launch Control ................................ 341
Cruise Control ................................. 343
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 346
Agile Handling Assist ....................... 350
SPORT HYBRID Super Handling All-Wheel- DriveTM (SPORT HYBRID SH-AWD®) .... 351
Tire Pressure Monitoring System (TPMS) ...... 352
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 354
High Voltage Battery ........................ 356 Braking
Brake System ................................... 357
Anti-lock Brake System (ABS) ........... 362
Brake Assist System ......................... 363
Parking Your Vehicle
When Stopped ................................ 364
Parking Sensor System *
................... 365
Multi-View Rear Camera .................. 369
Refueling
Fuel Information .............................. 371
How to Refuel ................................. 372
Fuel Economy and CO 2 Emissions
.... 373
Turbo Engine Vehicle ....................... 374
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 309 ページ ２０１９年９月１１日　水曜日　午後４時５１分

313
uuBefore DrivinguMaximum Load Limit
Continued
Driving
Maximum Load Limit
The maximum load for your vehicle is 507 lbs (230 kg).
The maximum load for the carg o area is 100 lbs (45 kg).
See the Tire and Loading Information label attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer. Steps for Determining Correct Load Limit -
(1)Locate the statement “The combined weight of occupants and cargo
should never exceed XXX kg or XXX lbs.” on your vehicle’s placard.
(2)Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4)The resulting figure equals the available amount of cargo and
luggage load capacity. For exampl e, if the “XXX” amount equals
1,400 lbs. and there will be five 150 lb. passengers in your vehicle, the
amount of available cargo and luggage load capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)
1Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 468
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 468
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other loading guidelines in this manual.
Label Example
20 ACURA NSX PMC-31T6N6300.book 313 ページ ２０１９年９月１１日　水曜日　午後４時５１分
