trunk ACURA NSX 2020 Owners Manual

35
uuFor Safe DrivinguSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenger, make a habit of checking these items each
time before you drive. • After everyone has entered the vehicle, be sure both doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door. 2 Locking/Unlocking the Doors from the Inside P. 115
• Adjust your seat to a position suitable fo r driving. Be sure the seats are adjusted
as far to the rear as possible while allo wing the driver to control the vehicle.
Sitting too close to a front airbag can resu lt in serious or fatal injury in a crash.
2 Adjusting the Seats P. 144
• Always wear your seat belt, and make sure you wear it properly. Confirm that any
passenger is properly belted as well. 2 Fastening a Seat Belt P. 39
• If you choose to ignore our warnings and carry a child in this vehicle, make every
effort to protect them by properly using a se at belt or a child seat according to the
child’s age, height, and weight. 2 Child Safety P. 58
1Safety Checklist
If the Door Open or Door And Trunk Open
message appears on the driver information interface, a door and/or the trunk (h atch) is not completely
closed. Close both doors and the trunk (hatch) tightly
until the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 88
20 ACURA NSX PMC-31T6N6300.book 35 ページ ２０１９年９月１１日　水曜日　午後４時５１分

88
uuIndicatorsuDriver Information Interface Warning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if any door or the trunk (hatch) is not
completely closed.
• Appears if any door or the trunk (hatch) is opened while
driving. The beeper sounds.•Goes off when all doors and the trunk (hatch) are closed.
•Appears if there is a problem with the radiator system.•Drive slowly to prevent overheating and have your
vehicle checked by an author ized Acura NSX dealer as
soon as possible.
• Appears when there is a pr oblem with the headlights.•Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by an authorized
Acura NSX dealer as soon as possible.
• Appears if there is a problem with the parking sensor
system.• Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by an
authorized Acura NSX dealer.Models with
parking sensor
system
20 ACURA NSX PMC-31T6N6300.book 88 ページ ２０１９年９月１１日　水曜日　午後４時５１分

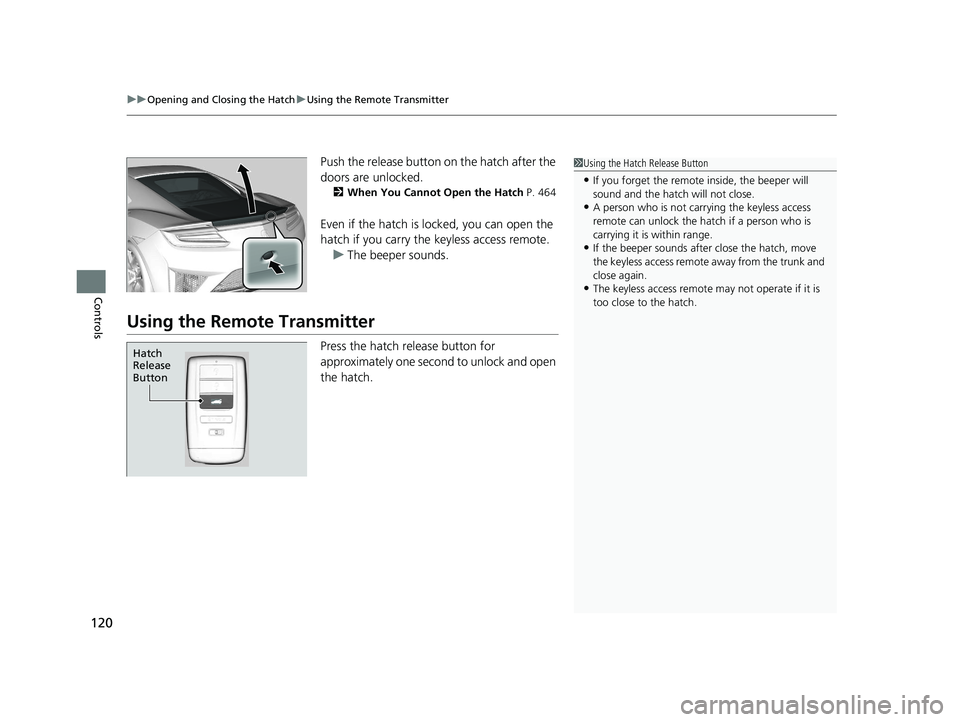

uuOpening and Closing the HatchuUsing the Remote Transmitter
120
Controls
Push the release button on the hatch after the
doors are unlocked. 2 When You Cannot Open the Hatch P. 464
Even if the hatch is locked, you can open the
hatch if you carry the keyless access remote.
uThe beeper sounds.
Using the Remote Transmitter
Press the hatch release button for
approximately one second to unlock and open the hatch.
1Using the Hatch Release Button• If you forget the remote inside, the beeper will
sound and the hatch will not close.
• A person who is not carryi ng the keyless access
remote can unlock the hatch if a person who is
carrying it is within range.
• If the beeper sounds after close the hatch, move
the keyless access remote away from the trunk and
close again.
• The keyless access remote may not operate if it is
too close to the hatch.
Hatch
Release
Button
20 ACURA NSX PMC-31T6N6300.book 120 ページ ２０１９年９月１１日　水曜日　午後４時５１分

121

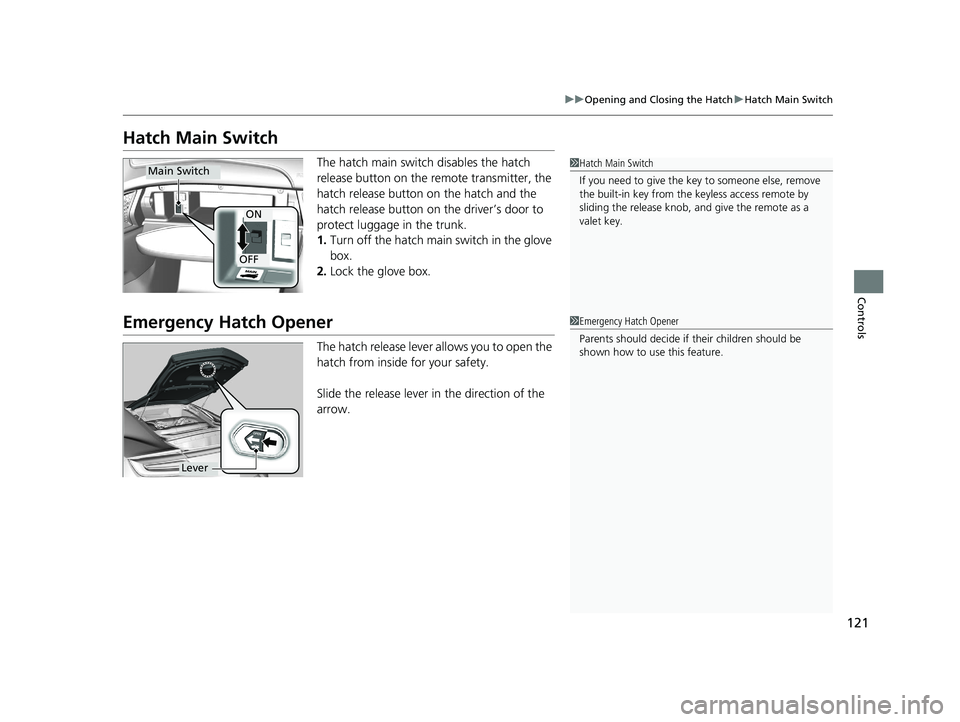

uuOpening and Closing the HatchuHatch Main Switch
Controls
Hatch Main SwitchThe hatch main switch disables the hatch
release button on the remote transmitter, the
hatch release button on the hatch and the
hatch release button on the driver’s door to
protect luggage in the trunk. 1.Turn off the hatch main switch in the glove
box.
2. Lock the glove box.
Emergency Hatch Opener
The hatch release lever allows you to open the
hatch from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Hatch Main Switch
If you need to give the key to someone else, remove
the built-in key from the keyless access remote by
sliding the release knob, and give the remote as a
valet key.Main Switch
ON
OFF
1Emergency Hatch Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
20 ACURA NSX PMC-31T6N6300.book 121 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued311
uuBefore DrivinguDriving Preparation
Driving
•Store or secure all items on board properly.
uCarrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2 Maximum Load Limit P. 313
• Do not pile items higher than the seat height.
uThey can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the seat footwe lls. Make sure to secure the floor mat.
uAn object or unsecured floor mat can interfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
uThey may interfere with driving and a crash could occur.
• Securely close and lock both doors and the hatch.
2 Locking/Unlocking the Doors from the Inside P. 115
• Adjust your seating position properly.
2 Adjusting the Seats P. 144
• Adjust the mirrors and steering wheel properly.
uAdjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 141
2 Adjusting the Steering Wheel P. 140
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk ha ve the aiming readjusted
at an authorized Acura NS X dealer or by a qualified
technician.
20 ACURA NSX PMC-31T6N6300.book 311 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued317
uuBefore DrivinguHigh-Performance Driving
Driving
•Burnish the brake pads shortly before high -performance driving so that they have
the performance characteristics necessary to repeatedly and quickly slow the NSX
when it is being operated at signific antly high speeds. (While the NSX’s brake
pads are properly burnished for the demands expected in ordinary day-to-day driving, high-performance driving puts unique demands on the brake system
which require further burnishing.)
• Inspect ALL cooling openings to confirm th ey are open and free of debris such as
leaves, etc. Cooling openings include engine undercover ducts, heat resistance
ducts, brake ducts, radi ators, and intercoolers
• Remove Tire Repair Kit from the trunk, along with any other cargo area contents
• Check tire wear and tire pressure, and m ake certain wheel lug bolts are properly
torqued, as driving at high speed puts additional strain on tires and wheels. Never
use slick tires, and do not use Summer Only tires and Ultra High Performance tires
if temperatures will be lower than 45°F (7°C)
• If you anticipate sustained driving at speeds greater than 168 mph/270 km/h,
adjust the cold tire pressure as shown on the driver door jamb warning label. This
will help avoid heat build-up and sudden tire failure1High-Performance Driving
3WARNING
Use of slick tires/racing slicks may subject the chassis and body components to higher
dynamic loads than they were designed for.
Higher than intended dynamic loads could
result in component fail ure, loss of control,
and serious injury or death to you or others.
Do not install slick tires on the NSX.
Canadian models
U.S. models
20 ACURA NSX PMC-31T6N6300.book 317 ページ ２０１９年９月１１日　水曜日　午後４時５１分

401
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura NSX dealer inspect and replace
the light assembly.
Front Turn Signal/Parking Lights
Front turn signal/parking lights are LED type . Have an authorized Acura NSX dealer
inspect and replace the light assembly.
Front Side Marker Lights Front side marker lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights
Door mirror side turn lights are LED type . Have an authorized Acura NSX dealer
inspect and replace the light assembly.
Daytime Running Lights
Daytime running lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
1Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at an authorized Acura NS X dealer or by a qualified
technician.
20 ACURA NSX PMC-31T6N6300.book 401 ページ ２０１９年９月１１日　水曜日　午後４時５１分

432
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Towing Hook Funnel
Tool Box
Wheel Bolt Cap Removal Tool
20 ACURA NSX PMC-31T6N6300.book 432 ページ ２０１９年９月１１日　水曜日　午後４時５１分

465
Handling the Unexpected
Refueling
Refueling from a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Press the fuel fill door release button.
uThe fuel fill door opens.
3. Take the funnel out of the tool box in the trunk.
2 Types of Tools P. 432
4. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and completely.
uMake sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
uPour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
uWipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling from a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the filler opening
with foreign objects. This can damage the filler
opening and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel. • Turn the power system off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
20 ACURA NSX PMC-31T6N6300.book 465 ページ ２０１９年９月１１日　水曜日　午後４時５１分

482
Index
Foot Brake................................................. 359
Front Airbags (SRS) ..................................... 46
Fuel ...................................................... 25, 371
Economy ................................................. 373
Gauge ....................................................... 95
Instant Fuel Economy ............................... 101
Low Fuel Indicator ..................................... 77
Range ...................................................... 101
Refueling ................................................. 371
Requirement .................................... 371, 468
Fuel Economy ............................................ 373
Fuel Fill Door ....................................... 25, 372
Fuses .......................................................... 457
Inspecting and Changing ......................... 461
Locations ................................. 457, 459, 460
G
Gasoline (Fuel) Economy ................................................. 373
Gauge ....................................................... 95
Information ............................................. 371
Instant Fuel Economy ............................... 101
Low Fuel Indicator ..................................... 77
Refueling ................................................. 371
Gauges ......................................................... 95
Gear Position Indicator ....................... 76, 328
Gear Shift Positions Dual Clutch Transmission ......................... 326
Glass (care) ........................................ 420, 423
Glove Box .................................................. 151 H
Handling the Unexpected
........................ 431
HandsFreeLink ® (HFL) ............................... 270
Automatic Import of Ce llular Phonebook and
Call History ............................................ 283
Displaying Messages................................ 299
HFL Buttons............................................. 270
HFL Menus .............................................. 273
HFL Status Display ................................... 272
Limitations for Manual Operation ............ 272
Making a Call .......................................... 292
Options During a Call .............................. 296
Phone Setup............................................ 278
Phonebook Phonetic Modification ........... 287
Receiving a Call ....................................... 296
Receiving a Text/E-mail Message.............. 297
Ring Tone................................................ 282
Roadside Assistance ................................ 303
Selecting a Mail Account ......................... 298
Speed Dial ............................................... 284
To Set Up Text/E-mail Message Options ... 281
Hatch ......................................................... 119
Unable to Open....................................... 464
Hazard Warning Button .............................. 4
Headlights ................................................. 131
Aiming .................................................... 401
Automatic Operation (automatic lighting control) ................................................. 132
Dimming ......................................... 131, 134
Operating................................................ 131
Heaters (Seat) ........................................... 154 HFL (HandsFreeLink
®) .............................. 270
High Beam Indicator .................................. 81
High Voltage Battery ............................... 356
High-Performance Driving ...................... 315
Hill Start Assist System ............................. 323
HomeLink ® Universal Transceiver ........... 267
Honda App License Agreement .............. 228
Hybrid Vehicle
SPORT HYBRID Super Handling All-Wheel-Drive TM
(SPORT HYBRID SH-AWD ®)............ 9
I
Identification Numbers Engine, Motor, and Transmission ............ 470
Vehicle Identification............................... 470
Immobilizer System .................................. 122
Indicator ................................................... 81
Indicators .................................................... 70
12-Volt Battery Charging System ...... 75, 452
Active Damper System .............................. 74
Anti-lock Brake System (ABS) .................... 78
Automatic Brake Hold ....................... 72, 360
Automatic Brake Hold System ........... 72, 360
Brake System (Amber) ............................... 73
Brake System (Red) ........................... 70, 453
Brake Wear ............................................... 74
CRUISE CONTROL ............................. 82, 344
CRUISE MAIN.................................... 82, 343
Door and Trunk (Hatch) Open ................... 35
Electric Parking Brake ................................ 71
20 ACURA NSX PMC-31T6N6300.book 482 ページ ２０１９年９月１１日　水曜日　午後４時５１分
