ACURA NSX 2021 Owners Manual

469
Handling the Unexpected
Refueling
Refueling from a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the tool box in the
trunk.
2 Types of Tools P. 436
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and completely.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling from a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the filler opening
with foreign objects. This can damage the filler
opening and its sealM
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power system off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
21 ACURA NSX PMC-31T6N6400.book 469 ページ ２０２０年１０月８日　木曜日　午後３時７分

470
21 ACURA NSX PMC-31T6N6400.book 470 ページ ２０２０年１０月８日　木曜日　午後３時７分

471
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 472
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number..................... 474
Devices that Emit Radio Waves ....... 475
Reporting Safety Defects ................. 476
Emissions Testing Testing of Readiness Codes.............. 477
Warranty Coverages ........................ 479
Authorized Manuals ......................... 482
Client Service Information ............... 483
21 ACURA NSX PMC-31T6N6400.book 471 ページ ２０２０年１０月８日　木曜日　午後３時７分

472
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelAcura NSX
No. of Passengers:
Front 2
Rear 0
Total 2
Weights:Gross Vehicle Weight
RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant TypeND-OIL 11
Quantity 6.1 - 7.0 cu-in (100 - 115 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement213 cu-in (3,493 cm3)
Spark Plugs NGK SILZKAR8F7S
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 15.6 US gal (59.0 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal/Parking LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Daytime Running Lights LED
Rear Turn Signal LightsLED
Brake/Taillights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up LightsLED
Rear License Plate Lights LED
High-Mount Brake LightLEDInterior LightsMap LightsLEDAmbient LightsLEDDoor Courtesy LightsLEDGlove Box LightLEDTrunk LightLED
21 ACURA NSX PMC-31T6N6400.book 472 ページ ２０２０年１０月８日　木曜日　午後３時７分

473
uuSpecifications u
Information
■
Brake Fluid
■ Dual Clutch Transmission Fluid
■ Twin Motor Unit Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 4
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.75 US qt (2.6 L)
SpecifiedAcura Gear Oil GO-Type 2.0
Capacity Change 4.86 US qt (4.6 L)
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.56 US qt (2.42 L)
Clutch
Transmission
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
RecommendedUltimate Full Synthetic Motor Oil, Type3,
0W-40
Capacity Change 7.7 US qt (7.3 L)
Change
including
filter
8.3 US qt (7.9 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
4.1 US gal (15.5 L)
(change including the remaining
0.34 US gal (1.29 L) in the reserve tank and
heater)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.50 US gal (1.90 L)
(change including the remaining
0.12 US gal (0.46 L) in the reserve tank)
■ Tire
Regular
Size
Front
245/35ZR19 (93Y)
Rear
305/30ZR20 (103Y)
Pressure
psi (kPa [kgf/cm2])
Front
32 (220 [2.2])
Rear
32 (220 [2.2])
Wheel Size Regular Front
19 X 8 1/2J
Rear
20 X 11J
21 ACURA NSX PMC-31T6N6400.book 473 ページ ２０２０年１０月８日　木曜日　午後３時７分

474
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number Engine Number
Dual Clutch
Transmission
Number
Certification Label/Vehicle
Identification Number
Motor Number Motor Number
Motor Number
Dual Clutch Transmission
Number
21 ACURA NSX PMC-31T6N6400.book 474 ページ ２０２０年１０月８日　木曜日　午後３時７分

475
Information

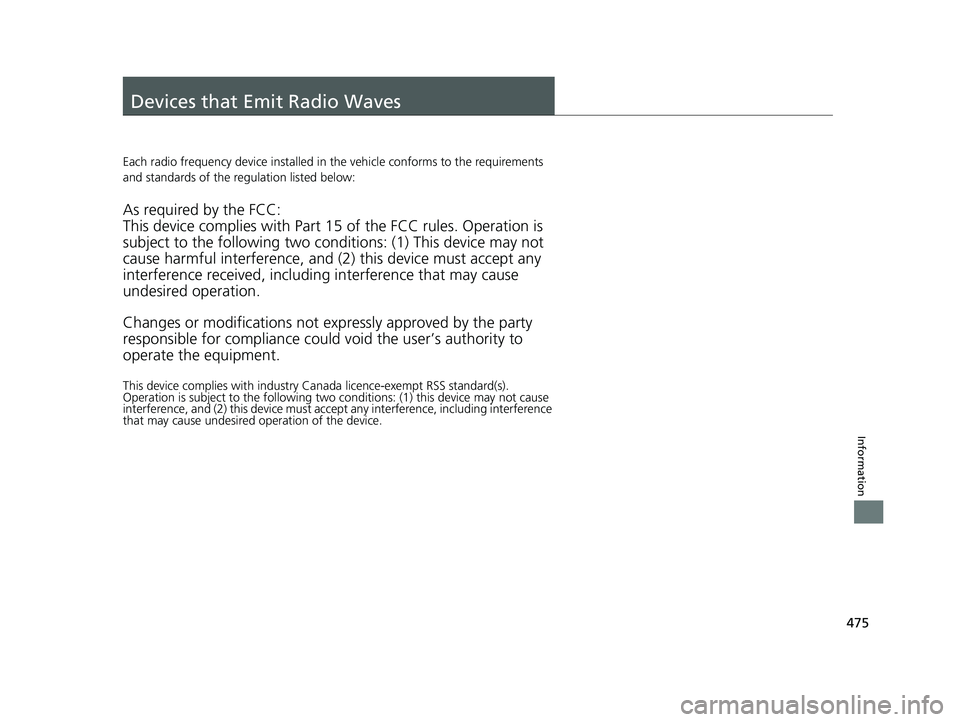

Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
21 ACURA NSX PMC-31T6N6400.book 475 ページ ２０２０年１０月８日　木曜日　午後３時７分

476
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
21 ACURA NSX PMC-31T6N6400.book 476 ページ ２０２０年１０月８日　木曜日　午後３時７分

477Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the powe r mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness co des are set. If it blinks five times, the readiness codes
are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see an authorized Acura NSX dealer.
21 ACURA NSX PMC-31T6N6400.book 477 ページ ２０２０年１０月８日　木曜日　午後３時７分

478
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 mph (80 km/h) over for at least 20 minutes. Drive on the highway in
(D
with SPORT mode. Do not use cruise control.
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the power system off for 40 minutes.
