Continued321
uuBefore Driving uHigh-Performance Driving
Driving
• Burnish the brake pads shortly before high-performance driving so that they have
the performance characteristics necessary to repeatedly and quickly slow the NSX
when it is being operated at signific antly high speeds. (While the NSX’s brake
pads are properly burnished for the demands expected in ordinary day-to-day
driving, high-performance driving puts unique demands on the brake system
which require further burnishing.)
• Inspect ALL cooling openings to confirm th ey are open and free of debris such as
leaves, etc. Cooling openings include engi ne undercover ducts, heat resistance
ducts, brake ducts, radi ators, and intercoolers
• Remove Tire Repair Kit from the trunk, along with any other cargo area contents
• Check tire wear and tire pressure, and m ake certain wheel lug bolts are properly
torqued, as driving at high speed puts additional strain on tires and wheels. Never
use slick tires, and do not use Summer On ly tires and Ultra High Performance tires
if temperatures will be lower than 45°F (7°C)
• If you anticipate sustained driving at speeds greater than 168 mph/270 km/h,
adjust the cold tire pressure as shown on the driver door jamb warning label. This
will help avoid heat build-up and sudden tire failure1 High-Performance Driving
3WARNING
Use of slick tires/racing slicks may subject
the chassis and body components to higher
dynamic loads than they were designed for.
Higher than intended dynamic loads could
result in component fail ure, loss of control,
and serious injury or death to you or others.
Do not install slick tires on the NSX.
Canadian models
U.S. models
21 ACURA NSX PMC-31T6N6400.book 321 ページ ２０２０年１０月８日　木曜日　午後３時７分

323
uuBefore Driving uHigh-Performance Driving
Driving
AFTER DRIVING
• Check your NSX, and each of its relevant components, to make sure that it still is
in a safe operating condition (example: wh eel lug bolt torque, tire pressure, etc.).
We recommend repeating the BEFORE DRIV ING protocol, and if any item shows
excessive wear or appears to be in an unusual condition, have it replaced, or
exercise appropriate caution when driv ing and see your authorized Acura NSX
dealer
For more information, please contact your authorized Acura NSX dealer, and/or
Acura Client Relations.
2 Client Service Information P. 483
21 ACURA NSX PMC-31T6N6400.book 323 ページ ２０２０年１０月８日　木曜日　午後３時７分

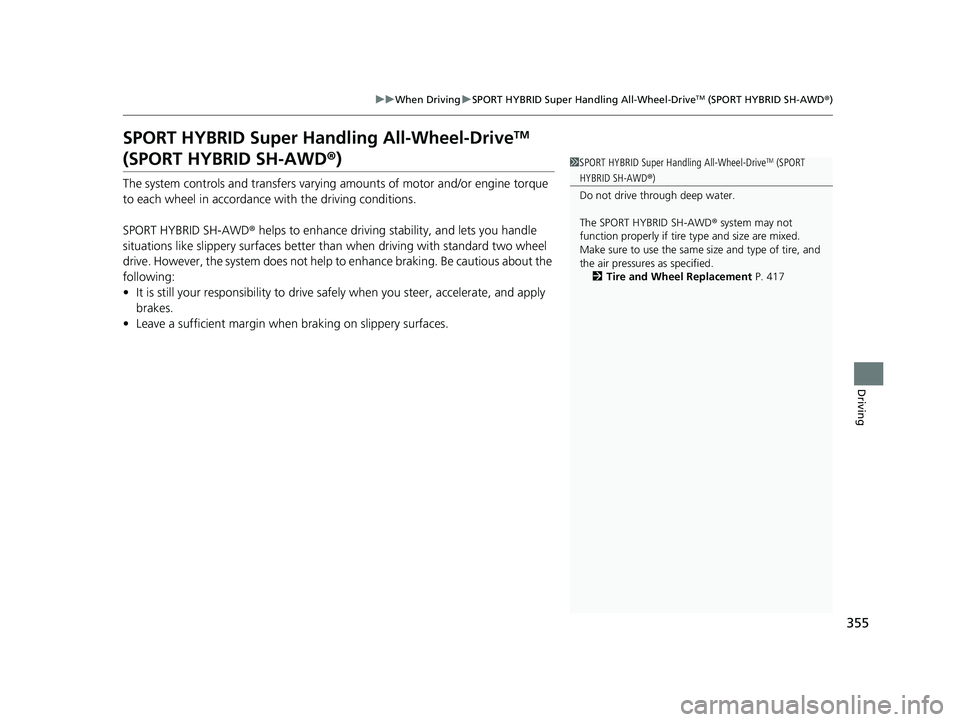

355
uuWhen Driving uSPORT HYBRID Super Handling All-Wheel-DriveTM (SPORT HYBRID SH-AWD ®)
Driving
SPORT HYBRID Super Handling All-Wheel-DriveTM
(SPORT HYBRID SH-AWD ®)
The system controls and transfers varying amounts of motor and/or engine torque
to each wheel in accordance with the driving conditions.
SPORT HYBRID SH-AWD ® helps to enhance driving stability, and lets you handle
situations like slippery surf aces better than when drivin g with standard two wheel
drive. However, the system does not help to enhance braking. Be cautious about the
following:
• It is still your responsibility to drive sa fely when you steer, accelerate, and apply
brakes.
• Leave a sufficient margin when braking on slippery surfaces.
1SPORT HYBRID Super Handling All-Wheel-DriveTM (SPORT
HYBRID SH-AWD ®)
Do not drive through deep water.
The SPORT HYBRID SH-AWD ® system may not
function properly if tire type and size are mixed.
Make sure to use the same size and type of tire, and
the air pressures as specified. 2 Tire and Wheel Replacement P. 417
21 ACURA NSX PMC-31T6N6400.book 355 ページ ２０２０年１０月８日　木曜日　午後３時７分
