ect Acura RDX 2007 Owner's Manual

µµµ
Use
neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from neutral to
another gear. With
the shift lever in D or S, you
can also use the paddle shifters to
shift the transmission up or down.
Once you begin to use the paddle
shifters in S, the transmission will no
longer upshift or downshift
automatically. For more inf ormation
of driving with the paddle shif ters,
see page .
If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
Use this position f or
your normal driving. The transmis-
sion automatically selects a suitable
gear f or your speed and acceleration.
To shift into the S
position, press the release button on
the front of the shift lever, and move
the lever to S. This position is similar
to D, except only gears f rom f irst to
f ourth are selected. The S position
keeps the transmission f rom cycling
between fourth and fifth gears in
stop-and-go driving. 299
Neutral (N)
Engine Speed L imiter
Drive (D)
S position (S)
Automatic Transmission
Driving
297
——
y
y
() yy

´
µ
´
µ
CONT INUED

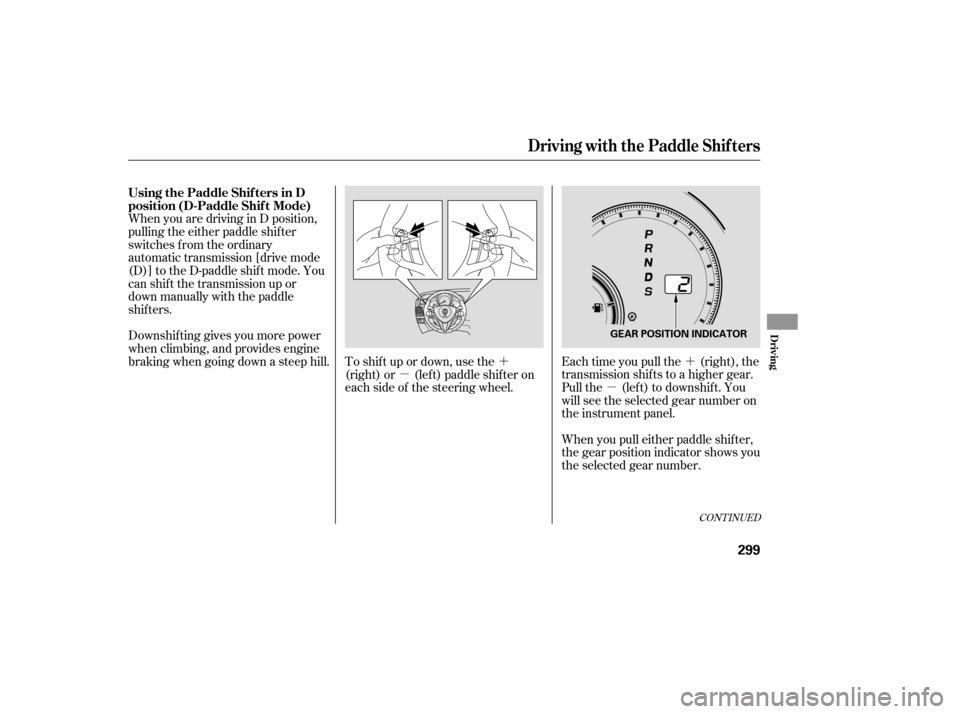

Each time you pull the (right), the
transmission shifts to a higher gear.
Pull the (lef t) to downshif t. You
will see the selected gear number on
the instrument panel.
When you pull either paddle shif ter,
the gear position indicator shows you
the selected gear number.
When you are driving in D position,
pulling the either paddle shif ter
switches f rom the ordinary
automatic transmission [drive mode
(D)] to the D-paddle shif t mode. You
can shif t the transmission up or
down manually with the paddle
shif ters.
To shif t up or down, use the
(right) or (lef t) paddle shif ter on
each side of the steering wheel.
Downshif ting gives you more power
when climbing, and provides engine
braking when going down a steep hill. Using the Paddle Shif ters in D
position (D-Paddle Shif t Mode)
Driving with the Paddle Shif ters
Driving
299
GEAR POSITION INDICATOR
——
y
y
() yy

The transmission downshif ts to f irst
gear and returns to drive mode (D)
when the vehicle comes to a
complete stop and the vehicle speed
is about 6 mph (10 km/h).
The transmission control system
monitors the accelerator pedal use
and your driving conditions. When
you press the accelerator pedal as in
the normal driving, the system
judges that you are driving at a
constant cruising speed without
using the paddle shif ters. Under
these conditions, D-paddle shif t
mode is canceled, and the
transmission automatically returns to
drive mode(D). If there is a problem in the
transmission while you are driving
with the paddle shifters, the D
indicator f lashes, the D-paddle shif t
mode is canceled, and the
transmission returns to drive mode
(D).
The transmission remains in the
selected gear if you do not accelerate. When the transmission returns to
drive mode (D), the displayed gear
number goes out.
Each time you pull either paddle
shif ter, the transmission shif ts one
gear up or down. If you want to shif t
up or down more than two gears, pull
the paddle shif ter twice, pause, and
then pull it again. The automatic transmission will not
allow you to change shif t if :
You downshif t bef ore the engine
speed reaches the upper limit of
the lower gear.
If you try to do this, the gear
position indicator will f lash the
numberof thelowergearseveral
times, then return to a higher gear.
You upshif t bef ore the engine
speed reaches the lower limit of
the higher gear.
You press both paddle shif ters at
thesametime.
You press one of the two paddle
shifters with another paddle
shif ter being pressed.
Driving with the Paddle Shif ters
300
——
y

y
() yy

´µ
When you move the shif t lever f rom
‘‘D’’ to ‘‘S’’ position and pull either
paddle shif ter, the gear position
indicator displays on ‘‘M’’ along with
the selected gear number.
To upshif t, pull the (right) paddle
shif ter. To downshif t, pull the
(lef t) paddle shif ter. When you accelerate f rom a stop,
the transmission starts in f irst gear,
and you must manually upshif t
between f irst and f if th gears. Make
sure you upshif t bef ore the engine
speed reaches the tachometer’s red
zone.
The transmission remains in the
selectedgear(5,4,3,2,or1).There
is no automatic downshif t when you
push the accelerator pedal to the
f loor.
When you are driving in 4th or 5th
gear, the transmission downshifts to
the lower gear under the f ollowing
conditions:
The vehicle slows down to a
certain speed.
You press the brake pedal.
With the shif t lever in S position, you
can select the sequential shif t mode
to shif t gears; much like a manual
transmission using the paddle
shif ters, but without a clutch pedal.
To enter the sequential shif t mode,
pressthereleasebuttononthefront
of the shift lever, move the lever to
the S position, then pull either paddle
shif ter. To cancel the sequential shif t
mode and return to the ordinary
automatic transmission, move the
shif t lever f rom S position. When
moving the shift lever, be careful not
to operate incorrectly. While you are
driving in the sequential shif t mode,
the transmission will not
automatically return to ordinary
automatic transmission.
CONT INUED
Using the Paddle Shif t in S
position (Sequential Shif t Mode)
Driving with the Paddle Shif ters
Driving
301
‘‘M’’ INDICATOR
GEAR POSITION INDICATOR
——
y
y
() yy

Your vehicle is equipped with disc
brakes at all four wheels. A power
assist using negative pressure
generated by the engine and the
el ectric vacuum pump helps reduce
the effort needed on the brake pedal.
The anti-lock brake system (ABS)
helps you retain steering control
when braking very hard.
All four brakes have audible brake
wear indicato rs.
The
hydraulic system that operates
the brakes has two separate circuits.
Ea ch circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
If the brake pads need replacing, you
will hear a distincti ve, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is norm al for
the brakes to occasionally squeal or
squeak when you apply them.
Resting
your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
Check your brakes after driving
th rough deep water. Apply the
brakes moderate ly to see if they feel
norm al. If not, apply them gently and
frequently until they do. Be extra
cautious and alert in your driving.
When
the electric vacuum pump is in
operation, it makes some mechanical
noises come f rom the engine
compartment. This is normal.
When you drive in cold weather or
thinner air at high altitude, the
electric vacuum pump operates more
f requently af ter the engine is started.
For more inf ormation about the
electric vacuum pump, see page . 396
Braking System
Brake Pad Wear Indicators Braking System Design
306
——
y


y
() y

y

The anti-lock brake system (ABS)
helps prevent the brakes from
locking up, and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
The ABS also balances the front-to-
rear braking distribution according
to vehicle loading.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal. This is sometimes
referred to as ‘‘stomp and steer.’’ You
will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal: it is the ABS rapidly
pumpingthebrakes.Ondry
pavement, you will need to press on
thebrakepedalveryhardbeforethe
ABS activates. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice. If
this indicator comes on, the anti-
lock function of the braking system
has shut down. The brakes still work
like a conventional system, but
without anti-lock. You should have
your dealer inspect your vehicle as
soon as possible.
You will also see a ‘‘CHECK ABS
SYSTEM’’ message on the multi-
inf ormation display (see page ). 85
You should never pump the brake pedal. On RDX with Technology Package
model
CONT INUED
ABS Indicator
Anti-lock Brakes (ABS)
Driving
307
——
y

y
() y
y

If the ABS indicator and the brake
system indicator come on together,
and the parking brake is fully
released, the front-to-rear braking
distribution system may also be shut
down.
Test your brakes as instructed on
page . If the brakes f eel normal,
drive slowly and have your vehicle
repaired by your dealer as soon as
possible. Avoid sudden hard braking
which could cause the rear wheels to
lock up and possibly lead to a loss of
control.
The VSA indicator will come on
alongwiththeABSindicator. It only helps with the
steering control during braking.
such as trying to take a
corner too f ast or making a sudden
lane change. Always drive at a safe
speed f or the road and weather
conditions.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road. on loose or
uneven surf aces, such as gravel or
snow, than a vehicle without anti-
lock.
395
Anti-lock Brakes (ABS)
Important Saf ety Reminders
A BS does not reduce the time or
distance it takes to stop the
vehicle.
A BS will not prevent a skid that
results f rom changing direction
abruptly,
A BS cannot prevent a loss of
stability. A vehicle with A BS may require a
longer distance to stop
308
——
y

y
() y
y

Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving. Al
though your tire pressure is
monito red, you must manually check
thetirepressuresmonthly.
Each tire, including the spare, should
be checked monthly when cold, and
set to the recommended inflation
pressure as specified on the vehicle
placard and in the owner’s manual
(see page ).
Driving on a signifi cantly under-
inflated tire causes the tire to
ov erheat and can lead to tire failure.
Under-infl ation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle’s handling and
stopping ability. When
the low tire pressure indicator
is on, one or more of your tires is
signifi cantly underinflated. You
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure as indicated on
the vehicle’s tire information placard.
Each
tire has its own pressure
sensor. If the air pressure of a tire
becomes significantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure indicator to come on.
With this indicator on, you will see
which tire is losing the pressu re on
the multi-information display along
with a ‘‘CHECK TIRE PRESSU RE’’
message (see page ).
With
this indicator on, you will see
which tire is losing the pressu re on
thetirepressure monitor(seepage
).
373
311
312
CONT INUED
On RDX with Technology Packagemodel
On RDX model
Tire Pressure Monitoring System (TPMS)
Low Tire Pressure
Indicator
Driving
309
——
y

y
() y
y

Becausetirepressurevariesby
temperature and other conditions,
the low tire pressure indicator may
come on unexp ectedly.
For example, if you check and fill
your tires in a warm area, then drive
in extremely cold weather, the tire
pressure will be lower than
measured and could be underinflated
and cause the low tire pressure
indicator to come on. Or, if you
check and adjust your tire pressure
in cooler conditions, and drive into
extremely hot conditions, the tire
maybecomeoverinflated.However,
the low tire pressure indicator will
not come on if the tires are
overinflated.
Refer to page for tire inflation
guidelines. This
indicator comes on and stays on
if there is a problem with the tire
pressure monitoring system.
If this happens, the system will shut
off and no longer monitor tire
pressures. Have the system checked
by your dealer as soon as possible. If
you have a flat tire, the low tire
indicator and tire pressure monitor
will come on. Replace the indicated
flat tire with the compact spare tire
(see page ).
After you replace the flat tire with
the spare, the low tire pressure
indicator stays on. This is normal;
the system is not monitoring the
spare tire pressure. Manually check
the spare tire pressure to be sure it
is correct.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible. 383
372
On RDX model only
Tire Pressure Monitoring System (TPMS)
Tire Pressure Monitoring
System (T PMS) Indicator Changing a T ire with T PMS
310
——
y

y
() y
y

If the low tire pressure indicator
comes on, or the multi -information
display shows a ‘‘CHECK TPMS
SYSTEM’’ message, the VSA system
automatically turns on even when
the VSA system is turned off by
pressing the VSA OFF switch (see
page ). If this happens, you
cannot turn the VSA system of f by
pressing the VSA OFF switch again.
If you see this message, the tire
pressure monitor shows a ‘‘SYSTEM
FUNCTION ERROR’’ message. The
system may not be able to detect or
signal low tire pressure as intended.
Also, the tire pressure readings will
not be displayed. Have your vehicle
checked by a dealer as soon as
possible. 316As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Tire Pressure Monitoring System (TPMS)
314
——
y
y
() y
y
