Your Vehicle at a Glance
4
MIRROR CONTROLS VEHICLE STABILITY
ASSIST (VSA) OFF SWITCH REMOTE AUDIO
CONTROL BUTTONS
CRUISE CONTROL
BUTTONSSEAT HEATER SWITCHES
PADDLE SHIFTERS
REAR WINDOW
DEFOGGER/
HEATED MIRROR
BUTTON PASSENGER AIRBAG
OFF INDICATOR
HAZARD WARNING BUTTON
STEERING WHEEL ADJUSTMENT (P.299)
(P.237)
(P.316) (P.155)
(P.126) (P.125)
(P.178)
(P.34)
(P.125/156)
(P.230)
(P.164)
(P.150)
(P.241) ACCESSORY POWER
SOCKET
(P.179)
(P.121/122)
AUXILIARY INPUT JACK
HEADLIGHTS/TURN
SIGNAL/FOG LIGHTS
HANDSFREELINK
BUTTONS MULTI-INFORMATION
BUTTONS(P.119/120)
UPPER DISPLAY
VOICE CONTROL
BUTTONS NAVIGATION SYSTEM /
CENTER DISPLAY
(P.258) (P.79)
HORN WINDSHIELD
WIPERS/WASHERS/
REAR WINDOW
WIPER/WASHER
TM
3
33
3, 4 3, 4
2
1
——
y

y
() yy

CONT INUEDThe U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
RDX model
63
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
LOW OIL PRESSURE
INDICATOR LIGHTS ON INDICATOR
SH-AWD INDICATOR
LOW FUEL INDICATOR
CHARGING SYSTEM INDICATOR
A/T TEMPERATURE INDICATOR
MALFUNCTION INDICATOR LAMP
IMMOBILIZER
SYSTEM
INDICATOR
SECURITY SYSTEM INDICATORFOG LIGHT INDICATOR
TIRE PRESSURE MONITORING
SYSTEM (TPMS)INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
VSA ACTIVATION INDICATOR LOW TIRE PRESSURE INDICATOR
CRUISE MAIN INDICATORCRUISE CONTROL INDICATOR SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) INDICATOR
SEAT BELT REMINDER INDICATOR
(P.70)
(P.66) (P.74)
(P.69)DAYTIME RUNNING LIGHTS (DRL)
INDICATOR
(P.71) (P.70)
(P.72)
(P.71)
MAINTENANCE MINDER
INDICATOR (P.70)
HIGH BEAM INDICATOR
(P.69)
(P.71)
(P.67) (P.71)
(P.65,
393)
(P.66, 393)
(P.65, 394) (P.70)
(P.20, 65) (P.73, 309)
BRAKE SYSTEM INDICATOR (AMBER) (P.68,
396)
(P.33, 66)
SIDE AIRBAG OFF
INDICATOR (P.33, 67)
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (RED)
(P.68, 395)
(P.73, 310)
(P.67, 307)
——
y


y
() yy

The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Instrument Panel
RDX with Technology Package model
64
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
LOW OIL PRESSURE
INDICATOR LIGHTS ON INDICATOR
SH-AWD INDICATOR
LOW FUEL INDICATOR
CHARGING SYSTEM INDICATOR
A/T TEMPERATURE INDICATOR
MALFUNCTION INDICATOR LAMP
IMMOBILIZER
SYSTEM
INDICATOR
SECURITY SYSTEM INDICATORFOG LIGHT INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
VSA ACTIVATION INDICATOR CRUISE MAIN INDICATOR
CRUISE CONTROL INDICATOR SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) INDICATOR
SYSTEM MESSAGE INDICATOR (P.70)
(P.70)
(P.72)
(P.70)
(P.66) (P.74)
(P.69)
(P.71)
HIGH BEAM INDICATOR (P.70
) LOW TIRE PRESSURE INDICATOR
( P. 69)
(P.71)
(P.71)
(P.67)
(P.65, 393)
(P.66, 393)
(P.65, 394) (P.73, 309)
BRAKE SYSTEM INDICATOR (AMBER)
(P.33, 66) SIDE AIRBAG OFF
INDICATOR (P.33, 67)
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (RED)
(P.68, 395)
(P.67, 307) (P.20, 65) (P.68,
396)
——
y


y
() yy

If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
info rmation display, there is a
problem in the high beam headlight’s
ci rcuit. Take your vehicle to a deal er
to have it checked (see page ).This
indicator comes on when the
security system is set. For more
info rmation, see page .
If
this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
rele ased, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer. This
indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning off the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page . 122
85 240
On RDX with Technology Package
model
On RDX model only
Instrument Panel Indicators
Security System Indicator
Daytime Running L ights
Indicator Lights On Indicator
Fog L ight Indicator
Inst rument s and Cont rols
71
SECURITY SYSTEM INDICATOR
——
y

y
() yy

ÎÎÎ Î
Î Î
ÎÎ
Î
Î
Î
Î
Î To use the horn, press the center pad of the steering wheel.
Ref er to the navigation system manual. On RDX model only
1:
2:
3:
4: On RDX with Technology Package model only
Controls Near the Steering Wheel
118
HAZARD WARNING BUTTON
CRUISE CONTROL
BUTTONS SEAT HEATER SWITCHES
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
MIRROR CONTROLS
PASSENGER AIRBAG
OFF INDICATOR
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON(P.179)
(P.125/156) (P.230)
ACCESSORY POWER
SOCKET
(P.164)
PADDLE SHIFTERS
(P.299)
(P.241)(P.150)
(P.237)
(P.125)
(P.34)
(P.178)
STEERING WHEEL
ADJUSTMENT
REMOTE AUDIO CONTROL
BUTTONS
(P.121/122)
(P.126)
VOICE CONTROL
BUTTONS
HANDSFREELINK
BUTTONS MULTI-INFORMATION
BUTTONS
(P.79)
HORN (P.119/120)
UPPER DISPLAY
NAVIGATION SYSTEM /
CENTER DISPLAY
AUXILIARY INPUT JACK
(P.316)
(P.155)
(P.258)
HEADLIGHTS/TURN SIGNAL/
FOG LIGHTS
WINDSHIELD
WIPERS/WASHERS/
REAR WINDOW
WIPER/WASHER
3, 4
TM
3 3
1 3
3, 4
2
——
y


y
() y
y

µµPush down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn. Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position.
Turn signal
Of f
Parking and interior lights
Headlights
High beams
Flashhighbeams
Fog lights of f
Fog lights on
If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
beeper when you open the driver’s
door.
1.
2.
3.
4.
5.
6.
7.
8.
CONT INUED
Turn Signal and Headlights
Turn Signal
Headlights
Inst rument s and Cont rols
121
——
y


y
() y
y

µThis feature turns off the headlights,
parking lights, taillights, side marker
lights, license plate lights, and
instrument panel lights within 15
seconds of removing the key from
the ignition switch and closing the
driver’s door.
This feature activates if you leave
the headlight switch in the or
position, remove the key, then
open and close the driver’s door.
If you remove the key from the
ignition switch with the headlight
switch on, but do not open the door,
the lights will turn off after 10
minutes.
Push the lever
f orward and the high beam indicator
will come on (see page ). Pull it
back to return to low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back. Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
You can use the f og lights only when
the headlights are on low beam.
They will go of f when the headlights
are turned of f .
70
Automatic Lighting Of f Feature
High Beams Fog Lights
Headlights
122
——
y

y
() y
y

The rear window def ogger clears f og,
frost,andthinicefromthewindow.
Push the def ogger button to turn it
onandoff.Pushingthisbuttonalso
turns the mirror heaters on and of f .
The indicator in the button comes on
to show the def ogger is on.If you do not turn it of f , the def ogger
will automatically shut itself of f af ter
a certain period depending on the
ambient temperature. It also shuts
of f when you turn of f the ignition
switch. You have to turn it on again
when you restart the vehicle.
In cold weather, the def ogger will
not automatically shut itself of f . You
must manually shut of f the rear
window def ogger when it is no
longer needed.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side. Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all outside turn signals and
both indicators in the instrument
panel to f lash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled.
Rear Window Def ogger
Hazard Warning Button
Rear Window Def ogger, Hazard Warning Button
Inst rument s and Cont rols
125
——
y

y
() y
y

Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
setting.With the selector switch in the R
(right) position, the passenger’s side
mirror will pivot downward slightly
when you shif t the transmission into
reverse. This gives you a better view
of thesideof thevehiclewhile
parallel parking. The mirror returns
to its original position when you take
the transmission out of reverse.
Turn this f eature of f by leaving the
selector switch in the lef t or center
position.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. Pressing this button also
turns the rear window def ogger on
and off.
3.
4.
Mirrors
Reverse Mirror Tilt
Heated Mirrors
156
ADJUSTMENT SWITCH
——
y

y
() y

y

CONT INUED
Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a

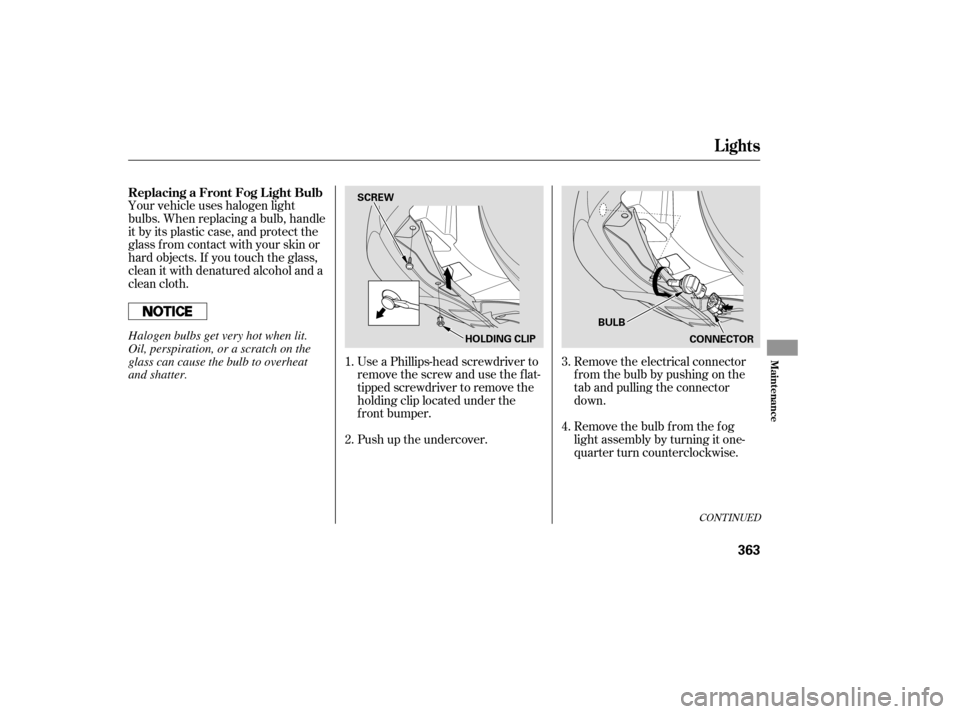

clean cloth.Use a Phillips-head screwdriver to
remove the screw and use the flat-
tipped screwdriver to remove the
holding clip located under the
f ront bumper.Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb f rom the f og
light assembly by turning it one-
quarter turn counterclockwise.
Push up the undercover.
1.
2. 3.
4.
Lights
Replacing a Front Fog L ight Bulb
Maint enance
363
BULB
CONNECTOR
HOLDING CLIP
SCREW
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the
glass can cause the bulb to overheat
and shatter.
——
y

y
() yy
