Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Sunlight Sensor/T emperature
Sensor
Climat e Cont rol Sensors
Features
167
TEMPERATURE SENSOR
SUNLIGHT SENSOR
\f—\f—\f
y
y
()
\fy\f
y
2008 RDX

Read the appropriate pages in this
section f or operation of the audio
systems installed in your vehicle.For RDX model, see pages thru .
For RDX with Technology
Package model, see page thru .
170 188
189
220
Audio System
168

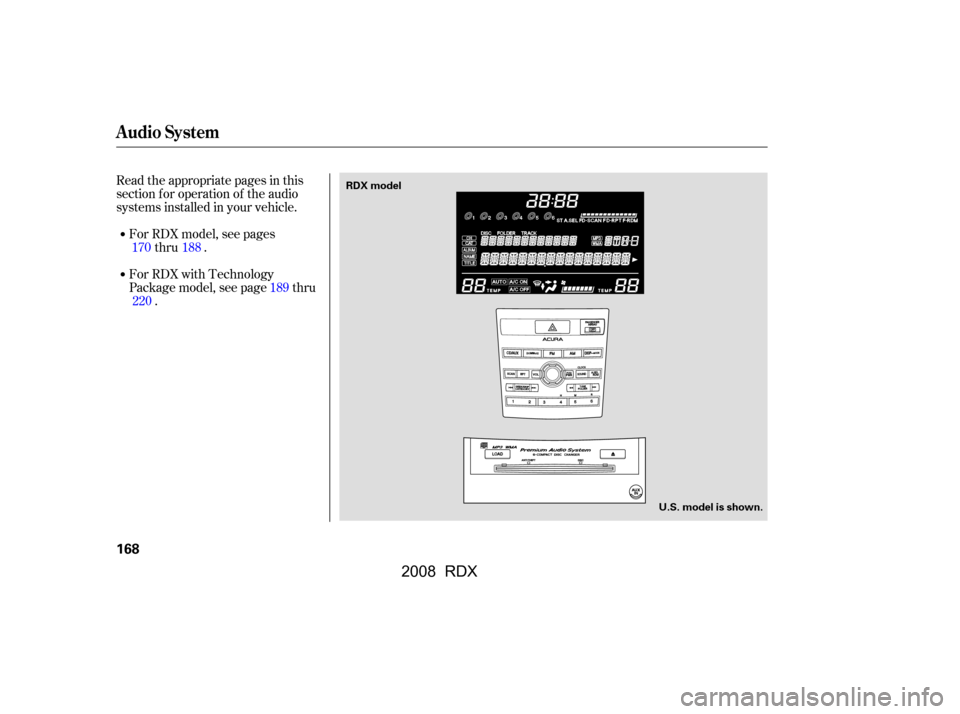

RDX model
U.S. model is shown.
——
y

y
()
y
y
2008 RDX

Audio System
Features
169
U.S. model is shown.

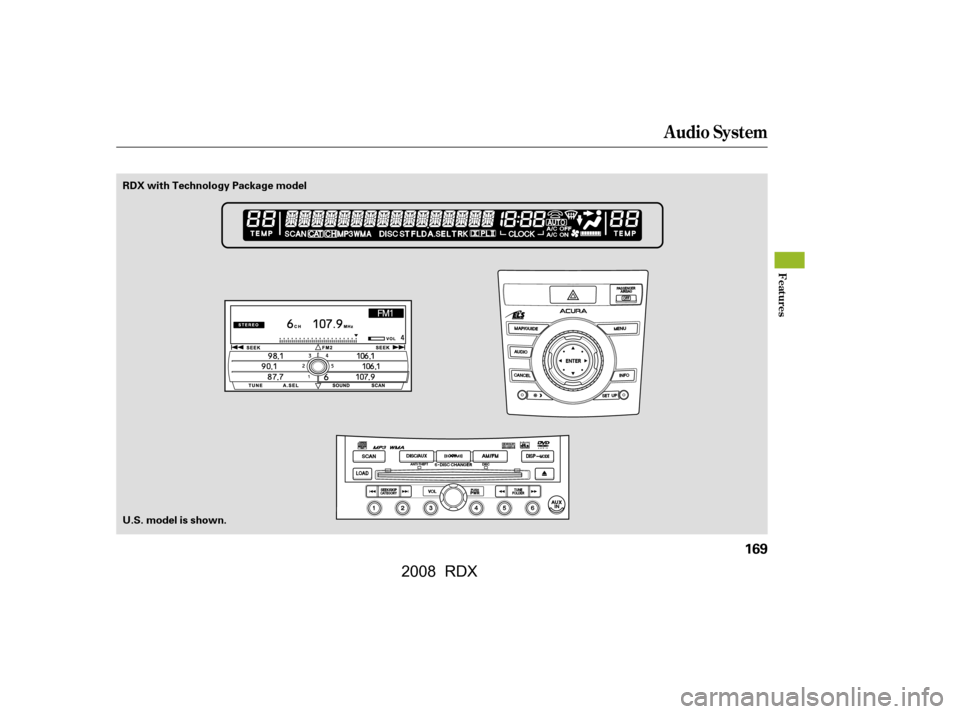

RDX with Technology Package model
\f—\f—\f
y
y
()
\fy\f
y
2008 RDX

The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ‘‘ST’’
will be shown on the center display if
the station is broadcasting in stereo.
Stereo reproduction on AM is not
available.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushing the PWR/VOL knob, or the
AM or FM button. Adjust the volume
by turning the PWR/VOL knob.
XM satellite radio inf ormation is
available on page .183
On RDX model
Audio System
To Play the AM/FM Radio
170

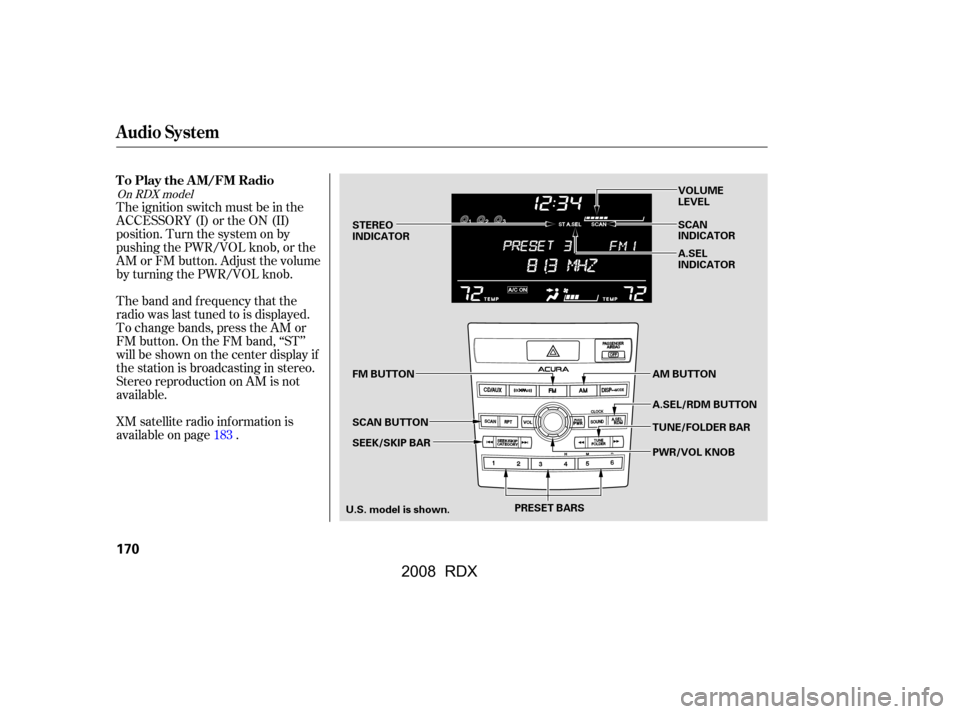

STEREO
INDICATOR
FM BUTTON
SCAN BUTTON
TUNE/FOLDER BAR
AM BUTTONSCAN
INDICATOR
A.SEL
INDICATOR
A.SEL/RDM BUTTON VOLUME
LEVEL
PWR/VOL KNOB
PRESET BARS
SEEK/SKIP BAR
U.S. model is shown.
\f—\f—\f
y
y
()
\fy\f
y
2008 RDX

µ
µ µµµ
µ
CONT INUED
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
bars, and auto select.Use the TUNE/FOLDER
bar to tune the radio to a desired
f requency. Press the side of the
bar to tune to a higher f requency,
and the side of the bar to tune
to a lower f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK/SKIP bar, then release it.
If youpressandholdthe or side of the bar, the f requency
will begin to change rapidly. It will
stop when you release it. The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see ‘‘SCAN’’
on the center display. The system
will scan f or a station with a strong
signal. When it f inds one, it will stop
and play that station for about 10
seconds.
If you do nothing, the system will
then scan f or the next strong station
andplayitfor10seconds.Whenit
plays a station you want to listen to,
press the SCAN button again. Each side of the bars (1
6) can store one f requency on AM
and two f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each side of
the preset bar.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick the preset number (1 6), f or
the station you want to store.
Press the lef t or right side of the
bar,andholdituntilyouheara
beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
1.
2.
3.
4.
To Select a Station
TUNE
SEEK
SCA N Preset
Audio System
Features
171
\f—\f—\f
y
\fy
()
\fy\f
y
2008 RDX

µµ If you do not like the stations auto
select has stored, you can store
other f requencies on the preset bars.
,pressthe
A. SEL/RDM button. This restores
the presets you originally set. For inf ormation on AM/FM radio
f requencies and reception, see page
.
For inf ormation, see page .
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
To activate it, press the A. SEL/
RDM button. ‘‘A. SEL’’ will f lash on
the center display, and the system
will go into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset bars (1 6).
You will see ‘‘0’’ displayed if auto
select cannot f ind a strong station f or
every preset bar. 221
186
To turn of f auto select
Audio System
Radio Frequencies and Reception
Adjusting the Sound
AUTO SELECT
172
\f—\f—\f
y

y
()
\fy\f
y
2008 RDX

CONT INUED
On RDX model
Audio System
Operating the CD Changer
Features
173

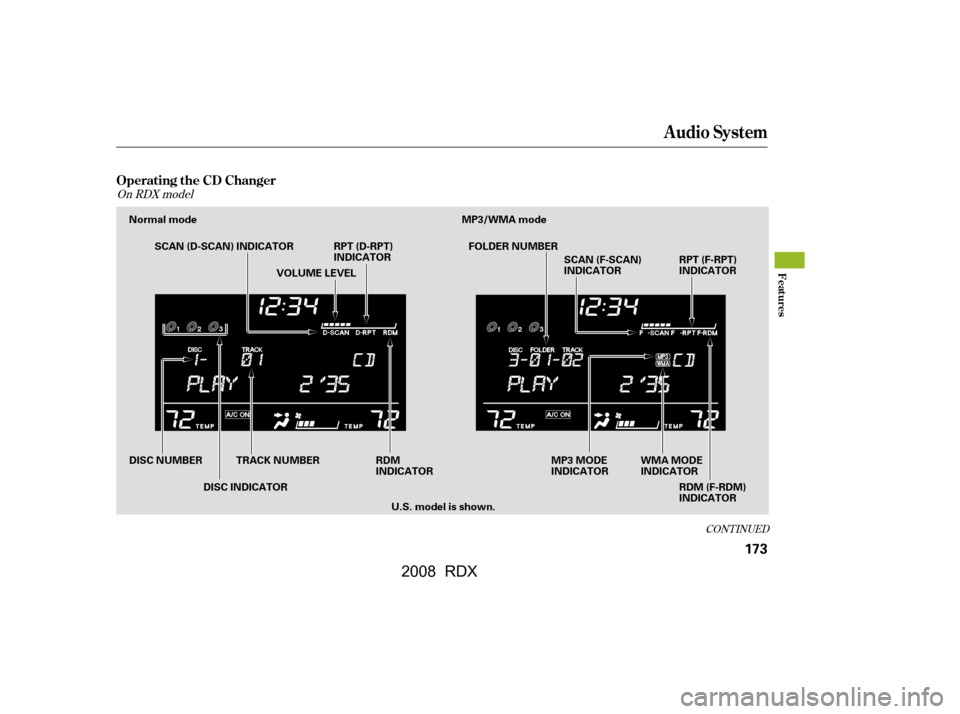

Normal mode MP3/WMA modeSCAN (D-SCAN) INDICATOR RPT (D-RPT) INDICATOR
WMA MODE
INDICATOR
MP3 MODE
INDICATOR
RDM (F-RDM)
INDICATOR
RPT (F-RPT)
INDICATOR
RDM
INDICATOR
DISC NUMBER
DISC INDICATORTRACK NUMBER FOLDER NUMBER
SCAN (F-SCAN)
INDICATOR
VOLUME LEVEL
U.S. model is shown.
\f—\f—\f
y

y
()
\fy\f
y
2008 RDX

Audio System
174

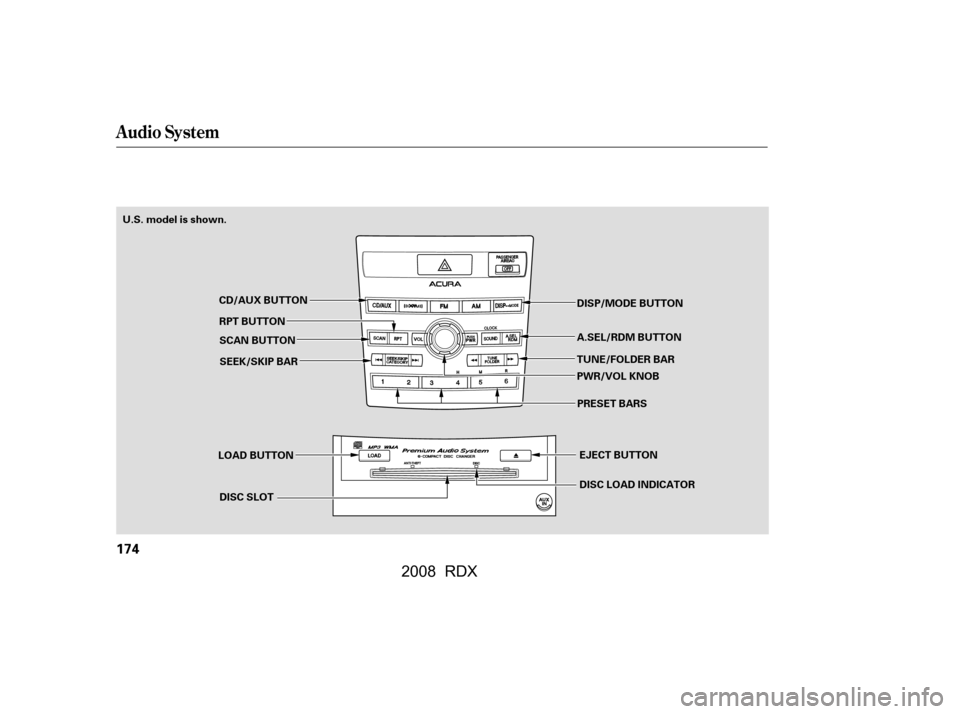

LOAD BUTTONDISC SLOT EJECT BUTTON
DISC LOAD INDICATOR
CD/AUX BUTTON
RPT BUTTON SCAN BUTTON
U.S. model is shown.
DISP/MODE BUTTON
TUNE/FOLDER BAR
A.SEL/RDM BUTTON
PWR/VOL KNOBPRESET BARS
SEEK/SKIP BAR
\f—\f—\f
y
y
()
\fy\f
y
2008 RDX

Your audio system has an in-dash
CD changer that holds up to six CDs,
providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used f or the radio.
To load CDs or operate the CD
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position.For best results when using CD-R or
CD-RW discs, use only high quality
discs labeled f or audio use. When
recording a CD-R or CD-RW, the
recordingmustbeclosedinorder
f or the disc to be played by the CD
player.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
Video CDs and DVDs will not work
in this unit.
The disc changer can play these disc
formats:
The disc packages or jackets should
have one of these marks. The changer can also play MP3 or
WMA format (see page ).
CD (CD-DA)
CD-R/RW 177
CONT INUED
Audio System
Features
175
Do not use CDs with adhesive labels.
The label can curl up and cause the CD
to jam in the unit.
\f—\f—\f
y
y
()
\fy\f
\fy
2008 RDX

To load a single disc:Press and release the LOAD
button on the changer unit. You
will see ‘‘BUSY’’ on the center
display, and the disc load indicator
turns red and starts blinking.
Insert a disc into the disc slot
when the disc load indicator turns
green and ‘‘LOAD’’ appears on the
center display at the same time.
Insert the disc only about half way;
the drive will pull it in the rest of
the way. You will see the disc
indicator blinking on the center
display.
To load multiple discs in one
operation:
When the disc load indicator turns
green and ‘‘LOAD’’ appears on the
center display again, insert the
next CD in the slot.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit.
Repeat steps 1 through 3 until all
six positions are loaded. If you are
not loading all six positions, press
the LOAD button again after the
last CD has loaded. ‘‘DISC READ’’
appears on the center display, then
the system begins playing the last
CD loaded.
If you stop loading discs bef ore all
six positions are f illed, the system
will wait f or 10 seconds, stop the load
operation, and begin playing the last
disc loaded.
Press and hold the LOAD button
on the changer unit until you hear
a beep. You will see ‘‘BUSY’’ on
the center display, and disc load
indicator turns red and starts
blinking.
Insert the disc into the disc slot
when the disc load indicator turns
green and ‘‘LOAD’’ appears on the
center display at the same time.
Insert it only half way; the drive
will pull it in the rest of the way.
You will see ‘‘BUSY’’ on the center
display, and the disc load indicator
turns red again and blinks as the
CD is loaded.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit.
1.
2.
3.
1.
2. 4.
Audio System
L oading CDs in the Changer
176
\f—\f—\f
y
y
()
\fy\f

y
