Page 11 of 433
Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
However, you and your passengers
can’t take f ull advantage of these
f eatures unless you remain sitting in
a proper position and. In fact, some safety
f eatures can contribute to injuries if
they are not used properly.
The f ollowing pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
Some f eatures do not require any
action on your part. These include a
strong steel f ramework that f orms a
saf ety cage around the passenger
compartment, front and rear crush
zones, a collapsible steering column,
and tensioners that tighten the f ront
seat belts in a crash.
Your Vehicle’s Saf ety Features
always wear
your seat belts
Driver and Passenger Saf ety
7
(5)
(7)
(10) (3)
(1)
(2)
(8)
(6)
(2)(9)
(11)
(4)
(6)

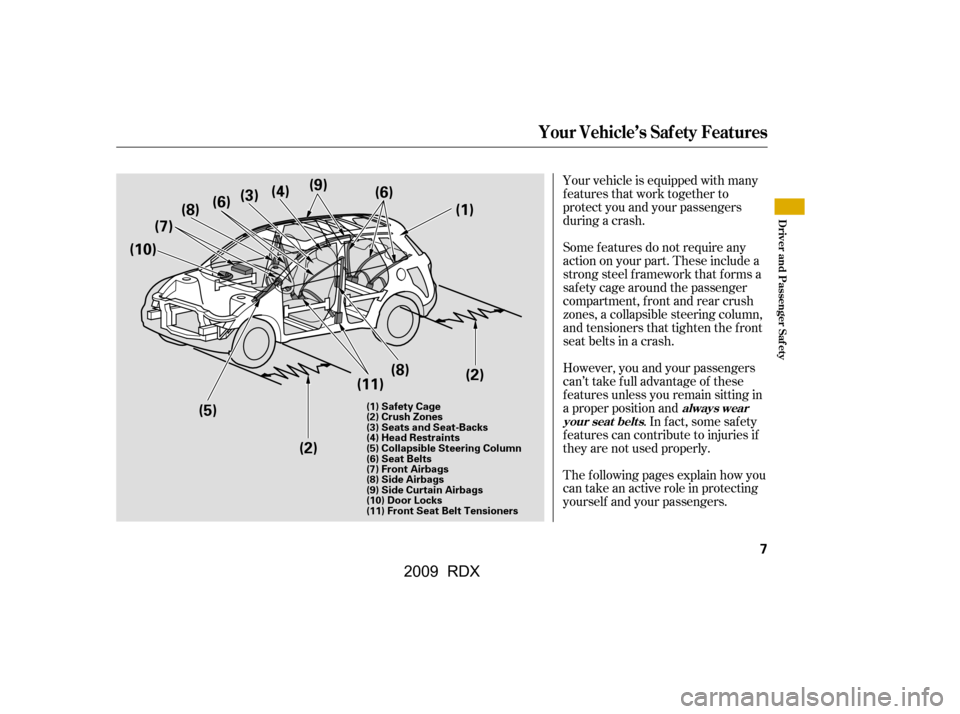

(8)(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Side Curtain Airbags
(10) Door Locks
(11) Front Seat Belt Tensioners
\f—\f—
y
\f\fy
() \fy\f\f
y
2009 RDX
Page 12 of 433
µ
µ
µ
µ
Your vehicle is equipped with seat
belts in all seating positions.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Inf ants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Help protect you in almost every
type of crash, including: frontal impacts
side impacts
rear impacts
rollovers
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in saf ety f eatures.
Always wear your seat belt, and
make sure you wear it properly.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury f rom an inf lating airbag and
allows you to get the best
advantage f rom the airbag.
Keep you f rom being thrown out
of the vehicle.
Help keep you f rom being thrown
against the inside of the vehicle
and against other occupants.
Your seat belt system also includes
an indicator on the instrument panel
and a beeper to remind you and your
passengers to f asten your seat belts.
Your Vehicle’s Saf ety Features
Seat Belts
Why Wear Seat Belt s
What You Should Do:
8
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
\f—\f—
y
\f
y
() \fy\f\f
y
2009 RDX
Page 13 of 433
CONT INUED
Your vehicle has a supplemental
restraint system (SRS) with f ront
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe f rontal collision (see pagef or more inf ormation on how
your f ront airbags work). Your vehicle also has side airbags to
help protect the upper torso of the
driver or a f ront seat passenger
during a moderate to severe side
impact (see page f or more
information on how your side airbags
work).
In addition, your vehicle has side
curtain airbags to help protect the
heads of the driver, f ront passenger,
and passengers in the outer rear
seating positions during a moderate
to severe side impact or rollover (see
page f or more inf ormation on how
your side curtain airbags work).
25 29
30
Your Vehicle’s Saf ety Features
Airbags
Driver and Passenger Saf ety
9
\f—\f—
y
\fy
() \fy\f\f
y
2009 RDX
Page 14 of 433
The most important things you need
to know about your airbags are:They are designed to supplement
the seat belts. Always wear
your seat belt properly, and sit
upright and as f ar back f rom the
steering wheel as possible while
allowing f ull control of the vehicle. A
f ront passenger should move their
seat as far back from the dashboard
as possible. The rest of this section gives more
detailed inf ormation about how you
can maximize your saf ety.
Remember, however, that no saf ety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
To do their job, airbags must
inf late with tremendous f orce. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
Your Vehicle’s Saf ety Features
Airbags do not replace seat belts.
A irbags of f er no prot ect ion in rearimpact s, or minor f ront al or sidecollisions. What you should do:
Airbags can pose serious hazards.
10
\f—\f—
y
\fy
() \fy\f\f
y
2009 RDX
Page 15 of 433
µ
The f ollowing pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the f ront.
See pages f or important
guidelines on how to properly
protect inf ants, small children, and
larger children who ride in your
vehicle.
After everyone has entered the
vehicle, be sure the doors and the
tailgate are closed and locked.
When one or more doors are not
tightly closed, the ‘‘DOOR OPEN’’
message will come on.
When the tailgate is not tightly
closed, the ‘‘TAILGATE OPEN’’
message will come on.When both tailgate and one or more
doors are not tightly closed, the
‘‘DOOR & TAILGATE OPEN’’
message will come on.
Your vehicle has a door and tailgate
openindicatoronthemulti-
inf ormation display to indicate when
a specif ic door or the tailgate is not
tightly closed. You will see the
appropriate indicator and the
message f or each condition.
You will also hear a beep when you
turn the ignition switch to the ON
(II) position, and each time you open
any door or the tailgate with the key
in the ON (II) position.
3555
CONT INUED
Introduction
Close and L ock the Doors
1.
Protecting A dults and Teens
Driver and Passenger Saf ety
11
\f—\f—
y
\fy
() \fy\f\f
y
2009 RDX
Page 16 of 433
Locking the doors and the tailgate
reduces the chance of someone
being thrown out of the vehicle
during a crash, and it helps prevent
passengers f rom accidentally
opening a door or the tailgate and
f alling out.
Locking the doors and the tailgate
also helps prevent an outsider from
unexpectedly opening a door or the
tailgate when you come to a stop.
See page f or how to lock the
doors and the tailgate.
This vehicle has auto door locking/
unlocking f eatures. See pagesand f or how to set them. Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain f ull control of the vehicle.
Have a f ront passenger adjust their
seat as far to the rear as possible. If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inf lating f ront
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel up and down, and in
and out (see page ).
If you cannot get f ar enough away
f rom the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
123
101109 119
Protecting A dults and Teens
Adjust the Front Seats
2.
12
\f—\f—
y
\fy
() \fy\f\f
y
2009 RDX
Page 17 of 433
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comf ortable, upright
position.
Adjust the driver’s seat-back to a
comf ortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
See page f or how to adjust the
f ront seats.
See page f or how to adjust the
seat-backs.
131
131
Adjust the Seat-Backs
3.
Protecting A dults and Teens
Driver and Passenger Saf ety
13
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
\f—\f—
y
\fy
() \fy\f\f
y
2009 RDX
Page 18 of 433
Adjust the driver’s head restraint so
the center of the back of your head
rests against the center of the
restraint.Properly adjusted head restraints
will help protect occupants f rom
whiplash and other crash injuries.
Have passengers adjust their head
restraints properly as well. Taller
persons should adjust their restraint
as high as possible. See page f or how to adjust the
head restraints and how the driver’s
and f ront passenger’s active head
restraints work.Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
132
Adjust the Head Restraints Fasten and Position the Seat
Belts
4.
5.
Protecting A dults and Teens
14
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
\f—\f—
y
\f\fy
() \fy\f\f
y
2009 RDX
Page 19 of 433
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part f its snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
If necessary, pull up on the shoulder
belt again to remove any slack, then
check that the belt rests across the
center of your chest and over your
shoulder.This spreads the f orces of a crash
over the strongest bones in your
upper body.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
The front seats have adjustable seat
belt anchors. To adjust the height of
an anchor, press and hold the release
button and slide the anchor up or
down as needed (it has f our
positions).
CONT INUED
Protecting A dults and Teens
Driver and Passenger Saf ety
15
RELEASE
BUTTON
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
\f—\f—
y
\f
\fy
() \fy\f\f\fy
2009 RDX
Page 20 of 433
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
See page f or additional
inf ormation about your seat belts
and how to take care of them. After all occupants have adjusted
their seats and head restraints, and
put on their seat belts, it is very
important that they continue to sit
upright, well back in their seats, with
their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both f eet up, the
chance of injury during a crash is
greatly increased.In addition, an occupant who is out of
position in the f ront seat can be
seriously or f atally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
19
Protecting A dults and Teens
Never place t he shoulder port ion of a lap/shoulder belt under your arm orbehind your back.
No one should sit in a seat wit h aninoperat ive seat belt .Maintain a Proper Sitting
Position
6.
16
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
\f—\f—
y
\f
y
() \fy\f\f
y
2009 RDX
