ESP Acura RDX 2009 Owner's Manual

One of the best ways to enhance the enjoyment of your new vehicle is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Af terwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.As you read this manual, you will
f ind inf ormation that is preceded by
a symbol. This
inf ormation is intended to help you
avoid damage to your vehicle, other
property, or the environment.
Maintaining your vehicle according to the maintenance minder shown in the
instrument panel helps to keep your driving trouble-f ree while it preserves
your investment. When your vehicle needs maintenance, keep in mind that
your dealer’s staf f is specially trained in servicing the many systems unique
to your vehicle. Your dealer is dedicated to your satisf action and will be
pleased to answer any questions and concerns.
Congratulations! Your selection of a 2009 Acura RDX was a wise investment.
It will give you years of driving pleasure.
Introduction
i
\f—\f—

y
\f
y
() \fy\f\f\fy
2009 RDX

µ
µ
µ µµ
µ
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make inf ormed
decisions about saf ety, we have
provided operating procedures and
other inf ormation on labels and in
this manual. This inf ormation alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement. You will f ind this important saf ety inf ormation in a variety of f orms,
including:
This entire book is f illed with important saf ety inf ormation please read it
caref ully.
how to use this vehicle correctly and safely.
such as Driver and Passenger Safety. such as Important Saf ety Reminders or Important
Safety Precautions.
These signal words mean: preceded by a saf ety alert symbol and one of
three signal words: , , or . on the vehicle.
Instructions
Saf ety Section
Saf ety Headings
Saf ety Messages
Saf ety L abels
AFewWordsAboutSafety
DANGER WARNING CAUTION
iii
You CAN be HURT if you don’t follow
instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
\f—\f—

y
\f
y
() \fy\f\f\fy
2009 RDX

µ
You’ll f ind many saf ety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
A seat belt is your best protection in
all types of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ).
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse withevery additional drink. So don’t drink
and drive, and don’t let your f riends
drink and drive, either.
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Inf ants, young children, and short
adults are at the greatest risk. Be
sure to f ollow all instructions and
warnings in this manual.
Children age 12 and under should
ride properly restrained in a back
seat, not the front seat. Infants and
smallchildrenshouldberestrained
in a child seat. Larger children
should use a booster seat and a lap/
shoulder belt until they can use the
belt properly without a booster seat
(see pages ). Excessive speed is a major f actor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
f aster than is saf e f or current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mechanical f ailure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition f requently,
and perform all regularly scheduled
maintenance (see page ).
3555
360
14
Important Saf ety Precautions
Always Wear Your Seat Belt
Don’t Drink and Drive
Be Aware of Airbag Hazards
Restrain All ChildrenControl Your Speed
K eep Your Vehicle in Saf e
Condition
6
\f—\f—

y
\fy
() \fy\f\f

y
2009 RDX

Your f ront airbags are dual-stage
airbags. This means they have two
inf lation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inf lation time
with a little less force.
The total time for inflation and
def lation is one-tenth of a second, so
f ast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag’s surf ace.
Although the powder is not harmf ul,
people with respiratory problems
mayexperiencesometemporary
discomf ort. If this occurs, get out of
the vehicle as soon as it is saf e to do
so.
Af ter inf lating, the f ront airbags
immediately def late, so they won’t
interf ere with the driver’s visibility,
or the ability to steer or operate
other controls.
Additional Inf ormation About Your Airbags
Dual-Stage A irbags
more severeless severe
26
\f—\f—

y
\fy
() \fy\f\f
y
2009 RDX

µµ
µ
Children depend on adults to protect
them. However, despite their best
intentions, many adults do not know
how to protect child
passengers.
If you have children, or ever need to
drive with a child in your vehicle, be
sure to read this section. It begins
with important general guidelines,
then presents special inf ormation f or
infants, small children, and larger
children.To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
inf ants and children be properly
restrained when they ride in a
vehicle.
(see pages ). (see pages ).
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In f act, vehicle
accidents are the number one cause
of the death of children aged 12 and
under.
40 5255
51
properly
All Children Must Be Restrained
Inf ant s and small children must be
rest rained in an approved child seatt hat is properly secured t o t hevehicle Larger children must be restrained
wit h a lap/shoulder belt and ride ona boost er seat unt il t he seat belt f it st hem properly
Protecting Children General Guidelines
Driver and Passenger Saf ety
35
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster seat if necessary.
\f—\f—

y
\fy
() \fy\f\f\fy
2009 RDX

ÛÝÛÝ
ÛÝ
ÛÝ
The system message(s) triggers the
appropriate indicator(s) on the
instrument panel, including the
system message indicator, to come
on. The system message indicator
does not go of f until the problem(s)
is corrected.
You will also hear a beep when the
system message comes on f or the
first time.
Most of the messages are displayed
f or about 5 seconds, and then the
normal display returns. If there are
several system messages to be
shown, the display switches these
messages every 5 seconds. Even if you press the INFO ( / )
button, some messages stay on or
come on again at regular intervals
until the problem is corrected.
FASTEN SEAT BELT
FASTEN PASSENGER SEAT
BELT
RELEASE PARKING BRAKE
DOOR & TAILGATE OPEN If the system message indicator
remains lit on the instrument panel,
you can see the corresponding
message(s) again by pressing the
INFO ( / ) button repeatedly.
To switch the message(s) bef ore 5
seconds have elapsed, press the
INFO( / )buttononthesteering
wheel.
Multi-Inf ormation Display
Inst rument s and Cont rols
79

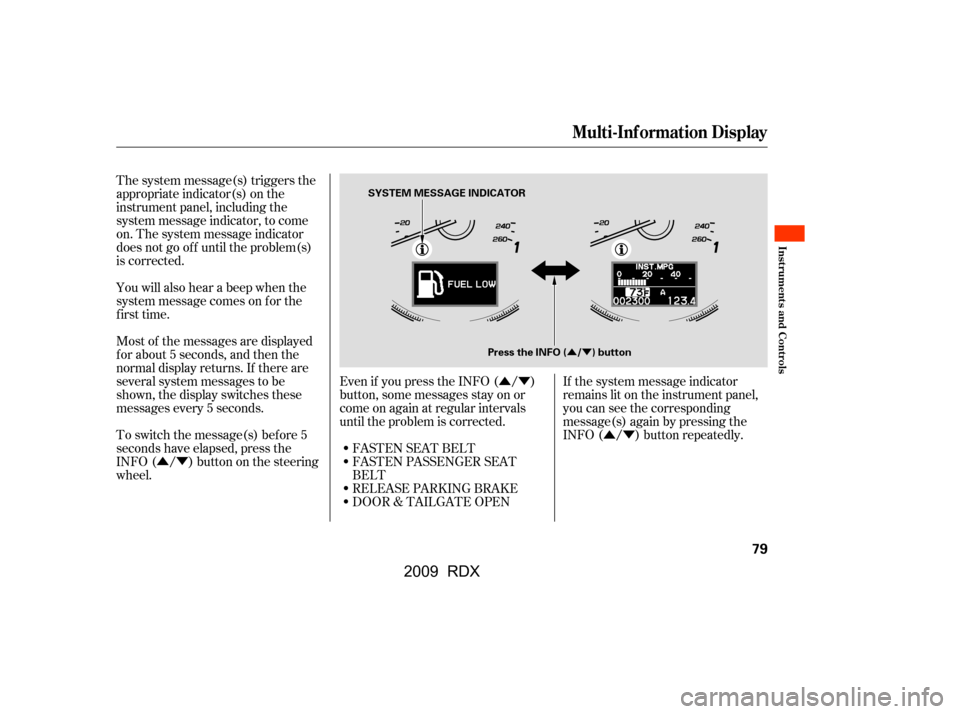

SYSTEM MESSAGE INDICATOR
Press the INFO ( / ) button
\f—\f—

y

y
() \fy\f\fy
2009 RDX

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
brief ly, then go of f . If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again. If you have lost your key and cannot start the engine, contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
f ob) is near the ignition switch when
you insert the key.
The immobilizer system protects
your vehicle f rom thef t. If an
improperly-coded key (or other
device) is used, the engine’s f uel
system is disabled.
Immobilizer System
Inst rument s and Cont rols
121
Always take the ignition key with you
whenever you leave the vehicle alone.
\f—\f—

y

y
() \fy\f
y
2009 RDX

µ
As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.Remove the old battery and note
the polarity. Make sure the
polarity of the new battery is the
same ( side f acing up), then
insert it in the keypad.
An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations
for battery disposal.
Snap the two halves of the keypad,
then install the parts in reverse
order.
Place a cloth on the edge of the
keypad, and remove the upper half
by caref ully prying on the edge
with a small f lat-tip screwdriver. 4.
5.
3.
Remote Transmitter
Inst rument s and Cont rols
129
BATTERY
\f—\f—

y


y
() \fy\f
y
2009 RDX

You can use the inside of the lid f or a
pen holder, a coin holder and a card
holder.The console compartment has two
shelves to divide it into two levels.
To store small items, you can use the
upperhalfofthespacebyputting
the shelves down until they latch.
The f ront and rear shelves can be
used separately.When you store a large item like a
brief case, lif t the shelves up to
create a large space.
The console compartment light
comes on when the parking lights
are on. The items on each shelves should
not exceed 11 lbs (5 kg). Heavy
items may damage the shelves.The maximum dimensions of the
item you can store in the console
compartment are:
Length: 16.9 in (430 mm)
Height: 12.2 in (310 mm)
Width: 5.5 in (140 mm)
Interior Convenience Items
156
LID
CARD HOLDER PEN HOLDER
COIN
HOLDER
SHELVES
\f—\f—

y
\fy
() \fy\f

y
2009 RDX

To pause a disc, press the
corresponding number of the
current disc on the appropriate side
of the preset bars. To play the disc
again, press the preset bar again.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off.Press and hold the eject button until
you hear a beep to remove all the
discs from the changer.
You can also eject discs when the
ignition switch is of f by pressing the
eject button. The disc that was last
selected is ejected f irst. You can
eject the rest of the discs one at a
time.
For inf ormation on how to handle
and protect compact discs, see page
.
For inf ormation, see page .
For inf ormation, see page .
To take the system out of CD mode,
press the AM or FM, CD/AUX, or
button. To return to CD
mode, press the CD/AUX button.
The system will continue at the same
point that it left off. To remove the disc that is currently
playing, press and release the eject
( ) button. You will see
‘‘EJECT’’ on the center display.
When you remove the disc f rom the
slot, the system begins the load
sequence so you can load another
disc in that position. If you do not
load another CD within 10 seconds,
the system selects the previous
mode (AM, FM1, FM2, or XM).
If you do not remove the CD f rom
the slot, the system will reload the
CD af ter 10 seconds and put the CD
changer in pause mode. To begin
playing the CD, press the CD/AUX
button.
To remove a dif f erent CD f rom the
changer, select it with the
appropriate side of the preset bar.
When that CD begins playing, press
the eject button.
223
226186
To Pause a Disc
To Stop Playing a Disc
Removing CDs f rom the Changer
Protecting Discs
CD Changer Error Messages
Adjusting the Sound
Audio System
182
\f—\f—

y
y
() \fy\f
y
2009 RDX
