ACURA RDX 2010 Owners Manual

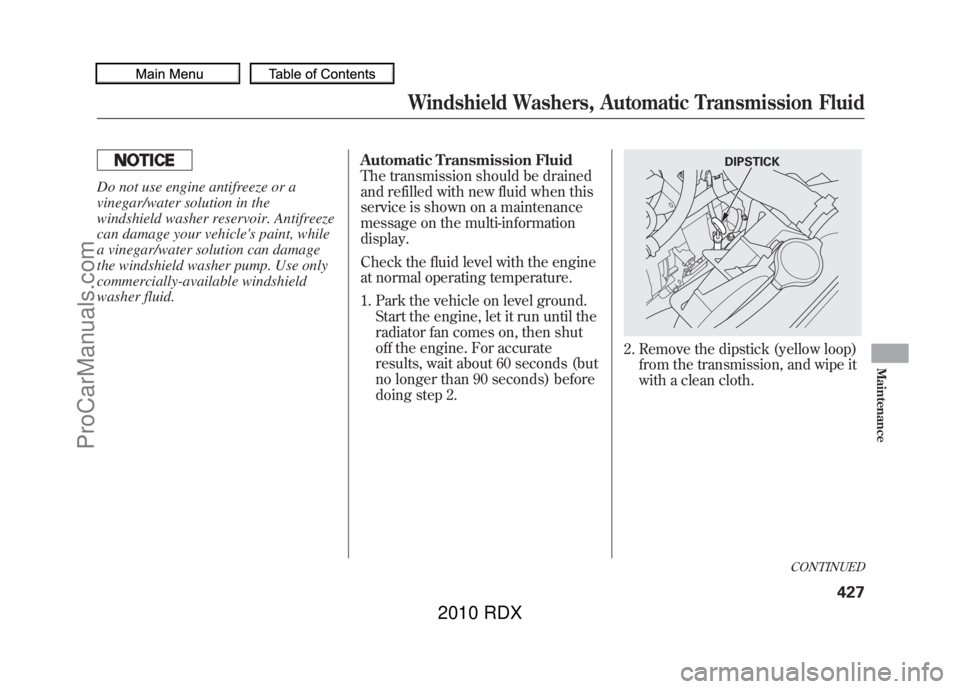

Do not use engine antifreeze or a
vinegar/water solution in the
windshield washer reservoir. Antifreeze
can damage your vehicle's paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer fluid.Automatic Transmission Fluid
The transmission should be drained
and refilled with new fluid when this
service is shown on a maintenance
message on the multi-information
display.
Check the fluid level with the engine
at normal operating temperature.
1. Park the vehicle on level ground.
Start the engine, let it run until the
radiator fan comes on, then shut
off the engine. For accurate
results, wait about 60 seconds (but
no longer than 90 seconds) before
doing step 2.
2. Remove the dipstick (yellow loop)from the transmission, and wipe it
with a clean cloth.
DIPSTICK
CONTINUED
Windshield Washers, Automatic Transmission Fluid
427
Maintenance
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

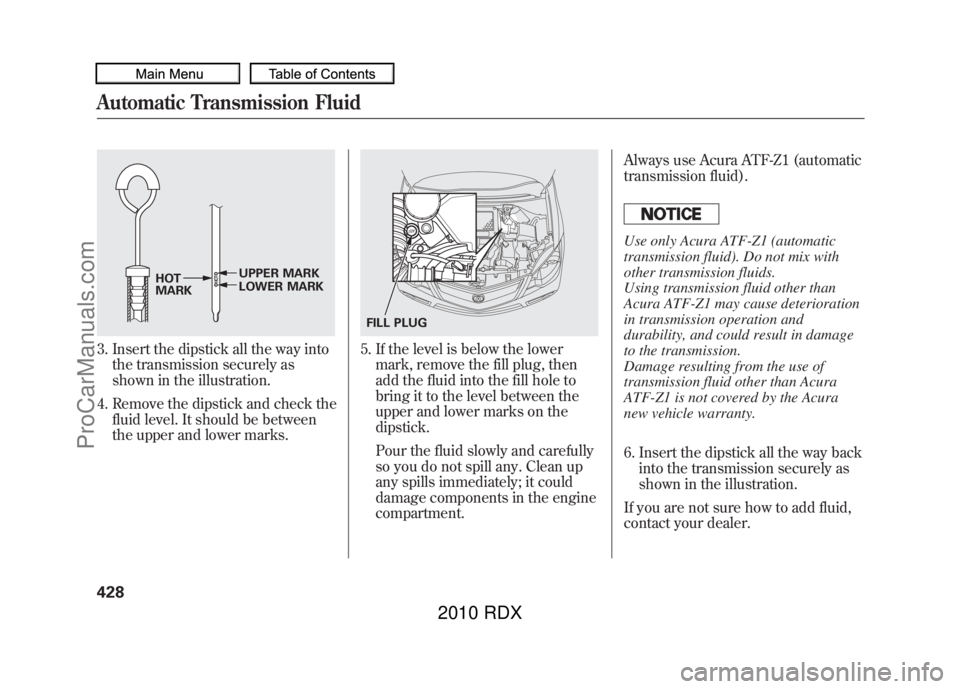

3. Insert the dipstick all the way intothe transmission securely as
shown in the illustration.
4. Remove the dipstick and check the fluid level. It should be between
the upper and lower marks.
5. If the level is below the lowermark, remove the fill plug, then
add the fluid into the fill hole to
bring it to the level between the
upper and lower marks on the
dipstick.
Pour the fluid slowly and carefully
so you do not spill any. Clean up
any spills immediately; it could
damage components in the engine
compartment. Always use Acura ATF-Z1 (automatic
transmission fluid).
Use only Acura ATF-Z1 (automatic
transmission fluid). Do not mix with
other transmission fluids.
Using transmission fluid other than
Acura ATF-Z1 may cause deterioration
in transmission operation and
durability, and could result in damage
to the transmission.
Damage resulting from the use of
transmission fluid other than Acura
ATF-Z1 is not covered by the Acura
new vehicle warranty.
6. Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
If you are not sure how to add fluid,
contact your dealer.
HOT
MARK UPPER MARK
LOWER MARK
FILL PLUG
Automatic Transmission Fluid42809/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

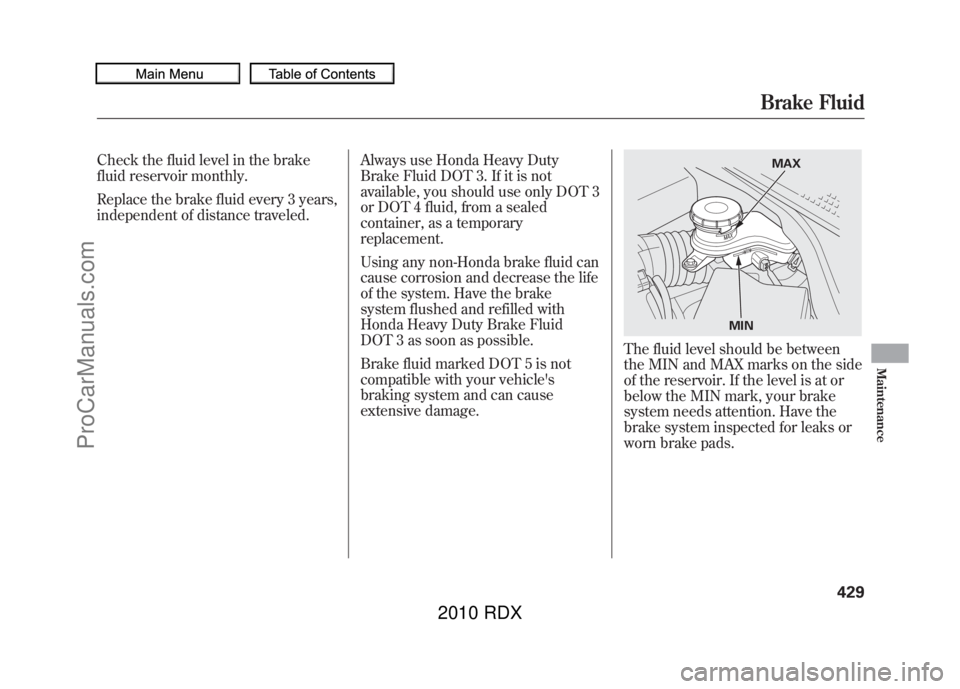

Check the fluid level in the brake
fluid reservoir monthly.
Replace the brake fluid every 3 years,
independent of distance traveled.Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake fluid marked DOT 5 is not
compatible with your vehicle's
braking system and can cause
extensive damage.
The fluid level should be between
the MIN and MAX marks on the side
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
MAX
MINBrake Fluid
429
Maintenance
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

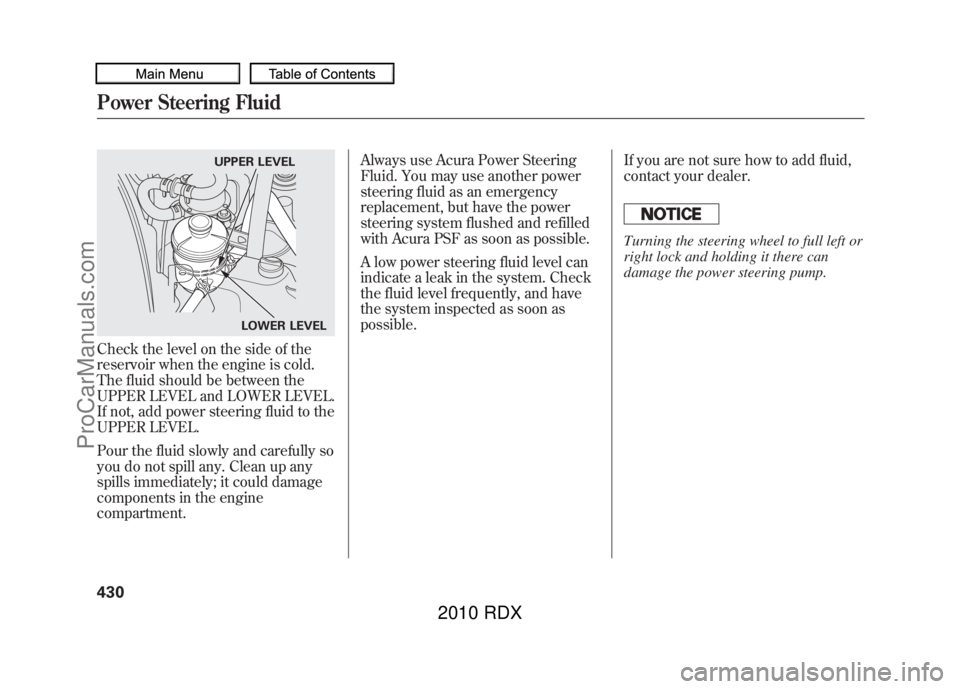

Check the level on the side of the
reservoir when the engine is cold.
The fluid should be between the
UPPER LEVEL and LOWER LEVEL.
If not, add power steering fluid to the
UPPER LEVEL.
Pour the fluid slowly and carefully so
you do not spill any. Clean up any
spills immediately; it could damage
components in the engine
compartment.Always use Acura Power Steering
Fluid. You may use another power
steering fluid as an emergency
replacement, but have the power
steering system flushed and refilled
with Acura PSF as soon as possible.
A low power steering fluid level can
indicate a leak in the system. Check
the fluid level frequently, and have
the system inspected as soon as
possible.
If you are not sure how to add fluid,
contact your dealer.
Turning the steering wheel to full left or
right lock and holding it there can
damage the power steering pump.
UPPER LEVEL
LOWER LEVEL
Power Steering Fluid43009/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Headlight Aiming
The headlights were properly aimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer,
readjustment may be required.
Adjustments should be done by your
dealer or another qualified
technician.
Low Beam Headlight Bulb
Replacement
The low beam headlight bulbs are
high voltage discharge tube. High
voltage can remain in the circuit even
with the light switch off and the key
removed. Because of this, you should
not attempt to examine or change a
low beam headlight bulb yourself. If
a low beam headlight bulb fails, take
the vehicle to your dealer to have it
replaced.Replacing a High Beam Headlight
Bulb
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
from contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
1. Open the hood.
Remove the electrical connector
from the bulb by pushing on the
tab and pulling the connector
down.
2. Remove the bulb by turning it about one-quarter turn
counterclockwise.
3. Insert the new bulb into the hole,and turn it one-quarter turn
clockwise to lock it in place.
4. Push the electrical connector onto the new bulb.
5. Turn on the headlights to test the new bulb.
BULB CONNECTOR
CONTINUED
Lights
431
Maintenance
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Replacing a Front Turn Signal/
Parking Light Bulb1. Open the hood. Remove the socketfrom the headlight assembly by
turning it one-quarter turn
counterclockwise.
2. Remove the bulb from the socket by pushing the bulb in and turning
it counterclockwise until it
unlocks. 3. Install the new bulb in the socket.
Turn it clockwise to lock it in
place.
4. Test the lights to make sure the new bulb is working.
5. Insert the socket back into the headlight assembly. Turn it
clockwise to lock it in place. Replacing a Front Side Marker
Light Bulb
1. Open the hood. Remove the socket
from the headlight assembly by
turning it one-quarter turn
counterclockwise.
2. Pull the bulb straight out of its socket. Push the new bulb straight
into the socket until it bottoms.
BULB
SOCKET
SOCKET BULB
Lights43209/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

3. Install the socket back into theheadlight assembly. Turn it
clockwise to lock it in place.
4. Turn on the lights to make sure the new bulb is working. Replacing Rear Bulbs
(in Tailgate)
1. Open the tailgate. Place a cloth on
the edge of the light assembly
cover to prevent scratches.
Remove the cover by carefully
prying in the notch on its middle
edge with a flat-tip screwdriver.
2. Determine which of the two bulbs is burned out: taillight or back-up
light.
3. Remove the socket by turning itone-quarter turn counterclockwise.
4. Pull the bulb straight out of its socket. Push the new bulb straight
into the socket until it bottoms.
COVER
NOTCH
SOCKETS
BULBSCONTINUED
Lights
433
Maintenance
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

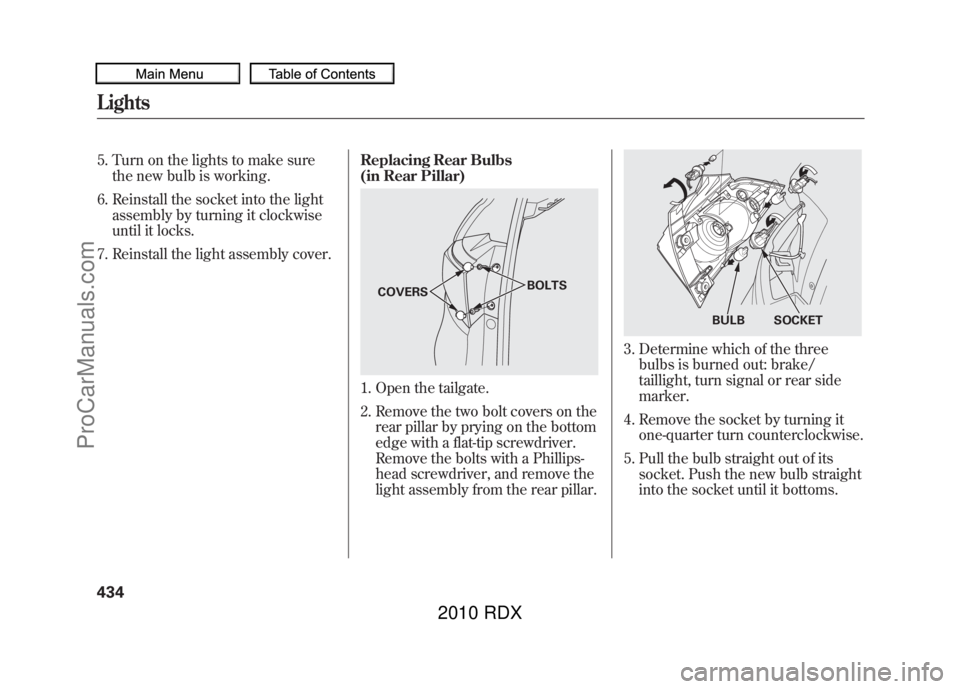

5. Turn on the lights to make surethe new bulb is working.
6. Reinstall the socket into the light assembly by turning it clockwise
until it locks.
7. Reinstall the light assembly cover. Replacing Rear Bulbs
(in Rear Pillar)
1. Open the tailgate.
2. Remove the two bolt covers on the
rear pillar by prying on the bottom
edge with a flat-tip screwdriver.
Remove the bolts with a Phillips-
head screwdriver, and remove the
light assembly from the rear pillar.
3. Determine which of the threebulbs is burned out: brake/
taillight, turn signal or rear side
marker.
4. Remove the socket by turning it one-quarter turn counterclockwise.
5. Pull the bulb straight out of its socket. Push the new bulb straight
into the socket until it bottoms.
COVERS BOLTS
BULB SOCKET
Lights43409/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

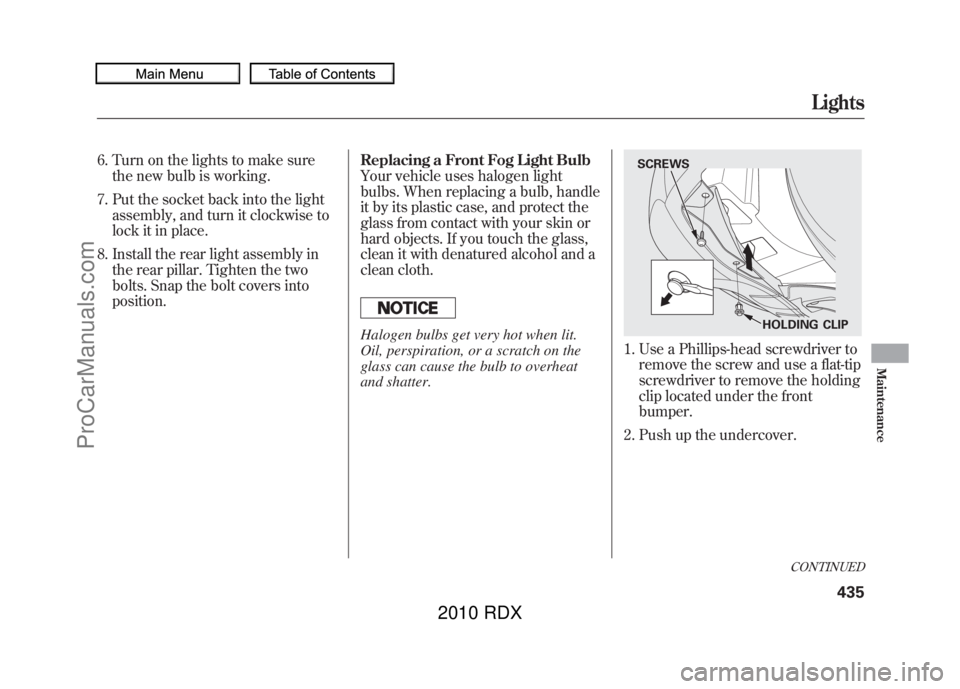

6. Turn on the lights to make surethe new bulb is working.
7. Put the socket back into the light assembly, and turn it clockwise to
lock it in place.
8. Install the rear light assembly in the rear pillar. Tighten the two
bolts. Snap the bolt covers into
position. Replacing a Front Fog Light Bulb
Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the
glass can cause the bulb to overheat
and shatter.
1. Use a Phillips-head screwdriver to
remove the screw and use a flat-tip
screwdriver to remove the holding
clip located under the front
bumper.
2. Push up the undercover.SCREWS
HOLDING CLIP
CONTINUED
Lights
435
Maintenance
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

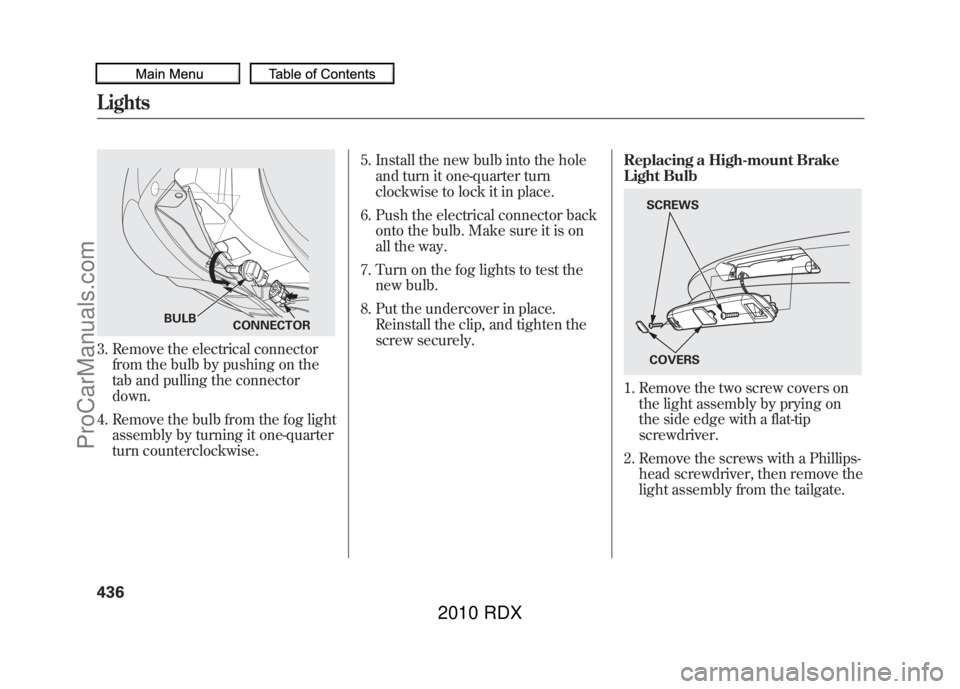

3. Remove the electrical connectorfrom the bulb by pushing on the
tab and pulling the connector
down.
4. Remove the bulb from the fog light assembly by turning it one-quarter
turn counterclockwise. 5. Install the new bulb into the hole
and turn it one-quarter turn
clockwise to lock it in place.
6. Push the electrical connector back onto the bulb. Make sure it is on
all the way.
7. Turn on the fog lights to test the new bulb.
8. Put the undercover in place. Reinstall the clip, and tighten the
screw securely. Replacing a High-mount Brake
Light Bulb
1. Remove the two screw covers on
the light assembly by prying on
the side edge with a flat-tip
screwdriver.
2. Remove the screws with a Phillips- head screwdriver, then remove the
light assembly from the tailgate.
CONNECTOR
BULB
SCREWS
COVERS
Lights43609/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
