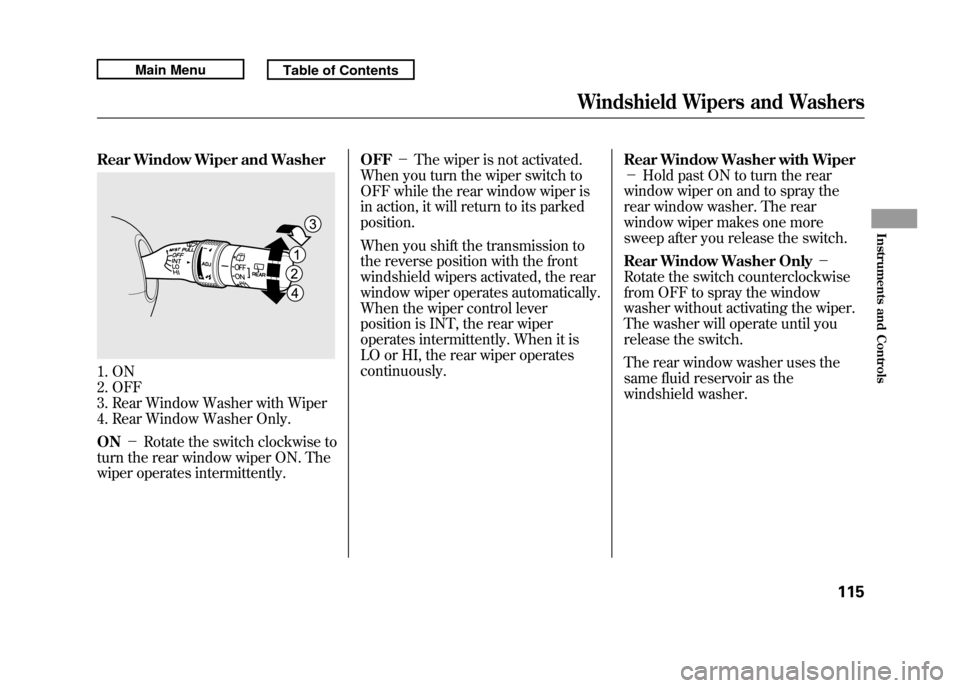

Rear Window Wiper and Washer1. ON
2. OFF
3. Rear Window Washer with Wiper
4. Rear Window Washer Only.
ON－Rotate the switch clockwise to
turn the rear window wiper ON. The
wiper operates intermittently. OFF
－The wiper is not activated.
When you turn the wiper switch to
OFF while the rear window wiper is
in action, it will return to its parked
position.
When you shift the transmission to
the reverse position with the front
windshield wipers activated, the rear
window wiper operates automatically.
When the wiper control lever
position is INT, the rear wiper
operates intermittently. When it is
LO or HI, the rear wiper operates
continuously. Rear Window Washer with Wiper
－
Hold past ON to turn the rear
window wiper on and to spray the
rear window washer. The rear
window wiper makes one more
sweep after you release the switch.
Rear Window Washer Only －
Rotate the switch counterclockwise
from OFF to spray the window
washer without activating the wiper.
The washer will operate until you
release the switch.
The rear window washer uses the
same fluid reservoir as the
windshield washer.
Windshield Wipers and Washers
115
Instruments and Controls
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
instructions on how to read the
maintenance minder messages on
the multi-information display, and
instructions for simple maintenance
tasks you may want to take care of
yourself.
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page 497 for information on how to
obtain a copy, or see your dealer.U.S. Vehicles:
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certified’’ to EPA standards. Maintenance Safety
.....................
410
Maintenance Minder ™
................
411
Fluid Locations
...........................
419
Adding Engine Oil
......................
420
Required Engine Oil
...............
420
Changing the Engine Oil and
Filter
.......................................
422
Engine Coolant
...........................
424
Windshield Washers
...................
426
Automatic Transmission Fluid
....
427
Brake Fluid
.................................
429
Power Steering Fluid
..................
430
Lights
..........................................
431
Cleaning the Seat Belts
...............
438
Floor Mats
..................................
438
Audio Antenna
............................
439
Intercooler
..................................
439
Dust and Pollen Filter
.................
439
Wiper Blades
..............................
440
Wheels
........................................
443
Tires
...........................................
444
Checking the Battery
..................
450
Vehicle Storage
...........................
451
Interior Care
...............................
452
Maintenance
409
Maintenance
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

ENGINE OIL
DIPSTICK
(Orange loop)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID
(Red cap)ENGINE
COOLANT
RESERVOIR
RADIATOR CAP BRAKE FLUID
(Black cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
ENGINE OIL
FILL CAP
Fluid Locations
419
Maintenance
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Check the fluid level in the
windshield washer reservoir at least
monthly during normal use.
On U.S. models:
To check the
windshield washer fluid level, open
the hood and look at the windshield
washer reservoir located behind the
left headlight. You will see a ‘‘1/2 ’’
mark on the reservoir.
On Canadian modelsIf the washer fluid is low, a
‘‘ WASHER FLUID LOW ’’message
appears on the multi-information
display.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.

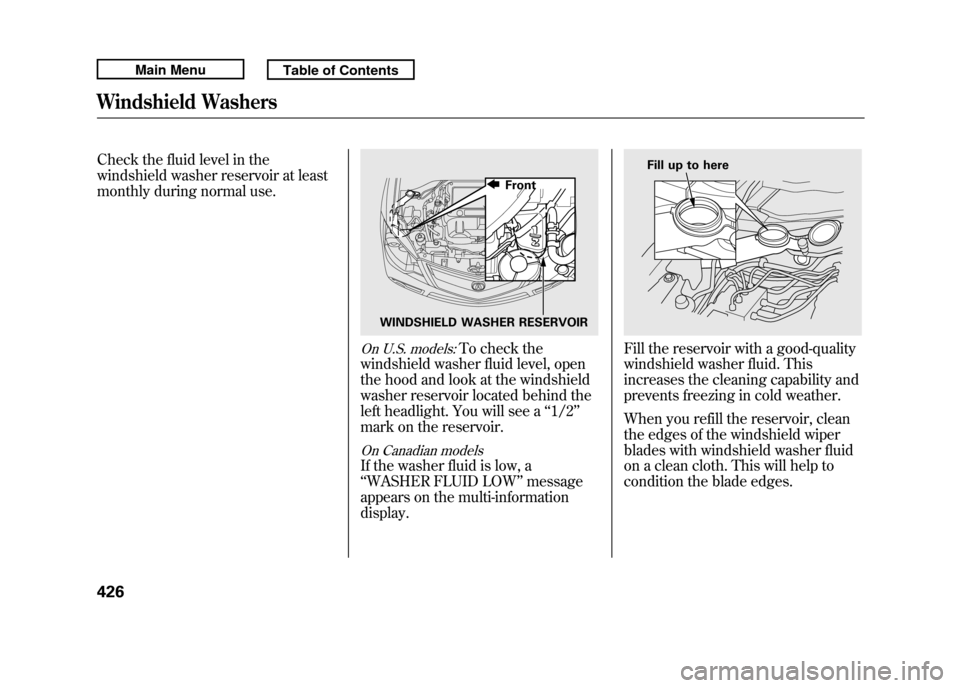

WINDSHIELD WASHER RESERVOIR Front
Fill up to here
Windshield Washers42610/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Do not use engine antifreeze or a
vinegar/water solution in the
windshield washer reservoir. Antifreeze
can damage your vehicle's paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer fluid.Automatic Transmission Fluid
The transmission should be drained
and refilled with new fluid when this
service is shown on a maintenance
message on the multi-information
display.
Check the fluid level with the engine
at normal operating temperature.
1. Park the vehicle on level ground.
Start the engine, let it run until the
radiator fan comes on, then shut
off the engine. For accurate
results, wait about 60 seconds (but
no longer than 90 seconds) before
doing step 2.
2. Remove the dipstick (yellow loop)from the transmission, and wipe it
with a clean cloth.
DIPSTICK
CONTINUED
Windshield Washers, Automatic Transmission Fluid
427
Maintenance
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

DimensionsLength182.5 in (4,635 mm)
Width 73.6 in (1,870 mm)
Height 65.2 in (1,655 mm)
Wheelbase 104.3 in (2,650 mm)
Track Front 61.9 in (1,572 mm)
Rear 62.6 in (1,590 mm)WeightsGross vehicle weight rating See the certification label attached to
the driver's doorjamb.EngineType Water cooled 4-stroke DOHC i-VTEC
4 cylinder gasoline engine with turbo charger, intercooler
Bore x Stroke 3.39 x 3.90 in (86.0 x 99.0 mm)
Displacement 140.3 cu-in (2,300 cm
3)
Compression ratio 8.8
Spark plugs SILKR8A-S (NGK)
Seating CapacitiesTotal 5
Front 2
Rear 3
CapacitiesFuel tankApprox.
18.0 US gal (68 L)
Engine oil Change
ꭧ 1
Including
filter 5.0 US qt (4.7 L)
Without filter 4.8 US qt (4.5 L)
Total 6.1 US qt (5.8 L)
Engine coolant Change
ꭧ 2
1.85 US gal (7.0 L)
Total 2.22 US gal (8.4 L)
Automatic
transmission fluid Change
2WD 3.0 US qt (2.8 L)
4WD 3.1 US qt (2.9 L)
Total 2WD 8.8 US qt (8.3 L)
4WD 8.2 US qt (7.8 L)
Rear differential
fluid (4WD) Change
2.67 US qt (2.53 L)
Total 2.93 US qt (2.77 L)
Transfer assembly
fluid (4WD) Change
0.45 US qt (0.43 L)
Total 0.48 US qt (0.45 L)
Windshield
washer reservoir U.S. Vehicles 2.6 US qt (2.5 L)
Canada
Vehicles 4.8 US qt (4.5 L)
ꭧ1: Excluding the oil remaining in the engine
ꭧ2: Including the coolant in the reserve tank and that remaining in the engine Reserve tank capacity:
0.18 US gal (0.7 L)
Specifications48010/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu
