VSA OFF Indicator
It comes on as a reminder that you
have turned off the vehicle stability
assist (VSA) system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. For more information, see
page 395.
Cruise Main Indicator
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page 300).Cruise Control Indicator
This indicator comes on when you
set the cruise control. See page 300
for information on operating the
cruise control.High Beam Indicator
This indicator comes on with the
high beam headlights. For more
information, see page 117.
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page 119).
Turn Signal and Hazard Warning
Indicators
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is burned
out (see pages 432 and 434). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle flash.
CONTINUED
Instrument Panel Indicators
69
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu
Page 437 of 518
Headlight Aiming
The headlights were properly aimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer,
readjustment may be required.
Adjustments should be done by your
dealer or another qualified
technician.
Low Beam Headlight Bulb
Replacement
The low beam headlight bulbs are
high voltage discharge tube. High
voltage can remain in the circuit even
with the light switch off and the key
removed. Because of this, you should
not attempt to examine or change a
low beam headlight bulb yourself. If
a low beam headlight bulb fails, take
the vehicle to your dealer to have it
replaced.Replacing a High Beam Headlight
Bulb
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
from contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
1. Open the hood.
Remove the electrical connector
from the bulb by pushing on the
tab and pulling the connector
down.
2. Remove the bulb by turning it about one-quarter turn
counterclockwise.
3. Insert the new bulb into the hole,and turn it one-quarter turn
clockwise to lock it in place.
4. Push the electrical connector onto the new bulb.
5. Turn on the headlights to test the new bulb.
BULB CONNECTOR
CONTINUED
Lights
431
Maintenance
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu
Page 438 of 518
Replacing a Front Turn Signal/
Parking Light Bulb1. Open the hood. Remove the socketfrom the headlight assembly by
turning it one-quarter turn
counterclockwise.
2. Remove the bulb from the socket by pushing the bulb in and turning
it counterclockwise until it
unlocks. 3. Install the new bulb in the socket.
Turn it clockwise to lock it in
place.
4. Test the lights to make sure the new bulb is working.
5. Insert the socket back into the headlight assembly. Turn it
clockwise to lock it in place. Replacing a Front Side Marker
Light Bulb
1. Open the hood. Remove the socket
from the headlight assembly by
turning it one-quarter turn
counterclockwise.
2. Pull the bulb straight out of its socket. Push the new bulb straight
into the socket until it bottoms.
BULB
SOCKET
SOCKET BULB
Lights43211/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu
Page 439 of 518
3. Install the socket back into theheadlight assembly. Turn it
clockwise to lock it in place.
4. Turn on the lights to make sure the new bulb is working. Replacing Rear Bulbs
(in Tailgate)

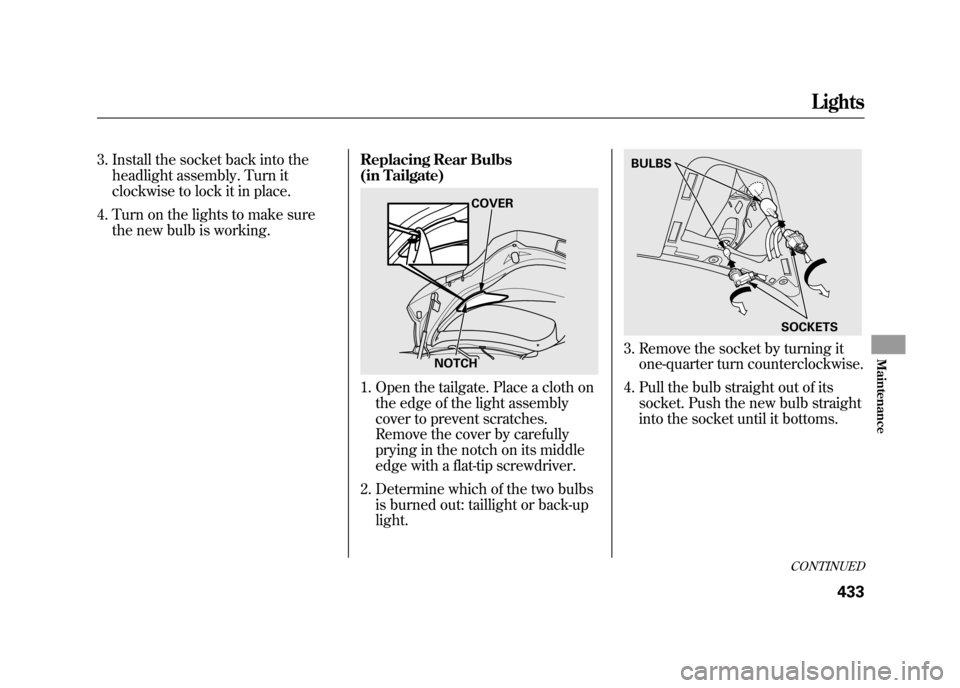

1. Open the tailgate. Place a cloth on
the edge of the light assembly
cover to prevent scratches.
Remove the cover by carefully
prying in the notch on its middle
edge with a flat-tip screwdriver.
2. Determine which of the two bulbs is burned out: taillight or back-up
light.
3. Remove the socket by turning itone-quarter turn counterclockwise.
4. Pull the bulb straight out of its socket. Push the new bulb straight
into the socket until it bottoms.
COVER
NOTCH
SOCKETS
BULBSCONTINUED
Lights
433
Maintenance
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu
Page 487 of 518
LightsHeadlights High12 V-60 W (HB3)
Low
ᤳ
12 V -35 W (D2S)
Front turn signal/parking lights 12 V -24/2.2 CP (Amber)
Front fog lights 12 V -55 W (H11)
Front side marker lights 12 V -3CP
Rear turn signal lights 12 V -21 W
Brake/Taillights (in fenders) 12 V -21/5 W
Taillights (in tailgate) 12 V -3CP
Back-up lights 12 V -21 W
Rear side marker lights 12 V -2CP
License plate lights 12 V -3CP
High-mount brake light 12 V -16 W
Front ceiling lights/Spotlights 12 V -4CP
Rear ceiling light 12 V -8W
Glove box light 14 V -1.4 W
Console compartment light 14 V -1.4 W
Vanity mirror lights 12 V -2W
Door courtesy lights 12 V -2CP
Cargo area light 12 V -5W
ᤳ : The low beam headlights are high voltage discharged type.
Replacement of a low beam headlight bulb should be performed by
your dealer.
Air ConditioningRefrigerant type HFC-134a (R-134a)
Charge quantity 15.8-17.6 oz (450 -500 g)
Lubricant type SP-10BatteryCapacity12 V-52 AH/5 HR
12 V -65 AH/20 HRFusesInterior See page 473 or the fuse label
attached to the dashboard.
Under-hood See page 474 or the fuse box
covers.AlignmentToe-in Front 0.0 in (0 mm)
Rear 0.10 in (2.5 mm)
Camber Front 0 ° 10’
Rear -1°
Caster Front 2 ° 57’TiresSize Front/Rear P235/55R18 99V
Spare T165/80D17 104M
Pressure Front/Rear 32 psi (220 kPa , 2.2 kgf/cm
2)
Spare 60 psi (420 kPa , 4.2 kgf/cm2)
Specifications
481
Technical Information
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu
Page 506 of 518
Bulb ReplacementBack-up Lights
........................
433
Brake Lights
...........................
434
Fog Lights
...............................
435
Front Parking Lights
...............
432
Front Side Marker Lights
........
432
Headlights
..............................
431
High-mount Brake Light
.........
436
Rear Bulbs
......................
433, 434
Rear License Plate Lights........
437
Specifications
..........................
481
Taillights
.........................
433, 434
Turn Signal Lights
..........
432, 434
Bulbs, Halogen
..........................
431
