345
uuSpecifications u
■Automatic Transmission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid*
SpecifiedAcura ATF DW-1(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
SpecifiedAcura All Wheel Drive Fluid (DPSF)
Capacity Change 1.32 US qt (1.25 ℓ)
SpecifiedAcura HGO-1
Capacity Change 0.43 US qt (0.41 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.23 US qt (4.0 ℓ)
Change
including
filter
4.55 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.75 US gal (6.6 ℓ)
(change including the remaining 0.193 US gal
(0.73 ℓ) in the reserve tank)
■Tire
RegularSizeP235/60R18 102VPressure
psi (kPa[kgf/cm2])33 (230 [2.3])
Compact
Spare Size
T165/90R17 105M
Pressure
psi (kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7.5JCompact Spare17 x 4T
* Not available on all models
QRG
Index
Information
TOC

346
Information

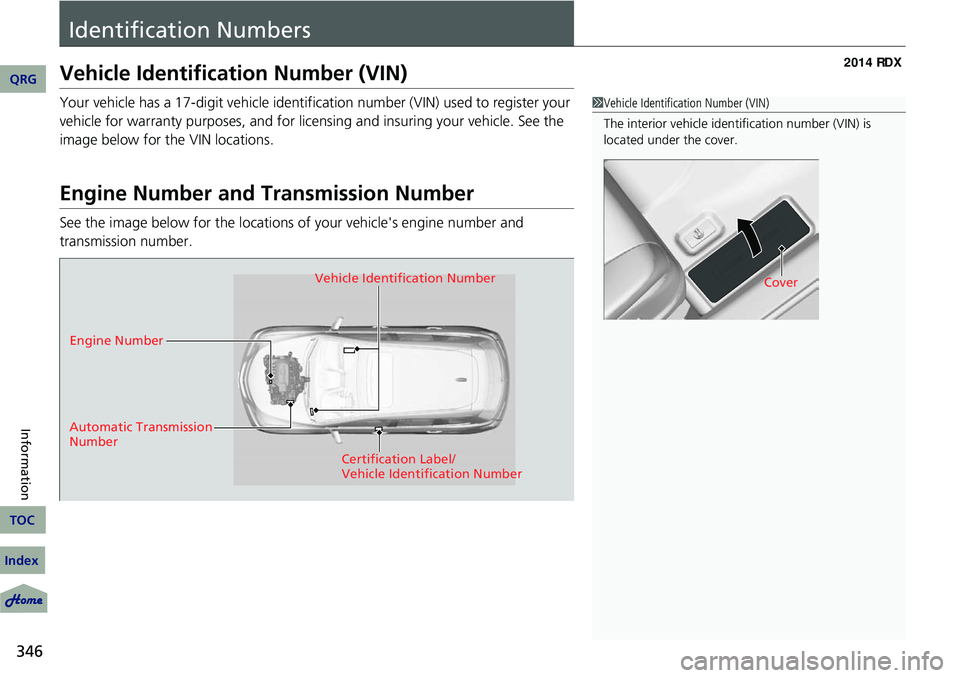

Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licen sing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
1 Vehicle Identification Number (VIN)
The interior vehicle identification number (VIN) is
located under the cover.
CoverVehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Automatic Transmission
Number
QRG
Index
TOC

349Continued
Emissions Testing
Testing of Readiness Codes
Your vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle's emissions
components are working properly.
The codes may not be read if you go thro ugh the testing just after the battery has
gone dead or been disconnected.
To check if they are set, set the power m ode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for
20 seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
QRG
Index
Information
TOC

350
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
QRG
Index
TOC

Index
355
Index
Numbers
4WD.......................................................... 253
ABS (Anti-lock Brake System) .................. 259
Accessories and Modifications ................ 266
Accessory Power Sockets ......................... 148
Additives Coolant .................................................. 282
Engine Oil ............................................... 277
Washer ................................................... 286
Additives, Engine Oil ............................... 277
Adjusting Armrest .................................................. 142
Front Seats.............................................. 136
Head Restraints ....................................... 138
Mirrors.................................................... 133
Rear Seats ............................................... 141
Steering Wheel ....................................... 132
Temperature ............................................. 85
Air Conditioning System (Climate Control System) ....................... 152
Changing the Mode................................ 152
Defrosting the Windshield and Windows .............................................. 153
Dust and Pollen Filter .............................. 312
Recirculation/Fresh Air Mode................... 152
Sensors ................................................... 155
Synchronized Mode ................................ 154
Using Automatic Climate Control............ 152 Air Conditioning System
(Heating and Cooling System)
Dust and Pollen Filter ............................... 312
Air Pressure ....................................... 302, 345
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ......................................... 41
Airbag Care ............................................... 51
Event Data Recorder .................................. 21
Front Airbags (SRS) .................................... 40
Indicator ........................................ 48, 72, 75
Passenger Airbag Off Indicator .................. 49
Sensors ...................................................... 37
Side Airbag Cutoff System ......................... 46
Side Airbag Off Indicator ........................... 50
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 47
AM/FM Radio ............................................ 167
Anti-lock Brake System (ABS) .................. 259
Indicator .................................................... 71
Armrest ..................................................... 142
Audio Remote Controls ............................ 165
Audio System ............................................ 158
Adjusting the Sound ................................ 166
Auxiliary Input Jack .................................. 159
Error Messages ........................................ 187
General Information ................................ 190
iPod ®....................................................... 174
MP3/WMA/AAC ...................................... 179
Pandora ®................................................. 177
Reactivating ............................................. 160 Recommended CDs ................................. 191
Recommended Devices............................ 193
Security Code .......................................... 160
Theft Protection ...................................... 160
USB Adapter Cable.................................. 159
USB Flash Drives ...................................... 193
Audio/Information Display ...................... 162
Authorized Manuals ................................ 353
Auto Door Locking/Unlocking ................. 106
Customize ................................................. 92
Automatic Lighting .................................. 123
Automatic Transmission ........................... 243
Creeping ................................................. 243
Fluid ........................................................ 284
Kickdown ................................................ 243
Operating the Shift Lever................... 14, 245
Sequential Shift Mode ............................. 246
Shift Lever Does Not Move ...................... 330
Shifting ................................................... 244
Auxiliary Input Jack .................................. 159
Average Fuel Economy .............................. 85
Average Speed ........................................... 86
AWD .......................................................... 253
Battery ...................................................... 310
Charging System Indicator................. 69, 333
Jump Starting .......................................... 328
Maintenance (Checki ng the Battery) ........ 310
Belts (Seat) .................................................. 29
QRG
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A
B

356
Beverage Holders...................................... 147
Bluetooth ® Audio ..................................... 182
Bluetooth ® HandsFreeLink ®..................... 196
Booster Seats (For Children) ....................... 63
Brake System ............................................. 257
Anti-lock Brake System (ABS) ................... 259
Brake Assist System ................................. 260
Brake System Indicator............................... 68
Fluid ........................................................ 285
Foot Brake ............................................... 258
Indicator ............................................ 68, 335
Parking Brake .......................................... 257
Brightness Control (Instrument Panel) .... 128
Bulb Replacement ..................................... 287
Back-Up Light and Taillight ...................... 294
Brake Light, Taillight, Rear Turn Signal Light and Rear Side Ma rker Light .................... 292
Fog Lights ................................................ 289
Front Turn Signal/Parking Light and Front Side
Marker Light .......................................... 291
Headlights ............................................... 287
High-Mount Brake Light .......................... 296
Rear License Plate Light............................ 295
Bulb Specifications .................................... 344
Carbon Monoxide Gas ................................ 64
Cargo Hook ............................................... 149
Carrying Cargo .................................. 229, 231
CD Player ................................................... 171 Certification Label
.................................... 346
Changing Bulbs ........................................ 287
Charging System Indicator ................. 69, 333
Child Safety ................................................. 52
Childproof Door Locks............................. 105
Child Seat .................................................... 52
Booster Seats ............................................ 63
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 59
Larger Children ......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Childproof Door Locks ............................. 105
Cleaning the Exterior ............................... 315
Cleaning the Interior ................................ 313
Client Service Information ....................... 354
Climate Control System ............................ 152
Changing the Mode ................................ 152
Defrosting the Windshield and Windows ............................................... 153
Dust and Pollen Filter............................... 312
Recirculation/Fresh Air Mode ................... 152
Sensors ................................................... 155
Synchronized Mode................................. 154
Using Automatic Climate Control ............ 152
Clock ............................................................ 96
Coat Hook ................................................. 149
Compact Spare Tire .......................... 319, 345
Compass .................................................... 225 Console Compartment
............................. 146
Controls ...................................................... 95
Coolant (Engine) ...................................... 282
Adding to the Radiator ........................... 283
Adding to the Reserve Tank .................... 282
Overheating ............................................ 331
Creeping (Automatic Transmission) ........ 243
Cruise Control .......................................... 248
Indicator ................................................... 76
Cup Holders .............................................. 147
Customized Features ................................. 87
Daytime Running Lights .......................... 125
Dead Battery ............................................ 328
Defrosting the Windshield and Windows ................................................. 153
Detachable Anchor .................................... 34
Devices that Emit Radio Waves ............... 347
Dimming
Headlights .............................................. 122
Rearview Mirror ...................................... 133
Dipstick (Engine Oil) ................................ 278
Directional Signals (Turn Signal) ............. 122
Display Button .......................................... 162
Door Mirrors ............................................. 134
Doors .......................................................... 97
Auto Door Locking.................................. 106
Auto Door Unlocking .............................. 106
Door Open Indicator ........................... 28, 73QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
C
D

357
Keys.......................................................... 97
Locking/Unlocking the Doors from the Inside...................................... 104
Locking/Unlocking the Doors from the Outside..................................... 99
Lockout Prevention System ..................... 100
DOT Tire Quality Grading ........................ 304
Driver’s Seat Lumbar Support ................. 136
Driving ...................................................... 227
Automatic Transmission .......................... 243
Braking ................................................... 257
Cruise Control ........................................ 248
Off-Highway Driving Guidelines .............. 238
Shifting Gear .......................................... 244
Starting the Engine ................................. 240
Driving Position Memory System ............ 130
Dust and Pollen Filter .............................. 312
Elapsed Time .............................................. 86
Electric Power Steering (EPS) System Indicator ........................................... 74, 335
Electronic Stability Control (ESC) ............ 251
Emergency ................................................ 340
Emissions Testing (Readiness Codes) ...... 349
Engine ....................................................... 346
Coolant .................................................. 282
Jump Starting ......................................... 328
Oil .......................................................... 277
Starting................................................... 240 Engine Coolant
......................................... 282
Adding to the Radiator ............................ 283
Adding to the Reserve Tank ..................... 282
Overheating ............................................ 331
Temperature Gauge .................................. 82
Engine Oil ................................................. 277
Adding .................................................... 279
Checking ................................................. 278
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator .................. 69 , 333
Recommended Engine Oil ........................ 277
EPS (Electric Power Steering) System ............................................... 74 , 335
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 64
Exterior Care (Cleaning) ........................... 315
Exterior Mirrors ........................................ 134
Features ..................................................... 157
Filters Dust and Pollen ....................................... 312
Oil ........................................................... 280
Flat Tire ..................................................... 319
Floor Mats ................................................. 314
Fluids
Automatic Transmission ........................... 284
Brake ....................................................... 285
Engine Coolant ........................................ 282
Windshield Washer .................................. 286 Fog Light Indicator
..................................... 75
Folding Down the Rear Seats .................. 141
Foot Brake ................................................ 258
Front Airbags (SRS) ..................................... 40
Front Seats ................................................ 136
Adjusting ................................................ 136
Fuel ...................................................... 15, 263
Economy ................................................. 265
Gauge ....................................................... 82
Low Fuel Indicator ..................................... 71
Range ....................................................... 86
Recommendation .................................... 263
Refueling................................................. 263
Fuel Economy ........................................... 265
Fuel Fill Cap ........................................ 15, 264
Message.................................................. 334
Fuel Fill Door ...................................... 15, 264
Fuses .......................................................... 337
Inspecting and Changing......................... 339
Locations......................................... 337, 338
Gasoline (Fuel) Economy ................................................. 265
Gauge ....................................................... 82
Information ............................................. 263
Low Fuel Indicator ..................................... 71
Refueling................................................. 263
Gauges ........................................................ 82QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
EF
G

358
Gear Shift Lever PositionsAutomatic Transmission ........................... 244
Glass (care) ................................................ 316
Glove Box .................................................. 145
Halogen Bulbs ................................... 287, 289
Handling the Unexpected ........................ 317
HandsFreeLink® (HFL)............................... 196
Automatic Import of Ce llular Phonebook and
Call History ............................................ 212
Automatic Transferring ............................ 210
Caller’s ID Information ............................. 210
HFL Buttons ............................................. 196
HFL Menus .............................................. 198
HFL Status Display.................................... 197
Making a Call .......................................... 215
Options During a Call .............................. 219
Phone Setup ............................................ 203
Receiving a Call ....................................... 218
Speed Dial ............................................... 213
Text Message................................... 208, 220
To Clear the System ................................. 211
To Create a Security PIN........................... 209
Hazard Warning Button ............................... 2
Head Restraints ......................................... 138
Headlights ................................................. 122
Aiming .................................................... 287
Automatic Operation ............................... 123
Dimming ......................................... 122, 125 Operating................................................ 122
Heaters (Seat) ........................................... 151
HFL (HandsFreeLink® )............................... 196
High Beam Indicator .................................. 74
Hill Start Assist System ............................. 241
HomeLink ® Universal Transceiver ............ 194
Identification Numbers ............................ 346
Engine and Transmission ......................... 346
Vehicle Identification ............................... 346
Illumination Control ................................. 128
Knob ....................................................... 128
Immobilizer System .................................. 113
Indicator.................................................... 75
Indicators .................................................... 68
ABS (Anti-lock Brake System)..................... 71
AWD System ............................................. 72
Brake System............................................. 68
Charging System ............................... 69, 333
CRUISE CONTROL ............................. 76, 249
CRUISE MAIN .................................... 76, 248
Door Open .......................................... 28, 73
EPS (Electric Power Steering) System .. 74, 335
Fog Light ................................................... 75
High Beam ................................................ 74
Immobilizer System ................................... 75
Lights On .................................................. 75
Low Fuel ................................................... 71
Low Oil Pressure ................................ 69, 333 Low Tire Pressure/TPMS ............................ 74
Maintenance Minder............................... 271
Malfunction Indicator Lamp .............. 69, 334
Parking Brake and Brak
e System ....... 68, 335
Seat Belt Reminder.............................. 30, 71
Security System Alarm............................... 76
Shift Lever Position.................................... 70
Side Airbag Off ................................... 50, 75
Supplemental Restraint System ........... 48, 72
System Message ....................................... 76
Transmission ............................................. 70
Turn Signal ............................................... 74
VSA ® (Vehicle Stability Assist)
System ............................................ 73, 251
VSA ® OFF .......................................... 73, 252
Information .............................................. 343
Instrument Panel ........................................ 67
Brightness Control .................................. 128
Interior Lights ........................................... 143
Interior Rearview Mirror ......................... 133
iPod ®......................................................... 174
Jack (Wheel Nut Wrench) ........................ 322
Jump Starting ........................................... 328QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
H
I
J

359
Key Number Tag........................................ 98
Keyless Access System .............................. 101
Keyless Lockout Prevention ..................... 100
Keys ............................................................. 97
Lockout Prevention ................................. 100
Number Tag.............................................. 98
Rear Door Won’t Open ........................... 105
Remote Transmitter .................................. 99
Types and Functions.................................. 97
Kickdown (Automatic Transmission) ...... 243
Language (HFL) ........................................ 197
LATCH (Child Seats) ............................. 57, 60
Lights ................................................ 122, 287
Automatic............................................... 123
Bulb Replacement ................................... 287
Daytime Running Lights .......................... 125
Fog Lights ............................................... 125
High Beam Indicator ................................. 74
Interior.................................................... 143
Light Switches......................................... 122
Lights On Indicator.................................... 75
Turn Signals ............................................ 122
Load Limits ............................................... 231
Locking/Unlocking ..................................... 97
Auto Door Locking/Unlocking ................. 106
Childproof Door Locks ............................ 105
From Inside ............................................. 104 From Outside ............................................. 99
Keys .......................................................... 97
Using a Key ............................................. 100
Lockout Prevention System ...................... 100
Low Battery Charge .................................. 333
Low Fuel Indicator ...................................... 71
Low Oil Pressure Indicator ................. 69, 333
Lower Anchors ...................................... 57, 60
Luggage (Maximum Load Limit) ............. 231
Maintenance ............................................. 267
Battery .................................................... 310
Brake Fluid .............................................. 285
Cleaning .................................................. 313
Climate Control System ........................... 312
Coolant ................................................... 282
Maintenance Minder
TM............................ 271
Oil ........................................................... 278
Precautions .............................................. 268
Radiator .................................................. 283
Remote Transmitter ................................. 311
Replacing Light Bulbs ............................... 287
Safety ...................................................... 269
Service Items ........................................... 273
Tires ........................................................ 301
Transmission Fluid ................................... 284
Under the Hood ...................................... 275
Malfunction Indicator Lamp .............. 69, 334
Map Lights ................................................ 143 Maximum Load Limit
............................... 231
Meters, Gauges ........................................... 82
Mirrors ...................................................... 133
Adjusting ................................................ 133
Door ....................................................... 134
Exterior ................................................... 134
Interior Rearview ..................................... 133
Modifications (and Accessories) .............. 266
Moonroof ................................................. 118
MP3 ................................................... 171, 179
Multi-Information Display ......................... 83
Multi-View Rear Camera .......................... 262
Numbers (Identification) .......................... 346
Odometer ................................................... 84
Off-Highway Driving Guidelines ............. 238
Oil (Engine) ............................................... 277
Adding .................................................... 279
Checking................................................. 278
Displaying Oil Life .................................... 271
Low Oil Pressure Indicator ................. 69, 333
Recommended Engine Oil ....................... 277
Viscosity .................................................. 277
Opening/Closing
Hood....................................................... 276
Moonroof ............................................... 118
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
K
L
M
N
O

361
Shifting (Transmission)............................ 244
Shoulder Anchor ........................................ 33
Side Airbags ............................................... 44
Cutoff System ........................................... 46
Off Indicator ............................................. 46
Side Curtain Airbags .................................. 47
SMS Text Message ............................ 208, 220
Snow Tires ................................................ 309
Spare Tire ......................................... 319, 345
Spark Plugs ............................................... 344
Specifications ........................................... 344
Specified Fuel ................................... 263, 344
Speedometer .............................................. 82
SRS Airbags (Airbags) ................................ 40
Starting the Engine .................................. 240
Does Not Start ........................................ 325
Jump Starting ......................................... 328
Steering Wheel ........................................ 132
Adjusting ................................................ 132
Stopping ................................................... 261
Summer Tires ............................................ 309
Sunglasses Holder .................................... 150
Supplemental Restraint System (SRS) ....... 40
Switches (Around the Steering Wheel) ........ 2, 3, 119
Synchronized Mode ................................. 154
System Message Indicator ......................... 76Tachometer
................................................. 82
Tailgate ..................................................... 107
Unable to Open ....................................... 341
Temperature
Outside Temperature Display ..................... 85
Temperature Gauge ................................... 82
Temperature Sensor ........................... 85, 155
Text Message .................................... 208, 220
Time (Setting) ............................................. 96
Tire Pressure Monitoring System
(TPMS) ..................................................... 253
Indicator ............................................ 74 , 336
Tires ........................................................... 301
Air Pressure ..................................... 302, 345
Checking and Maintaining ....................... 301
Inspection ................................................ 301
Labeling .................................................. 302
Puncture (Flat Tire) ................................... 319
Regulations ............................................. 304
Rotation .................................................. 308
Spare Tire ........................................ 319, 345
Summer .................................................. 309
Tire Chains .............................................. 309
Wear Indicators ....................................... 306
Winter ..................................................... 309
Tools .......................................................... 318
Towing a Trailer ....................................... 233
Equipment and Accessories ..................... 234
Load Limits .............................................. 233 Towing Your Vehicle
................................ 237
Emergency .............................................. 340
TPMS (Tire Pressure Monitoring System) ........ 253
Indicator............................................ 74, 336
Transmission ............................................. 244
Automatic ............................................... 244
Fluid ........................................................ 284
Number................................................... 346
Sequential Shift Mode ............................. 246
Shift Lever Position Indicator.............. 70, 245
Trip Meter ................................................... 85
Troubleshooting ....................................... 317
Blown Fuse...................................... 337, 338
Brake Pedal Vibrates .................................. 18
Buzzer Sounds When Opening Door.......... 19
Emergency Towing .................................. 340
Engine Won’t Start .................................. 325
Noise When Braking .................................. 20
Overheating ............................................ 331
Puncture/Flat Tire .................................... 319
Rear Door Won’t Open...................... 19, 105
Select Lever Won’t Move ......................... 330
Warning Indicators .................................... 68
Turn Signals .............................................. 122
Indicators (Instrument Panel) ..................... 74QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
T
