Page 263 of 363
262
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
For models with navigation system, see Navigation System Manual.
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the shift lever is moved to
(R.
You can view three different camera angl es on the rearview display. Press the
selector knob to switch the angle.
If the last used viewing mode is Wide or Normal, the same mode is selected the next
time you shift into
(R. If Top view was last used, Wide mode is selected.
■Multi-View Rear Camera Display Area
1 About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.Models with navigation system
Models without navigation system
Guidelines
BumperCamera Approx. 20 inches (50 cm)
Tailgate Open Range
Approx. 39 inches (1 m)
Approx. 79 inches (2 m)
Approx. 118 inches (3 m)
Wide View Mode
Normal View Mode
Top Down View Mode
QRG
Index
TOC
Page 318 of 363
317
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 318
If a Tire Goes Flat Changing a Flat Tire ......................... 319
Engine Does Not Start Checking the Engine ........................ 325
If the Keyless Access Remote Battery 326
Emergency Engine Stop ................... 327
Jump Starting .................................... 328
Shift Lever Does Not Move .............. 330Overheating
How to Handle Overheating............. 331
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator 333
If the Charging System Indicator
333
If the Malfunction Indicator Lamp 334
If the Brake System Indicator (Red) Comes On ......................................... 335
If the EPS System Indicator Comes On ...... 335
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 336
Fuses Fuse Locations ................................. 337
Inspecting and Changing Fuses ........ 339
Emergency Towing ........................... 340
When You Cannot Open the Tailgate..... 341
QRG
Index
Comes On ................................
Comes On or Blinks ........................
Comes
is Weak .......................................... Comes On .....................................2014 RDX
Page 338 of 363
337Continued
Fuses
Fuse Locations
If any electrical devices are not working,
set the power mode to VEHICLE OFF
(LOCK) and check to see if any applicable
fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Power Tailgate Motor*(40 A)
ABS/VSA FSR20 A
ABS/VSA Motor40 A
E-DPS30 A
Main Fuse120 A
2
ST CUT50 A
Fuse Box Main 1 60 A
Fuse Box Main 260 A
IG Main 50 A
Headlight Washer(30 A)
Sub Fan Motor 30 A Rear Defogger 40 A
Main Fan Motor 30 A Headlight Main 30 A Blower 40 A
3
Driver's Power Seat Sliding 20 A
Driver's Power Seat Reclining20 A
Passenger's Power Seat Sliding20 A
Passenger's Power Seat Reclining20 A
4− −
5STR Diagnosis Fuse7.5 A
6− −
7−−
8− −*1:Models with halogen low beam headlight bulbs
*2:Models with high voltage discharge tube bulbs
9−−
10 − −
11Oil Level7.5 A
12 Fog Lights*(20 A)
13Power Tailgate Closer*(20 A)
14 Hazard 10 A
15IGP215 A
16 IG Coil 15 A
17Stop10 A
18 Horn 10 A
19ACM10 A
20 Right Headlight Low Beam 10 A*1
15 A*2
21MG Clutch7.5 A
22 DBW 15 A
23Left Headlight Low Beam10 A*1
15 A*2
24ACC 10 A
25FI Main(15 A)
26 Trailer (20 A)
27Small20 A
28 Interior Lights 7.5 A
29Back Up10 A
Circuit ProtectedAmps
* Not available on all models
QRG
Index
Handling the Unexpected
TOC
Page 342 of 363
341Continued

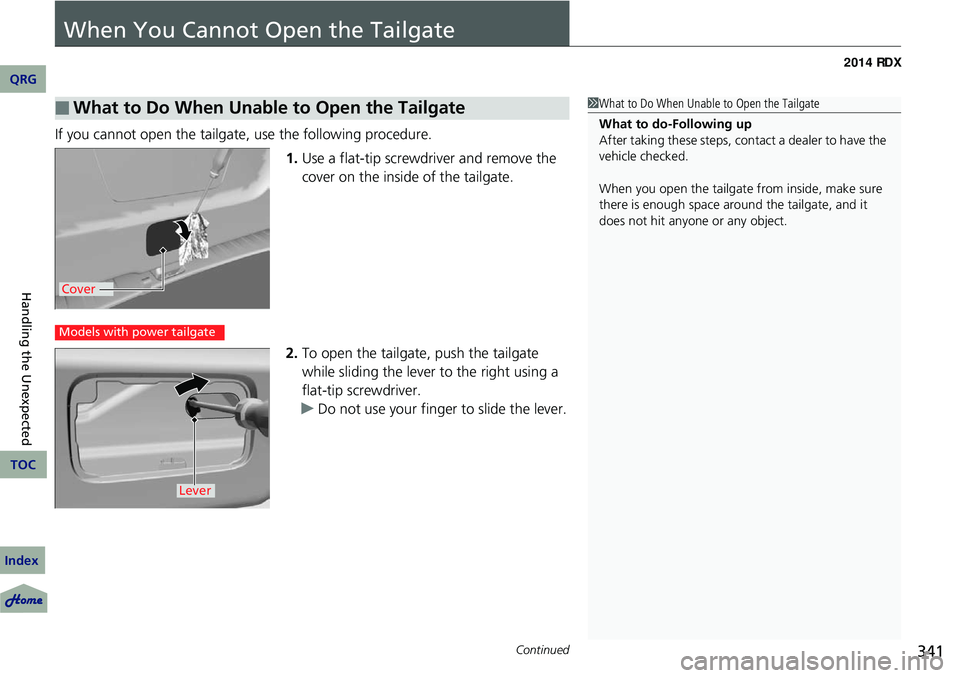

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
2. To open the tailgate, push the tailgate
while sliding the lever to the right using a
flat-tip screwdriver.
u Do not use your finger to slide the lever.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Models with power tailgate
Lever
QRG
Index
Handling the Unexpected
TOC
Page 343 of 363
342
uuWhen You Cannot Open the Tailgate u
Handling the Unexpected

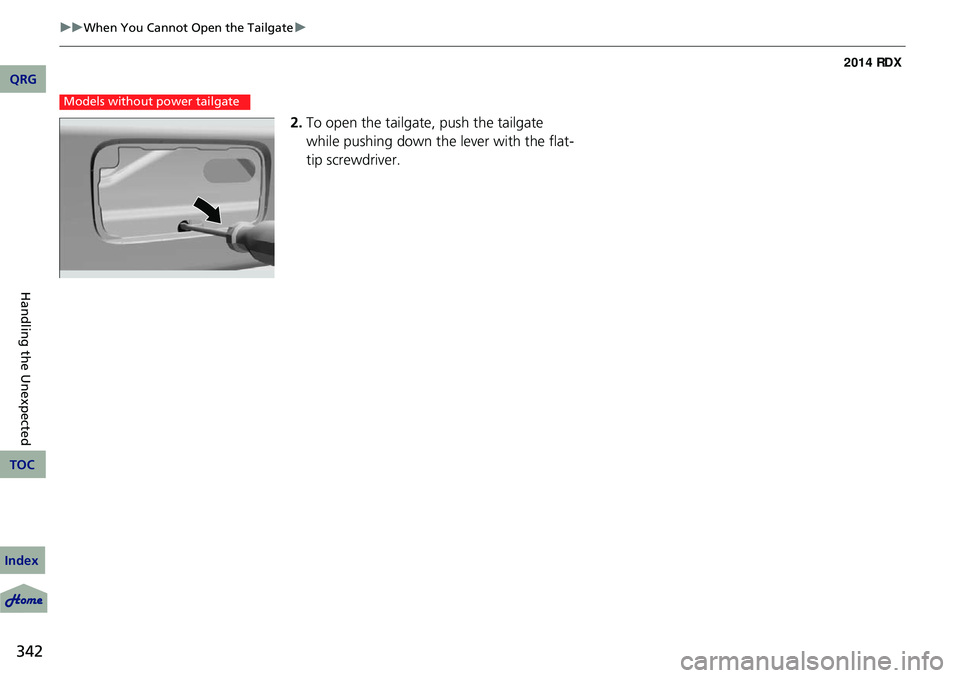

2.To open the tailgat e, push the tailgate
while pushing down the lever with the flat-
tip screwdriver.
Models without power tailgate
QRG
Index
TOC
Page 361 of 363
360
Power Windows ...................................... 115
Tailgate ................................................... 107
Outside Temperature Display .................... 85
Overheating .............................................. 331
Paddle Shifters (Sequential Shift Mode) ......................... 246
Pandora® ................................................... 177
Panic Mode ............................................... 114
Parking ...................................................... 261
Parking Brake ............................................ 257
Parking Brake and Brake System Indicator ..................... 68, 335
Passenger Airbag Off Indicator ................. 49
Passing Indicators ..................................... 122
Power Tailgate .......................................... 109
Power Windows ........................................ 115
Precautions While Driving ........................ 242
Driving Guidelines
for Your Utility Vehicle ........................... 242
Rain ......................................................... 242
Pregnant Women ....................................... 35
Puncture (Tire) .......................................... 319
Radiator ..................................................... 283
Radio (AM/FM) .......................................... 167
Radio (XM ®) .............................................. 169 Radio Data System (RDS)
......................... 168
Range .......................................................... 86
RDS (Radio Data System) ......................... 168
Readiness Codes (Emissions Testing) ....... 349
Rear Defogger/
Heated Door Mirror Button ................... 129
Rear Seats (Folding Down) ...................... 141
Rearview Camera ..................................... 262
Rearview Mirror ....................................... 133
Refueling .................................................. 263
Fuel Gauge................................................ 82
Gasoline .......................................... 263, 344
Low Fuel Indicator ..................................... 71
Regulations ............................... 255, 304, 347
Remote Transmitter ................................... 99
Replacement Bulbs ....................................................... 287
Front Wiper Blade Rubber ....................... 297
Fuses ............................................... 337, 338
Rear Wiper Blade Rubber......................... 299
Tires ........................................................ 307
Reporting Safety Defects ......................... 348
Resetting a Trip Meter ............................... 85
Safe Driving ................................................ 23
Safety Check ............................................... 28
Safety Labels ............................................... 65
Safety Message ........................................... 22
Seat Belts .................................................... 29 Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 59
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 71
Seat Heaters ............................................. 151
Seats .......................................................... 136
Adjusting ................................................ 136
Driver’s Seat Lumbar Support .................. 136
Front Seats.............................................. 136
Rear Seats ............................................... 141
Seat Heaters ........................................... 151
Security System ........................................ 113
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 76
SEL/RESET Button ....................................... 83
Select Lever ........................................ 14, 244
Operation ......................................... 14, 245
Releasing ................................................ 330
Won’t Move ........................................... 330
Selecting a Child Seat ................................ 56
Selector Knob (Audio) ............................. 161
Sequential Shift Mode ............................. 246
Setting the Clock ........................................ 96
Shift Lever .......................................... 14, 244
Shift Lever Position Indicator ............ 70, 245QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
P Q
R
S
Page 362 of 363
361
Shifting (Transmission)............................ 244
Shoulder Anchor ........................................ 33
Side Airbags ............................................... 44
Cutoff System ........................................... 46
Off Indicator ............................................. 46
Side Curtain Airbags .................................. 47
SMS Text Message ............................ 208, 220
Snow Tires ................................................ 309
Spare Tire ......................................... 319, 345
Spark Plugs ............................................... 344
Specifications ........................................... 344
Specified Fuel ................................... 263, 344
Speedometer .............................................. 82
SRS Airbags (Airbags) ................................ 40
Starting the Engine .................................. 240
Does Not Start ........................................ 325
Jump Starting ......................................... 328
Steering Wheel ........................................ 132
Adjusting ................................................ 132
Stopping ................................................... 261
Summer Tires ............................................ 309
Sunglasses Holder .................................... 150
Supplemental Restraint System (SRS) ....... 40
Switches (Around the Steering Wheel) ........ 2, 3, 119
Synchronized Mode ................................. 154
System Message Indicator ......................... 76Tachometer
................................................. 82
Tailgate ..................................................... 107
Unable to Open ....................................... 341
Temperature
Outside Temperature Display ..................... 85
Temperature Gauge ................................... 82
Temperature Sensor ........................... 85, 155
Text Message .................................... 208, 220
Time (Setting) ............................................. 96
Tire Pressure Monitoring System
(TPMS) ..................................................... 253
Indicator ............................................ 74 , 336
Tires ........................................................... 301
Air Pressure ..................................... 302, 345
Checking and Maintaining ....................... 301
Inspection ................................................ 301
Labeling .................................................. 302
Puncture (Flat Tire) ................................... 319
Regulations ............................................. 304
Rotation .................................................. 308
Spare Tire ........................................ 319, 345
Summer .................................................. 309
Tire Chains .............................................. 309
Wear Indicators ....................................... 306
Winter ..................................................... 309
Tools .......................................................... 318
Towing a Trailer ....................................... 233
Equipment and Accessories ..................... 234
Load Limits .............................................. 233 Towing Your Vehicle
................................ 237
Emergency .............................................. 340
TPMS (Tire Pressure Monitoring System) ........ 253
Indicator............................................ 74, 336
Transmission ............................................. 244
Automatic ............................................... 244
Fluid ........................................................ 284
Number................................................... 346
Sequential Shift Mode ............................. 246
Shift Lever Position Indicator.............. 70, 245
Trip Meter ................................................... 85
Troubleshooting ....................................... 317
Blown Fuse...................................... 337, 338
Brake Pedal Vibrates .................................. 18
Buzzer Sounds When Opening Door.......... 19
Emergency Towing .................................. 340
Engine Won’t Start .................................. 325
Noise When Braking .................................. 20
Overheating ............................................ 331
Puncture/Flat Tire .................................... 319
Rear Door Won’t Open...................... 19, 105
Select Lever Won’t Move ......................... 330
Warning Indicators .................................... 68
Turn Signals .............................................. 122
Indicators (Instrument Panel) ..................... 74QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
T
