battery replacement Acura RDX 2016 Owner's Manual

339
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 340
Safety When Performing Maintenance..... 341Parts and Fluids Used in Maintenance Service ........................................... 342
Maintenance Minder
TM..................... 343
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 347Opening the Hood ........................... 348
Recommended Engine Oil ................ 349
Oil Check ......................................... 350
Adding Engine Oil ............................ 351
Changing the Engine Oil and Oil Filter ..... 352
Engine Coolant ................................ 354
Transmission Fluid ............................ 356
Brake Fluid ....................................... 357
Refilling Window Washer Fluid......... 358
Replacing Light Bulbs ....................... 359
Checking and Maintaining Wiper Blades.... 366Checking and Maintaining Tires
Checking Tires ................................. 370
Tire and Loading Information Label ...... 371Tire Labeling .................................... 371DOT Tire Quality Grading (U.S. Vehicles)....... 373Wear Indicators................................ 375
Tire Service Life ................................ 375 Tire and Wheel Replacement ........... 376
Tire Rotation .................................... 377
Winter Tires ..................................... 378
Battery ............................................... 379
Remote Transmitter Care Replacing the Button Battery ........... 380
Climate Control System Maintenance..... 382Cleaning
Interior Care .................................... 383
Exterior Care.................................... 385

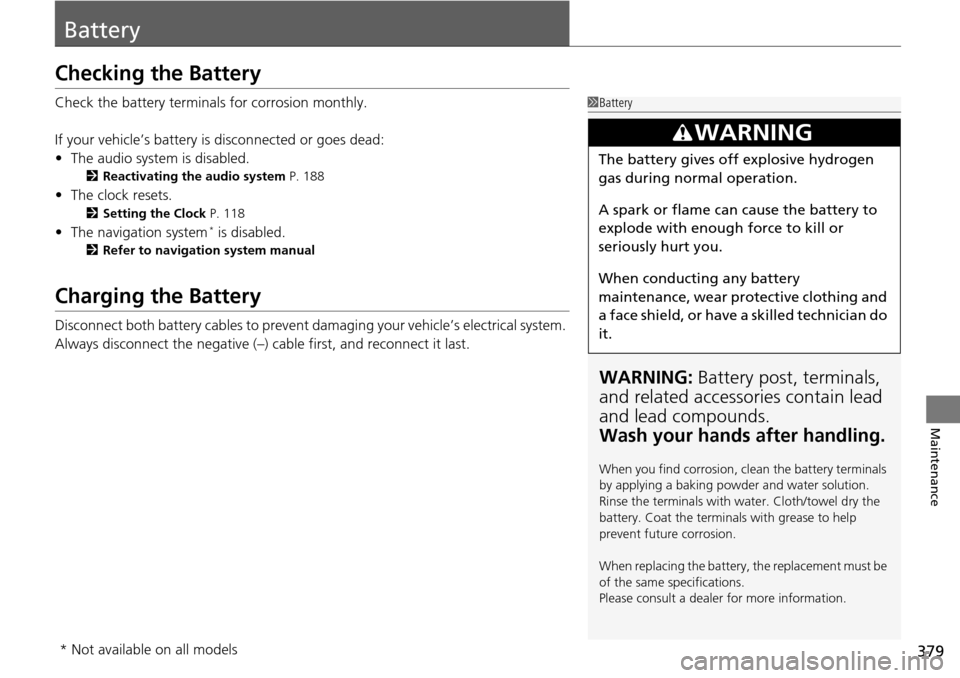

379
Maintenance
Battery
Checking the Battery
Check the battery terminals for corrosion monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 188
•The clock resets.
2 Setting the Clock P. 118
•The navigation system* is disabled.
2 Refer to navigation system manual
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Rinse the terminals with water. Cloth/towel dry the
battery. Coat the terminals with grease to help
prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models

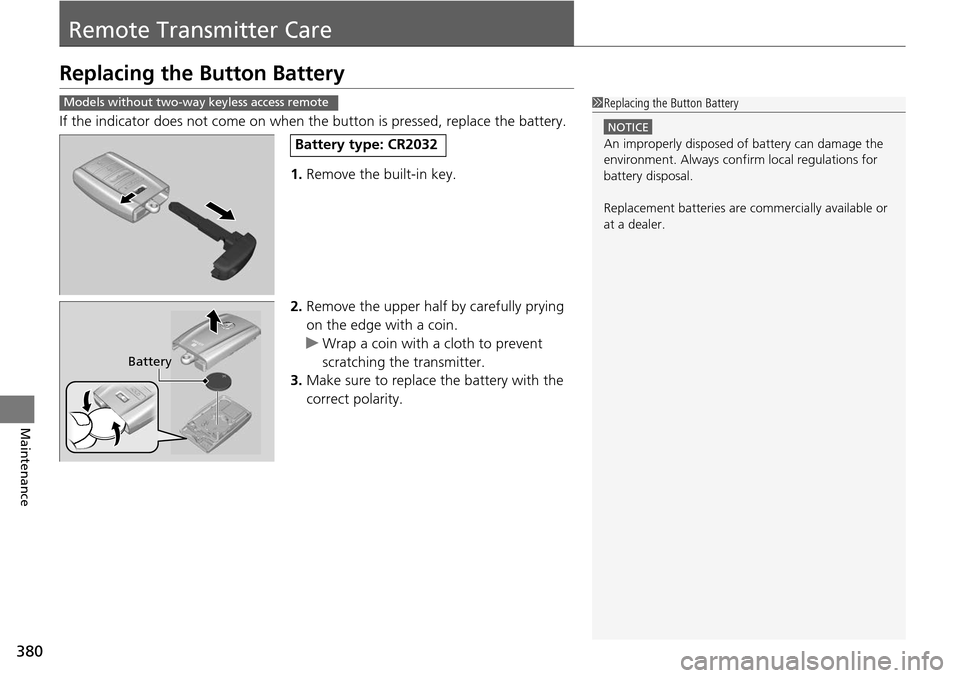

380
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when th e button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half by carefully prying
on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
3. Make sure to replace the battery with the
correct polarity.
1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Models without two-way keyless access remote
Battery type: CR2032
Battery

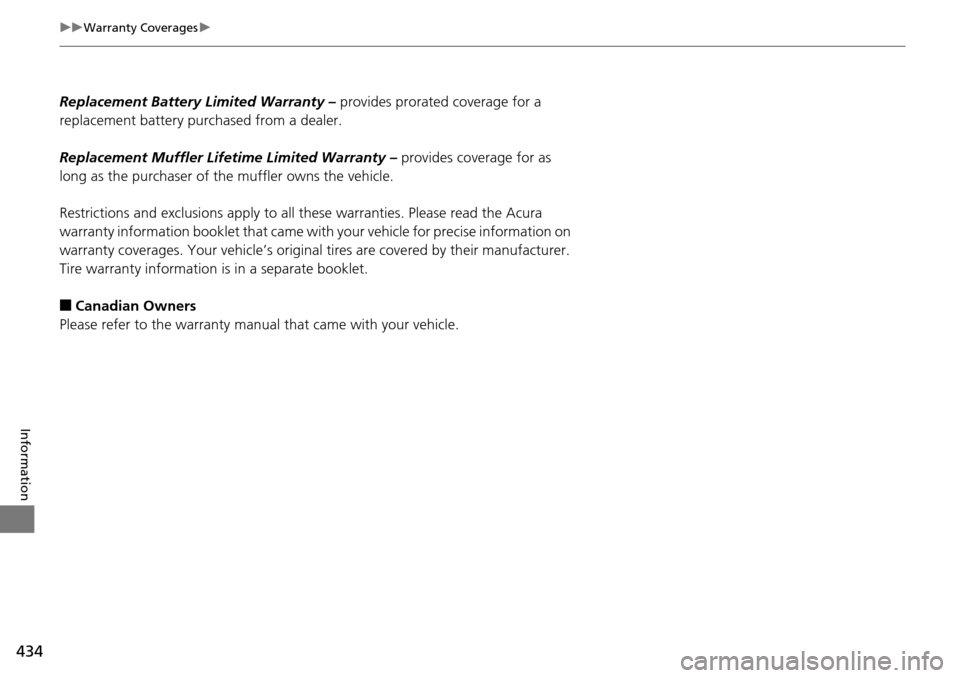

434
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.

438
Index
Bluetooth® HandsFreeLink ®..................... 224
Booster Seats (For Children) ....................... 61
Brake System ............................................. 314
Anti-lock Brake System (ABS) ................... 316
Brake Assist System ................................. 317
Fluid ........................................................ 357
Foot Brake ............................................... 315
Indicator ............................................ 66, 418
Parking Brake .......................................... 314
Brightness Control (Instrument Panel) .... 154
BSI (Blind spot information) System ........ 307
Bulb Replacement ..................................... 359
Back-Up Light and Taillight ...................... 364
Brake Light/Taillight/Rear Side Marker Light and
Rear Turn Signal Light Bulbs ................... 362
Fog Lights ................................................ 359
Front Turn Signal Light/Parking Light/
Daytime Running Light and
Front Side Marker Light Bulbs ................ 361
Headlights ............................................... 359
High-Mount Brake Light .......................... 365
Rear License Plate Light............................ 365
Side Turn Signal Light /Emergency Indicator
Light ...................................................... 360
Bulb Specifications .................................... 426
C
Carbon Monoxide Gas ................................ 62
Cargo Hook ............................................... 175
Carrying Cargo .................................. 257, 259 CD Player
................................................... 202
Certification Label .................................... 428
Changing Bulbs ........................................ 359
Charging System Indicator ................. 68, 416
Child Safety ................................................. 50
Childproof Door Locks............................. 129
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Childproof Door Locks ............................. 129
Cleaning the Exterior ............................... 385
Cleaning the Interior ................................ 383
Client Service Information ....................... 436
Climate Control System ............................ 180
Changing the Mode ................................ 180
Defrosting the Windshield and
Windows ............................................... 181
Dust and Pollen Filter............................... 382
Recirculation/Fresh Air Mode ................... 180
Sensors ................................................... 183
Synchronized Mode................................. 182
Using Automatic Climate Control ............ 180
Clock .......................................................... 118
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 318 Coat Hook
................................................ 175
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 318
Compact Spare Tire .......................... 391, 427
Compass .................................................... 253
Console Compartment ............................. 172
Controls .................................................... 117
Coolant (Engine) ...................................... 354
Adding to the Radiator ........................... 355
Adding to the Reserve Tank .................... 354
Overheating ............................................ 414
Creeping (Automatic Transmission) ........ 274
Cross Traffic Monitor ............................... 331
Cruise Control .......................................... 279
Indicator ................................................... 76
Cup Holders .............................................. 173
Customized Features ....................... 100, 106
D
Daytime Running Lights .......................... 150
Dead Battery ............................................ 411
Defrosting the Windshield and Windows ................................................. 181
Detachable Anchor .................................... 34
Devices that Emit Radio Waves ............... 429
Dimming
Headlights .............................................. 147
Rearview Mirror ...................................... 159
Dipstick (Engine Oil) ................................ 350
Directional Signals (Turn Signal) ............. 147

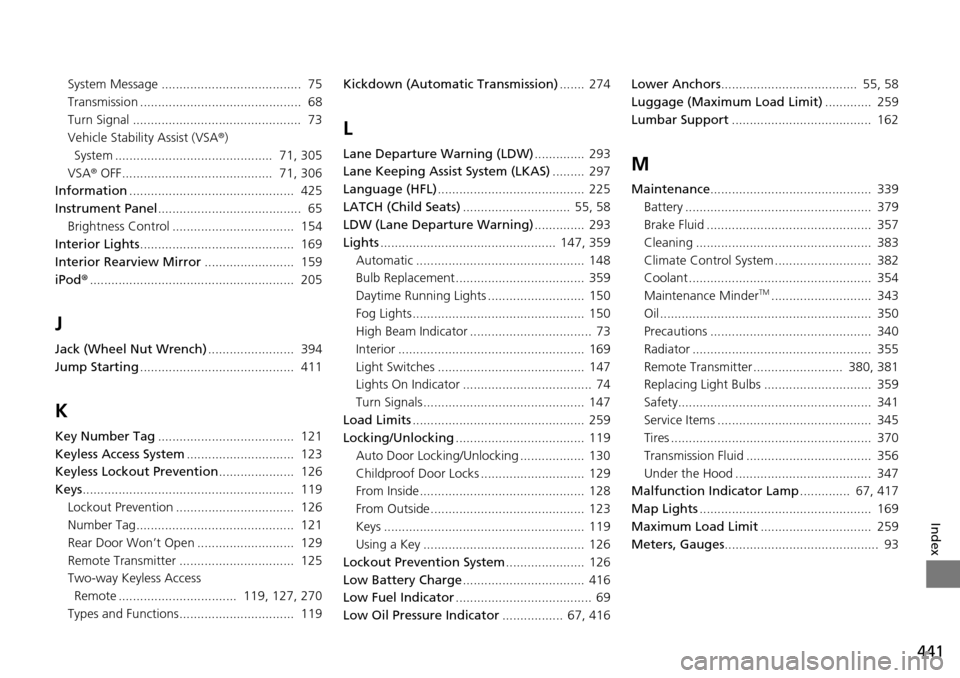

441
Index
System Message ....................................... 75
Transmission ............................................. 68
Turn Signal ............................................... 73
Vehicle Stability Assist (VSA®)
System ............................................ 71, 305
VSA ® OFF.......................................... 71, 306
Information .............................................. 425
Instrument Panel ........................................ 65
Brightness Control .................................. 154
Interior Lights ........................................... 169
Interior Rearview Mirror ......................... 159
iPod ®......................................................... 205
J
Jack (Wheel Nut Wrench) ........................ 394
Jump Starting ........................................... 411
K
Key Number Tag ...................................... 121
Keyless Access System .............................. 123
Keyless Lockout Prevention ..................... 126
Keys ........................................................... 119
Lockout Prevention ................................. 126
Number Tag............................................ 121
Rear Door Won’t Open ........................... 129
Remote Transmitter ................................ 125
Two-way Keyless Access
Remote ................................. 119, 127, 270
Types and Functions................................ 119 Kickdown (Automatic Transmission)
....... 274
L
Lane Departure Warning (LDW).............. 293
Lane Keeping Assist System (LKAS) ......... 297
Language (HFL) ......................................... 225
LATCH (Child Seats) .............................. 55, 58
LDW (Lane Departure Warning) .............. 293
Lights ................................................. 147, 359
Automatic ............................................... 148
Bulb Replacement .................................... 359
Daytime Running Lights ........................... 150
Fog Lights ................................................ 150
High Beam Indicator .................................. 73
Interior .................................................... 169
Light Switches ......................................... 147
Lights On Indicator .................................... 74
Turn Signals ............................................. 147
Load Limits ................................................ 259
Locking/Unlocking .................................... 119
Auto Door Locking/Unlocking .................. 130
Childproof Door Locks ............................. 129
From Inside .............................................. 128
From Outside ........................................... 123
Keys ........................................................ 119
Using a Key ............................................. 126
Lockout Prevention System ...................... 126
Low Battery Charge .................................. 416
Low Fuel Indicator ...................................... 69
Low Oil Pressure Indicator ................. 67, 416Lower Anchors
...................................... 55, 58
Luggage (Maximum Load Limit) ............. 259
Lumbar Support ....................................... 162M
Maintenance............................................. 339
Battery .................................................... 379
Brake Fluid .............................................. 357
Cleaning ................................................. 383
Climate Control System ........................... 382
Coolant ................................................... 354
Maintenance Minder
TM............................ 343
Oil ........................................................... 350
Precautions ............................................. 340
Radiator .................................................. 355
Remote Transmitter ......................... 380, 381
Replacing Light Bulbs .............................. 359
Safety...................................................... 341
Service Items ........................................... 345
Tires ........................................................ 370
Transmission Fluid ................................... 356
Under the Hood ...................................... 347
Malfunction Indicator Lamp .............. 67, 417
Map Lights ................................................ 169
Maximum Load Limit ............................... 259
Meters, Gauges ........................................... 93

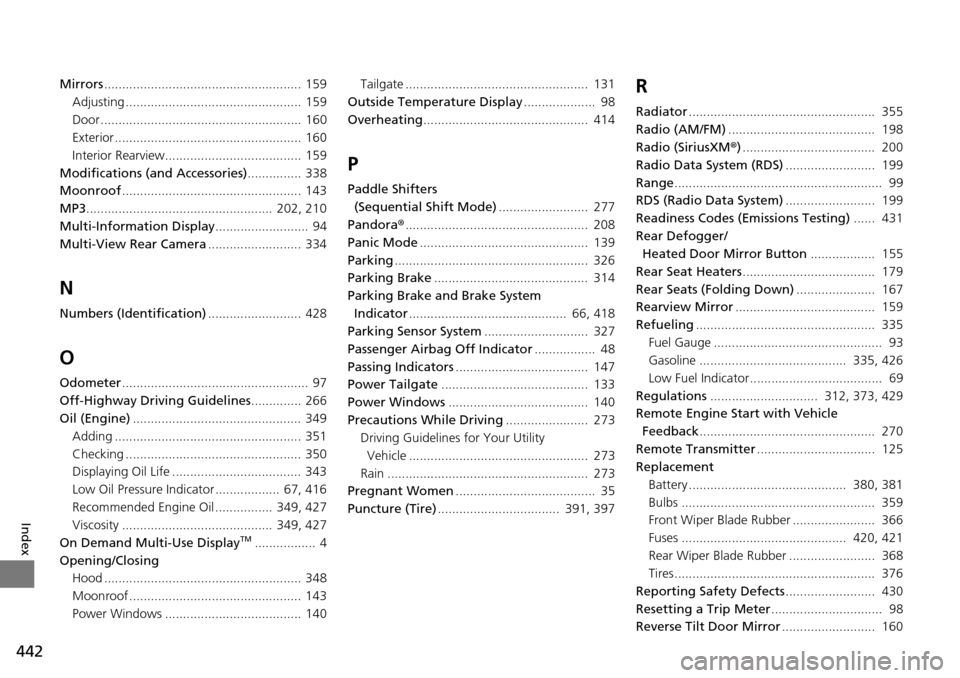

442
Index
Mirrors....................................................... 159
Adjusting ................................................. 159
Door ........................................................ 160
Exterior .................................................... 160
Interior Rearview...................................... 159
Modifications (and Accessories) ............... 338
Moonroof .................................................. 143
MP3 .................................................... 202, 210
Multi-Information Display .......................... 94
Multi-View Rear Camera .......................... 334
N
Numbers (Identification).......................... 428
O
Odometer.................................................... 97
Off-Highway Driving Guidelines .............. 266
Oil (Engine) ............................................... 349
Adding .................................................... 351
Checking ................................................. 350
Displaying Oil Life .................................... 343
Low Oil Pressure Indicator .................. 67, 416
Recommended Engine Oil ................ 349, 427
Viscosity .......................................... 349, 427
On Demand Multi-Use Display
TM................. 4
Opening/Closing Hood ....................................................... 348
Moonroof ................................................ 143
Power Windows ...................................... 140 Tailgate ................................................... 131
Outside Temperature Display .................... 98
Overheating .............................................. 414
P
Paddle Shifters
(Sequential Shift Mode) ......................... 277
Pandora® ................................................... 208
Panic Mode ............................................... 139
Parking ...................................................... 326
Parking Brake ........................................... 314
Parking Brake and Brake System
Indicator ............................................ 66, 418
Parking Sensor System ............................. 327
Passenger Airbag Off Indicator ................. 48
Passing Indicators ..................................... 147
Power Tailgate ......................................... 133
Power Windows ....................................... 140
Precautions While Driving ....................... 273
Driving Guidelines for Your Utility
Vehicle .................................................. 273
Rain ........................................................ 273
Pregnant Women ....................................... 35
Puncture (Tire) .................................. 391, 397
R
Radiator.................................................... 355
Radio (AM/FM) ......................................... 198
Radio (SiriusXM ®)..................................... 200
Radio Data System (RDS) ......................... 199
Range .......................................................... 99
RDS (Radio Data System) ......................... 199
Readiness Codes (Emissions Testing) ...... 431
Rear Defogger/ Heated Door Mirror Button .................. 155
Rear Seat Heaters ..................................... 179
Rear Seats (Folding Down) ...................... 167
Rearview Mirror ....................................... 159
Refueling .................................................. 335
Fuel Gauge ............................................... 93
Gasoline ......................................... 335, 426
Low Fuel Indicator ..................................... 69
Regulations .............................. 312, 373, 429
Remote Engine Start with Vehicle
Feedback ................................................. 270
Remote Transmitter ................................. 125
Replacement
Battery ............................................ 380, 381
Bulbs ...................................................... 359
Front Wiper Blade Rubber ....................... 366
Fuses .............................................. 420, 421
Rear Wiper Blade Rubber ........................ 368
Tires........................................................ 376
Reporting Safety Defects ......................... 430
Resetting a Trip Meter ............................... 98
Reverse Tilt Door Mirror .......................... 160
