windshield wipers Acura RDX 2016 Owner's Manual

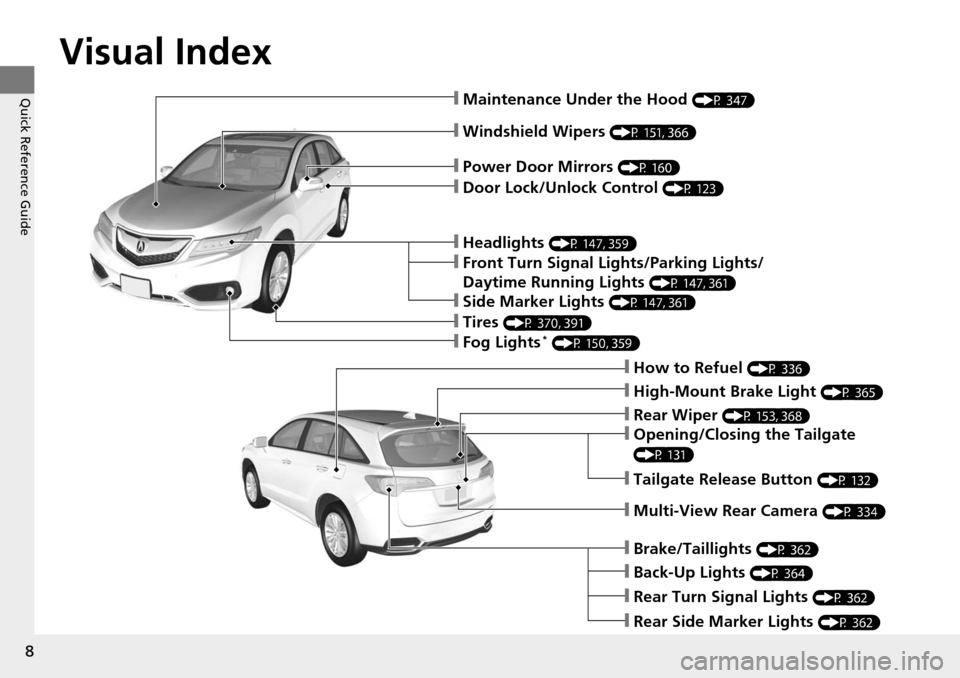

Visual Index
8
Quick Reference Guide
❙Windshield Wipers (P 151, 366)
❙How to Refuel (P 336)
❙High-Mount Brake Light (P 365)
❙Opening/Closing the Tailgate
(P 131)
❙Rear Wiper (P 153, 368)
❙Back-Up Lights (P 364)
❙Brake/Taillights (P 362)
❙Rear Turn Signal Lights (P 362)
❙Rear Side Marker Lights (P 362)
❙Power Door Mirrors (P 160)
❙Maintenance Under the Hood (P 347)
❙Fog Lights* (P 150, 359)
❙Multi-View Rear Camera (P 334)
❙Tailgate Release Button (P 132)
❙Headlights (P 147, 359)
❙Front Turn Signal Lights/Parking Lights/
Daytime Running Lights
(P 147, 361)
❙Side Marker Lights (P 147, 361)
❙Tires (P 370, 391)
❙Door Lock/Unlock Control (P 123)

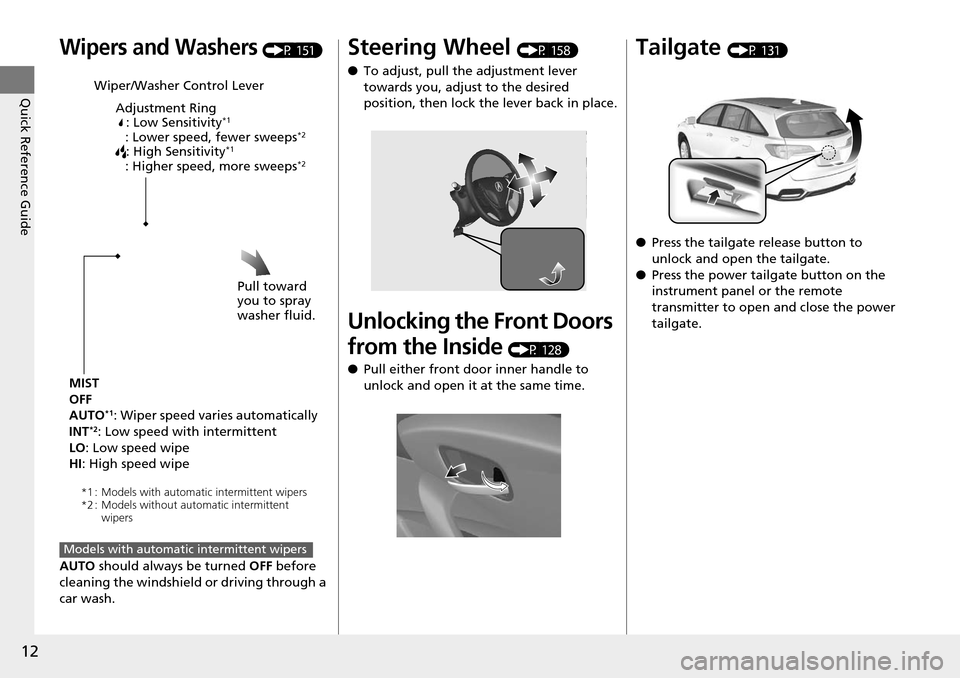

12
Quick Reference Guide
Wipers and Washers (P 151)
AUTO should always be turned OFF before
cleaning the windshield or driving through a
car wash.
Wiper/Washer Control Lever
Adjustment Ring: Low Sensitivity
*1
: Lower speed, fewer sweeps*2
: High Sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
*1 : Models with automatic intermittent wipers
*2 : Models without automatic intermittent
wipers
Models with automatic intermittent wipers
Steering Wheel (P 158)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front Doors
from the Inside
(P 128)
● Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P 131)
● Press the tailgate release button to
unlock and open the tailgate.
● Press the power tailgate button on the
instrument panel or the remote
transmitter to open and close the power
tailgate.

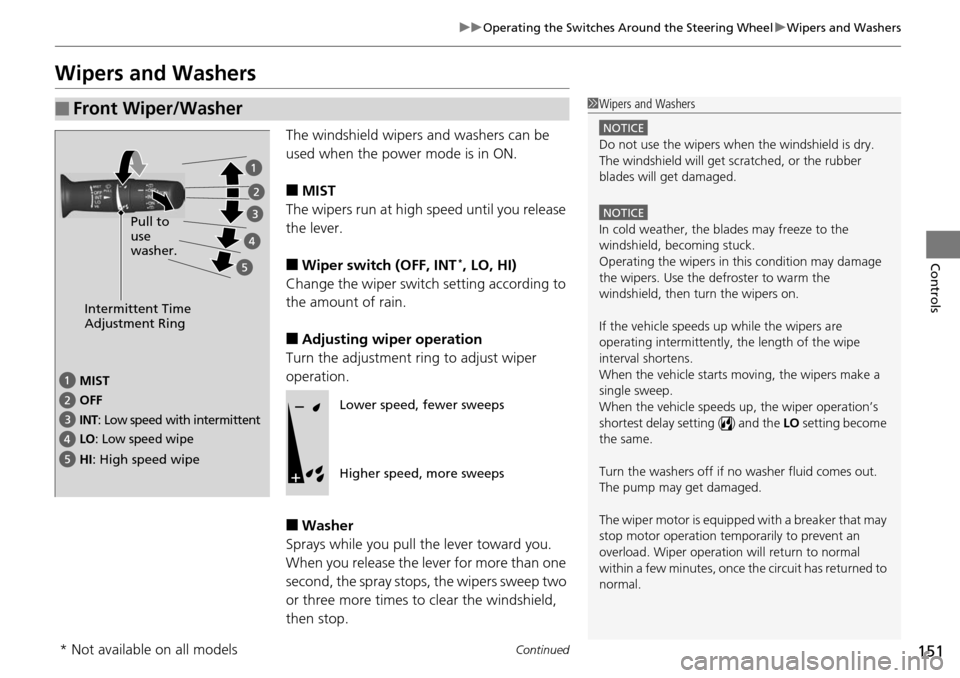

151
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■Adjusting wiper operation
Turn the adjustment ring to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Front Wiper/Washer1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle starts moving, the wipers make a
single sweep.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor is equipped with a breaker that may
stop motor operation temp orarily to prevent an
overload. Wiper operation will return to normal
within a few minutes, once the circuit has returned to
normal.
Intermittent Time
Adjustment Ring
MIST
INT: Low speed with intermittent
OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models

uuOperating the Switches Around the Steering Wheel uWipers and Washers
152
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stop in
accordance with the am ount of rainfall the
rainfall sensor detects.
■Auto sensitivity adjustment
When in AUTO, you can also adjust the
rainfall sensor sensitivity using the intermittent
time adjustment ring.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
If the wiper stops operating due to any obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF (LOCK), then
remove the obstacle.
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
Always ensure the wiper lever is in the OFF position
before entering a car wash to prevent severe damage
to the windshiel d wiper system.
If the wiper lever is in AUTO, and the power mode is
in ON, the rainfall sensor may respond to your hand
or car wash liquids, and the wipers may operate
automatically.
Rainfall Sensor
Low sensitivity:
Lower speed, fewer sweeps
High sensitivity:
Higher speed, more sweeps
* Not available on all models

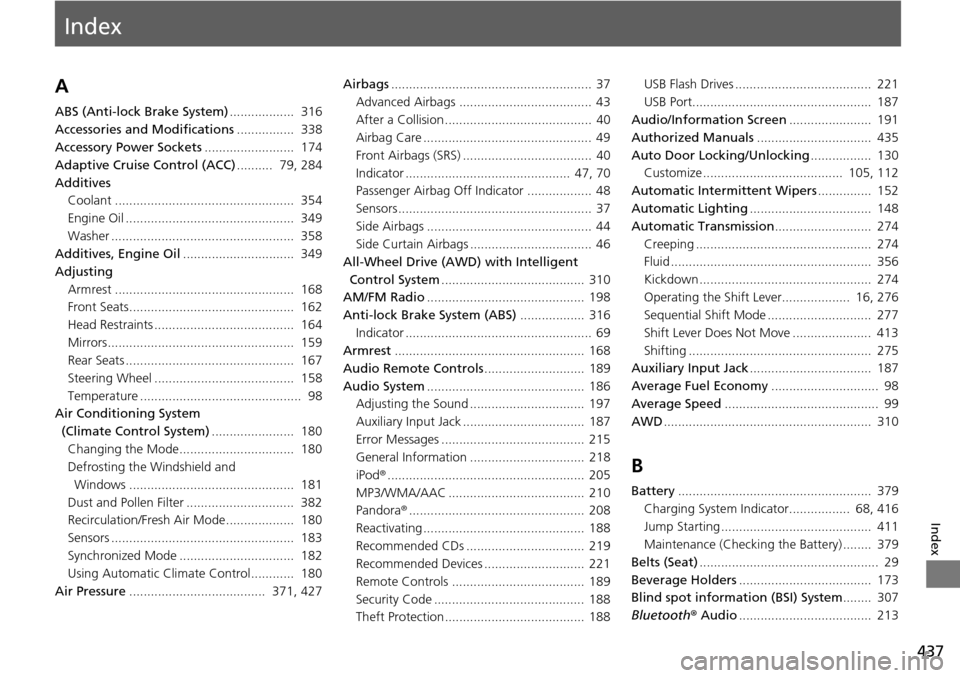

Index
437
Index
Index
A
ABS (Anti-lock Brake System).................. 316
Accessories and Modifications ................ 338
Accessory Power Sockets ......................... 174
Adaptive Cruise Control (ACC) .......... 79, 284
Additives Coolant .................................................. 354
Engine Oil ............................................... 349
Washer ................................................... 358
Additives, Engine Oil ............................... 349
Adjusting
Armrest .................................................. 168
Front Seats.............................................. 162
Head Restraints ....................................... 164
Mirrors.................................................... 159
Rear Seats ............................................... 167
Steering Wheel ....................................... 158
Temperature ............................................. 98
Air Conditioning System
(Climate Control System) ....................... 180
Changing the Mode................................ 180
Defrosting the Windshield and
Windows .............................................. 181
Dust and Pollen Filter .............................. 382
Recirculation/Fresh Air Mode................... 180
Sensors ................................................... 183
Synchronized Mode ................................ 182
Using Automatic Climate Control............ 180
Air Pressure ...................................... 371, 427 Airbags
........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ......................................... 40
Airbag Care ............................................... 49
Front Airbags (SRS) .................................... 40
Indicator .............................................. 47, 70
Passenger Airbag Off Indicator .................. 48
Sensors ...................................................... 37
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 46
All-Wheel Drive (AWD) with Intelligent
Control System ........................................ 310
AM/FM Radio ............................................ 198
Anti-lock Brake System (ABS) .................. 316
Indicator .................................................... 69
Armrest ..................................................... 168
Audio Remote Controls ............................ 189
Audio System ............................................ 186
Adjusting the Sound ................................ 197
Auxiliary Input Jack .................................. 187
Error Messages ........................................ 215
General Information ................................ 218
iPod ®....................................................... 205
MP3/WMA/AAC ...................................... 210
Pandora ®................................................. 208
Reactivating ............................................. 188
Recommended CDs ................................. 219
Recommended Devices ............................ 221
Remote Controls ..................................... 189
Security Code .......................................... 188
Theft Protection ....................................... 188 USB Flash Drives ...................................... 221
USB Port.................................................. 187
Audio/Information Screen ....................... 191
Authorized Manuals ................................ 435
Auto Door Locking/Unlocking ................. 130
Customize ....................................... 105, 112
Automatic Intermittent Wipers ............... 152
Automatic Lighting .................................. 148
Automatic Transmission ........................... 274
Creeping ................................................. 274
Fluid ........................................................ 356
Kickdown ................................................ 274
Operating the Shift Lever................... 16, 276
Sequential Shift Mode ............................. 277
Shift Lever Does Not Move ...................... 413
Shifting ................................................... 275
Auxiliary Input Jack .................................. 187
Average Fuel Economy .............................. 98
Average Speed ........................................... 99
AWD .......................................................... 310
B
Battery ...................................................... 379
Charging System Indicator................. 68, 416
Jump Starting .......................................... 411
Maintenance (Checki ng the Battery) ........ 379
Belts (Seat) .................................................. 29
Beverage Holders ..................................... 173
Blind spot information (BSI) System ........ 307
Bluetooth ® Audio ..................................... 213

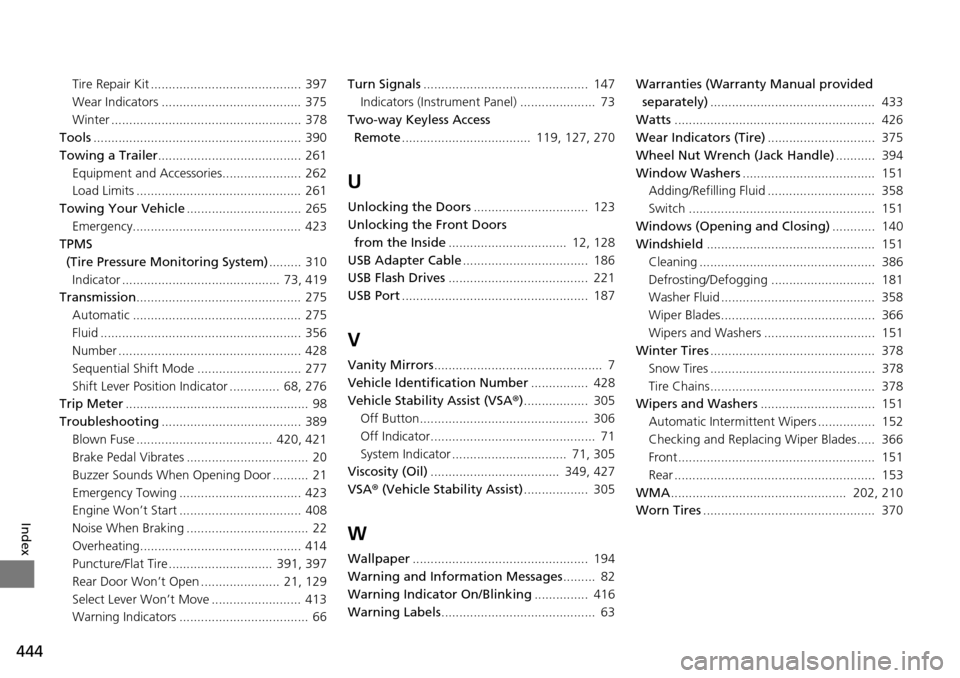

444
Index
Tire Repair Kit .......................................... 397
Wear Indicators ....................................... 375
Winter ..................................................... 378
Tools .......................................................... 390
Towing a Trailer ........................................ 261
Equipment and Accessories...................... 262
Load Limits .............................................. 261
Towing Your Vehicle ................................ 265
Emergency............................................... 423
TPMS (Tire Pressure Monitoring System) ......... 310
Indicator ............................................ 73, 419
Transmission .............................................. 275
Automatic ............................................... 275
Fluid ........................................................ 356
Number ................................................... 428
Sequential Shift Mode ............................. 277
Shift Lever Position Indicator .............. 68, 276
Trip Meter ................................................... 98
Troubleshooting ....................................... 389
Blown Fuse ...................................... 420, 421
Brake Pedal Vibrates .................................. 20
Buzzer Sounds When Opening Door .......... 21
Emergency Towing .................................. 423
Engine Won’t Start .................................. 408
Noise When Braking .................................. 22
Overheating............................................. 414
Puncture/Flat Tire ............................. 391, 397
Rear Door Won’t Open ...................... 21, 129
Select Lever Won’t Move ......................... 413
Warning Indicators .................................... 66 Turn Signals
.............................................. 147
Indicators (Instrument Panel) ..................... 73
Two-way Keyless Access Remote .................................... 119, 127, 270
U
Unlocking the Doors ................................ 123
Unlocking the Front Doors from the Inside ................................. 12, 128
USB Adapter Cable ................................... 186
USB Flash Drives ....................................... 221
USB Port .................................................... 187
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 428
Vehicle Stability Assist (VSA ®).................. 305
Off Button............................................... 306
Off Indicator.............................................. 71
System Indicator ................................ 71, 305
Viscosity (Oil) .................................... 349, 427
VSA ® (Vehicle Stability Assist) .................. 305
W
Wallpaper................................................. 194
Warning and Information Messages ......... 82
Warning Indicator On/Blinking ............... 416
Warning Labels ........................................... 63 Warranties (Warranty Manual provided
separately) .............................................. 433
Watts ........................................................ 426
Wear Indicators (Tire) .............................. 375
Wheel Nut Wrench (Jack Handle) ........... 394
Window Washers ..................................... 151
Adding/Refilling Fluid .............................. 358
Switch .................................................... 151
Windows (Opening and Closing) ............ 140
Windshield ............................................... 151
Cleaning ................................................. 386
Defrosting/Defogging ............................. 181
Washer Fluid ........................................... 358
Wiper Blades........................................... 366
Wipers and Washers ............................... 151
Winter Tires .............................................. 378
Snow Tires .............................................. 378
Tire Chains.............................................. 378
Wipers and Washers ................................ 151
Automatic Intermittent Wipers ................ 152
Checking and Replacing Wiper Blades..... 366
Front....................................................... 151
Rear ........................................................ 153
WMA ................................................. 202, 210
Worn Tires ................................................ 370
