bluetooth Acura RDX 2017 Navigation Manual

uuBluetooth ® HandsFreeLink ®u Pairing a Phone
258
Bluetooth ® HandsFreeLink ®
HSETTINGS buttonuSystem Settings uEdit Pairing Code
Rotate to select Fixed or
Random . Press .
■Changing the Pairing Code1
Changing the Pairing Code
The pairing code may be si x or four digits depending
on your phone.
The default pair ing code is 0000 until you change the
setting.
To create your own, select Fixed, and delete the
current code, then enter a new one.
For a randomly generated pa iring code each time you
pair a phone, select Random .
16 ACURA RDX NAVI-31TX48300.book 258 ページ ２０１５年８月５日　水曜日　午後４時１２分

Continued259
uuBluetooth ® HandsFreeLink ®u Pairing a Phone
Bluetooth ® HandsFreeLink ®
HSETTINGS button uPhone Settings uBluetooth Device List
1. Rotate to select a paired
phone you want to replace. Press
.
2. Rotate to select Replace This
Device . Press .
3. HFL enters the pairing process and
searches a new phone.
u Follow the prompts to pair a
new phone.
4. You will receive a notification on
the screen if pairing is successful.
■Changing the Currently Paired Phone1
Changing the Currently Paired Phone
The replaced phone will keep the same speed dial
entries, and security PIN information from the
previously paired phone.
16 ACURA RDX NAVI-31TX48300.book 259 ページ ２０１５年８月５日　水曜日　午後４時１２分

260
uuBluetooth ® HandsFreeLink ®u Pairing a Phone
Bluetooth ® HandsFreeLink ®
HSETTINGS buttonuPhone Settings uBluetooth Device List
1. Rotate to select a paired
phone you want to replace. Press
.
2. Rotate to select Delete This
Device . Press .
3. You will receive a confirmation
message on the screen. Rotate
to select Yes . Press .
4. You will receive a notification on
the screen if deletion is successful.
■Deleting a Paired Phone
16 ACURA RDX NAVI-31TX48300.book 260 ページ ２０１５年８月５日　水曜日　午後４時１２分

261
uuBluetooth ® HandsFreeLink® uImporting Phonebook Data
Bluetooth ® HandsFreeLink ®

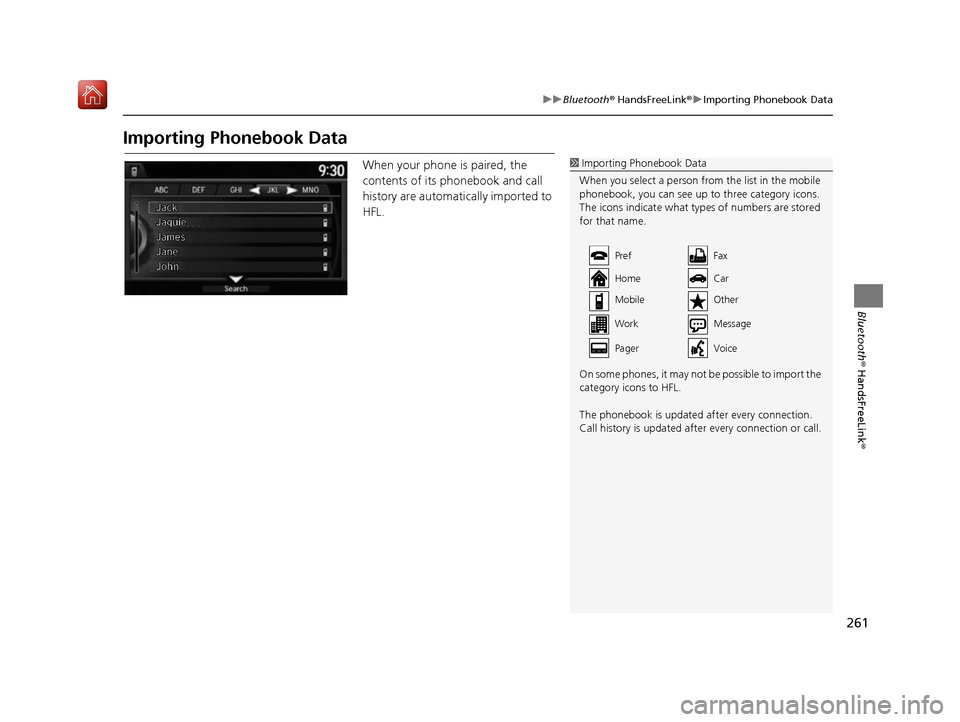

Importing Phonebook Data
When your phone is paired, the
contents of its phonebook and call
history are automatically imported to
HFL.1Importing Phonebook Data
When you select a person from the list in the mobile
phonebook, you can see up to three category icons.
The icons indicate what types of numbers are stored
for that name.
On some phones, it may not be possible to import the
category icons to HFL.
The phonebook is updated af ter every connection.
Call history is updated after every connection or call.
Pref
Home
Mobile
WorkFax
Car
Other
Pager
Message
Voice
16 ACURA RDX NAVI-31TX48300.book 261 ページ ２０１５年８月５日　水曜日　午後４時１２分

262
uuBluetooth ® HandsFreeLink ®u Setting Up Speed Dialing
Bluetooth ® HandsFreeLink ®
Setting Up Speed Dialing
HMENU button (on Phone screen) uSpeed Dial
Up to 20 speed dial numbers can be stored per phone. 1.Rotate to select New Entry.
Press .
2. Rotate to select a number
entry method. Press .
The following options are available:
• Import from Call History : Select a number from the call history.
• Manual Input : Input the number manually.
• Import from Phonebook : Select a number from the linked mobile phone's
imported phonebook.1 Setting Up Speed Dialing
When a voice tag is stored, press the (Talk)
button to call the number using the voice tag. Say
”Call “ and the voice tag name.
Voice tags allow you to call speed dial entries from
the Voice Portal screen or Phone call screen by
saying the voice tag name.
16 ACURA RDX NAVI-31TX48300.book 262 ページ ２０１５年８月５日　水曜日　午後４時１２分

Continued263
uuBluetooth ® HandsFreeLink ®u Setting Up Speed Dialing
Bluetooth ® HandsFreeLink ®
HSETTINGS button uPhone Settings uEdit Speed Dial
1. Select an existing speed dial entry.
2. From the pop-up menu, rotate
to select Edit. Press .
3. Rotate to select Voice Tag.
Press .
4. From the pop-up menu, rotate
to select Record. Press .
5. Press .
u Using the (Talk) button,
follow the prompt to enter a
voice tag.
■Registering a Voice Tag to a Speed Dial Entry1
Registering a Voice Tag to a Speed Dial Entry
Avoid using duplicate voice tags.
Avoid using ”home “ as a voice tag.
It is easier for HFL to re cognize a longer name. For
example, use ” John Smith“ instead of ” John.“
16 ACURA RDX NAVI-31TX48300.book 263 ページ ２０１５年８月５日　水曜日　午後４時１２分

264
uuBluetooth ® HandsFreeLink ®u Setting Up Speed Dialing
Bluetooth ® HandsFreeLink ®
■To delete a voice tag
1.Select an existing speed dial entry.
2. From the pop-up menu, rotate
to select Edit . Press .
3. Rotate to select Voice Tag.
Press .
4. From the pop-up menu, rotate
to select Clear . Press .
5. You will receive a confirmation
message on the screen. Rotate
to select Yes . Press .
■ To delete a speed dial
1.Select an existing speed dial entry.
2. From the pop-up menu, rotate
to select Delete . Press .
3. You will receive a confirmation
message on the screen. Rotate
to select Yes . Press .
16 ACURA RDX NAVI-31TX48300.book 264 ページ ２０１５年８月５日　水曜日　午後４時１２分

Continued265
uuBluetooth ® HandsFreeLink ®u Setting Up Speed Dialing
Bluetooth ® HandsFreeLink ®
You can preset five previously stored speed dial entries, and make a call from one of
the preset numbers, or call history when the phone is paired and connected to the
vehicle‘s Bluetooth ® HandsFreeLink ® (HFL) system.
2 Setting Up Speed Dialing P. 262
■To preset a speed dial
1.Select Shortcuts .
2. Select Phone .
3. Select Speed Dial .
4. Select Edit or No Entry .
u If you select No Entry, go to
step 6.
5. Select Add and select a preset
number you want to store as a
shortcut.
u Five presets appear. Select a No
Entry preset or an existing
preset.
u The screen changes to a list of
previously stor ed speed dial
entries.
■ Setting Phone Shortcuts1
Setting Phone Shortcuts
Dial icon
You can make a call using the keyboard on the On
Demand Multi-Use Display
TM to input numbers.
2 Entering a Phone Number P. 280
16 ACURA RDX NAVI-31TX48300.book 265 ページ ２０１５年８月５日　水曜日　午後４時１２分

266
uuBluetooth ® HandsFreeLink ®u Setting Up Speed Dialing
Bluetooth ® HandsFreeLink ®
6.Select a phone number you want
to store as a shortcut. Select OK
and press .
■ To make a call from a speed dial entry
1.Select Shortcuts .
2. Select Phone .
3. Select Speed Dial .
4. Select a preset number.
u Dialing starts automatically.
16 ACURA RDX NAVI-31TX48300.book 266 ページ ２０１５年８月５日　水曜日　午後４時１２分

267
uuBluetooth ® HandsFreeLink ®u Setting Up Speed Dialing
Bluetooth ® HandsFreeLink ®
■To delete a speed dial
1.Select Shortcuts .
2. Select Phone .
3. Select Speed Dial .
4. Select Edit.
5. Select Delete .
6. Select the preset number with the
phone number you want to
delete.
■ To make a call from call history
1.Select Shortcuts .
2. Select Phone .
3. Select Call History .
4. Select a phone number.
u Dialing starts automatically.
1To make a call from call history
The call history displays the last six dialed, received, or
missed calls.
16 ACURA RDX NAVI-31TX48300.book 267 ページ ２０１５年８月５日　水曜日　午後４時１２分
