TPMS Acura RDX 2017 User Guide

393
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 394
If a Tire Goes Flat Changing a Flat Tire
*....................... 395
Temporarily Repair ing a Flat Tire*..... 401
Engine Does Not Start Checking the Engine ........................ 412
If the Keyless Access Remote Battery is Weak ............................................. 413
Emergency Engine Stop ................... 414
Jump Starting .................................... 415
Shift Lever Does Not Move .............. 417Overheating
How to Handle Overheating............. 418
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ............................................. 420
If the Charging System Indicator Comes
On ................................................. 420
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 421
If the Brake System Indicator (Red) Comes On .................................................... 422
If the Electric Power Steering (EPS) System
Indicator Comes On............................ 422
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 423
Fuses Fuse Locations ................................. 424
Inspecting and Changing Fuses ........ 426
Emergency Towing ........................... 427
When You Cannot Open the Tailgate..... 428
* Not available on all models

uuIf a Tire Goes Flat uChanging a Flat Tire*
400
Handling the Unexpected
1. Store the jack in its holder. Turn the jack’s
end bracket to lock it in place.
2. Remove the center cap.
3. Place the flat tire face up in the spare tire
well.
4. Remove the spacer cone from the wing bolt
for the spare tire, and insert the wing bolt
for the normal tire back on the bolt. Secure
the flat tire with the wing bolt.
5. Securely store the wheel nut wrench and
jack handle bar back in the cargo area.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM/ Tire Pressure Monitor Problem appears on the multi-information
display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
multi-information display and the low tire pressure/TPMS indicator will go off after
a few miles (kilometers).
■Storing the Flat Tire1 Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.Spacer
ConeWing
Bolt
For compact spare tireFor normal tire
■TPMS and the Spare Tire1
TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.

423
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

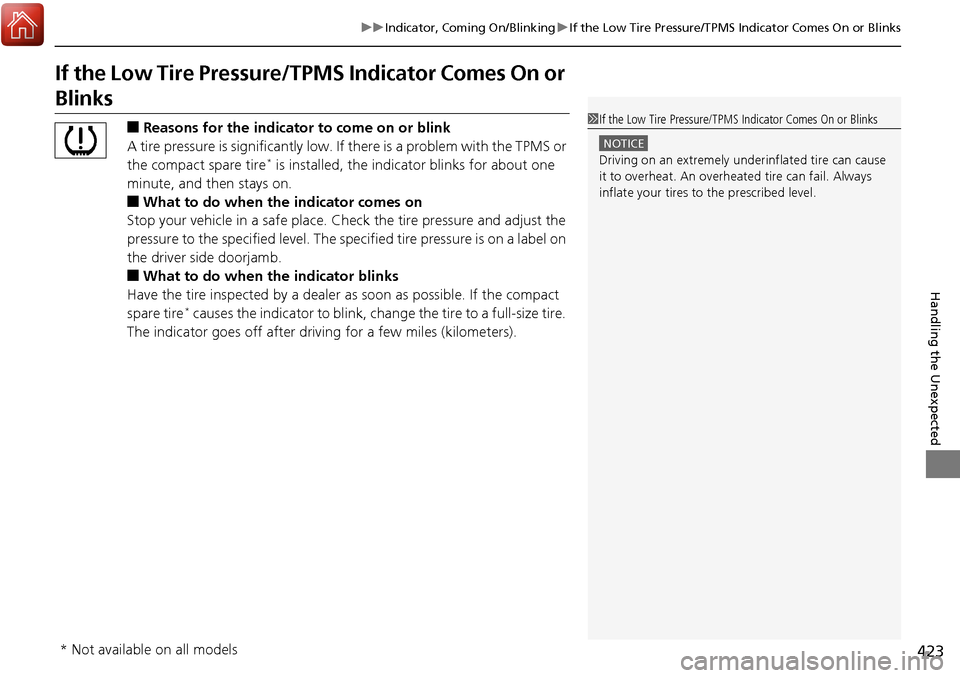

If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indica tor blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, ch ange the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models

433
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of
FCC (Federal Communications Commission) and Industry Canada Standa rd, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two condition s: (1) This device may not cause
harmful interference, and (2) this de vice must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Industry Canada licence -exempt RSS standard(s). Operation is subject to
the following two conditions: (1) th is device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
AcuraLink*
Audio System
Blind spot information (BSI) System*
Bluetooth® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigation Braking SystemTM *
HomeLink® Universal Transceiver
Immobilizer System
Remote Transmitter
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback*
* Not available on all models

444
Index
Fuses.......................................................... 424
Inspecting and Changing ......................... 426
Locations ......................................... 424, 425
G
Gasoline (Fuel)
Economy ................................................. 341
Gauge ....................................................... 93
Information ............................................. 339
Low Fuel Indicator ..................................... 69
Refueling ................................................. 339
Gauges ......................................................... 93
Gear Shift Lever Positions Automatic Transmission ........................... 275
Glass (care) ................................................ 390
Glove Box .................................................. 171
H
Halogen Bulbs ........................................... 363
Handling the Unexpected ........................ 393
HandsFreeLink® (HFL)............................... 224
Automatic Import of Ce llular Phonebook and
Call History ............................................ 240
Automatic Transferring ............................ 238
Caller’s ID Information ............................. 238
HFL Buttons ............................................. 224
HFL Menus .............................................. 226
HFL Status Display.................................... 225
Making a Call .......................................... 243 Options During a Call .............................. 247
Phone Setup............................................ 231
Receiving a Call ....................................... 246
Speed Dial ............................................... 241
Text Message .................................. 236, 248
To Clear the System ................................ 239
To Create a Security PIN .......................... 237
Hazard Warning Button .............................. 4
Head Restraints ........................................ 164
Headlights ................................................. 147
Automatic Operation............................... 148
Dimming ......................................... 147, 150
Operating................................................ 147
Heaters (Seat) ........................... 177, 178, 179
HFL (HandsFreeLink® )............................... 224
High Beam Indicator .................................. 73
Hill Start Assist System ............................. 272
HomeLink ® Universal Transceiver ............ 222I
Identification Numbers ............................ 432
Engine and Transmission ......................... 432
Vehicle Identification ............................... 432
Illumination Control ................................. 154
Knob ....................................................... 154
Immobilizer System .................................. 137
Indicator.................................................... 74 Indicators
.................................................... 66
Adaptive Cruise Control (ACC).......... 79, 285
All-Wheel Drive (AWD) with Intelligent Control System .................................................... 70
Anti-lock Brake System (ABS) .................... 69
Blind spot information (BSI) System ........... 77
Brake System ............................................ 66
Charging System............................... 68, 420
Collision Mitigati on Braking System
TM
(CMBSTM) .......................................... 80, 81
CRUISE CONTROL ............................. 76, 280
CRUISE MAIN.................................... 76, 279
Door and Tailgate Open ............................ 72
Electric Power Steering (EPS)
System ............................................ 72, 422
Fog Light .................................................. 74
High Beam ................................................ 73
Immobilizer System ................................... 74
Keyless Access System............................... 76
Lane Departure Warning (LDW) ................ 78
Lane Keeping Assist System (LKAS) ... 79, 303
Lights On .................................................. 74
Low Fuel ................................................... 69
Low Oil Pressure ............................... 67, 420
Low Tire Pressure/TPMS ............................ 73
Malfunction Indicator Lamp .............. 67, 421
Parking Brake and Brak e System ....... 66, 422
Seat Belt Reminder.............................. 30, 69
Security System Alarm............................... 75
Shift Lever Position.................................... 68
Supplemental Restraint System ........... 47, 70

447
Index
S
Safe Driving................................................ 23
Safety Check ............................................... 28
Safety Labels .............................................. 63
Safety Message ............................................ 1
Seat Belts .................................................... 29
Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 57
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 69
Seat Heaters ............................................. 177
Seats .......................................................... 162
Adjusting ................................................ 162
Front Seats.............................................. 162
Lumbar Support ...................................... 162
Rear Seats ............................................... 167
Seat Heaters ........................... 177, 178, 179
Security System ........................................ 137
Immobilizer System Indicator..................... 74
Security System Alarm Indicator ................ 75
SEL/RESET Button ....................................... 94
Select Lever ........................................ 16, 275
Operation ......................................... 16, 276
Releasing ................................................ 417
Won’t Move ........................................... 417 Selecting a Child Seat
................................. 54
Selector Knob (Audio) .............................. 190
Sequential Shift Mode ............................. 277
Setting the Clock ...................................... 118
Shift Lever ........................................... 16, 275
Shift Lever Position Indicator ............. 68, 276
Shifting (Transmission) ............................. 275
Shoulder Anchor ......................................... 33
Side Airbags ................................................ 44
Side Curtain Airbags ................................... 46
SiriusXM ® Radio ........................................ 200
SMS Text Message ............................ 236, 248
Snow Tires ................................................. 382
Spare Tire .......................................... 395, 431
Spark Plugs ................................................ 430
Specifications ............................................ 430
Specified Fuel .................................... 339, 430
Speedometer .............................................. 93
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 268
Does Not Start ......................................... 412
Jump Starting .......................................... 415
Remote Engine Start ................................ 270
Steering Wheel ......................................... 158
Adjusting ................................................. 158
Stopping .................................................... 330
Summer Tires ............................................ 382
Sunglasses Holder ..................................... 176
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering Wheel) ........ 4, 5, 144Synchronized Mode
................................. 182
System Message Indicator .......................... 75
T
Tachometer................................................. 93
Tailgate ..................................................... 131
Unable to Open....................................... 428
Temperature Outside Temperature Display ..................... 98
Temperature Gauge ................................... 93
Temperature Sensor ........................... 98, 183
Temporary Tire Repair Kit ....................... 402
Text Message .................................... 236, 248
Time (Setting) ........................................... 118
Tire Pressure Monitoring System
(TPMS) ..................................................... 314
Indicator............................................ 73, 423
Tire Repair Kit ........................................... 401
Tires ........................................................... 374
Air Pressure ..................................... 375, 431
Checking and Maintaining ...................... 374
Inspection ............................................... 374
Labeling .................................................. 375
Puncture (Flat Tire) .......................... 395, 401
Regulations ............................................. 377
Rotation .................................................. 381
Spare Tire ........................................ 395, 431
Summer .................................................. 382
Temporary Tire Repair Kit ........................ 402
Tire Chains .............................................. 382

448
Index
Tire Repair Kit .......................................... 401
Wear Indicators ....................................... 379
Winter ..................................................... 382
Tools .......................................................... 394
Towing a Trailer ........................................ 261
Equipment and Accessories...................... 262
Load Limits .............................................. 261
Towing Your Vehicle ................................ 265
Emergency............................................... 427
TPMS (Tire Pressure Monitoring System) ......... 314
Indicator ............................................ 73, 423
Transmission .............................................. 275
Automatic ............................................... 275
Fluid ........................................................ 360
Number ................................................... 432
Sequential Shift Mode ............................. 277
Shift Lever Position Indicator .............. 68, 276
Trip Meter ................................................... 98
Troubleshooting ....................................... 393
Blown Fuse ...................................... 424, 425
Brake Pedal Vibrates .................................. 20
Buzzer Sounds When Opening Door .......... 21
Emergency Towing .................................. 427
Engine Won’t Start .................................. 412
Noise When Braking .................................. 22
Overheating............................................. 418
Puncture/Flat Tire ............................. 395, 401
Rear Door Won’t Open ...................... 21, 129
Select Lever Won’t Move ......................... 417
Warning Indicators .................................... 66 Turn Signals
.............................................. 147
Indicators (Instrument Panel) ..................... 73
Two-way Keyless Access Remote .................................... 119, 127, 270
U
Unlocking the Doors ................................ 123
Unlocking the Front Doors from the Inside ................................. 12, 128
USB Adapter Cable ................................... 186
USB Flash Drives ....................................... 221
USB Port .................................................... 187
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 432
Vehicle Stability Assist (VSA ®).................. 309
Off Button............................................... 310
Off Indicator.............................................. 71
System Indicator ................................ 71, 309
Viscosity (Oil) .................................... 353, 431
VSA ® (Vehicle Stability Assist) .................. 309
W
Wallpaper................................................. 194
Warning and Information Messages ......... 82
Warning Indicator On/Blinking ............... 420
Warning Labels ........................................... 63 Warranties (Warranty Manual provided
separately) .............................................. 437
Watts ........................................................ 430
Wear Indicators (Tire) .............................. 379
Wheel Nut Wrench (Jack Handle) ........... 398
Window Washers ..................................... 151
Adding/Refilling Fluid .............................. 362
Switch .................................................... 151
Windows (Opening and Closing) ............ 140
Windshield ............................................... 151
Cleaning ................................................. 390
Defrosting/Defogging ............................. 181
Washer Fluid ........................................... 362
Wiper Blades........................................... 370
Wipers and Washers ............................... 151
Winter Tires .............................................. 382
Snow Tires .............................................. 382
Tire Chains.............................................. 382
Wipers and Washers ................................ 151
Automatic Intermittent Wipers ................ 152
Checking and Replacing Wiper Blades..... 370
Front....................................................... 151
Rear ........................................................ 153
WMA ................................................. 202, 210
Worn Tires ................................................ 374
