Page 273 of 449
uuWhen Driving uStarting the Engine
272
Driving
1. Depress the brake pedal and press the ENGINE START/STOP button
simultaneously.
2. Keeping your right foot on the brake peda l, release the parking brake. Check that
the parking brake indicator has gone off.
2 Parking Brake P. 318
3.Put the shift lever in (D. Select (R when reversing.
4. Gradually release the brake pedal and gently depress the accelerator pedal to pull
away.
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your fo ot from the brake pedal to the accelerator.
Move the shift lever to
(D or (S when facing uphill, or (R when facing downhill,
then release the brake pedal.
■Starting to Drive1 Starting to Drive
The engine stops when the sh ift lever is moved out of
(P before the ENGINE START/STOP button is
pressed. Follow the step 1 when starting to drive.
When the engine was started using the two-way keyless
access remote*When the engine was started using the two-way keyless access remote*
When the engine was started in any case
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippe ry slope, and
will not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
* Not available on all models
Page 385 of 449
384
Maintenance

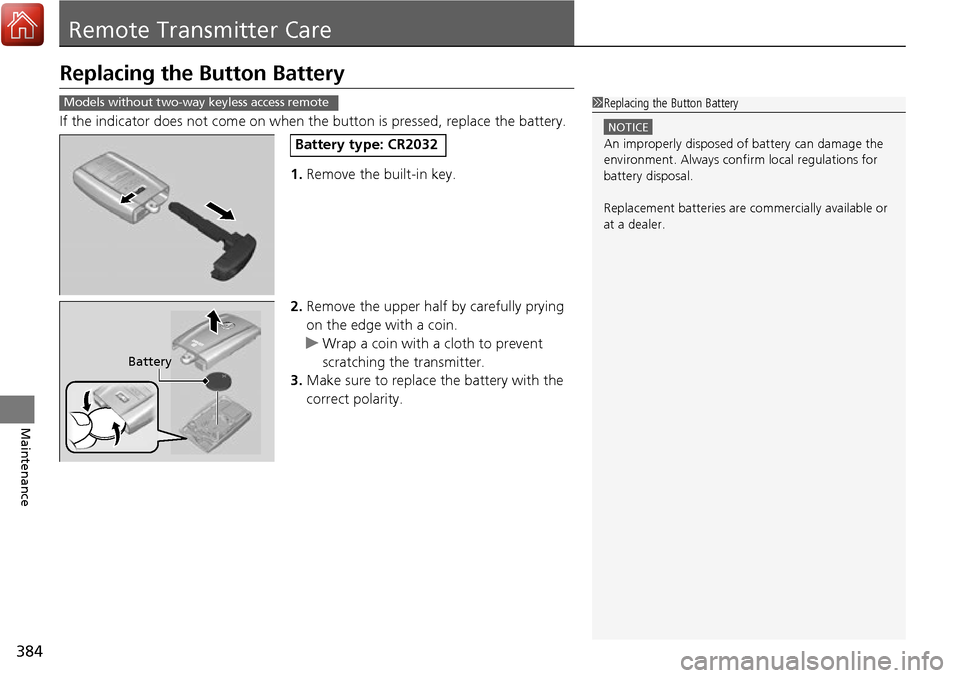

Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when th e button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half by carefully prying
on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
3. Make sure to replace the battery with the
correct polarity.
1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Models without two-way keyless access remote
Battery type: CR2032
Battery
Page 386 of 449
385
uuRemote Transmitter Care uReplacing the Button Battery
Maintenance
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
u As a convenience, lightly place masking
tape over the remote buttons to hold
them in place.
2. Remove the upper half by carefully prying
on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
3. Press down on the center of the assembly
and remove the battery.
u When removing the button battery, be
careful not to touch parts around it.
4. Make sure to replace the battery with the
correct polarity.
Models with two-way keyless access remote1Replacing the Button Battery
NOTICE
The Remote transmitter is equipped with two
batteries: A standard replaceable CR2032 coin
button battery and an in tegral non-replaceable
rechargeable battery. To prevent permanent damage
to the rechargeable battery, replace the CR2032
battery every three to four years.
Models with two-way keyless access remote
Battery type: CR2032
Battery
Page 394 of 449
393
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 394
If a Tire Goes Flat Changing a Flat Tire
*....................... 395
Temporarily Repair ing a Flat Tire*..... 401
Engine Does Not Start Checking the Engine ........................ 412
If the Keyless Access Remote Battery is Weak ............................................. 413
Emergency Engine Stop ................... 414
Jump Starting .................................... 415
Shift Lever Does Not Move .............. 417Overheating
How to Handle Overheating............. 418
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ............................................. 420
If the Charging System Indicator Comes
On ................................................. 420
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 421
If the Brake System Indicator (Red) Comes On .................................................... 422
If the Electric Power Steering (EPS) System
Indicator Comes On............................ 422
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 423
Fuses Fuse Locations ................................. 424
Inspecting and Changing Fuses ........ 426
Emergency Towing ........................... 427
When You Cannot Open the Tailgate..... 428
* Not available on all models
Page 413 of 449
412
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the TO START, HOLD REMOTE NEAR START BUTTON /To Start, Hold Remote Near Start
Button message appears
2If the Keyless Access Remote Battery is Weak P. 413
uMake sure the keyless access remo te is in its operating range.
2ENGINE START/STOP Button P. 144
Check brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 383●If the interior lights come on normally 2 Fuses P. 424
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 268
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 137
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 93
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 426
If the problem continues:
2Emergency Towing P. 427
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 415
Page 414 of 449
413
uuEngine Does Not Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the TO START, HOLD REMOTE NEAR START BUTTON /To
Start, Hold Remote Near Start Button message appears on the multi-information
display, the indicator on the ENGINE START/STOP button flashes, and the engine
won’t start, start the engine as follows. 1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the keyless access remote
should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
indicator changes from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
HOLD
Page 418 of 449
417
Handling the Unexpected

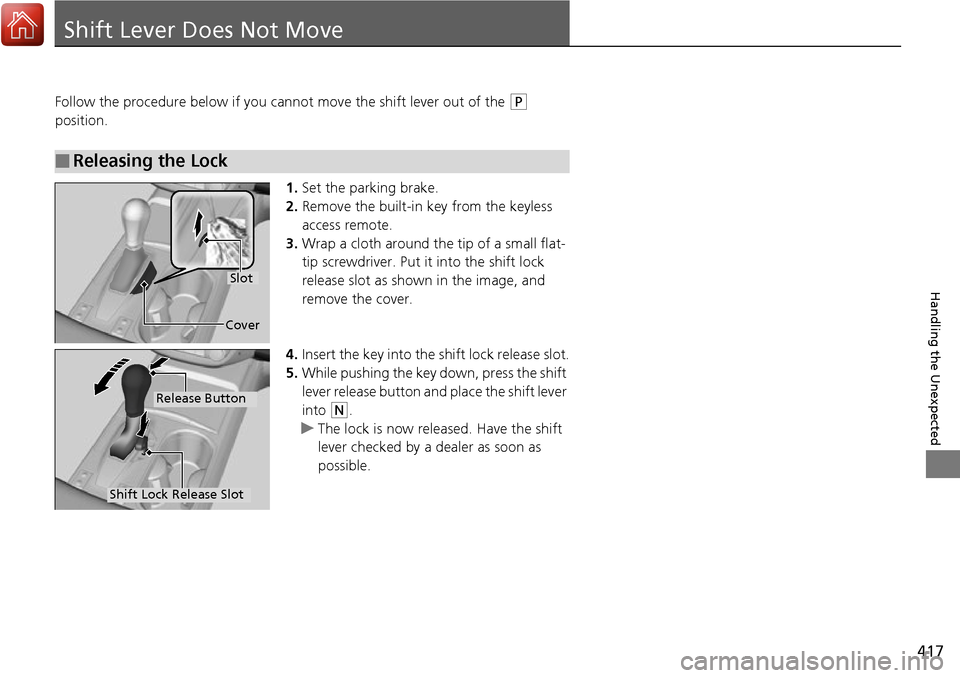

Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the built-in key from the keyless
access remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift
lever release button and place the shift lever
into
(N.
u The lock is now released. Have the shift
lever checked by a de aler as soon as
possible.
■Releasing the Lock
Slot
Cover
Release Button
Shift Lock Release Slot
Page 434 of 449
433
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of
FCC (Federal Communications Commission) and Industry Canada Standa rd, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two condition s: (1) This device may not cause
harmful interference, and (2) this de vice must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Industry Canada licence -exempt RSS standard(s). Operation is subject to
the following two conditions: (1) th is device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
AcuraLink*
Audio System
Blind spot information (BSI) System*
Bluetooth® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigation Braking SystemTM *
HomeLink® Universal Transceiver
Immobilizer System
Remote Transmitter
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback*
* Not available on all models
Page 445 of 449
444
Index
Fuses.......................................................... 424
Inspecting and Changing ......................... 426
Locations ......................................... 424, 425
G
Gasoline (Fuel)
Economy ................................................. 341
Gauge ....................................................... 93
Information ............................................. 339
Low Fuel Indicator ..................................... 69
Refueling ................................................. 339
Gauges ......................................................... 93
Gear Shift Lever Positions Automatic Transmission ........................... 275
Glass (care) ................................................ 390
Glove Box .................................................. 171
H
Halogen Bulbs ........................................... 363
Handling the Unexpected ........................ 393
HandsFreeLink® (HFL)............................... 224
Automatic Import of Ce llular Phonebook and
Call History ............................................ 240
Automatic Transferring ............................ 238
Caller’s ID Information ............................. 238
HFL Buttons ............................................. 224
HFL Menus .............................................. 226
HFL Status Display.................................... 225
Making a Call .......................................... 243 Options During a Call .............................. 247
Phone Setup............................................ 231
Receiving a Call ....................................... 246
Speed Dial ............................................... 241
Text Message .................................. 236, 248
To Clear the System ................................ 239
To Create a Security PIN .......................... 237
Hazard Warning Button .............................. 4
Head Restraints ........................................ 164
Headlights ................................................. 147
Automatic Operation............................... 148
Dimming ......................................... 147, 150
Operating................................................ 147
Heaters (Seat) ........................... 177, 178, 179
HFL (HandsFreeLink® )............................... 224
High Beam Indicator .................................. 73
Hill Start Assist System ............................. 272
HomeLink ® Universal Transceiver ............ 222I
Identification Numbers ............................ 432
Engine and Transmission ......................... 432
Vehicle Identification ............................... 432
Illumination Control ................................. 154
Knob ....................................................... 154
Immobilizer System .................................. 137
Indicator.................................................... 74 Indicators
.................................................... 66
Adaptive Cruise Control (ACC).......... 79, 285
All-Wheel Drive (AWD) with Intelligent Control System .................................................... 70
Anti-lock Brake System (ABS) .................... 69
Blind spot information (BSI) System ........... 77
Brake System ............................................ 66
Charging System............................... 68, 420
Collision Mitigati on Braking System
TM
(CMBSTM) .......................................... 80, 81
CRUISE CONTROL ............................. 76, 280
CRUISE MAIN.................................... 76, 279
Door and Tailgate Open ............................ 72
Electric Power Steering (EPS)
System ............................................ 72, 422
Fog Light .................................................. 74
High Beam ................................................ 73
Immobilizer System ................................... 74
Keyless Access System............................... 76
Lane Departure Warning (LDW) ................ 78
Lane Keeping Assist System (LKAS) ... 79, 303
Lights On .................................................. 74
Low Fuel ................................................... 69
Low Oil Pressure ............................... 67, 420
Low Tire Pressure/TPMS ............................ 73
Malfunction Indicator Lamp .............. 67, 421
Parking Brake and Brak e System ....... 66, 422
Seat Belt Reminder.............................. 30, 69
Security System Alarm............................... 75
Shift Lever Position.................................... 68
Supplemental Restraint System ........... 47, 70
Page 446 of 449
445
Index
System Message ....................................... 75
Transmission ............................................. 68
Turn Signal ............................................... 73
Vehicle Stability Assist (VSA®)
System ............................................ 71, 309
VSA ® OFF.......................................... 71, 310
Information .............................................. 429
Instrument Panel ........................................ 65
Brightness Control .................................. 154
Interior Lights ........................................... 169
Interior Rearview Mirror ......................... 159
iPod ®......................................................... 205
J
Jack (Wheel Nut Wrench) ........................ 398
Jump Starting ........................................... 415
K
Key Number Tag ...................................... 121
Keyless Access System .............................. 123
Keyless Lockout Prevention ..................... 126
Keys ........................................................... 119
Lockout Prevention ................................. 126
Number Tag............................................ 121
Rear Door Won’t Open ........................... 129
Remote Transmitter ................................ 125
Two-way Keyless Access
Remote ................................. 119, 127, 270
Types and Functions................................ 119 Kickdown (Automatic Transmission)
....... 274
L
Lane Departure Warning (LDW).............. 297
Lane Keeping Assist System (LKAS) ......... 301
Language (HFL) ......................................... 225
LATCH (Child Seats) .............................. 55, 58
LDW (Lane Departure Warning) .............. 297
Lights ................................................. 147, 363
Automatic ............................................... 148
Bulb Replacement .................................... 363
Daytime Running Lights ........................... 150
Fog Lights ................................................ 150
High Beam Indicator .................................. 73
Interior .................................................... 169
Light Switches ......................................... 147
Lights On Indicator .................................... 74
Turn Signals and Hazard Warning ............ 147
Load Limits ................................................ 259
Locking/Unlocking .................................... 119
Auto Door Locking/Unlocking .................. 130
Childproof Door Locks ............................. 129
From Inside .............................................. 128
From Outside ........................................... 123
Keys ........................................................ 119
Using a Key ............................................. 126
Lockout Prevention System ...................... 126
Low Battery Charge .................................. 420
Low Fuel Indicator ...................................... 69
Low Oil Pressure Indicator ................. 67, 420Lower Anchors
...................................... 55, 58
Luggage (Maximum Load Limit) ............. 259
Lumbar Support ....................................... 162M
Maintenance............................................. 343
Battery .................................................... 383
Brake Fluid .............................................. 361
Cleaning ................................................. 387
Climate Control System ........................... 386
Coolant ................................................... 358
Maintenance Minder
TM............................ 347
Oil ........................................................... 354
Precautions ............................................. 344
Radiator .................................................. 359
Remote Transmitter ......................... 384, 385
Replacing Light Bulbs .............................. 363
Safety...................................................... 345
Service Items ........................................... 349
Tires ........................................................ 374
Transmission Fluid ................................... 360
Under the Hood ...................................... 351
Malfunction Indicator Lamp .............. 67, 421
Map Lights ................................................ 169
Maximum Load Limit ............................... 259
Meters, Gauges ........................................... 93
