73
uuIndicators u
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds when
you set the power mode to ON.
●Comes on if the tire pressure of any
of the tires becomes significantly
low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire is temporarily installed.
●Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
●Blinks and remains on - Have the
vehicle checked by a dealer. If the
vehicle is fitted with a compact spare,
get your regular tire repaired or
replaced and put back on your vehicle
as soon as you can.
Turn Signal and
Hazard Warning
Indicators
●The turn signal indicators blink when
you operate the turn signal lever.
●If you press the hazard warning
button, both indicators and all turn
signals blink at the same time.
●Does not blink or blinks rapidly -
A turn signal light bulb has blown.
Change the bulb immediately.
2 Front Turn Signal Light/Parking
Light/Daytime Running Light
and Front Side Marker Light
Bulbs P. 365——
High Beam
Indicator●Comes on when the high beam
headlights are on.———

363Continued

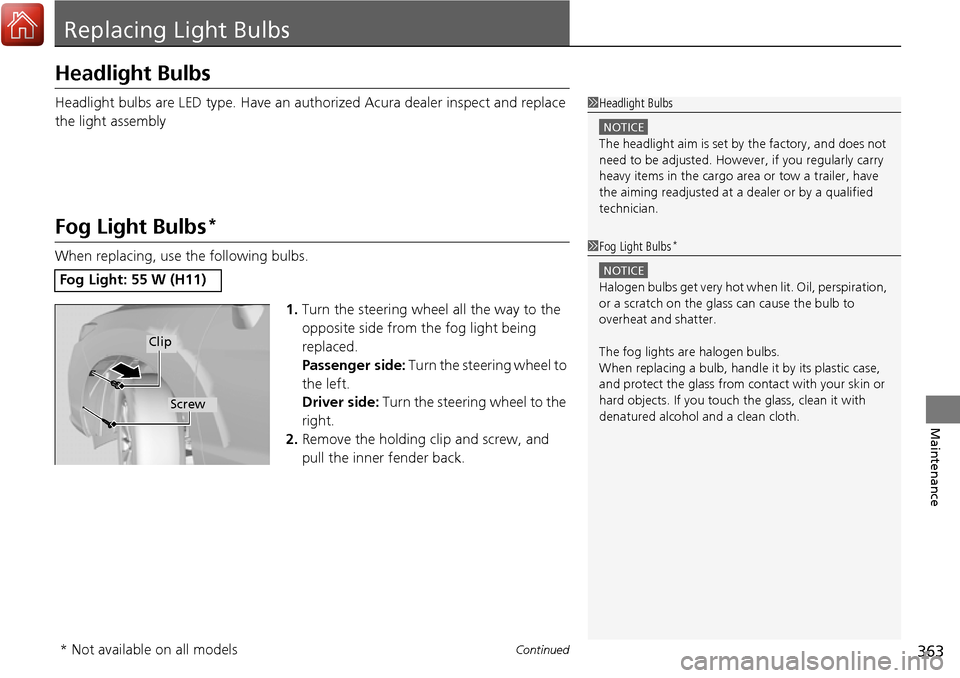

Maintenance
Replacing Light Bulbs
Headlight Bulbs
Headlight bulbs are LED type. Have an authorized Acura dealer inspect and replace
the light assembly
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the fog light being
replaced.
Passenger side: Turn the steering wheel to
the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clip and screw, and
pull the inner fender back.
Fog Light: 55 W (H11)
1Headlight Bulbs
NOTICE
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
1 Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
The fog lights ar e halogen bulbs.
When replacing a bulb, handl e it by its plastic case,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Clip
Screw
* Not available on all models

430
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: AWD models
■Air Conditioning
ModelAcura RDX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingU.S.:4,850 lbs (2,200 kg)*1
4,982 lbs (2,260 kg)*2
Canada:2,260 kgGross Axle Weight
Rating (Front)U.S.:2,557 lbs (1,160 kg)*1
2,623 lbs (1,190 kg)*2
Canada:1,190 kgGross Axle Weight
Rating (Rear)U.S.:2,293 lbs (1,040 kg)*1
2,381 lbs (1,080 kg)*2
Canada:1,080 kg
Gross Combined Weight
Rating U.S.: 6,349 lbs (2,880 kg)*1
6,482 lbs (2,940 kg)*2
Canada:2,940 kg
Refrigerant Type HFC-134a (R-134a)Charge Quantity15.2 – 16.9 oz (430 – 480 g)Lubricant TypeND-OIL8Quantity4.3 – 5.0 cu-in (70 – 82 cm3)
■
Engine Specifications
■ Fuel
■ Washer Fluid
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 16 US gal (60.5 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.1 US qt (4.85 ℓ)
■ Light Bulbs
■ Brake Fluid
Headlights (High Beams)LED
Headlights (Low Beams) LED
Fog Lights*55W (H11)
Front Turn Signal/Parking Lights/
Daytime running light LED
Side Turn Signal Lights
(on Door Mirrors)LED
Front Side Marker Lights 3CP
Rear Side Marker/Brake/TaillightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Light5W
Cargo Area Lights 5W
Vanity Mirror Lights1.4W
Interior Lights
Map LightsLED
Ceiling Light 8W
Door Courtesy Lights2CP
Console Compartment Light 1.4W
Glove Box Light1.4W
Center Pocket Light LED
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
* Not available on all models

442
Index
Bluetooth® HandsFreeLink ®..................... 224
Booster Seats (For Children) ....................... 61
Brake System ............................................. 318
Anti-lock Brake System (ABS) ................... 320
Brake Assist System ................................. 321
Fluid ........................................................ 361
Foot Brake ............................................... 319
Indicator ............................................ 66, 422
Parking Brake .......................................... 318
Brightness Control (Instrument Panel) .... 154
BSI (Blind spot information) System ........ 311
Bulb Replacement ..................................... 363
Back-Up Light and Taillight ...................... 368
Brake Light/Taillight/Rear Side Marker Light and
Rear Turn Signal Light Bulbs ................... 366
Fog Lights ................................................ 363
Front Turn Signal Light /Parking Light/Daytime
Running Light and Front Side Marker Light
Bulbs ..................................................... 365
Headlights ............................................... 363
High-Mount Brake Light .......................... 369
Rear License Plate Light............................ 369
Side Turn Signal Light /Emergency Indicator
Light ...................................................... 364
Bulb Specifications .................................... 430
C
Carbon Monoxide Gas ................................ 62
Cargo Hook ............................................... 175
Carrying Cargo .................................. 257, 259 CD Player
................................................... 202
Certification Label .................................... 432
Changing Bulbs ........................................ 363
Charging System Indicator ................. 68, 420
Child Safety ................................................. 50
Childproof Door Locks............................. 129
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Childproof Door Locks ............................. 129
Cleaning the Exterior ............................... 389
Cleaning the Interior ................................ 387
Client Service Information ....................... 440
Climate Control System ............................ 180
Changing the Mode ................................ 180
Defrosting the Windshield and
Windows ............................................... 181
Dust and Pollen Filter............................... 386
Recirculation/Fresh Air Mode ................... 180
Sensors ................................................... 183
Synchronized Mode................................. 182
Using Automatic Climate Control ............ 180
Clock .......................................................... 118
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 322 Coat Hook
................................................ 175
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 322
Compact Spare Tire .......................... 395, 431
Compass .................................................... 253
Console Compartment ............................. 172
Controls .................................................... 117
Coolant (Engine) ...................................... 358
Adding to the Radiator ........................... 359
Adding to the Reserve Tank .................... 358
Overheating ............................................ 418
Creeping (Automatic Transmission) ........ 274
Cross Traffic Monitor ............................... 335
Cruise Control .......................................... 279
Indicator ................................................... 76
Cup Holders .............................................. 173
Customized Features ....................... 100, 106
D
Daytime Running Lights .......................... 150
Dead Battery ............................................ 415
Defrosting the Windshield and Windows ................................................. 181
Detachable Anchor .................................... 34
Devices that Emit Radio Waves ............... 433
Dimming
Headlights .............................................. 147
Rearview Mirror ...................................... 159
Dipstick (Engine Oil) ................................ 354
Directional Signals (Turn Signal) ............. 147

444
Index
Fuses.......................................................... 424
Inspecting and Changing ......................... 426
Locations ......................................... 424, 425
G
Gasoline (Fuel)
Economy ................................................. 341
Gauge ....................................................... 93
Information ............................................. 339
Low Fuel Indicator ..................................... 69
Refueling ................................................. 339
Gauges ......................................................... 93
Gear Shift Lever Positions Automatic Transmission ........................... 275
Glass (care) ................................................ 390
Glove Box .................................................. 171
H
Halogen Bulbs ........................................... 363
Handling the Unexpected ........................ 393
HandsFreeLink® (HFL)............................... 224
Automatic Import of Ce llular Phonebook and
Call History ............................................ 240
Automatic Transferring ............................ 238
Caller’s ID Information ............................. 238
HFL Buttons ............................................. 224
HFL Menus .............................................. 226
HFL Status Display.................................... 225
Making a Call .......................................... 243 Options During a Call .............................. 247
Phone Setup............................................ 231
Receiving a Call ....................................... 246
Speed Dial ............................................... 241
Text Message .................................. 236, 248
To Clear the System ................................ 239
To Create a Security PIN .......................... 237
Hazard Warning Button .............................. 4
Head Restraints ........................................ 164
Headlights ................................................. 147
Automatic Operation............................... 148
Dimming ......................................... 147, 150
Operating................................................ 147
Heaters (Seat) ........................... 177, 178, 179
HFL (HandsFreeLink® )............................... 224
High Beam Indicator .................................. 73
Hill Start Assist System ............................. 272
HomeLink ® Universal Transceiver ............ 222I
Identification Numbers ............................ 432
Engine and Transmission ......................... 432
Vehicle Identification ............................... 432
Illumination Control ................................. 154
Knob ....................................................... 154
Immobilizer System .................................. 137
Indicator.................................................... 74 Indicators
.................................................... 66
Adaptive Cruise Control (ACC).......... 79, 285
All-Wheel Drive (AWD) with Intelligent Control System .................................................... 70
Anti-lock Brake System (ABS) .................... 69
Blind spot information (BSI) System ........... 77
Brake System ............................................ 66
Charging System............................... 68, 420
Collision Mitigati on Braking System
TM
(CMBSTM) .......................................... 80, 81
CRUISE CONTROL ............................. 76, 280
CRUISE MAIN.................................... 76, 279
Door and Tailgate Open ............................ 72
Electric Power Steering (EPS)
System ............................................ 72, 422
Fog Light .................................................. 74
High Beam ................................................ 73
Immobilizer System ................................... 74
Keyless Access System............................... 76
Lane Departure Warning (LDW) ................ 78
Lane Keeping Assist System (LKAS) ... 79, 303
Lights On .................................................. 74
Low Fuel ................................................... 69
Low Oil Pressure ............................... 67, 420
Low Tire Pressure/TPMS ............................ 73
Malfunction Indicator Lamp .............. 67, 421
Parking Brake and Brak e System ....... 66, 422
Seat Belt Reminder.............................. 30, 69
Security System Alarm............................... 75
Shift Lever Position.................................... 68
Supplemental Restraint System ........... 47, 70
