language Acura RDX 2017 Owner's Manual

101
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Customization flow
Press the / button.
VEHICLE SETTINGS
METER SETUP
DRIVING POSITION SETUP
KEYLESS ACCESS SETUP
LIGHTING SETUP
DOOR SETUP
“TRIP A” RESET TIMING
ADJUST OUTSIDE TEMP. DISPLAY
LANGUAGE SELECTION
“TRIP B” RESET TIMING
MEMORY POSITION LINK
KEYLESS ACCESS LIGHT FLASH
DOOR UNLOCK MODE
KEYLESS ACCESS BEEP
HEADLIGHT AUTO OFF TIMER
INTERIOR LIGHT DIMMING TIME
AUTO LIGHT SENSITIVITY
DOOR LOCK MODE
AUTO DOOR UNLOCK
AUTO DOOR LOCK
KEYLESS LOCK ACKNOWLEDGMENT
SECURITY RELOCK TIMER
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
DRIVER ASSIST SYSTEM SETUP*BLIND SPOT INFOSEL/RESET
* Not available on all models

103
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
DRIVER
ASSIST
SYSTEM
SETUP
*
BLIND SPOT INFOChanges the setting for the blind spot information.AUDIBLE AND VISUAL
ALERT*1/VISUAL ALERT /OFF
METER
SETUP LANGUAGE SELECTION
Changes the displayed language. ENGLISH
*1/Francais /Español
ADJUST OUTSIDE TEMP.
DISPLAY Adjusts the temperature reading by a few degrees. -5°F ~
±0°F
*1 ~ +5°F (U.S.)
-3°C ~ ±0°C
*1 ~ +3°C (Canada)
“TRIP A” RESET TIMING Changes the setting of how to reset trip meter A,
average fuel economy A,
average speed A, and
elapsed time A. WITH REFUEL/
IGN OFF/
MANUALLY RESET
*1
“TRIP B” RESET TIMING Changes the setting of ho
w to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B. WITH REFUEL/
IGN OFF/
MANUALLY RESET*1
DRIVING
POSITION
SETUP
MEMORY POSITION LINKChanges the driver’s seat position to a stored
setting.ON*1/ OFF
* Not available on all models

107
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Customization flow
Press the / button.
Vehicle Settings
Meter Setup
Keyless Access Setup
Lighting Setup
“Trip A” Reset Timing
Adjust Outside Temp. Display
Language Selection
“Trip B” Reset Timing
Keyless Access Light Flash
Door Unlock Mode
Keyless Access Beep
Headlight Auto Off Timer
Interior Light Dimming Time
Auto Light Sensitivity
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
Remote Start System On/Off*
Driver Assist System Setup*ACC Display Speed Unit*ACC Forward Vehicle Detect Beep*Forward Collision Warning Distance*
Lane Keeping Assist Suspend Beep*
Blind Spot Info*
SEL/RESET
Turn by Turn Display*
Driving Position SetupMemory Position LinkSEL/RESET
* Not available on all models

110
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Meter Setup Language Selection
Changes the displayed language. English
*1/
Francais /
Español
Adjust Outside Temp.
Display Adjusts the temperature reading by a few degrees. -5°F ~
±0°F
*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and elapsed
time A. When Refueled
/IGN Off/
Manually Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B,
average fuel economy B, av
erage speed B, and elapsed
time B. When Refueled
/IGN Off/
Manually Reset*1
Turn by Turn Display*Selects whether the turn-b y-turn display comes on
during the route guidance. On*1/
Off
* Not available on all models

114
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Example of customization settings
The steps for changing the “TRIP A” RESET TIMING /”Trip A” Reset Timing setting
to WITH REFUEL /When Refueled are shown below. The default setting for “TRIP
A” RESET TIMING/ ”Trip A” Reset Timing is MANUALLY RESET/Manually
Reset .
1.Press / button to select VEHICLE
SETTINGS /Vehicle Settings , then press
the SEL/RESET button.
2. Press the / button until METER
SETUP/ Meter Setup appears on the
display.
3. Press the SEL/RESET button.
u LANGUAGE SELECTION /Language
Selection appears first in the display.
*1 : Models without full color display
*2 : Models with full color display
All models
*1 *2
*1*2

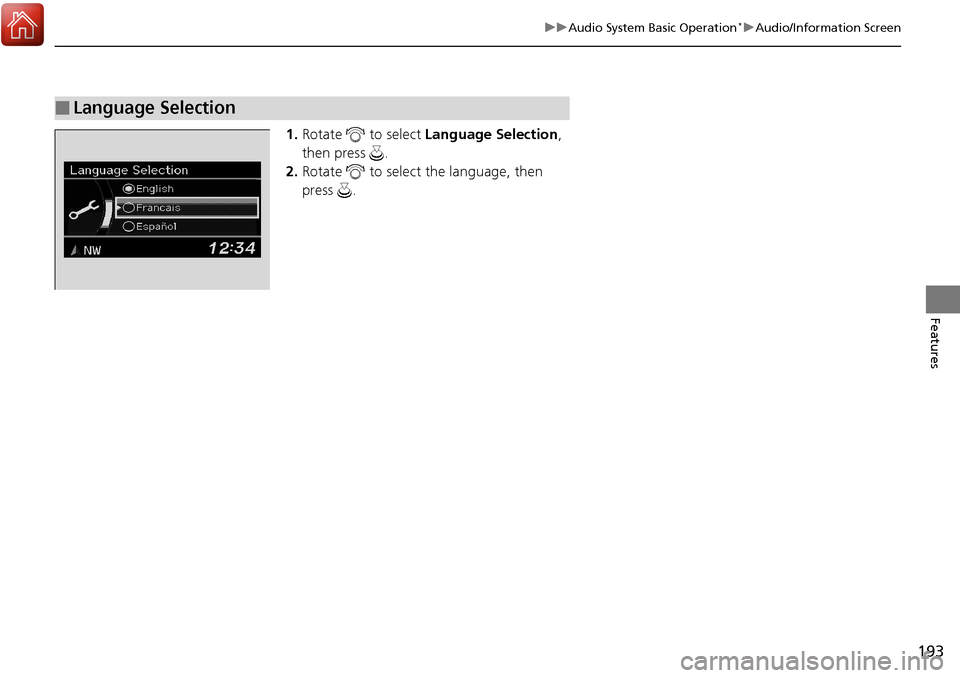

193
uuAudio System Basic Operation*uAudio/Information Screen
Features
1. Rotate to select Language Selection ,
then press .
2. Rotate to select the language, then
press .
■Language Selection

225
uuBluetooth ® HandsFreeLink ®u Using HFL
Features
The audio/information screen notifies you
when there is an incoming call.
Certain manual functions are disabled or
inoperable while the vehicle is in motion. You
cannot select a grayed-out option until the
vehicle is stopped.
Only previously stored speed dial entries with
voice tags can be called using the talk button
while the vehicle is in motion.
2 Speed Dial P. 241
■HFL Status Display1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
s y s te m wh e n it is p la y i n g . It wi ll re s u m e w h en t h e c a l l
is ended.
Signal Strength
HFL Mode Battery Level Status Roam Status
Call Name
Bluetooth IndicatorComes on when your
phone is connected to HFL.
■Limitations for Manual Operation
1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language to English,
French, or Spanish. 2 Language Selection P. 193
Disabled Option

445
Index
System Message ....................................... 75
Transmission ............................................. 68
Turn Signal ............................................... 73
Vehicle Stability Assist (VSA®)
System ............................................ 71, 309
VSA ® OFF.......................................... 71, 310
Information .............................................. 429
Instrument Panel ........................................ 65
Brightness Control .................................. 154
Interior Lights ........................................... 169
Interior Rearview Mirror ......................... 159
iPod ®......................................................... 205
J
Jack (Wheel Nut Wrench) ........................ 398
Jump Starting ........................................... 415
K
Key Number Tag ...................................... 121
Keyless Access System .............................. 123
Keyless Lockout Prevention ..................... 126
Keys ........................................................... 119
Lockout Prevention ................................. 126
Number Tag............................................ 121
Rear Door Won’t Open ........................... 129
Remote Transmitter ................................ 125
Two-way Keyless Access
Remote ................................. 119, 127, 270
Types and Functions................................ 119 Kickdown (Automatic Transmission)
....... 274
L
Lane Departure Warning (LDW).............. 297
Lane Keeping Assist System (LKAS) ......... 301
Language (HFL) ......................................... 225
LATCH (Child Seats) .............................. 55, 58
LDW (Lane Departure Warning) .............. 297
Lights ................................................. 147, 363
Automatic ............................................... 148
Bulb Replacement .................................... 363
Daytime Running Lights ........................... 150
Fog Lights ................................................ 150
High Beam Indicator .................................. 73
Interior .................................................... 169
Light Switches ......................................... 147
Lights On Indicator .................................... 74
Turn Signals and Hazard Warning ............ 147
Load Limits ................................................ 259
Locking/Unlocking .................................... 119
Auto Door Locking/Unlocking .................. 130
Childproof Door Locks ............................. 129
From Inside .............................................. 128
From Outside ........................................... 123
Keys ........................................................ 119
Using a Key ............................................. 126
Lockout Prevention System ...................... 126
Low Battery Charge .................................. 420
Low Fuel Indicator ...................................... 69
Low Oil Pressure Indicator ................. 67, 420Lower Anchors
...................................... 55, 58
Luggage (Maximum Load Limit) ............. 259
Lumbar Support ....................................... 162M
Maintenance............................................. 343
Battery .................................................... 383
Brake Fluid .............................................. 361
Cleaning ................................................. 387
Climate Control System ........................... 386
Coolant ................................................... 358
Maintenance Minder
TM............................ 347
Oil ........................................................... 354
Precautions ............................................. 344
Radiator .................................................. 359
Remote Transmitter ......................... 384, 385
Replacing Light Bulbs .............................. 363
Safety...................................................... 345
Service Items ........................................... 349
Tires ........................................................ 374
Transmission Fluid ................................... 360
Under the Hood ...................................... 351
Malfunction Indicator Lamp .............. 67, 421
Map Lights ................................................ 169
Maximum Load Limit ............................... 259
Meters, Gauges ........................................... 93
