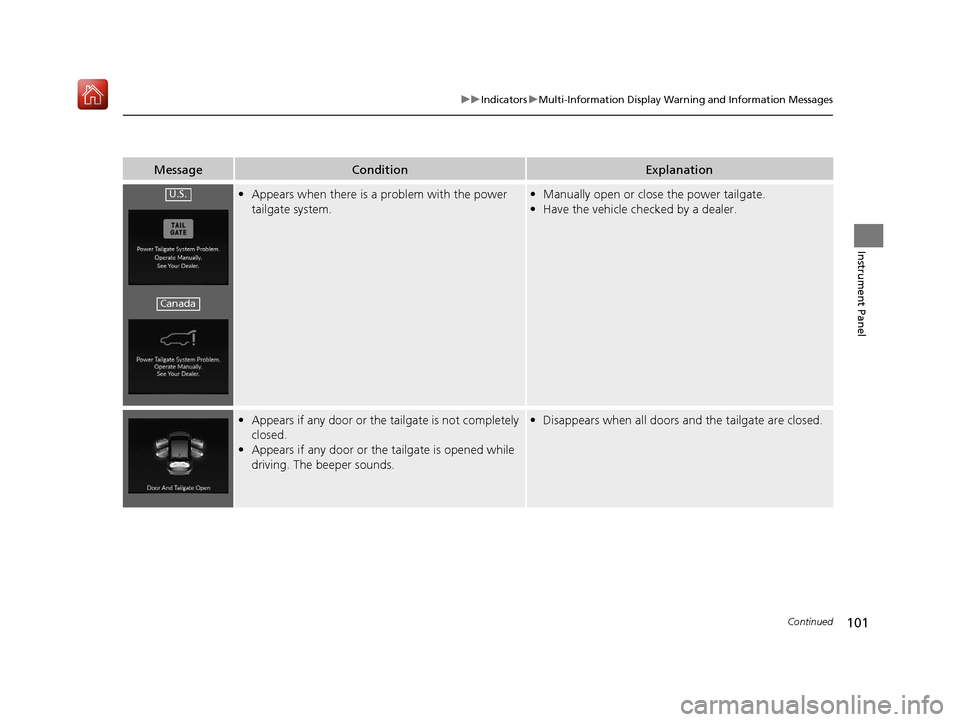

Page 102 of 649
101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when there is a problem with the power
tailgate system.• Manually open or close the power tailgate.
• Have the vehicle checked by a dealer.
• Appears if any door or the tailgate is not completely
closed.
• Appears if any door or the tailgate is opened while
driving. The beeper sounds.•Disappears when all doors and the tailgate are closed.
U.S.
Canada
19 ACURA RDX-31TJB6000.book 101 ページ ２０１８年４月２６日 木曜日 午後４時５１分
Page 103 of 649
102
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the automatic
lighting control system.•Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a de aler as soon as possible.
●Appears when there is a problem with the sensor on
the battery.●Have your vehicle checked by a dealer.
2 Checking the Battery P. 563
●Appears along with the battery charging system
indicator when the batte ry is not charging.●Turn off the climate control system and rear defogger to
reduce electricity consumption.
2If the Charging System Indicator Comes On P. 609
●Appears if the dynamic mode cannot be changed
due to certain situations, such as a system error or
adverse driving conditions.
2 Integrated Dynamics System P. 426
19 ACURA RDX-31TJB6000.book 102 ページ ２０１８年４月２６日 木曜日 午後４時５１分

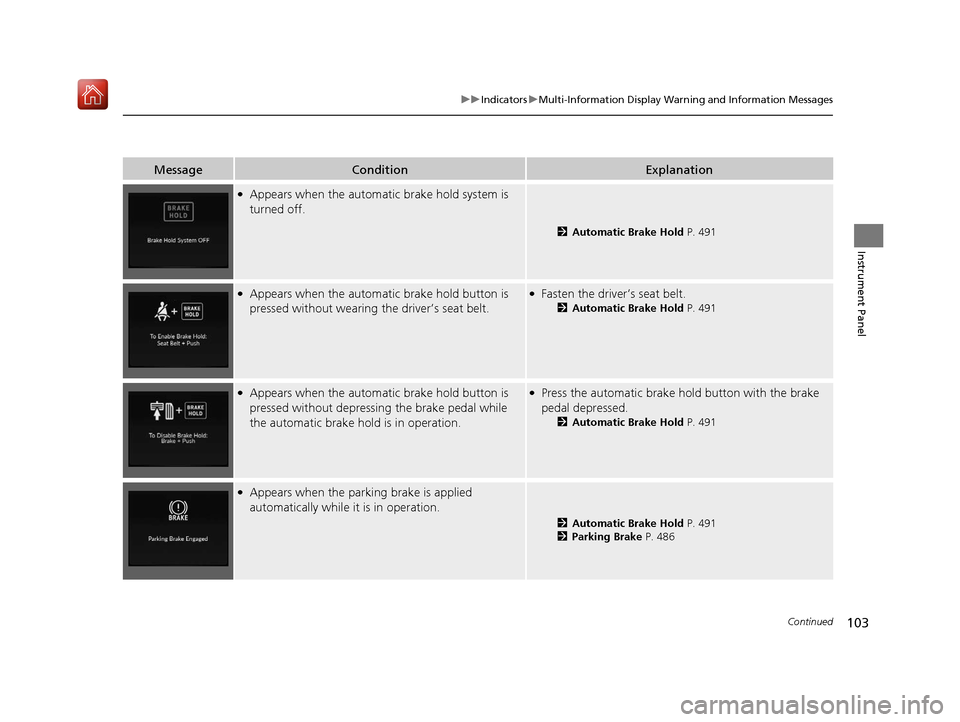

Page 104 of 649
103
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 491
●Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2Automatic Brake Hold P. 491
●Appears when the automatic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 491
●Appears when the parking brake is applied
automatically while it is in operation.
2Automatic Brake Hold P. 491
2 Parking Brake P. 486
19 ACURA RDX-31TJB6000.book 103 ページ ２０１８年４月２６日 木曜日 午後４時５１分
Page 106 of 649
105
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears as soon as a problem is detected in the
keyless access system or push button starting system.●Appears constantly - Have your vehicle checked by a
dealer.
●Appears when you close th e door with the power
mode in ON without the keyless access remote inside
the vehicle.●Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2 Keyless Access Remote Reminder P. 184
●Appears when the keyless access remote battery
becomes weak.
2 Replacing the Button Battery P. 565
19 ACURA RDX-31TJB6000.book 105 ページ ２０１８年４月２６日 木曜日 午後４時５１分
Page 110 of 649
109
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when you turn the Auto Idle Stop system
on.
2 Auto Idle Stop P. 428
•Appears when Auto Idle Stop Display On has
been selected from the customization menu.
2 Customized Features P. 332
2Auto Idle Stop P. 428
•Appears when Auto Idle Stop does not activate for
some reason.
• Appears when the engine restarts automatically.
• Appears when the battery temperature is around
14°F (−10°C) or lower.
• Appears when Auto Idle Stop does not activate
because the climate control sy stem is in use, and the
difference between the set temperature and actual
interior temperature becomes significant.
• Appears when Auto Idle Stop does not activate
because the engine coolant temperature is too low
or high.
•Appears when Auto Idle Stop does not activate
because the battery charge level is low.
• Appears when the battery is low performance.
19 ACURA RDX-31TJB6000.book 109 ページ ２０１８年４月２６日 木曜日 午後４時５１分
Page 111 of 649
110
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the hood is opened.●Close the hood.
•Appears when Auto Idle Stop does not activate
because the pressure to the brake pedal is not
enough.●Depress the brake pedal firmly.
•Appears when Auto Engine Idle Stop Display On
has been selected from the customization menu.
• Appears when the system is under the following
conditions while Auto Idle Stop activates:
- The climate control system is in use, and the
difference between the set temperature and actual
interior temperature becomes significant.
- The humidity in the interior is high.
- The battery charge level is low.●The engine restarts automatically in a few seconds.
2 Starting the Engine P. 411
19 ACURA RDX-31TJB6000.book 110 ページ ２０１８年４月２６日 木曜日 午後４時５１分
Page 114 of 649
113
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when you press the (P button but it is not
engaged due to low ATF temperature.●Depress the brake pedal until this message disappear.
• Appears when the temperature of the transmission
is starting to get too hot.
• The performance of the vehicle may be reduced.•Until the message disappears, reduce your speed and
allow the system to cool down.
• Appears if you depress the accelerator pedal when
the transmission is in
(N.
•Release the accelerator pedal. After that, depress the
brake pedal and change the transmission position.
19 ACURA RDX-31TJB6000.book 113 ページ ２０１８年４月２６日 木曜日 午後４時５１分
Page 116 of 649
115
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when ACC with LSF has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the
RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 455
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 446
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 455
19 ACURA RDX-31TJB6000.book 115 ページ ２０１８年４月２６日 木曜日 午後４時５１分
Page 122 of 649
121
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if anything covers the radar sensor cover
and prevents the sensor fro m detecting a vehicle in
front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.
2 Radar Sensor P. 485
●Appears if the temperature inside the front sensor
camera is too high and the ACC with LSF, LKAS and
auto high-beam cannot be activated.●Use the climate control sy stem to cool down the
camera.
●Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 483
●Appears if the area around the front sensor camera is
blocked by dirt, mud, etc and be prevented from
detecting a vehicle in front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even a fter you cleaned the area
around the camera.
2 Front Sensor Camera P. 483
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicators come on, such as the
VSA®, ABS and brake system, take appropriate action.
2Indicators P. 74
19 ACURA RDX-31TJB6000.book 121 ページ ２０１８年４月２６日 木曜日 午後４時５１分

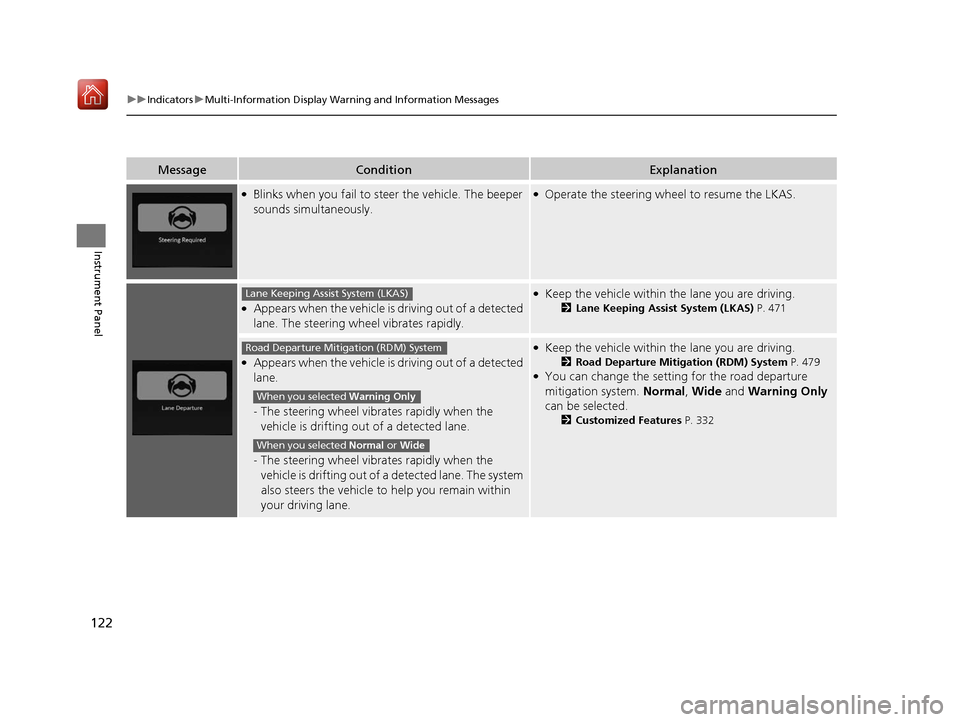

Page 123 of 649
122
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2 Lane Keeping Assist System (LKAS) P. 471
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 479●You can change the setting for the road departure
mitigation system. Normal, Wide and Warning Only
can be selected.
2 Customized Features P. 332
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
