automatic transmission Acura RDX 2020 Owner's Guide

548
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■Automatic Transmission Fluid
Specified fluid: Acura ATF-type 2.0
1Automatic Transmission Fluid
NOTICE
Do not mix Acura ATF-type 2.0 with other
transmission fluids.
Using a transmission fluid other than Acura ATF-type
2.0 may adversely affect the operation and durability
of your vehicle’s transm ission, and damage the
transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Acura ATF-type 2.0 is not covered
by Acura’s new vehicl e limited warranty.
20 ACURA RDX-31TJB6111.book 548 ページ ２０２０年２月１１日　火曜日　午後２時６分

uuCleaning uExterior Care
578
Maintenance
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic inte rmittent wipers, turn the wipers off.
• Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. St anding too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
■Using an Automated Car Wash
■Using High Pressure Cleaners
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
1 Using an Automated Car Wash
When using an automated car wash that pulls the
vehicle through with a convey or, make sure vehicle is
in car wash mode. 2 If you want to keep the transmission in
(N
position [car wash mode] P. 424
1Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
20 ACURA RDX-31TJB6111.book 578 ページ ２０２０年２月１１日　火曜日　午後２時６分

635
uuSpecifications u
Information
■Automatic Transmission Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid*
■Transfer Assembly Fluid*
SpecifiedAcura ATF-type 2.0
Capacity Change 4.5 US qt (4.3 L)*1
5.1 US qt (4.8 L)*2
SpecifiedAcura DPSF-II
Capacity Change 1.76 US qt (1.67 L)
SpecifiedAcura HGO-1
Capacity Change 0.61 US qt (0.58 L)
■ Engine Oil
■ Engine Coolant
Recommended·Acura Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.6 US qt (4.4 L)
Change
including
filter
5.0 US qt (4.8 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.43 US gal (5.40 L)
(change including the remaining 0.23 US gal
(0.86 L) in the reserve tank)
■ Tire
*1: Models with 19 inch wheel
*2: Models with 20 inch wheel
RegularSize235/55R19 101H*1
255/45R20 101V*2
Pressure
psi (kPa [kgf/cm2])33 (230 [2.3])*1
36 (250 [2.5])*2
Compact
Spare*
Size T155/90D17 101M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular19 x 8J*1
20 x 8J*2
Compact Spare*17 x 4T
* Not available on all models
20 ACURA RDX-31TJB6111.book 635 ページ ２０２０年２月１１日　火曜日　午後２時６分

636
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Automatic Transmission
Number
20 ACURA RDX-31TJB6111.book 636 ページ ２０２０年２月１１日　火曜日　午後２時６分

646
Index
Automatic Transmission........................... 419
Creeping ................................................. 419
Fluid ........................................................ 548
Kickdown ................................................ 419
Operating the Shift Button....................... 422
Sequential Shift Mode ............................. 426
Shifting.................................................... 420
Auxiliary Input Jack .................................. 241
Average Fuel Economy ............................. 131
AWD .......................................................... 439
B
Battery ....................................................... 569
Charging System Indicator ................. 79, 615
Jump Starting .......................................... 610
Maintenance (Checking the Battery) ........ 569
Belts (Seat) .................................................. 35
Beverage Holders ...................................... 223
Blind spot information System ................ 444
Bluetooth ® Audio ..................................... 296
Bluetooth ® HandsFreeLink ®..................... 361
Booster Seats (For Children) ....................... 70
Brake System ............................................. 492
Anti-lock Brake System (ABS) ................... 499
Automatic Brake Hold.............................. 497
Brake Assist System ................................. 500
Fluid ........................................................ 549
Foot Brake ............................................... 496
Indicator ...................................... 75, 76, 616
Indicator (Red) ......................................... 618 Parking Brake .......................................... 492
Brightness Control (Instrument Panel) .... 198
Built-in Key ............................................... 147
Bulb Replacement .................................... 551
Fog Lights ............................................... 551
Front Turn Signal, Parking/Daytime Running and Front Side Marker Lights ... 551
Headlights ............................................... 551
High-Mount Brake Light .......................... 554
Puddle Lights........................................... 554
Rear License Plate Light ........................... 554
Rear Turn Signal Light Bulbs .................... 552
Side Turn Signal/Emergency Indicator Lights .................................................... 551
Taillights, Brake and Rear Side Marker Lights .................................................... 553
Taillights/Brake and Back-Up Lights ......... 554
Bulb Specifications ................................... 634
C
CAMERA Button....................................... 514
Carbon Monoxide Gas ............................... 71
Carrying Cargo ................................. 401, 403
Certification Label .................................... 636
Changing Bulbs ........................................ 551
Charging System Indicator ................. 79, 615
Child Safety ................................................. 58
Childproof Door Locks............................. 161
Child Seat .................................................... 58
Booster Seats ............................................ 70 Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 65
Larger Children ......................................... 69
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 161
Cleaning the Exterior ............................... 577
Cleaning the Interior ............................... 575
Client Service Information ....................... 644
Climate Control System ........................... 230
Changing the Mode................................ 230
Defrosting the Windshield and
Windows .............................................. 232
Dust and Pollen Filter .............................. 574
Rear Temperature Control Dial ................ 234
Recirculation/Fresh Air Mode................... 230
Sensors ................................................... 235
Synchronized Mode ................................ 233
Using Automatic Climate Control............ 230
Clock ......................................................... 144
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 450
Coat Hook ................................................ 225
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 450
Compact Spare Tire .......................... 585, 635
Console Compartment ............................. 222
Controls .................................................... 143
20 ACURA RDX-31TJB6111.book 646 ページ ２０２０年２月１１日　火曜日　午後２時６分

647
Index
Coolant (Engine)...................................... 546
Adding to the Radiator ........................... 547
Adding to the Reserve Tank .................... 546
Overheating ............................................ 612
Creeping (Automatic Transmission) ........ 419
Cross Traffic Monitor ............................... 507
Cup Holders .............................................. 223
Customized Features ............................... 335
D
Daytime Running Lights .......................... 190
Dead Battery ............................................ 610
Defaulting All the Settings ...................... 357
Defrosting the Windshield and Windows ................................................. 232
Devices that Emit Radio Waves ............... 637
Dimming
Headlights .............................................. 186
Rearview Mirror ...................................... 204
Dipstick (Engine Oil) ................................ 542
Directional Signals (Turn Signal) ............. 185
Door Mirrors ............................................. 205
Doors ........................................................ 146
Auto Door Locking.................................. 162
Auto Door Unlocking .............................. 162
Keys........................................................ 146
Locking/Unlocking the Doors from the Inside .................................................... 159
Locking/Unlocking the Doors from the
Outside ................................................. 150 Lockout Prevention System ...................... 157
DOT Tire Quality Grading ........................ 563
Driving ....................................................... 399
Automatic Transmission ........................... 419
Braking .................................................... 492
Off-Highway Driving Guidelines ............... 411
Shifting Gear ........................................... 420
Starting the Engine .................................. 413
Driving Position Memory System ............. 201
Dust and Pollen Filter ............................... 574
Dynamic Mode Switch .............................. 428
E
Electric Parking Brake
Switch ..................................................... 492
Electric Power Steering (EPS) System Indicator ............................................ 84, 617
Electronic Stability Control (ESC) ............. 436
Emergency ................................................ 628
Emissions Testing (Readiness Codes) ....... 639
Engine ....................................................... 636
Coolant ................................................... 546
Jump Starting .......................................... 610
Oil ........................................................... 541
Remote Engine Start ................................ 415
Starting ................................................... 413
Engine Compartment Cover .................... 540
Engine Coolant ......................................... 546
Adding to the Radiator ............................ 547
Adding to the Reserve Tank ..................... 546 Overheating ............................................ 612
Temperature Gauge ................................ 126
Engine Oil ................................................. 541
Adding .................................................... 543
Checking................................................. 542
Displaying Oil Life .................................... 532
Low Oil Pressure Indicator ....................... 614
Recommended Engine Oil ....................... 541
ENGINE START/STOP Button .................... 182
EPS (Electric Power Steering) System ...... 617
Exhaust Gas Hazard (Carbon Monoxide) .. 71
Exterior Care (Cleaning) ........................... 577
Exterior Mirrors ........................................ 205F
Features.................................................... 237
Filters
Dust and Pollen ....................................... 574
Oil ........................................................... 544
Flat Tire ............................................. 585, 593
Floor Mats ................................................. 576
Fluids Automatic Transmission .......................... 548
Brake ...................................................... 549
Engine Coolant ....................................... 546
Windshield Washer ................................. 550
FM/AM Radio ............................................ 273
Fog Lights Indicator.................................................... 87
Folding Down the Rear Seats .................. 216
20 ACURA RDX-31TJB6111.book 647 ページ ２０２０年２月１１日　火曜日　午後２時６分

648
Index
Foot Brake................................................. 496
Front Airbags (SRS) ..................................... 45
Front Seats ................................................ 207
Adjusting ................................................. 207
Front Sensor Camera ................................ 489
Fuel ...................................................... 21, 521
Economy ................................................. 524
Gauge ..................................................... 126
Instant Fuel Economy ............................... 131
Low Fuel Indicator ..................................... 83
Range ...................................................... 131
Recommendation .................................... 521
Refueling ................................................. 521
Fuel Economy ............................................ 524
Fuel Fill Door ....................................... 21, 522
Fuses .......................................................... 621
Inspecting and Changing ......................... 627
Locations ................................. 621, 624, 625
G
Gasoline (Fuel) Economy ................................................. 524
Gauge ..................................................... 126
Information ............................................. 521
Instant Fuel Economy ............................... 131
Low Fuel Indicator ..................................... 83
Refueling ................................................. 521
Gauges ....................................................... 126
Gear Position Indicator ....................... 79, 422 Gear Shift Positions
Automatic Transmission .......................... 420
Glass (care) ................................................ 578
Glove Box .................................................. 221
H
Handling the Unexpected ........................ 583
HandsFreeLink ® (HFL) ............................... 361
Automatic Import of Cellular Phonebook
and Call History ..................................... 372
Automatic Transferring............................ 371
Displaying Messages................................ 384
Favorite Contacts .................................... 373
HFL Buttons............................................. 361
HFL Menus .............................................. 365
HFL Status Display ................................... 363
In Case of Emergency .............................. 394
Limitations for Manual Operation ............ 364
Making a Call .......................................... 374
Options During a Call .............................. 378
Phone Setup............................................ 367
Receiving a Call ....................................... 377
Receiving a Text Message ........................ 382
Ring Tone................................................ 371
Selecting a Phone .................................... 383
To Set Up a Text Message Options .......... 381
Hazard Warning Button .............................. 4
HD Radio
TM................................................ 276
Head Restraints ........................................ 212
Headlight Washers ................................... 197 Headlights
................................................ 186
Adaptive Front Lighting System (AFS) ...... 189
Auto High-Beam System ......................... 191
Automatic Operation .............................. 187
Dimming......................................... 186, 190
Operating ............................................... 186
Head-Up Display ...................................... 138
Heated Steering Wheel ........................... 227
Heaters (Seat) ........................................... 228
HFL (HandsFreeLink ®) .............................. 361
High Beam Indicator .................................. 87
Hill Start Assist System ............................. 417
HomeLink ® Universal Transceiver ........... 358
Honda App License Agreement .............. 316
I
Identification Numbers............................ 636
Engine and Transmission ......................... 636
Vehicle Identification............................... 636
Illumination Control ................................ 198
Knob ...................................................... 198
Immobilizer System .................................. 173
Indicator ................................................... 88
Indicators .................................................... 74
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ............................. 91
Adaptive Cruise Control (ACC) with Low Speed Follow (Green)............... 91, 461
Anti-lock Brake System (ABS) .................... 84
Auto High-Beam ....................................... 87
20 ACURA RDX-31TJB6111.book 648 ページ ２０２０年２月１１日　火曜日　午後２時６分

649
Index
Auto Idle Stop (Green) .............................. 82
Auto Idle Stop System (Amber) ................. 82
Automatic Brake Hold ....................... 77, 497
Automatic Brake Hold System ........... 77, 497
Blind spot information System................... 96
Charging System............................... 79, 615
Collision Mitigation Braking System
TM
(CMBSTM) ................................................ 93
Electric Power Steering (EPS) System ............................................ 84, 617
Fog Light .................................................. 87
Gear Position ............................................ 79
High Beam ................................................ 87
Immobilizer System ................................... 88
Lane Keeping Assist System (LKAS) (Amber) .................................................. 91
Lane Keeping Assist System (LKAS)
(Green) ........................................... 91, 479
Lights On .................................................. 87
Low Fuel ................................................... 83
Low Oil Pressure ..................................... 614
Low Tire Pressure/TPMS .................... 86, 619
M (sequential mode) Indicator/Gear Selection Indicator................................... 79
Maintenance Minder................................. 90
Malfunction Indicator Lamp .............. 78, 615
Parking Brake and Brake System (Amber) .......................................... 76, 618
Parking Brake and Brake System (Red) ....................................... 75, 616, 618
Road Departure Mitigation (RDM) ............. 92 Safety Support (Amber) ............................. 92
Seat Belt Reminder .............................. 36, 83
Security System Alarm ............................... 88
Super Handling-All Wheel Drive
TM
(SH-AWD® ) .............................................. 90
Supplemental Restraint System ............ 55, 84
System Message ........................................ 89
Transmission System .......................... 80, 620
Turn Signal and Haza rd Warning ............... 87
Vehicle Stability Assist
TM (VSA ®) OFF ........... 85
Vehicle Stability AssistTM (VSA ®)
System............................................. 85, 436
VSA ® OFF ................................................ 437
Information ............................................... 633
Instant Fuel Economy ............................... 131
Instrument Panel ........................................ 73
Brightness Control ................................... 198
Integrated Dynamics System .................... 428
Dynamic Mode button ............................. 428
Interior Lights ........................................... 219
Interior Rearview Mirror .......................... 204
iPad ............................................................ 314
iPhone ....................................................... 314
iPod ................................................... 290, 314
J
Jack (Wheel Nut Wrench) ........................ 589
Jump Starting ........................................... 610
K
Key Number Tag ....................................... 148
Keyless Access System .............................. 150
Keyless Lockout Prevention ..................... 157
Keys ........................................................... 146
Lockout Prevention.................................. 157
Number Tag ............................................ 148
Rear Door Won’t Open............................ 161
Remote Transmitter ................................. 155
Two-way Keyless Access Remote ..... 158, 415
Types and Functions ................................ 146
Kickdown (Automatic Transmission) ....... 419
Knee Airbags .............................................. 49
L
Lane Keeping Assist System (LKAS) ......... 477
LATCH (Child Seats) .............................. 63, 67
Legal Information .................................... 328
License Information ................................. 331
Lights ................................................. 186, 551
Automatic ............................................... 187
Bulb Replacement ................................... 551
Daytime Running Lights........................... 190
Fog Lights ............................................... 190
High Beam Indicator .................................. 87
Interior .................................................... 219
Light Switches ......................................... 186
Lights On Indicator .................................... 87
Turn Signals and Hazard Warning............ 185
Load Limits ................................................ 403
20 ACURA RDX-31TJB6111.book 649 ページ ２０２０年２月１１日　火曜日　午後２時６分

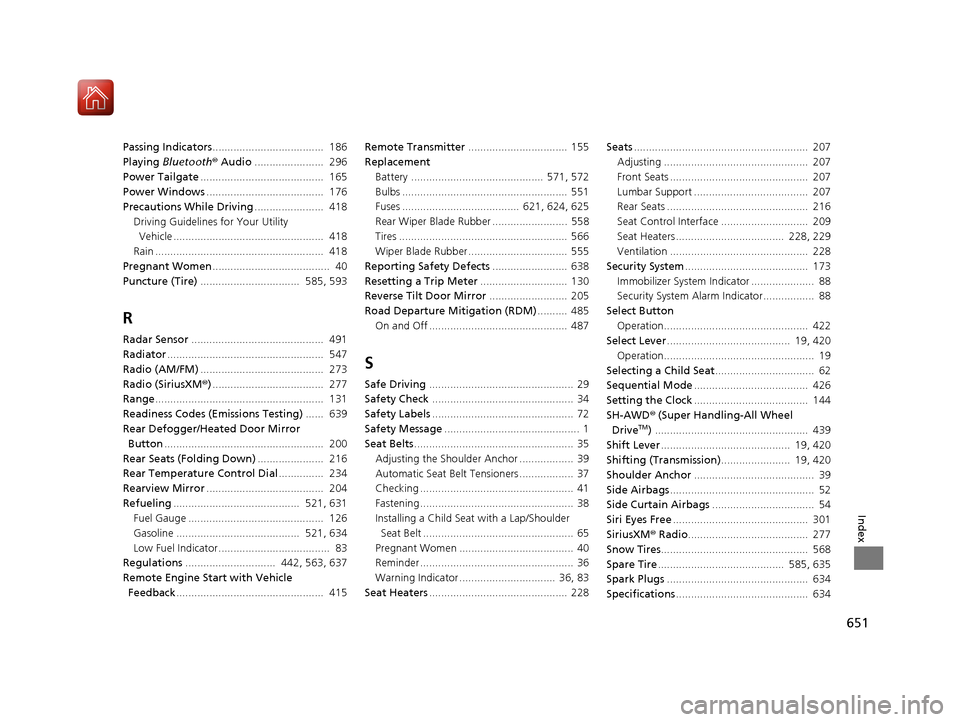

651
Index
Passing Indicators..................................... 186
Playing Bluetooth ® Audio ....................... 296
Power Tailgate ......................................... 165
Power Windows ....................................... 176
Precautions While Driving ....................... 418
Driving Guidelines for Your Utility Vehicle .................................................. 418
Rain ........................................................ 418
Pregnant Women ....................................... 40
Puncture (Tire) ................................. 585, 593
R
Radar Sensor............................................ 491
Radiator .................................................... 547
Radio (AM/FM) ......................................... 273
Radio (SiriusXM ®)..................................... 277
Range ........................................................ 131
Readiness Codes (Emissions Testing) ...... 639
Rear Defogger/Heated Door Mirror Button ..................................................... 200
Rear Seats (Folding Down) ...................... 216
Rear Temperature Control Dial ............... 234
Rearview Mirror ....................................... 204
Refueling .......................................... 521, 631
Fuel Gauge ............................................. 126
Gasoline ......................................... 521, 634
Low Fuel Indicator..................................... 83
Regulations .............................. 442, 563, 637
Remote Engine Start with Vehicle
Feedback ................................................. 415 Remote Transmitter
................................. 155
Replacement
Battery ............................................ 571, 572
Bulbs ....................................................... 551
Fuses ....................................... 621, 624, 625
Rear Wiper Blade Rubber ......................... 558
Tires ........................................................ 566
Wiper Blade Rubber ................................. 555
Reporting Safety Defects ......................... 638
Resetting a Trip Meter ............................. 130
Reverse Tilt Door Mirror .......................... 205
Road Departure Mitigation (RDM) .......... 485
On and Off .............................................. 487
S
Safe Driving ................................................ 29
Safety Check ............................................... 34
Safety Labels ............................................... 72
Safety Message ............................................. 1
Seat Belts ..................................................... 35
Adjusting the Shoulder Anchor .................. 39
Automatic Seat Belt Tensioners .................. 37
Checking ................................................... 41
Fastening ................................................... 38
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 65
Pregnant Women ...................................... 40
Reminder ................................................... 36
Warning Indicator ................................ 36, 83
Seat Heaters .............................................. 228 Seats
.......................................................... 207
Adjusting ................................................ 207
Front Seats .............................................. 207
Lumbar Support ...................................... 207
Rear Seats ............................................... 216
Seat Control Interface ............................. 209
Seat Heaters .................................... 228, 229
Ventilation .............................................. 228
Security System ......................................... 173
Immobilizer System Indicator ..................... 88
Security System Alarm Indicator................. 88
Select Button Operation................................................ 422
Select Lever ......................................... 19, 420
Operation.................................................. 19
Selecting a Child Seat ................................. 62
Sequential Mode ...................................... 426
Setting the Clock ...................................... 144
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 439
Shift Lever ........................................... 19, 420
Shifting (Transmission) ....................... 19, 420
Shoulder Anchor ........................................ 39
Side Airbags ................................................ 52
Side Curtain Airbags .................................. 54
Siri Eyes Free ............................................. 301
SiriusXM ® Radio ........................................ 277
Snow Tires ................................................. 568
Spare Tire .......................................... 585, 635
Spark Plugs ............................................... 634
Specifications ............................................ 634
20 ACURA RDX-31TJB6111.book 651 ページ ２０２０年２月１１日　火曜日　午後２時６分

652
Index
Specified Fuel.................................... 521, 634
Speed Limit Information .......................... 128
Speed/Distance Units ................................ 134
Speedometer ............................................. 126
Sport Gauge Settings ................................ 135
SRS Airbags (Airbags) ................................. 45
Starting Assist Brake Function ................. 435
Starting the Engine .................................. 413
Does Not Start ......................................... 607
Jump Starting .......................................... 610
Remote Engine Start ................................ 415
Steering Wheel ......................................... 203
Adjusting ................................................. 203
Stopping .................................................... 501
Summer Tires ............................................ 568
Sunglasses Holder ..................................... 227
Super Handling-All Wheel Drive
TM
(SH-AWD® )............................................... 439
Supplemental Restraint System (SRS) ........ 45
Surround View Camera System ................ 513
Switches (Around the Steering Wheel) ............................................. 4, 5, 182
Synchronized Mode .................................. 233
System Message Indicator .......................... 89
System Updates ......................................... 262
T
Tachometer............................................... 134
Tailgate ..................................................... 163
Unable to Open ....................................... 630 Temperature
Gauge ..................................................... 126
Outside Temperature Display ................... 127
Temperature Sensor ......................... 127, 235
Temporary Tire Repair Kit ....................... 594
Tie-down Anchors .................................... 226
Time (Setting) ........................................... 144
Tire Fill Assist ............................................ 619
Tire Pressure Monitoring System (TPMS) ..................................................... 440
Indicator............................................ 86, 619
Tire Fill Assist ........................................... 619
Tire Repair Kit ........................................... 593
Tires ........................................................... 560
Air Pressure ..................................... 561, 635
Checking and Maintaining ...................... 560
Inspection ............................................... 560
Labeling .................................................. 561
Puncture (Flat Tire) .......................... 585, 593
Regulations ............................................. 563
Rotation .................................................. 567
Spare Tire ........................................ 585, 635
Summer .................................................. 568
Temporary Tire Re pair Kit ........................ 594
Tire Chains .............................................. 568
Tire Repair Kit.......................................... 593
Wear Indicators ....................................... 565
Winter..................................................... 568
Tools .......................................................... 584
Towing a Trailer ....................................... 405
Equipment and Accessories ..................... 407 Load Limits ............................................. 405
Towing Your Vehicle ............................... 410
Emergency .............................................. 628
TPMS (Tire Pressure Monitoring System) .................................................... 440
Indicator ........................................... 86, 619
Transmission ....................................... 19, 420
Automatic......................................... 19, 420
Fluid ....................................................... 548
Gear Position Indicator ...................... 79, 422
Indicator ................................................. 620
Number .................................................. 636
Sequential Shift Mode............................. 426
Transmission System
Indicator ................................................... 80
Trip Computer .......................................... 130
Trip Meter ................................................ 130
Troubleshooting ...................................... 583
Blown Fuse ............................. 621, 624, 625
Brake Pedal Vibrates ................................. 25
Buzzer Sounds When Opening Door ......... 26
Emergency Towing ................................. 628
Engine Won’t Start ................................. 607
Fuel Fill Door ........................................... 629
Noise When Braking ................................. 27
Overheating ............................................ 612
Puncture/Flat Tire ............................ 585, 593
Rear Door Won’t Open ..................... 25, 161
Tailgate................................................... 630
Warning Indicators.................................... 74
True Touchpad ......................................... 246
20 ACURA RDX-31TJB6111.book 652 ページ ２０２０年２月１１日　火曜日　午後２時６分
