358
Features

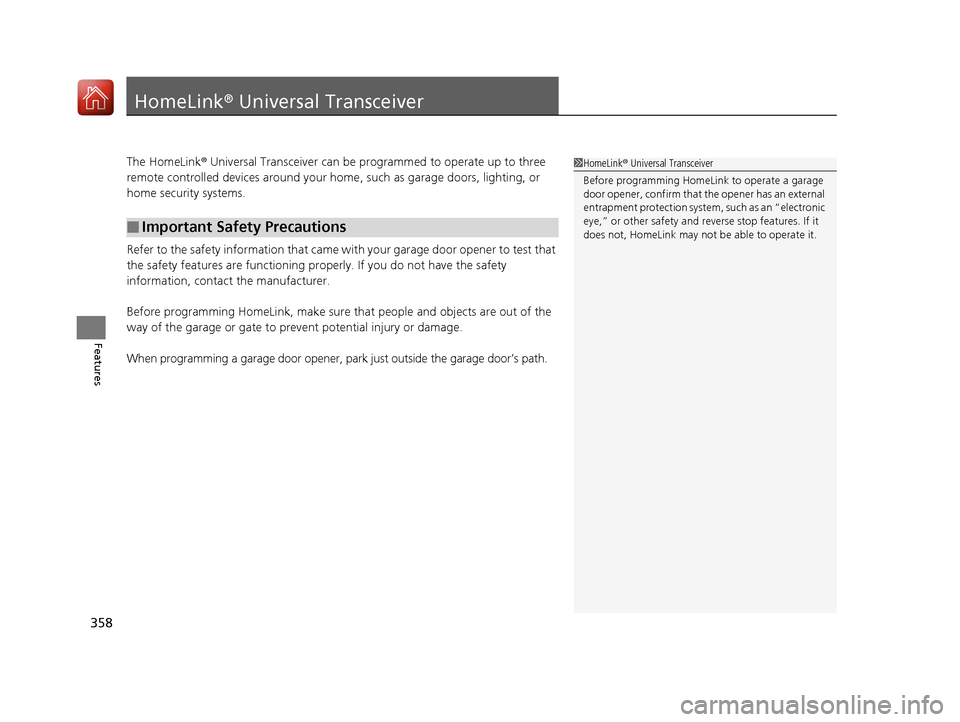

HomeLink® Universal Transceiver
The HomeLink ® Universal Transceiver can be pr ogrammed to operate up to three
remote controlled devices around your home , such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contac t the manufacturer.
Before programming HomeLink, make sure th at people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, park just outside the garage door’s path.
■Important Safety Precautions
1HomeLink ® Universal Transceiver
Before programming HomeLi nk to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.
20 ACURA RDX-31TJB6111.book 358 ページ ２０２０年２月１１日　火曜日　午後２時６分

uuHomeLink ® Universal Transceiver uTraining HomeLink
360
Features
■Programming a Button1Training HomeLink
Reprogramming a Button
If you want to retrain a programmed button for a
new device, you do not ha ve to erase all button
memory. You can replace the existing memory code
using this procedure:
Erasing Button Memory
To erase programming from the buttons, press and hold
the two outside HomeLink buttons until the HomeLink
indicator changes from
orange to rapidly flashing green.
This should take about 10 seconds. You should erase all
programming before selling the vehicle.
Operating
To operate, simple pr ess and release the
programmed HomeLink butto n. Activation will now
occur for the trained device.
Questions
For questions or comments, visit
www.HomeLink.com , www.youtube.com/
HomeLinkGentex , or by calling the HomeLink Hotline
(North America only) at (800) 355-3515.
HomeLink® is a registered tra demark of Gentex
Corporation.
2.
1. Press and hold the desired HomeLink button until
the HomeLink indi
cator begins to slowly flash
orange . This should take about 20 seconds.
Release the HomeLink button and position the
remote transmitter you wish to link 1 - 3 inches
(3 - 8 cm) from the HomeLink button you want to
program, then follow steps 3 - 6 under
“programming a button.”
Training
CompleteHomeLink LED is
continuously on green .
YES
YES
1.Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the
HomeLink® button you want to program.
3b.Canadian Garage Door Opener
A. Press and release the HomeLink
button. Press, hold and release the
button on the remote every 2 secs.
Does the HomeLink indicator (LED)
change from slowly flashing orange to
rapidly flashing or continuously on
green ? The process should take less
than 60 seconds.
NO
2. Press and release the desired HomeLink but ton. Is the HomeLink indicator (LED) slowly
flashing orange ?
NO
3a.Hold the button on the remote
transmitter. Does HomeLink indicator
(LED) change from slowly flashing
orange to rapidly flashing green or
continuously on green? The process
should take less than 60 seconds.
5. Press and hold the HomeLink button again.
HomeLink indicator rapidly flashes
green .
5a.The remote has a rolling code. Press the
“learn” button on th e remote-controlled
device (e.g. garage door opener).6. Press and hold the HomeLink button
again.
The remote-controll ed device should
operate.
Training Complete
5b.Within 30 secs, press and hold the
programmed HomeLink button for 2
secs.
4.Press and hold the programmed HomeLink
button for about a second. Does the device
(garage door opener) work?
20 ACURA RDX-31TJB6111.book 360 ページ ２０２０年２月１１日　火曜日　午後２時６分

361Continued
Features
Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreeli nk.com/Acura, or call 1-
888-528-7876.
•Canada: For more info rmation on smartphone
compatibility, call 1-855-490-7351.
To use the system, the Bluetooth® setting must be
On .
2 Phone Setup P. 367
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphones.
•Press the button when you want to call a
number using a phonebook name or a number.
Speak clearly and naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system’s
volume or use the audio remote controls on the
steering wheel.
(Talk) Button
Microphone
(Back) Button
VOL( +/VOL(- (Volume) Switch
Left Selector Wheel
APPS Button
20 ACURA RDX-31TJB6111.book 361 ページ ２０２０年２月１１日　火曜日　午後２時６分

413Continued
Driving
When Driving
Starting the Engine
1.Make sure the parkin g brake is applied.
u The Parking Brake and Brake System
indicator (red) comes on for 30 seconds
when you press the electric parking
brake switch.
u The parking brake must be applied to
start the engine.
2. Depress the brake pedal.
u Although it is possible to start the vehicle
in
(N with the parking brake is applied, it
is safer to start it in
(P.
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
1 Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to start in cold weather and in thinner
air found at altitudes above 8,000 feet (2,400 meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Consult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Bring the keyless access remote close to the ENGINE
START/STOP button if the batte ry in the keyless
access remote is weak. 2 If the Keyless Access Remote Battery is
Weak P. 608
The engine may not start if the keyless access remote
is subjected to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before trying again.
Electric Parking
Brake Switch
Brake Pedal
20 ACURA RDX-31TJB6111.book 413 ページ ２０２０年２月１１日　火曜日　午後２時６分

uuWhen Driving uStarting the Engine
416
Driving
■To stop the engine
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you
know that the engine has stopped.
●Blinks when the remote is out of
the keyless access system range.
The engine will not stop.
1
Remote Engine Start*
•Another registered keyless access remote is in the
vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.•The security system alarm is not set.
Before starting the engine, make sure to check the
door lock status using the remote. When you press
the button, wait for the green LED to blink. If
the red LED turns on, the doors and tailgate did not
lock, and the engine does not start.
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
•The seat ventilation is activated*.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat heaters and heated steering wheel* are
activated. 2Heated Steering Wheel
* P. 227
2 Front Seat Heaters and Ventilation*
P. 228
* Not available on all models
20 ACURA RDX-31TJB6111.book 416 ページ ２０２０年２月１１日　火曜日　午後２時６分

429
uuWhen Driving uIntegrated Dynamics System
Driving
When the power mode is turned off, the driv e mode that the vehicle was in is registered with the vehicle. When the vehicle is driven the
next time, it detects which remote transmitt er is being used and then reactivates or changes the drive mode that the vehicle wa s in the last
time the same transmitter was used.
• If Comfort mode or Sport mode was previously registered, Comfort mode or Sport mode will be reactivated.
• If Snow mode was previously registered, the drive mode will be changed to Comfort mode.
• If Sport+ mode was previously registered, th e drive mode will be changed to Sport mode.
ModeFunction
Sport+Adds to Sport to allow for increased performance by enhancing throttle response and changing the shift map.
SportEnhances vehicle response feel thr ough decreased steering assist, height ened throttle response, increased
SH-AWD* torque bias, and modifi ed active sound control.
ComfortMaximizes driver comfort thro ugh increased steering assist.
SnowUse when driving on snowy road surfaces.
* Not available on all models
20 ACURA RDX-31TJB6111.book 429 ページ ２０２０年２月１１日　火曜日　午後２時６分

527
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 528
Safety When Performing Maintenance ..529
Parts and Fluids Used in Maintenance Service ........................................... 530
Maintenance Minder
TM..................... 531
Maintenance Under the Hood Maintenance Items Under the Hood .. 538
Opening the Hood ........................... 539
Engine Compartment Cover ............. 540
Recommended Engine Oil ................ 541
Oil Check ......................................... 542
Adding Engine Oil ............................ 543 Changing the Engine Oi
l and Oil Filter... 544
Engine Coolant ................................ 546
Transmission Fluid ............................ 548
Brake Fluid ....................................... 549
Refilling Window Wa sher Fluid......... 550
Replacing Light Bulbs ....................... 551Checking and Maintaining Wiper
Blades .......................................... 555
Checking and Maintaining Tires
Checking Tires ................................. 560
Tire and Loading Information Label .. 561
Tire Labeling .................................... 561
DOT Tire Quality Grading (U.S. Vehicles).. 563
Wear Indicators ............................... 565
Tire Service Life ................................ 565
Tire and Wheel Replacement ........... 566
Tire Rotation .................................... 567
Winter Tires ..................................... 568
Battery ............................................... 569
Remote Transmitter Care Replacing the Button Battery ........... 571
Climate Control System Maintenance.. 573Cleaning
Interior Care .................................... 575
Exterior Care.................................... 577
Accessories and Modifications ........ 580
20 ACURA RDX-31TJB6111.book 527 ページ ２０２０年２月１１日　火曜日　午後２時６分

Index
645
Index
Index
A
ABS (Anti-lock Brake System).................. 499
Accessories and Modifications ................ 580
Accessory Power Socket ........................... 225
AcuraLink® ................................................ 390
AcuraWatch
TM.................................... 22, 447
Adaptive Cruise Control (ACC) .................. 91
Adaptive Cruise Control (ACC) with
Low Speed Follow ............................ 91, 460
Adaptive Front Lighting System (AFS) .... 189
Additives
Coolant .................................................. 546
Engine Oil ............................................... 541
Washer ................................................... 550
Additives, Engine Oil ............................... 541
Adjusting Armrest .................................................. 218
Front Seats.............................................. 207
Head Restraints ....................................... 212
Mirrors.................................................... 204
Rear Seats ............................................... 216
Steering Wheel ....................................... 203
Agile Handling Assist ............................... 438
Air Conditioning System (Climate Control System) .................................................... 230
Changing the Mode................................ 230
Defrosting the Windshield and Windows .............................................. 232
Dust and Pollen Filter .............................. 574
Rear Temperature Control Dial ................ 234
Recirculation/Fresh Air Mode................... 230 Sensors .................................................... 235
Synchronized Mode ................................. 233
Using Automatic Climate Control ............ 230
Air Pressure ....................................... 561, 635
Airbags ........................................................ 42
Advanced Airbags ..................................... 48
After a Collision ......................................... 45
Airbag Care ............................................... 57
Front Airbags (SRS) .................................... 45
Indicator .............................................. 55, 84
Knee Airbags ............................................. 49
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 42
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
AM/FM Radio ............................................ 273
Android Auto ............................................ 306
Anti-lock Brake System (ABS) .................. 499
Indicator .................................................... 84
Apple CarPlay ........................................... 302
Armrest ..................................................... 218
Audio Remote Controls ............................ 243
Audio System ............................................ 238
Adjusting the Sound ................................ 268
Audio/Information Screen ........................ 249
Auxiliary Input Jack .................................. 241
Display Setup ........................................... 269
Error Messages ........................................ 310
General Information ................................ 313
Home Screen ........................................... 253
How to Update Wirelessly ........................ 262 How to Update with a USB Device........... 266
How to use Siri Eyes Free ......................... 301
iPod ........................................................ 290
Limitations for Manual Operation ............ 269
MP3/WMA/AAC ...................................... 293
Reactivating ............................................ 242
Remote Controls ..................................... 243
Security Code .......................................... 242
Status Area ............................................. 258
System Updates....................................... 262
Theft Protection ...................................... 242
USB Flash Drives .............................. 293, 315
USB Ports ................................................ 239
Audio/Information Screen ....................... 249
Authorized Manuals ................................ 643
Auto Door Locking/Unlocking ................. 162
Auto High-Beam ....................................... 191
Indicator.................................................... 87
Auto Idle Stop .......................................... 430
OFF Button .............................................. 431
Automatic Brake Hold ............................. 497
Indicator............................................ 77, 497
Automatic Folding Door Mirror .............. 206
Automatic Intermittent Wipers ............... 195
Automatic Lighting .................................. 187
20 ACURA RDX-31TJB6111.book 645 ページ ２０２０年２月１１日　火曜日　午後２時６分

647
Index
Coolant (Engine)...................................... 546
Adding to the Radiator ........................... 547
Adding to the Reserve Tank .................... 546
Overheating ............................................ 612
Creeping (Automatic Transmission) ........ 419
Cross Traffic Monitor ............................... 507
Cup Holders .............................................. 223
Customized Features ............................... 335
D
Daytime Running Lights .......................... 190
Dead Battery ............................................ 610
Defaulting All the Settings ...................... 357
Defrosting the Windshield and Windows ................................................. 232
Devices that Emit Radio Waves ............... 637
Dimming
Headlights .............................................. 186
Rearview Mirror ...................................... 204
Dipstick (Engine Oil) ................................ 542
Directional Signals (Turn Signal) ............. 185
Door Mirrors ............................................. 205
Doors ........................................................ 146
Auto Door Locking.................................. 162
Auto Door Unlocking .............................. 162
Keys........................................................ 146
Locking/Unlocking the Doors from the Inside .................................................... 159
Locking/Unlocking the Doors from the
Outside ................................................. 150 Lockout Prevention System ...................... 157
DOT Tire Quality Grading ........................ 563
Driving ....................................................... 399
Automatic Transmission ........................... 419
Braking .................................................... 492
Off-Highway Driving Guidelines ............... 411
Shifting Gear ........................................... 420
Starting the Engine .................................. 413
Driving Position Memory System ............. 201
Dust and Pollen Filter ............................... 574
Dynamic Mode Switch .............................. 428
E
Electric Parking Brake
Switch ..................................................... 492
Electric Power Steering (EPS) System Indicator ............................................ 84, 617
Electronic Stability Control (ESC) ............. 436
Emergency ................................................ 628
Emissions Testing (Readiness Codes) ....... 639
Engine ....................................................... 636
Coolant ................................................... 546
Jump Starting .......................................... 610
Oil ........................................................... 541
Remote Engine Start ................................ 415
Starting ................................................... 413
Engine Compartment Cover .................... 540
Engine Coolant ......................................... 546
Adding to the Radiator ............................ 547
Adding to the Reserve Tank ..................... 546 Overheating ............................................ 612
Temperature Gauge ................................ 126
Engine Oil ................................................. 541
Adding .................................................... 543
Checking................................................. 542
Displaying Oil Life .................................... 532
Low Oil Pressure Indicator ....................... 614
Recommended Engine Oil ....................... 541
ENGINE START/STOP Button .................... 182
EPS (Electric Power Steering) System ...... 617
Exhaust Gas Hazard (Carbon Monoxide) .. 71
Exterior Care (Cleaning) ........................... 577
Exterior Mirrors ........................................ 205F
Features.................................................... 237
Filters
Dust and Pollen ....................................... 574
Oil ........................................................... 544
Flat Tire ............................................. 585, 593
Floor Mats ................................................. 576
Fluids Automatic Transmission .......................... 548
Brake ...................................................... 549
Engine Coolant ....................................... 546
Windshield Washer ................................. 550
FM/AM Radio ............................................ 273
Fog Lights Indicator.................................................... 87
Folding Down the Rear Seats .................. 216
20 ACURA RDX-31TJB6111.book 647 ページ ２０２０年２月１１日　火曜日　午後２時６分

649
Index
Auto Idle Stop (Green) .............................. 82
Auto Idle Stop System (Amber) ................. 82
Automatic Brake Hold ....................... 77, 497
Automatic Brake Hold System ........... 77, 497
Blind spot information System................... 96
Charging System............................... 79, 615
Collision Mitigation Braking System
TM
(CMBSTM) ................................................ 93
Electric Power Steering (EPS) System ............................................ 84, 617
Fog Light .................................................. 87
Gear Position ............................................ 79
High Beam ................................................ 87
Immobilizer System ................................... 88
Lane Keeping Assist System (LKAS) (Amber) .................................................. 91
Lane Keeping Assist System (LKAS)
(Green) ........................................... 91, 479
Lights On .................................................. 87
Low Fuel ................................................... 83
Low Oil Pressure ..................................... 614
Low Tire Pressure/TPMS .................... 86, 619
M (sequential mode) Indicator/Gear Selection Indicator................................... 79
Maintenance Minder................................. 90
Malfunction Indicator Lamp .............. 78, 615
Parking Brake and Brake System (Amber) .......................................... 76, 618
Parking Brake and Brake System (Red) ....................................... 75, 616, 618
Road Departure Mitigation (RDM) ............. 92 Safety Support (Amber) ............................. 92
Seat Belt Reminder .............................. 36, 83
Security System Alarm ............................... 88
Super Handling-All Wheel Drive
TM
(SH-AWD® ) .............................................. 90
Supplemental Restraint System ............ 55, 84
System Message ........................................ 89
Transmission System .......................... 80, 620
Turn Signal and Haza rd Warning ............... 87
Vehicle Stability Assist
TM (VSA ®) OFF ........... 85
Vehicle Stability AssistTM (VSA ®)
System............................................. 85, 436
VSA ® OFF ................................................ 437
Information ............................................... 633
Instant Fuel Economy ............................... 131
Instrument Panel ........................................ 73
Brightness Control ................................... 198
Integrated Dynamics System .................... 428
Dynamic Mode button ............................. 428
Interior Lights ........................................... 219
Interior Rearview Mirror .......................... 204
iPad ............................................................ 314
iPhone ....................................................... 314
iPod ................................................... 290, 314
J
Jack (Wheel Nut Wrench) ........................ 589
Jump Starting ........................................... 610
K
Key Number Tag ....................................... 148
Keyless Access System .............................. 150
Keyless Lockout Prevention ..................... 157
Keys ........................................................... 146
Lockout Prevention.................................. 157
Number Tag ............................................ 148
Rear Door Won’t Open............................ 161
Remote Transmitter ................................. 155
Two-way Keyless Access Remote ..... 158, 415
Types and Functions ................................ 146
Kickdown (Automatic Transmission) ....... 419
Knee Airbags .............................................. 49
L
Lane Keeping Assist System (LKAS) ......... 477
LATCH (Child Seats) .............................. 63, 67
Legal Information .................................... 328
License Information ................................. 331
Lights ................................................. 186, 551
Automatic ............................................... 187
Bulb Replacement ................................... 551
Daytime Running Lights........................... 190
Fog Lights ............................................... 190
High Beam Indicator .................................. 87
Interior .................................................... 219
Light Switches ......................................... 186
Lights On Indicator .................................... 87
Turn Signals and Hazard Warning............ 185
Load Limits ................................................ 403
20 ACURA RDX-31TJB6111.book 649 ページ ２０２０年２月１１日　火曜日　午後２時６分
