Continued401
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 403
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 159
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 207
2 Adjusting the Front and Rear Outer Head Restraint Positions P. 212
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 203
2 Adjusting the Mirrors P. 204
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
20 ACURA RDX-31TJB6111.book 401 ページ ２０２０年２月１１日　火曜日　午後２時６分

Continued415
uuWhen Driving uStarting the Engine
Driving
You can remotely start the engine usin g the two-way keyless access remote from
extended distances.
■To start the engine
The engine runs for up to 10 minu tes without you starting the vehicle.
To extend the run time for another 10 mi nutes during the first run, press the
button, then press an d hold the button.
u The amber LED blinks, then the green LED comes back on if a 10-minute
extension request was transmitted successfully.
After pressing the button, wait for the gr een LED to blink. This indicates that
the all the doors and the tailgate are locked.
■Remote Engine Start*1 Remote Engine Start*
The remote engine start may violate local laws.
Before using the remote e ngine start, check your
local laws.
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
This distance may vary by external electrical
interference.
The engine may not start by the remote engine start if:
•You have disabled a remote engine start setting
using the audio/information screen.
•The power mode is not in VEHICLE OFF (LOCK).
•The transmission is in a position other than ( P.•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to start
the engine.
3WARNING
Carbon monoxide ga s is toxic and can
rapidly accumulate in closed or even partly
enclosed areas.
Breathing it can cause unconsciousness and
even kill you.
Never use the remote engine starter with
the vehicle parked in a garage or other
areas with limited ventilation.
Press the button, then press and hold
the button.
Amber LED: Blinks when any button is pressed.
Continues to blink
during a vehicle
self check until the
engine starts. Go within the range,
and try again.
Green LED: Comes on while
the engine is running. Red LED: Blinks when the
remote is out of the keyless
access system range.
* Not available on all models
20 ACURA RDX-31TJB6111.book 415 ページ ２０２０年２月１１日　火曜日　午後２時６分

uuWhen Driving uStarting the Engine
416
Driving
■To stop the engine
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you
know that the engine has stopped.
●Blinks when the remote is out of
the keyless access system range.
The engine will not stop.
1
Remote Engine Start*
•Another registered keyless access remote is in the
vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.•The security system alarm is not set.
Before starting the engine, make sure to check the
door lock status using the remote. When you press
the button, wait for the green LED to blink. If
the red LED turns on, the doors and tailgate did not
lock, and the engine does not start.
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
•The seat ventilation is activated*.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat heaters and heated steering wheel* are
activated. 2Heated Steering Wheel
* P. 227
2 Front Seat Heaters and Ventilation*
P. 228
* Not available on all models
20 ACURA RDX-31TJB6111.book 416 ページ ２０２０年２月１１日　火曜日　午後２時６分

511Continued
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the rear camera lens is covered with dirt or
moisture, activate the rearview camera washer
* or
use a soft, moist cloth to keep the lens clean and free
of debris. 2 Rear Wiper/Washer P. 196
Guidelines appear when you put the transmission
into
( R.
You can change the Guidelines setting. 2 Customized Features P. 335
Off: Guidelines do not appear.
Fixed: Fixed Guidelines appear.
Dynamic: Guidelines that move according to the
steering wheel direction appear.
Both: Fixed guidelines and dynamic guidelines
appear.
Guidelines
Bumper
Camera
Approx. 20 inches
(50 cm)
Tailgate Open Range Approx. 39 inches
(1 m)
Wide View Mode
Normal View Mode
Top Down View Mode
Approx. 20 inches (50 cm)
Tailgate Open Range Approx. 39 inches (1 m)
* Not available on all models
20 ACURA RDX-31TJB6111.book 511 ページ ２０２０年２月１１日　火曜日　午後２時６分

580
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessorie s over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 621
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a dealer inspect the final installation.
• It is recommended to use genuine Acura roof bicycle racks for carrying bicycles.
Do not install load-c arrying (strap-type) accessory racks to the tailgate, as they
may interfere with normal operation, whic h may result in damage to the tailgate.
1Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
20 ACURA RDX-31TJB6111.book 580 ページ ２０２０年２月１１日　火曜日　午後２時６分

583
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 584
If a Tire Goes Flat
Changing a Flat Tire ......................... 585
Temporarily Repairi ng a Flat Tire....... 593
Engine Does Not Start Checking the Engine ........................ 607
If the Keyless Access Remote Battery is Weak ............................................. 608
Emergency Engine Stop ................... 609
Jump Starting .................................... 610
Vehicles with a compact spare tire
Vehicles with temporary tire repair kit
Overheating
How to Handle Overheating............. 612
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ... 614If the Charging System Indicator Comes On... 615If the Malfunction Indicator Lamp Comes On or Blinks ................................... 615
If the Brake System Indicator (Red) Comes
On or Blinks ....................................... 616
If the Electric Power Steering (EPS) System
Indicator Comes On ........................... 617
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .....618
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 619
If the Transmission System Indicator Blinks along with the Warning Message .... 620
Fuses
Fuse Locations ................................. 621
Inspecting and Changing Fuses ........ 627
Emergency Towing ........................... 628
When You Cannot Unlock the Fuel Fill Door ................................................. 629
When You Cannot Open the Tailgate.. 630Refueling ........................................... 631
20 ACURA RDX-31TJB6111.book 583 ページ ２０２０年２月１１日　火曜日　午後２時６分

629
Handling the Unexpected

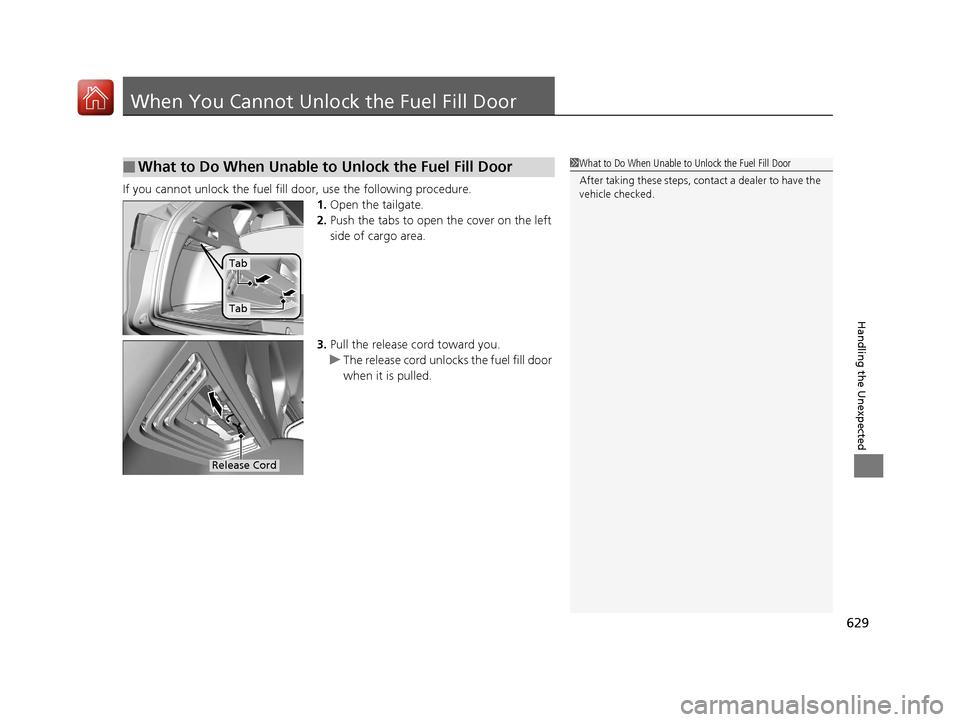

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the tailgate.
2. Push the tabs to open the cover on the left
side of cargo area.
3. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Tab
Tab
Release Cord
20 ACURA RDX-31TJB6111.book 629 ページ ２０２０年２月１１日　火曜日　午後２時６分

630
Handling the Unexpected

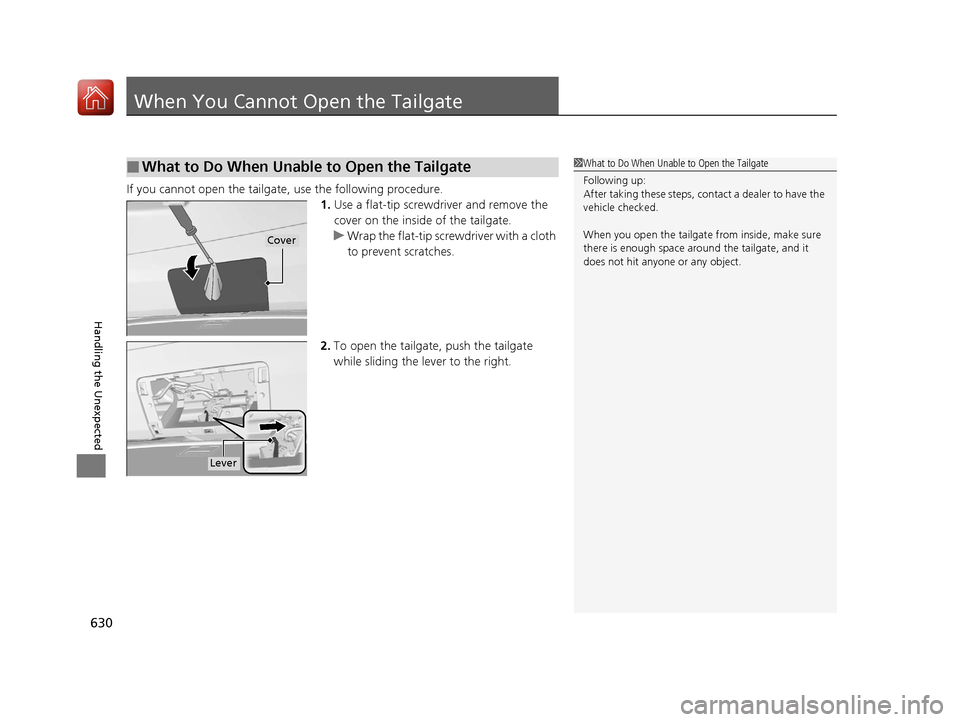

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgat e, push the tailgate
while sliding the le ver to the right.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
20 ACURA RDX-31TJB6111.book 630 ページ ２０２０年２月１１日　火曜日　午後２時６分

650
Index
Locking/Unlocking.................................... 146
Auto Door Locking/Unlocking .................. 162
Childproof Door Locks ............................. 161
From Inside .............................................. 159
From Outside ........................................... 150
Keys ........................................................ 146
Using a Key ............................................. 156
Lockout Prevention System ...................... 157
Low Battery Charge .................................. 615
Low Fuel Indicator ...................................... 83
Low Oil Pressure Indicator ....................... 614
Lower Anchors ...................................... 63, 67
Luggage (Maximum Load Limit) .............. 403
Lumbar Support ........................................ 207
M
Maintenance..................................... 133, 527
Battery..................................................... 569
Brake Fluid............................................... 549
Cleaning .................................................. 575
Climate Control System ........................... 573
Coolant ................................................... 546
Maintenance Minder
TM............................ 531
Oil ........................................................... 542
Precautions .............................................. 528
Radiator................................................... 547
Remote Transmitter ......................... 571, 572
Replacing Light Bulbs ............................... 551
Safety ...................................................... 529
Service Items............................................ 535 Tires ........................................................ 560
Transmission Fluid ................................... 548
Under the Hood ...................................... 538
Malfunction Indicator Lamp .............. 78, 615
Map Lights ................................................ 220
Maximum Load Limit ............................... 403
Meters, Gauges ......................................... 126
Mirrors ...................................................... 204
Adjusting ................................................ 204
Door ....................................................... 205
Exterior ................................................... 205
Interior Rearview ..................................... 204
Modifications (and Accessories) .............. 580
MP3 ........................................................... 293
MP3/WMA/AAC ........................................ 293
Multi-Information Display ....................... 127
Switching the Display .............................. 129
Warning and Information Messages .......... 97
Multi-View Rear Camera .......................... 511
N
Navigation................................................ 132
Numbers (Identification) .......................... 636
O
Odometer................................................. 127
Off-Highway Driving Guidelines ............. 411
Oil (Engine) ............................................... 541
Adding .................................................... 543 Checking ................................................ 542
Displaying Oil Life ................................... 532
Low Oil Pressure Indicator ....................... 614
Oil Life .................................................... 133
Recommended Engine Oil ............... 541, 635
Viscosity.......................................... 541, 635
Open Source Licenses .............................. 330
Opening/Closing
Hood ...................................................... 539
Panoramic Roof ...................................... 179
Power Windows...................................... 176
Tailgate................................................... 163
Outside Temperature Display ................. 127
Overheating ............................................. 612
P
Paddle Shifters (Sequential Shift
Mode) ..................................................... 426
Panic Mode ............................................... 175
Panoramic Roof ........................................ 179
Parking ..................................................... 501
Parking Brake ........................................... 492
Parking Brake and Brake System
Indicator ................................................. 616
Parking Brake and Brake System Indicator (Amber) ..................................................... 76
Parking Brake and Brake System Indicator (Red) .................................. 75, 618
Parking Sensor System ............................. 503
Passenger Front Airbag Off Indicator ....... 56
20 ACURA RDX-31TJB6111.book 650 ページ ２０２０年２月１１日　火曜日　午後２時６分

651
Index
Passing Indicators..................................... 186
Playing Bluetooth ® Audio ....................... 296
Power Tailgate ......................................... 165
Power Windows ....................................... 176
Precautions While Driving ....................... 418
Driving Guidelines for Your Utility Vehicle .................................................. 418
Rain ........................................................ 418
Pregnant Women ....................................... 40
Puncture (Tire) ................................. 585, 593
R
Radar Sensor............................................ 491
Radiator .................................................... 547
Radio (AM/FM) ......................................... 273
Radio (SiriusXM ®)..................................... 277
Range ........................................................ 131
Readiness Codes (Emissions Testing) ...... 639
Rear Defogger/Heated Door Mirror Button ..................................................... 200
Rear Seats (Folding Down) ...................... 216
Rear Temperature Control Dial ............... 234
Rearview Mirror ....................................... 204
Refueling .......................................... 521, 631
Fuel Gauge ............................................. 126
Gasoline ......................................... 521, 634
Low Fuel Indicator..................................... 83
Regulations .............................. 442, 563, 637
Remote Engine Start with Vehicle
Feedback ................................................. 415 Remote Transmitter
................................. 155
Replacement
Battery ............................................ 571, 572
Bulbs ....................................................... 551
Fuses ....................................... 621, 624, 625
Rear Wiper Blade Rubber ......................... 558
Tires ........................................................ 566
Wiper Blade Rubber ................................. 555
Reporting Safety Defects ......................... 638
Resetting a Trip Meter ............................. 130
Reverse Tilt Door Mirror .......................... 205
Road Departure Mitigation (RDM) .......... 485
On and Off .............................................. 487
S
Safe Driving ................................................ 29
Safety Check ............................................... 34
Safety Labels ............................................... 72
Safety Message ............................................. 1
Seat Belts ..................................................... 35
Adjusting the Shoulder Anchor .................. 39
Automatic Seat Belt Tensioners .................. 37
Checking ................................................... 41
Fastening ................................................... 38
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 65
Pregnant Women ...................................... 40
Reminder ................................................... 36
Warning Indicator ................................ 36, 83
Seat Heaters .............................................. 228 Seats
.......................................................... 207
Adjusting ................................................ 207
Front Seats .............................................. 207
Lumbar Support ...................................... 207
Rear Seats ............................................... 216
Seat Control Interface ............................. 209
Seat Heaters .................................... 228, 229
Ventilation .............................................. 228
Security System ......................................... 173
Immobilizer System Indicator ..................... 88
Security System Alarm Indicator................. 88
Select Button Operation................................................ 422
Select Lever ......................................... 19, 420
Operation.................................................. 19
Selecting a Child Seat ................................. 62
Sequential Mode ...................................... 426
Setting the Clock ...................................... 144
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 439
Shift Lever ........................................... 19, 420
Shifting (Transmission) ....................... 19, 420
Shoulder Anchor ........................................ 39
Side Airbags ................................................ 52
Side Curtain Airbags .................................. 54
Siri Eyes Free ............................................. 301
SiriusXM ® Radio ........................................ 277
Snow Tires ................................................. 568
Spare Tire .......................................... 585, 635
Spark Plugs ............................................... 634
Specifications ............................................ 634
20 ACURA RDX-31TJB6111.book 651 ページ ２０２０年２月１１日　火曜日　午後２時６分
