tow Acura RDX 2020 Service Manual

593
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Vehicles with temporary tire repair kit
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistant to have
the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tires
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
20 ACURA RDX-31TJB6111.book 593 ページ ２０２０年２月１１日　火曜日　午後２時６分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
598
Handling the Unexpected
7. Press the inflator switch to turn on the
compressor.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete
continue to add air.
8. After the air pressure reaches 33 psi (230
kPa), turn off the kit.
After the air pressure reaches 36 psi (250
kPa), turn off the kit.
u To check the pressure , occasionally turn
off the compressor and read the gauge.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.Pressure
Gauge
ON
OFF
Models with 235/55R19 101H tires
Models with 255/45R20 101V tires
1 Injecting Sealant and Air
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal and your vehicle
will need to be towed.
See an Acura dealer for a replacement sealant bottle
and proper disposal of an empty bottle.
Sealant/Air Hose
20 ACURA RDX-31TJB6111.book 598 ページ ２０２０年２月１１日　火曜日　午後２時６分

601
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
5. Turn the selector switch to AIR.
u Do not turn the air compressor on to
check the pressure.
2 Inflating an Under-inflated Tire P. 604
6.If the air pressure is
• Less than 25 psi (175 kPa):
Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 628
•33 psi (230 kPa) or more:
• 36 psi (250 kPa) or more:
Continue driving for another 10 minutes
or until you reach the nearest service
station, whichever is sooner.
Do not exceed 50 mph (80 km/h). If you
have not reached a service station, stop
and check the tire pressure.
u If the air pressure does not go down
after the 10 minute driving, you do not
need to check the pressure any more.
AIR
ON
Models with 235/55R19 101H tires
Models with 255/45R20 101V tires
20 ACURA RDX-31TJB6111.book 601 ページ ２０２０年２月１１日　火曜日　午後２時６分

603
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

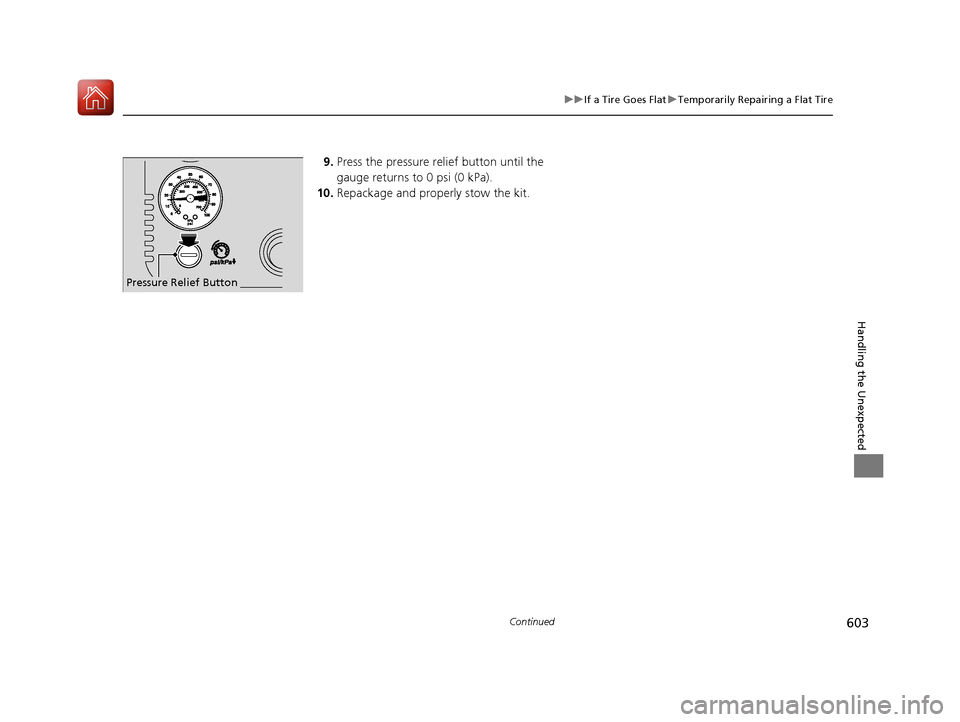

9. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
10. Repackage and properly stow the kit.
Pressure Relief Button
20 ACURA RDX-31TJB6111.book 603 ページ ２０２０年２月１１日　火曜日　午後２時６分

606
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
13. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
14. Unplug the kit from the accessory power
socket.
15. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
16. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
17. Repackage and proper ly stow the kit.
Pressure Relief Button
20 ACURA RDX-31TJB6111.book 606 ページ ２０２０年２月１１日　火曜日　午後２時６分

607
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 608
uMake sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button P. 182
Check brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 569●If the interior lights come on normally 2 Fuses P. 621
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 413
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 173
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 126
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 627
If the problem continues:
2Emergency Towing P. 628
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 610
20 ACURA RDX-31TJB6111.book 607 ページ ２０２０年２月１１日　火曜日　午後２時６分

620
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
• Change the gear position to
(N after
starting the engine.
u Check if the
(N position in the
instrument panel and the indicator on
the
(N button light/blink.
u The engine cannot be turned on unless
the parking brake is set.
2 Starting the Engine P. 413
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 628
20 ACURA RDX-31TJB6111.book 620 ページ ２０２０年２月１１日　火曜日　午後２時６分

628
Handling the Unexpected

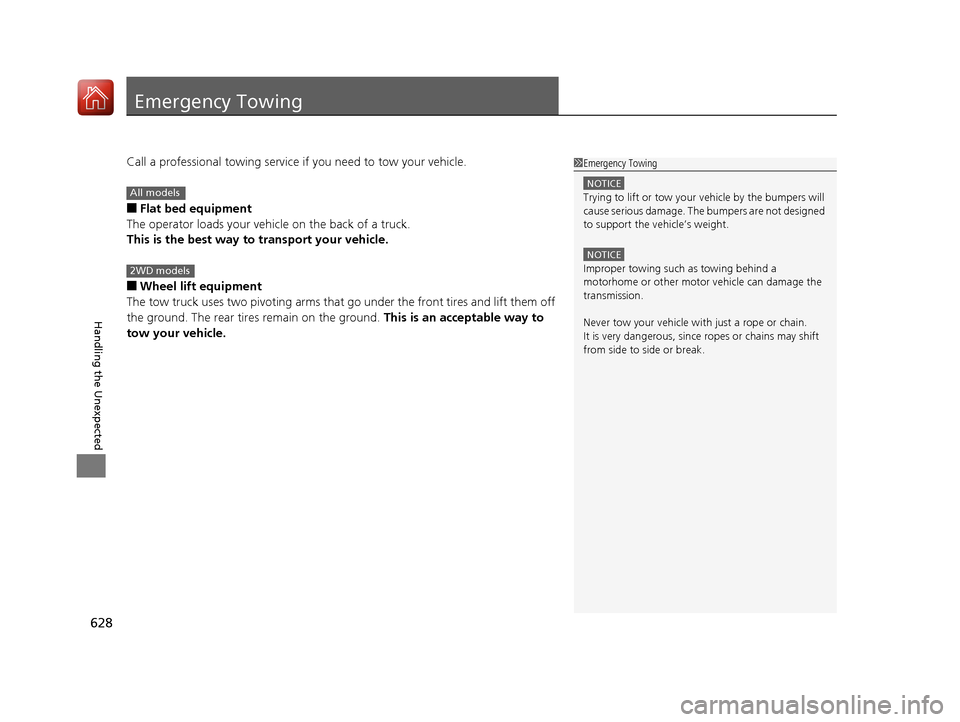

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
All models
2WD models
20 ACURA RDX-31TJB6111.book 628 ページ ２０２０年２月１１日　火曜日　午後２時６分

629
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the tailgate.
2. Push the tabs to open the cover on the left
side of cargo area.
3. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Tab
Tab
Release Cord
20 ACURA RDX-31TJB6111.book 629 ページ ２０２０年２月１１日　火曜日　午後２時６分

652
Index
Specified Fuel.................................... 521, 634
Speed Limit Information .......................... 128
Speed/Distance Units ................................ 134
Speedometer ............................................. 126
Sport Gauge Settings ................................ 135
SRS Airbags (Airbags) ................................. 45
Starting Assist Brake Function ................. 435
Starting the Engine .................................. 413
Does Not Start ......................................... 607
Jump Starting .......................................... 610
Remote Engine Start ................................ 415
Steering Wheel ......................................... 203
Adjusting ................................................. 203
Stopping .................................................... 501
Summer Tires ............................................ 568
Sunglasses Holder ..................................... 227
Super Handling-All Wheel Drive
TM
(SH-AWD® )............................................... 439
Supplemental Restraint System (SRS) ........ 45
Surround View Camera System ................ 513
Switches (Around the Steering Wheel) ............................................. 4, 5, 182
Synchronized Mode .................................. 233
System Message Indicator .......................... 89
System Updates ......................................... 262
T
Tachometer............................................... 134
Tailgate ..................................................... 163
Unable to Open ....................................... 630 Temperature
Gauge ..................................................... 126
Outside Temperature Display ................... 127
Temperature Sensor ......................... 127, 235
Temporary Tire Repair Kit ....................... 594
Tie-down Anchors .................................... 226
Time (Setting) ........................................... 144
Tire Fill Assist ............................................ 619
Tire Pressure Monitoring System (TPMS) ..................................................... 440
Indicator............................................ 86, 619
Tire Fill Assist ........................................... 619
Tire Repair Kit ........................................... 593
Tires ........................................................... 560
Air Pressure ..................................... 561, 635
Checking and Maintaining ...................... 560
Inspection ............................................... 560
Labeling .................................................. 561
Puncture (Flat Tire) .......................... 585, 593
Regulations ............................................. 563
Rotation .................................................. 567
Spare Tire ........................................ 585, 635
Summer .................................................. 568
Temporary Tire Re pair Kit ........................ 594
Tire Chains .............................................. 568
Tire Repair Kit.......................................... 593
Wear Indicators ....................................... 565
Winter..................................................... 568
Tools .......................................................... 584
Towing a Trailer ....................................... 405
Equipment and Accessories ..................... 407 Load Limits ............................................. 405
Towing Your Vehicle ............................... 410
Emergency .............................................. 628
TPMS (Tire Pressure Monitoring System) .................................................... 440
Indicator ........................................... 86, 619
Transmission ....................................... 19, 420
Automatic......................................... 19, 420
Fluid ....................................................... 548
Gear Position Indicator ...................... 79, 422
Indicator ................................................. 620
Number .................................................. 636
Sequential Shift Mode............................. 426
Transmission System
Indicator ................................................... 80
Trip Computer .......................................... 130
Trip Meter ................................................ 130
Troubleshooting ...................................... 583
Blown Fuse ............................. 621, 624, 625
Brake Pedal Vibrates ................................. 25
Buzzer Sounds When Opening Door ......... 26
Emergency Towing ................................. 628
Engine Won’t Start ................................. 607
Fuel Fill Door ........................................... 629
Noise When Braking ................................. 27
Overheating ............................................ 612
Puncture/Flat Tire ............................ 585, 593
Rear Door Won’t Open ..................... 25, 161
Tailgate................................................... 630
Warning Indicators.................................... 74
True Touchpad ......................................... 246
20 ACURA RDX-31TJB6111.book 652 ページ ２０２０年２月１１日　火曜日　午後２時６分
