Acura RDX 2020 Owner's Manual

550
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance
Refilling Window Washer Fluid
Open the cap and check the amount of window washer fluid.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the multi-information display.
Pour the washer fluid carefully. Do not overflow the reservoir.1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.CapCanadian models
20 ACURA RDX-31TJB6111.book 550 ページ ２０２０年２月１１日　火曜日　午後２時６分

551
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Front Turn Signal, Parking/Daytime Running and
Front Side Marker Lights
Front turn signal, parking/daytime running and front side marker lights are LED type.
Have an authorized Acura dealer in spect and replace the light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Acura dealer inspect and replace the
light assembly.
Side Turn Signal/Emer gency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
* Not available on all models
20 ACURA RDX-31TJB6111.book 551 ページ ２０２０年２月１１日　火曜日　午後２時６分

552
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Use a Phillips-head screwdriver to remove
the bolts.
3. Pull the light assembly out of the rear pillar.
Rear Turn Signal Light: 21 W (PY21W Amber/Silver)
Cover
Bolts
20 ACURA RDX-31TJB6111.book 552 ページ ２０２０年２月１１日　火曜日　午後２時６分

553
uuReplacing Light Bulbs uTaillights, Brake and Rear Side Marker Lights
Maintenance
4. Turn the socket counterclockwise and
remove it.
5. Remove the old bulb and insert a new bulb.
Taillights, Brake and Rear Side Marker Lights
Taillights, brake and rear side marker ligh ts are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Bulb
Socket
20 ACURA RDX-31TJB6111.book 553 ページ ２０２０年２月１１日　火曜日　午後２時６分

554
uuReplacing Light Bulbs uTaillights/Brake and Back-Up Lights
Maintenance
Taillights/Brake an d Back-Up Lights
Taillights/brake and back-up li ghts are LED type. Have an authorized Acura dealer
inspect and replace the light assembly.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Puddle Lights*
Puddle lights are LED type. Have an author ized Acura dealer inspect and replace the
light assembly.
* Not available on all models
20 ACURA RDX-31TJB6111.book 554 ページ ２０２０年２月１１日　火曜日　午後２時６分

555Continued
Maintenance

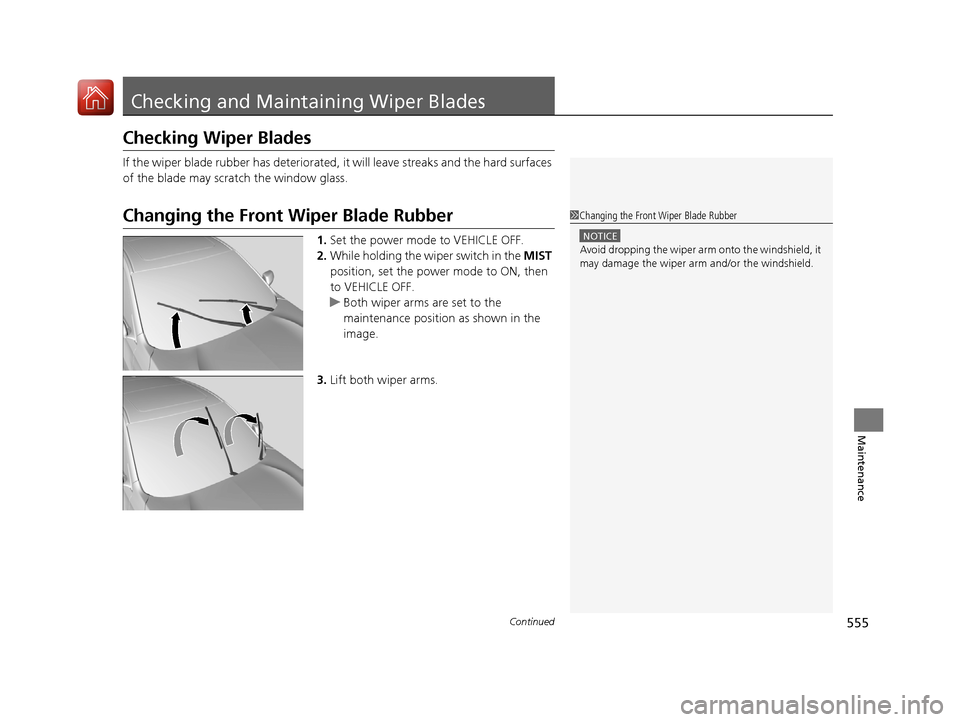

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1.Set the power mode to VEHICLE OFF.
2. While holding the wiper switch in the MIST
position, set the power mode to ON, then
to VEHICLE OFF.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
1Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
20 ACURA RDX-31TJB6111.book 555 ページ ２０２０年２月１１日　火曜日　午後２時６分

556
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance

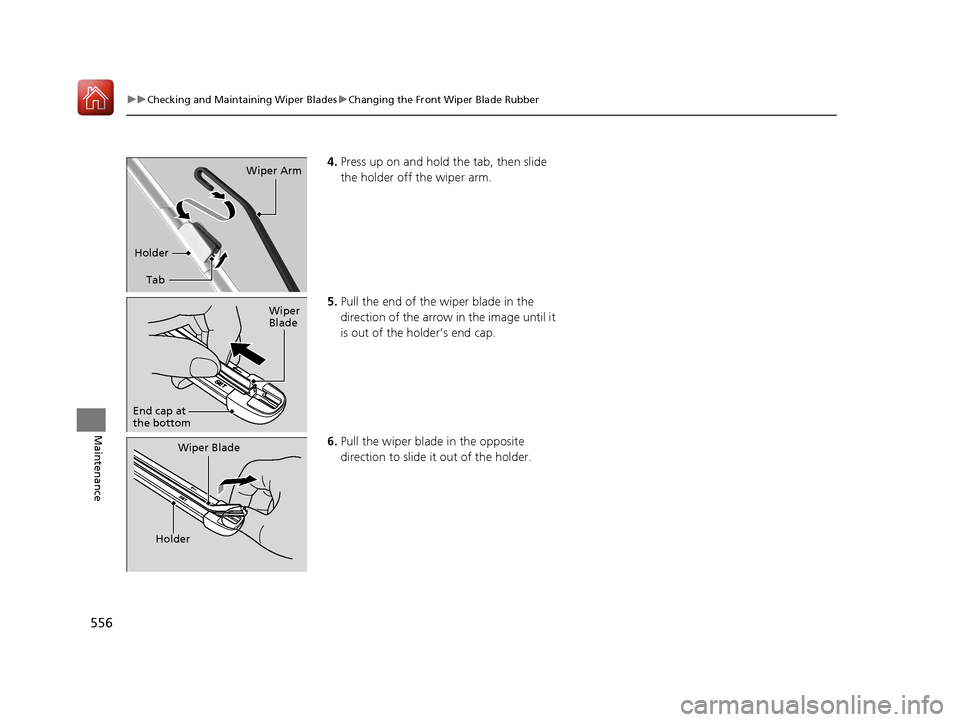

4. Press up on and hold the tab, then slide
the holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.
Tab
Holder
Wiper Arm
Wiper
Blade
End cap at
the bottom
Wiper Blade
Holder
20 ACURA RDX-31TJB6111.book 556 ページ ２０２０年２月１１日　火曜日　午後２時６分

557
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance

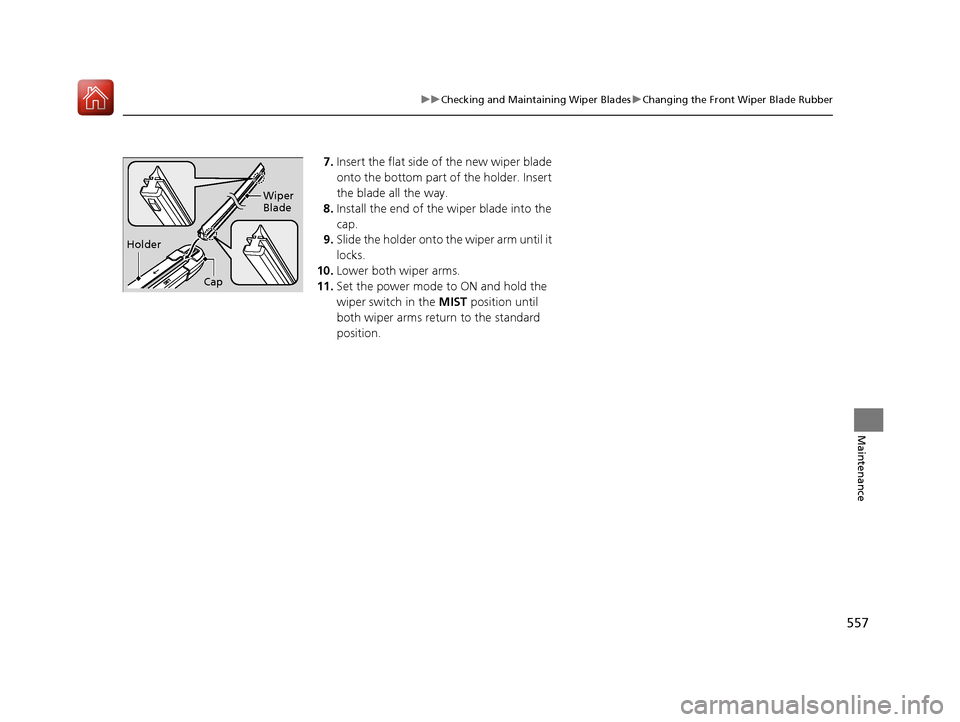

7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto the wiper arm until it
locks.
10. Lower both wiper arms.
11. Set the power mode to ON and hold the
wiper switch in the MIST position until
both wiper arms return to the standard
position.
Holder Wiper
Blade
Cap
20 ACURA RDX-31TJB6111.book 557 ページ ２０２０年２月１１日　火曜日　午後２時６分

558
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance
Changing the Rear Wiper Blade Rubber
1. Raise the wiper arm off.
2. Slide the wiper blade out from the end with
the indent.
3. Remove the retainers from wiper blade and
mount to a new rubber blade.1Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m, it may damage the
rear window.
Blade
Retainer
Rubber
20 ACURA RDX-31TJB6111.book 558 ページ ２０２０年２月１１日　火曜日　午後２時６分

559
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance

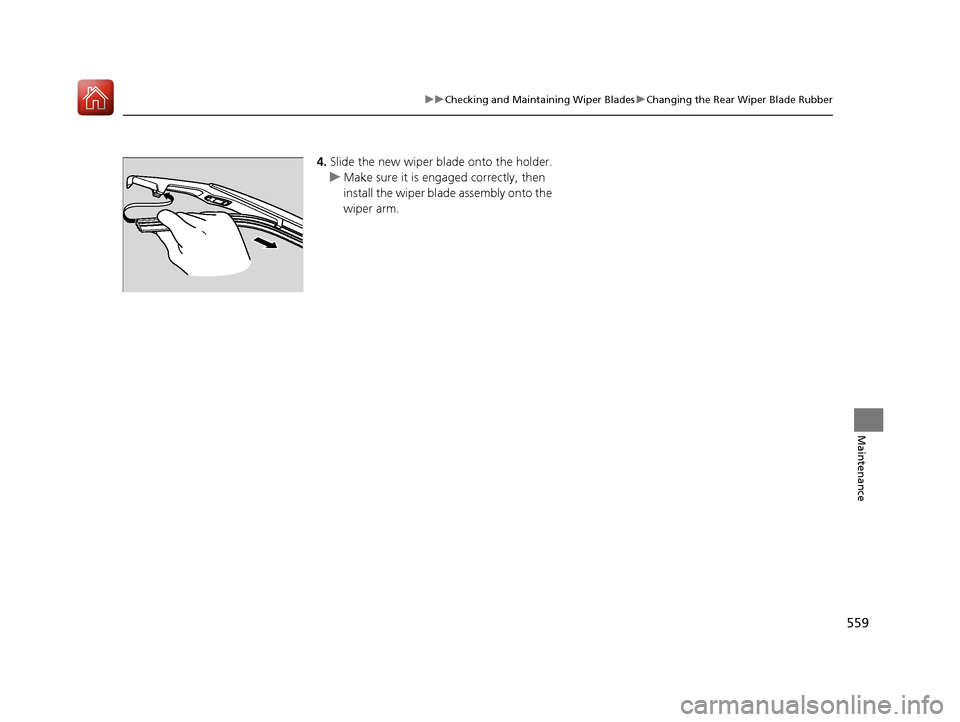

4. Slide the new wiper bl ade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.
