jump start Acura RDX 2020 Owner's Manual

Contents
Child Safety P. 58Exhaust Gas Hazard P. 71Safety Labels P. 72
Opening and Closing the Tailgate P. 163 Security System P. 173 Opening and Closing the Windows P. 176
Operating the Switches Around the Steering Wheel P. 182 Adjusting the Mirrors P. 204
Interior Lights/Interior Convenience Items P. 219 Climate Control System P. 230
Audio Error Messages P. 310General Information on the Audio System P. 313
Bluetooth ® HandsFreeLink ® P. 361
Off-Highway Driving Guidelines P. 411 When Driving P. 413 AcuraWatchTM P. 447
Multi-View Rear Camera P. 511 Surround View Camera System*P. 513 Refueling P. 521
Maintenance Under the Hood P. 538 Replacing Light Bulbs P. 551
Checking and Maintaining Tires P. 560 Battery P. 569 Remote Transmitter Care P. 571
Accessories and Modifications P. 580
Engine Does Not Start P. 607 Jump Starting P. 610Overheating P. 612
Emergency Towing P. 628When You Cannot Open the Tailgate P. 630Refueling P. 631
Devices that Emit Radio Waves P. 637 Reporting Safety Defects P. 638 Emissions Testing P. 639
Client Service Information P. 644
Quick Reference GuideP. 4
Safe DrivingP. 29
Instrument PanelP. 73
ControlsP. 143
FeaturesP. 237
DrivingP. 399
MaintenanceP. 527
Handling the UnexpectedP. 583
InformationP. 633
IndexP. 645
20 ACURA RDX-31TJB6111.book 3 ページ ２０２０年２月１１日　火曜日　午後２時６分

24
Quick Reference Guide
Handling the Unexpected (P 583)
Flat Tire (P 585)
● Park in a safe location and repair the flat
tire using the tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P 614)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with a compact spare tire
Engine Won’t Start (P 607)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 621)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 612)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P 628)
● Call a professional towing service if you
need to tow your vehicle.
20 ACURA RDX-31TJB6111.book 24 ページ ２０２０年２月１１日　火曜日　午後２時６分

492
Driving
Braking
Brake System
Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can ma nually or automatically release it.
■To apply
The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the power mode is in.
Press the electric parking brake switch gently
and securely. u The indicator in the switch comes on.
u The Parking Brake and Brake System
indicator (red) comes on.
■Parking Brake1Brake System
When you depress the brak e pedal, you may hear a
whirring sound coming from the engine
compartment while the brake system activates. This is
normal.
1 Parking Brake
You may hear the electric parking brake system
motor operating from the re ar wheel area when you
apply or release the parking brake. This is normal.
The brake pedal may slightly move due to the electric
parking brake system opera tion when you apply or
release the parking br ake. This is normal.
You cannot apply or release the parking brake if the
battery goes dead.
2 Jump Starting P. 610
If you press and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the VSA ® system until the
vehicle comes to a stop. The electric parking
brake then applies, and the switch should be
released.Electric Parking
Brake Switch
20 ACURA RDX-31TJB6111.book 492 ページ ２０２０年２月１１日　火曜日　午後２時６分

583
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 584
If a Tire Goes Flat
Changing a Flat Tire ......................... 585
Temporarily Repairi ng a Flat Tire....... 593
Engine Does Not Start Checking the Engine ........................ 607
If the Keyless Access Remote Battery is Weak ............................................. 608
Emergency Engine Stop ................... 609
Jump Starting .................................... 610
Vehicles with a compact spare tire
Vehicles with temporary tire repair kit
Overheating
How to Handle Overheating............. 612
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ... 614If the Charging System Indicator Comes On... 615If the Malfunction Indicator Lamp Comes On or Blinks ................................... 615
If the Brake System Indicator (Red) Comes
On or Blinks ....................................... 616
If the Electric Power Steering (EPS) System
Indicator Comes On ........................... 617
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .....618
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 619
If the Transmission System Indicator Blinks along with the Warning Message .... 620
Fuses
Fuse Locations ................................. 621
Inspecting and Changing Fuses ........ 627
Emergency Towing ........................... 628
When You Cannot Unlock the Fuel Fill Door ................................................. 629
When You Cannot Open the Tailgate.. 630Refueling ........................................... 631
20 ACURA RDX-31TJB6111.book 583 ページ ２０２０年２月１１日　火曜日　午後２時６分

607
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 608
uMake sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button P. 182
Check brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 569●If the interior lights come on normally 2 Fuses P. 621
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 413
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 173
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 126
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 627
If the problem continues:
2Emergency Towing P. 628
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 610
20 ACURA RDX-31TJB6111.book 607 ページ ２０２０年２月１１日　火曜日　午後２時６分

610
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jump er cable to your
vehicle’s battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
20 ACURA RDX-31TJB6111.book 610 ページ ２０２０年２月１１日　火曜日　午後２時６分

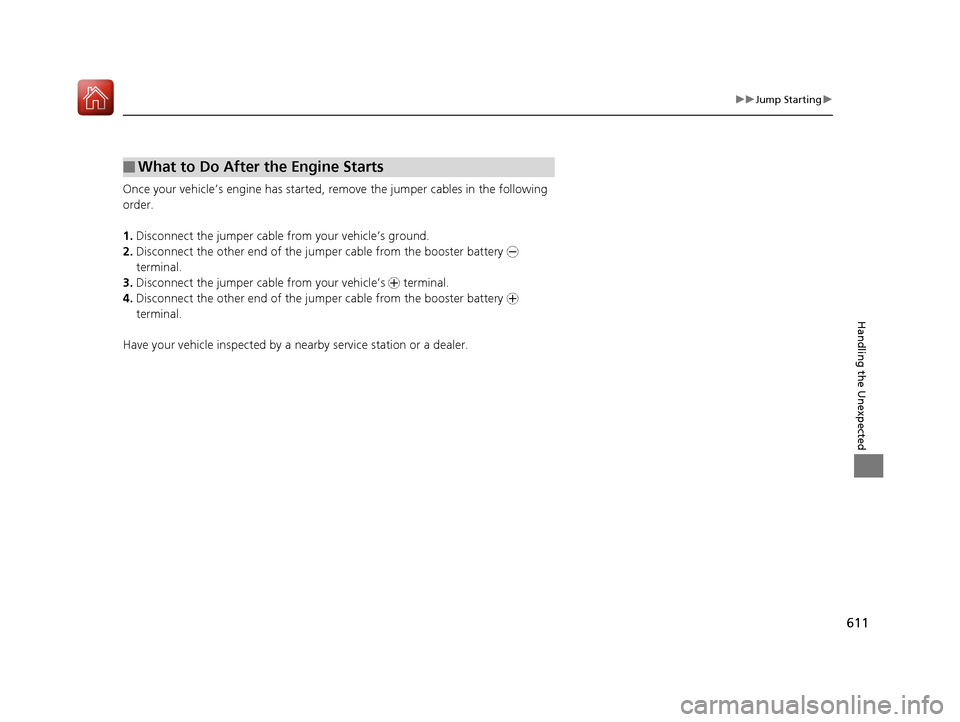

611
uuJump Starting u
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper ca ble from your vehicle’s + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
20 ACURA RDX-31TJB6111.book 611 ページ ２０２０年２月１１日　火曜日　午後２時６分

646
Index
Automatic Transmission........................... 419
Creeping ................................................. 419
Fluid ........................................................ 548
Kickdown ................................................ 419
Operating the Shift Button....................... 422
Sequential Shift Mode ............................. 426
Shifting.................................................... 420
Auxiliary Input Jack .................................. 241
Average Fuel Economy ............................. 131
AWD .......................................................... 439
B
Battery ....................................................... 569
Charging System Indicator ................. 79, 615
Jump Starting .......................................... 610
Maintenance (Checking the Battery) ........ 569
Belts (Seat) .................................................. 35
Beverage Holders ...................................... 223
Blind spot information System ................ 444
Bluetooth ® Audio ..................................... 296
Bluetooth ® HandsFreeLink ®..................... 361
Booster Seats (For Children) ....................... 70
Brake System ............................................. 492
Anti-lock Brake System (ABS) ................... 499
Automatic Brake Hold.............................. 497
Brake Assist System ................................. 500
Fluid ........................................................ 549
Foot Brake ............................................... 496
Indicator ...................................... 75, 76, 616
Indicator (Red) ......................................... 618 Parking Brake .......................................... 492
Brightness Control (Instrument Panel) .... 198
Built-in Key ............................................... 147
Bulb Replacement .................................... 551
Fog Lights ............................................... 551
Front Turn Signal, Parking/Daytime Running and Front Side Marker Lights ... 551
Headlights ............................................... 551
High-Mount Brake Light .......................... 554
Puddle Lights........................................... 554
Rear License Plate Light ........................... 554
Rear Turn Signal Light Bulbs .................... 552
Side Turn Signal/Emergency Indicator Lights .................................................... 551
Taillights, Brake and Rear Side Marker Lights .................................................... 553
Taillights/Brake and Back-Up Lights ......... 554
Bulb Specifications ................................... 634
C
CAMERA Button....................................... 514
Carbon Monoxide Gas ............................... 71
Carrying Cargo ................................. 401, 403
Certification Label .................................... 636
Changing Bulbs ........................................ 551
Charging System Indicator ................. 79, 615
Child Safety ................................................. 58
Childproof Door Locks............................. 161
Child Seat .................................................... 58
Booster Seats ............................................ 70 Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 65
Larger Children ......................................... 69
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 161
Cleaning the Exterior ............................... 577
Cleaning the Interior ............................... 575
Client Service Information ....................... 644
Climate Control System ........................... 230
Changing the Mode................................ 230
Defrosting the Windshield and
Windows .............................................. 232
Dust and Pollen Filter .............................. 574
Rear Temperature Control Dial ................ 234
Recirculation/Fresh Air Mode................... 230
Sensors ................................................... 235
Synchronized Mode ................................ 233
Using Automatic Climate Control............ 230
Clock ......................................................... 144
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 450
Coat Hook ................................................ 225
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 450
Compact Spare Tire .......................... 585, 635
Console Compartment ............................. 222
Controls .................................................... 143
20 ACURA RDX-31TJB6111.book 646 ページ ２０２０年２月１１日　火曜日　午後２時６分

647
Index
Coolant (Engine)...................................... 546
Adding to the Radiator ........................... 547
Adding to the Reserve Tank .................... 546
Overheating ............................................ 612
Creeping (Automatic Transmission) ........ 419
Cross Traffic Monitor ............................... 507
Cup Holders .............................................. 223
Customized Features ............................... 335
D
Daytime Running Lights .......................... 190
Dead Battery ............................................ 610
Defaulting All the Settings ...................... 357
Defrosting the Windshield and Windows ................................................. 232
Devices that Emit Radio Waves ............... 637
Dimming
Headlights .............................................. 186
Rearview Mirror ...................................... 204
Dipstick (Engine Oil) ................................ 542
Directional Signals (Turn Signal) ............. 185
Door Mirrors ............................................. 205
Doors ........................................................ 146
Auto Door Locking.................................. 162
Auto Door Unlocking .............................. 162
Keys........................................................ 146
Locking/Unlocking the Doors from the Inside .................................................... 159
Locking/Unlocking the Doors from the
Outside ................................................. 150 Lockout Prevention System ...................... 157
DOT Tire Quality Grading ........................ 563
Driving ....................................................... 399
Automatic Transmission ........................... 419
Braking .................................................... 492
Off-Highway Driving Guidelines ............... 411
Shifting Gear ........................................... 420
Starting the Engine .................................. 413
Driving Position Memory System ............. 201
Dust and Pollen Filter ............................... 574
Dynamic Mode Switch .............................. 428
E
Electric Parking Brake
Switch ..................................................... 492
Electric Power Steering (EPS) System Indicator ............................................ 84, 617
Electronic Stability Control (ESC) ............. 436
Emergency ................................................ 628
Emissions Testing (Readiness Codes) ....... 639
Engine ....................................................... 636
Coolant ................................................... 546
Jump Starting .......................................... 610
Oil ........................................................... 541
Remote Engine Start ................................ 415
Starting ................................................... 413
Engine Compartment Cover .................... 540
Engine Coolant ......................................... 546
Adding to the Radiator ............................ 547
Adding to the Reserve Tank ..................... 546 Overheating ............................................ 612
Temperature Gauge ................................ 126
Engine Oil ................................................. 541
Adding .................................................... 543
Checking................................................. 542
Displaying Oil Life .................................... 532
Low Oil Pressure Indicator ....................... 614
Recommended Engine Oil ....................... 541
ENGINE START/STOP Button .................... 182
EPS (Electric Power Steering) System ...... 617
Exhaust Gas Hazard (Carbon Monoxide) .. 71
Exterior Care (Cleaning) ........................... 577
Exterior Mirrors ........................................ 205F
Features.................................................... 237
Filters
Dust and Pollen ....................................... 574
Oil ........................................................... 544
Flat Tire ............................................. 585, 593
Floor Mats ................................................. 576
Fluids Automatic Transmission .......................... 548
Brake ...................................................... 549
Engine Coolant ....................................... 546
Windshield Washer ................................. 550
FM/AM Radio ............................................ 273
Fog Lights Indicator.................................................... 87
Folding Down the Rear Seats .................. 216
20 ACURA RDX-31TJB6111.book 647 ページ ２０２０年２月１１日　火曜日　午後２時６分

649
Index
Auto Idle Stop (Green) .............................. 82
Auto Idle Stop System (Amber) ................. 82
Automatic Brake Hold ....................... 77, 497
Automatic Brake Hold System ........... 77, 497
Blind spot information System................... 96
Charging System............................... 79, 615
Collision Mitigation Braking System
TM
(CMBSTM) ................................................ 93
Electric Power Steering (EPS) System ............................................ 84, 617
Fog Light .................................................. 87
Gear Position ............................................ 79
High Beam ................................................ 87
Immobilizer System ................................... 88
Lane Keeping Assist System (LKAS) (Amber) .................................................. 91
Lane Keeping Assist System (LKAS)
(Green) ........................................... 91, 479
Lights On .................................................. 87
Low Fuel ................................................... 83
Low Oil Pressure ..................................... 614
Low Tire Pressure/TPMS .................... 86, 619
M (sequential mode) Indicator/Gear Selection Indicator................................... 79
Maintenance Minder................................. 90
Malfunction Indicator Lamp .............. 78, 615
Parking Brake and Brake System (Amber) .......................................... 76, 618
Parking Brake and Brake System (Red) ....................................... 75, 616, 618
Road Departure Mitigation (RDM) ............. 92 Safety Support (Amber) ............................. 92
Seat Belt Reminder .............................. 36, 83
Security System Alarm ............................... 88
Super Handling-All Wheel Drive
TM
(SH-AWD® ) .............................................. 90
Supplemental Restraint System ............ 55, 84
System Message ........................................ 89
Transmission System .......................... 80, 620
Turn Signal and Haza rd Warning ............... 87
Vehicle Stability Assist
TM (VSA ®) OFF ........... 85
Vehicle Stability AssistTM (VSA ®)
System............................................. 85, 436
VSA ® OFF ................................................ 437
Information ............................................... 633
Instant Fuel Economy ............................... 131
Instrument Panel ........................................ 73
Brightness Control ................................... 198
Integrated Dynamics System .................... 428
Dynamic Mode button ............................. 428
Interior Lights ........................................... 219
Interior Rearview Mirror .......................... 204
iPad ............................................................ 314
iPhone ....................................................... 314
iPod ................................................... 290, 314
J
Jack (Wheel Nut Wrench) ........................ 589
Jump Starting ........................................... 610
K
Key Number Tag ....................................... 148
Keyless Access System .............................. 150
Keyless Lockout Prevention ..................... 157
Keys ........................................................... 146
Lockout Prevention.................................. 157
Number Tag ............................................ 148
Rear Door Won’t Open............................ 161
Remote Transmitter ................................. 155
Two-way Keyless Access Remote ..... 158, 415
Types and Functions ................................ 146
Kickdown (Automatic Transmission) ....... 419
Knee Airbags .............................................. 49
L
Lane Keeping Assist System (LKAS) ......... 477
LATCH (Child Seats) .............................. 63, 67
Legal Information .................................... 328
License Information ................................. 331
Lights ................................................. 186, 551
Automatic ............................................... 187
Bulb Replacement ................................... 551
Daytime Running Lights........................... 190
Fog Lights ............................................... 190
High Beam Indicator .................................. 87
Interior .................................................... 219
Light Switches ......................................... 186
Lights On Indicator .................................... 87
Turn Signals and Hazard Warning............ 185
Load Limits ................................................ 403
20 ACURA RDX-31TJB6111.book 649 ページ ２０２０年２月１１日　火曜日　午後２時６分
