service indicator Acura RDX 2020 Owner's Manual

24

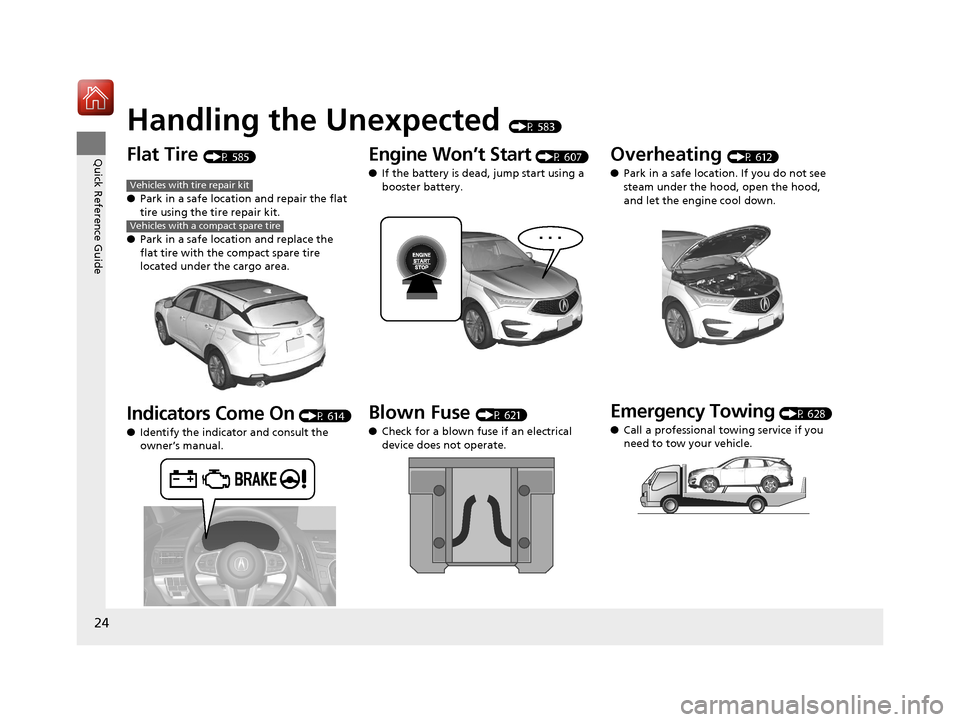

Quick Reference Guide
Handling the Unexpected (P 583)
Flat Tire (P 585)
● Park in a safe location and repair the flat
tire using the tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P 614)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with a compact spare tire
Engine Won’t Start (P 607)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 621)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 612)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P 628)
● Call a professional towing service if you
need to tow your vehicle.
20 ACURA RDX-31TJB6111.book 24 ページ ２０２０年２月１１日　火曜日　午後２時６分

521
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause oc casional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of a gasoline with a pump octane less than 87 can lead to engine damage.
The use of regular unleaded gasoline ca n cause metallic knocking noises in the
engine and will result in decreased engine performance.
■Top tier detergent gasoline
Because the level of detergency and additi ves in gasoline vary in the market, Acura
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related informati on for your vehicle, or on information on
gasoline that does not contain MMT, visit Acura Owners at owners.acura.com In
Canada, visit www.acura.ca for additional informati on on gasoline. For more
information on top tier gasoline, visit www.toptiergas.com.
■Fuel tank capacity: 17.1 US gal (64.7 L)
Unleaded premium gasoline, pump octane number 91 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service. Some
gasoline today is blended with oxygenates such as
ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
20 ACURA RDX-31TJB6111.book 521 ページ ２０２０年２月１１日　火曜日　午後２時６分

527
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 528
Safety When Performing Maintenance ..529
Parts and Fluids Used in Maintenance Service ........................................... 530
Maintenance Minder
TM..................... 531
Maintenance Under the Hood Maintenance Items Under the Hood .. 538
Opening the Hood ........................... 539
Engine Compartment Cover ............. 540
Recommended Engine Oil ................ 541
Oil Check ......................................... 542
Adding Engine Oil ............................ 543 Changing the Engine Oi
l and Oil Filter... 544
Engine Coolant ................................ 546
Transmission Fluid ............................ 548
Brake Fluid ....................................... 549
Refilling Window Wa sher Fluid......... 550
Replacing Light Bulbs ....................... 551Checking and Maintaining Wiper
Blades .......................................... 555
Checking and Maintaining Tires
Checking Tires ................................. 560
Tire and Loading Information Label .. 561
Tire Labeling .................................... 561
DOT Tire Quality Grading (U.S. Vehicles).. 563
Wear Indicators ............................... 565
Tire Service Life ................................ 565
Tire and Wheel Replacement ........... 566
Tire Rotation .................................... 567
Winter Tires ..................................... 568
Battery ............................................... 569
Remote Transmitter Care Replacing the Button Battery ........... 571
Climate Control System Maintenance.. 573Cleaning
Interior Care .................................... 575
Exterior Care.................................... 577
Accessories and Modifications ........ 580
20 ACURA RDX-31TJB6111.book 527 ページ ２０２０年２月１１日　火曜日　午後２時６分

534
uuMaintenance MinderTMuTo Use Maintenance MinderTM
MaintenanceThe maintenance minder indicator ( ) come s on along with the Maintenance message.
Maintenance MessageOil Life DisplayExplanationInformation
Maintenance Due Now5%The remaining engine oil life is 5 to 1
percent. Roll the right selector wheel
to switch to another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.
Maintenance Past DueNegative DistanceThe remaining engine oil life has
passed its service life, and a negative
distance appears after driving over 10
miles (U.S. models) or 10 km
(Canadian models). Roll the right
selector wheel to switch to another
display.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
20 ACURA RDX-31TJB6111.book 534 ページ ２０２０年２月１１日　火曜日　午後２時６分

535
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
Main
Item Sub
ItemsMaintenance Minder Indicator
System Message Indicator
U.S. models
*1: If a Maintenance Minder Indicator and message does not appear more than 12 months after the
display is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair Kit bottle (If
equipped)
●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lin es (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of
mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions, have
the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer* fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*4
7●Replace brake fluid*5
* Not available on all models
20 ACURA RDX-31TJB6111.book 535 ページ ２０２０年２月１１日　火曜日　午後２時６分

536
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder Indicator and message does not appear more than 12 months after the
display is reset, change the engine oil every year.
*2: If you drive in dusty conditions, replace every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder.
If you regularly drive your vehicle under these conditions, have the differential fluid changed at 12,000
km (7,500 miles), then every 24,000 km (15,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fl uid and transfer fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*4
7●Replace brake fluid*5
9●Service front and rear brakes●Inspect these items:
•Tie rod ends, steeri ng gearbox, and boots
•Suspension components
•Driveshaft boots
•Brake hoses and lines (including ABS/VSA®)
•All fluid levels and condition of fluids
•Exhaust system#
•Fuel lines and connections#
20 ACURA RDX-31TJB6111.book 536 ページ ２０２０年２月１１日　火曜日　午後２時６分

565
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and in flation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare
*, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
Example of a Wear
Indicator mark
* Not available on all models
20 ACURA RDX-31TJB6111.book 565 ページ ２０２０年２月１１日　火曜日　午後２時６分

620
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
• Change the gear position to
(N after
starting the engine.
u Check if the
(N position in the
instrument panel and the indicator on
the
(N button light/blink.
u The engine cannot be turned on unless
the parking brake is set.
2 Starting the Engine P. 413
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 628
20 ACURA RDX-31TJB6111.book 620 ページ ２０２０年２月１１日　火曜日　午後２時６分

646
Index
Automatic Transmission........................... 419
Creeping ................................................. 419
Fluid ........................................................ 548
Kickdown ................................................ 419
Operating the Shift Button....................... 422
Sequential Shift Mode ............................. 426
Shifting.................................................... 420
Auxiliary Input Jack .................................. 241
Average Fuel Economy ............................. 131
AWD .......................................................... 439
B
Battery ....................................................... 569
Charging System Indicator ................. 79, 615
Jump Starting .......................................... 610
Maintenance (Checking the Battery) ........ 569
Belts (Seat) .................................................. 35
Beverage Holders ...................................... 223
Blind spot information System ................ 444
Bluetooth ® Audio ..................................... 296
Bluetooth ® HandsFreeLink ®..................... 361
Booster Seats (For Children) ....................... 70
Brake System ............................................. 492
Anti-lock Brake System (ABS) ................... 499
Automatic Brake Hold.............................. 497
Brake Assist System ................................. 500
Fluid ........................................................ 549
Foot Brake ............................................... 496
Indicator ...................................... 75, 76, 616
Indicator (Red) ......................................... 618 Parking Brake .......................................... 492
Brightness Control (Instrument Panel) .... 198
Built-in Key ............................................... 147
Bulb Replacement .................................... 551
Fog Lights ............................................... 551
Front Turn Signal, Parking/Daytime Running and Front Side Marker Lights ... 551
Headlights ............................................... 551
High-Mount Brake Light .......................... 554
Puddle Lights........................................... 554
Rear License Plate Light ........................... 554
Rear Turn Signal Light Bulbs .................... 552
Side Turn Signal/Emergency Indicator Lights .................................................... 551
Taillights, Brake and Rear Side Marker Lights .................................................... 553
Taillights/Brake and Back-Up Lights ......... 554
Bulb Specifications ................................... 634
C
CAMERA Button....................................... 514
Carbon Monoxide Gas ............................... 71
Carrying Cargo ................................. 401, 403
Certification Label .................................... 636
Changing Bulbs ........................................ 551
Charging System Indicator ................. 79, 615
Child Safety ................................................. 58
Childproof Door Locks............................. 161
Child Seat .................................................... 58
Booster Seats ............................................ 70 Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 65
Larger Children ......................................... 69
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 161
Cleaning the Exterior ............................... 577
Cleaning the Interior ............................... 575
Client Service Information ....................... 644
Climate Control System ........................... 230
Changing the Mode................................ 230
Defrosting the Windshield and
Windows .............................................. 232
Dust and Pollen Filter .............................. 574
Rear Temperature Control Dial ................ 234
Recirculation/Fresh Air Mode................... 230
Sensors ................................................... 235
Synchronized Mode ................................ 233
Using Automatic Climate Control............ 230
Clock ......................................................... 144
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 450
Coat Hook ................................................ 225
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 450
Compact Spare Tire .......................... 585, 635
Console Compartment ............................. 222
Controls .................................................... 143
20 ACURA RDX-31TJB6111.book 646 ページ ２０２０年２月１１日　火曜日　午後２時６分

650
Index
Locking/Unlocking.................................... 146
Auto Door Locking/Unlocking .................. 162
Childproof Door Locks ............................. 161
From Inside .............................................. 159
From Outside ........................................... 150
Keys ........................................................ 146
Using a Key ............................................. 156
Lockout Prevention System ...................... 157
Low Battery Charge .................................. 615
Low Fuel Indicator ...................................... 83
Low Oil Pressure Indicator ....................... 614
Lower Anchors ...................................... 63, 67
Luggage (Maximum Load Limit) .............. 403
Lumbar Support ........................................ 207
M
Maintenance..................................... 133, 527
Battery..................................................... 569
Brake Fluid............................................... 549
Cleaning .................................................. 575
Climate Control System ........................... 573
Coolant ................................................... 546
Maintenance Minder
TM............................ 531
Oil ........................................................... 542
Precautions .............................................. 528
Radiator................................................... 547
Remote Transmitter ......................... 571, 572
Replacing Light Bulbs ............................... 551
Safety ...................................................... 529
Service Items............................................ 535 Tires ........................................................ 560
Transmission Fluid ................................... 548
Under the Hood ...................................... 538
Malfunction Indicator Lamp .............. 78, 615
Map Lights ................................................ 220
Maximum Load Limit ............................... 403
Meters, Gauges ......................................... 126
Mirrors ...................................................... 204
Adjusting ................................................ 204
Door ....................................................... 205
Exterior ................................................... 205
Interior Rearview ..................................... 204
Modifications (and Accessories) .............. 580
MP3 ........................................................... 293
MP3/WMA/AAC ........................................ 293
Multi-Information Display ....................... 127
Switching the Display .............................. 129
Warning and Information Messages .......... 97
Multi-View Rear Camera .......................... 511
N
Navigation................................................ 132
Numbers (Identification) .......................... 636
O
Odometer................................................. 127
Off-Highway Driving Guidelines ............. 411
Oil (Engine) ............................................... 541
Adding .................................................... 543 Checking ................................................ 542
Displaying Oil Life ................................... 532
Low Oil Pressure Indicator ....................... 614
Oil Life .................................................... 133
Recommended Engine Oil ............... 541, 635
Viscosity.......................................... 541, 635
Open Source Licenses .............................. 330
Opening/Closing
Hood ...................................................... 539
Panoramic Roof ...................................... 179
Power Windows...................................... 176
Tailgate................................................... 163
Outside Temperature Display ................. 127
Overheating ............................................. 612
P
Paddle Shifters (Sequential Shift
Mode) ..................................................... 426
Panic Mode ............................................... 175
Panoramic Roof ........................................ 179
Parking ..................................................... 501
Parking Brake ........................................... 492
Parking Brake and Brake System
Indicator ................................................. 616
Parking Brake and Brake System Indicator (Amber) ..................................................... 76
Parking Brake and Brake System Indicator (Red) .................................. 75, 618
Parking Sensor System ............................. 503
Passenger Front Airbag Off Indicator ....... 56
20 ACURA RDX-31TJB6111.book 650 ページ ２０２０年２月１１日　火曜日　午後２時６分
